makk Posted February 23, 2022 Share Posted February 23, 2022 I was looking at making a DSDT. But all the instructions, the instructional pages, I have come across doesn't work for today's systems. For instance using MaciASL 5.02A causes issues with the system bootloaders as they have progressed to keep up with the evolution of. So the old stuff don't work on new stuff. What happened was I am using MaciASL version 1.62 the newest and updated one. 1 I did the old school way as prescribed by Rehabman. which works for older ones ( or maybe I'm not seeing the fine line_ 2 after extracting the DSDT to make a DSDT.dsl, was not able to due the nature of the beast, was not able to save as DSDT.aml<> tons of errors filled the page. This is after patching too! WTF!! The old DSDT in this system which is 2015 make and model HP works with that years DSDT MaciASL, but I don' have that years MaciASL any longer. And when I tried to make a new one with the new MaciASL I got the can't do it man messages. Therein does anybody have a proven method that works without all the errors that are able to be fixed without searching allover the NET? Thank you for taking the time to hear my frustration! Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/ Share on other sites More sharing options...
MaLd0n Posted February 23, 2022 Share Posted February 23, 2022 what ur hardware? run this app and post files generated in ur desktop https://olarila.com/files/Utils/ACPIExtractAll.app.zip Dont use any acpi rename Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777268 Share on other sites More sharing options...
makk Posted February 24, 2022 Author Share Posted February 24, 2022 21 hours ago, MaLd0n said: what ur hardware? run this app and post files generated in ur desktop https://olarila.com/files/Utils/ACPIExtractAll.app.zip Dont use any acpi rename @MaLd0n Thank you so much! I have struggled with getting a clean DSDT.dsl to work with A few errors I have not been able to overcome. I followed Rehabman's guide to the letter and still I have errors from extracting. I will post in a bit thank you! Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777306 Share on other sites More sharing options...
makk Posted February 24, 2022 Author Share Posted February 24, 2022 @MaLd0n attached files here: Thank you ACPI .zip bootlog.txt kernel.log Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777307 Share on other sites More sharing options...
MaLd0n Posted February 24, 2022 Share Posted February 24, 2022 u have some acpi renames like _osi to xosi. we don't need it. remove all acpi renames, reboot and extract files Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777311 Share on other sites More sharing options...
makk Posted February 24, 2022 Author Share Posted February 24, 2022 (edited) 1 hour ago, MaLd0n said: u have some acpi renames like _osi to xosi. we don't need it. remove all acpi renames, reboot and extract files @MaLd0n Will do Thank you some of the renames are XHC... should this be XHCI in the DSDT? Along with EHC1 and EHC2 @MaLd0n Question: the renames are in config.plist patches as well for XOSI should I remove them as well? the other is DSM to XDSM < should I leave or remove? Next Question: Should I put in SSDT's from this ACPI extraction? and which ones if need be? Edited February 24, 2022 by makk Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777316 Share on other sites More sharing options...
MaLd0n Posted February 25, 2022 Share Posted February 25, 2022 dont need any rename. ill change all in dsdt stay with ur ssdts to good boot into system Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777323 Share on other sites More sharing options...

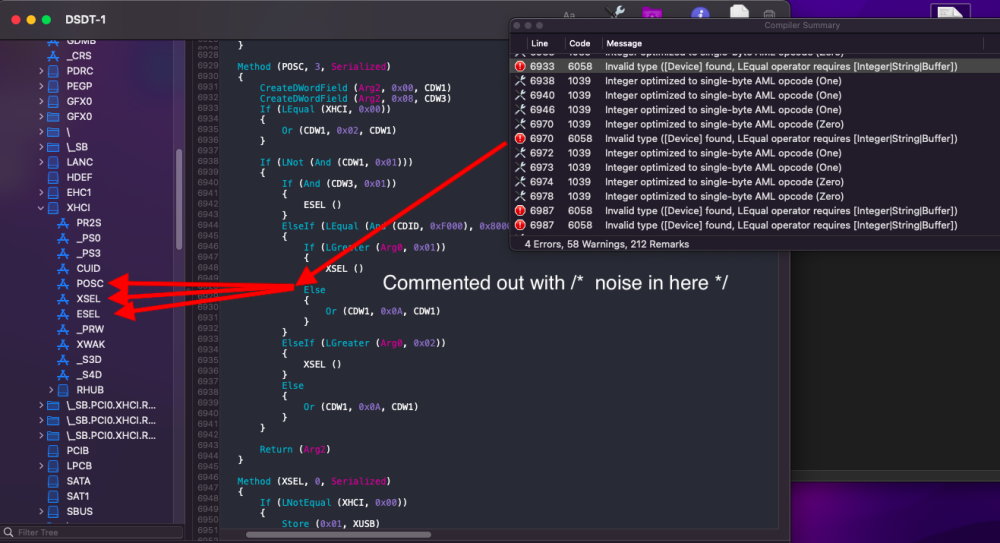

makk Posted February 25, 2022 Author Share Posted February 25, 2022 (edited) 1 hour ago, MaLd0n said: dont need any rename. ill change all in dsdt stay with ur ssdts to good boot into system changed the renames in dsdt to reflect factory? no errors so far left clean as in no patching 1 DSDT.aml complied 2 screenshot of the error XHCI>POSC, ESEL, XSEL 3 Renames.txt (some work done to get back to normal? And most important: Thank You! In the Renames.txt I noted about 2 XHCI in the File. 1 is a scope and the other is the device. In the External Declarations, Not sure what to describe this as Scope = not sure. At the moment it is UnknownObj for (_SB_.PCI0.XHCI, UnknownObj) DSDT.aml.zip Renames.rtf Edited February 25, 2022 by makk Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777326 Share on other sites More sharing options...
makk Posted March 5, 2022 Author Share Posted March 5, 2022 On 2/23/2022 at 5:24 PM, MaLd0n said: what ur hardware? run this app and post files generated in ur desktop https://olarila.com/files/Utils/ACPIExtractAll.app.zip Dont use any acpi rename Nice tool! makes it quick. I was using patchmatic for some time. RehabMan's stuff Link to comment https://www.insanelymac.com/forum/topic/350892-a-serious-answer-needed-how-to-make-a-dsdt-the-new-school-way-the-old-school-way-doesnt-seem/#findComment-2777675 Share on other sites More sharing options...
