markl18 Posted February 14, 2022 Share Posted February 14, 2022 (edited) I got the following errors unsupported bootstrap protocol 7 vs 6 i have switched to 0.7.9 same results and I turned all of security yet it still refusing to except BOOTX64.efi claiming Blessed file is missing 42:249 00:039 OCBP: Blessed folder is missing which is a security option please help Adding fs 44446C98 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0xA,0x0)/HD(1,GPT,ADB4411E-D3C2-4B51-84C0-D90BD8F363C8,0x28,0x64000) 41:409 00:040 OCB: Adding fs 44408998 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x1,0x0,0x0)/HD(1,GPT,659A1FA0-856B-4457-B6DA-04D4AD24BAD9,0x28,0x64000) 41:449 00:039 OCB: Adding fs 44408718 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x1,0x0,0x0)/HD(2,GPT,60489D52-2111-488E-AEA3-DBC9F7C34F53,0x64800,0xEE6F800) 41:488 00:039 OCB: Adding fs 44408498 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x1,0x0,0x0)/HD(3,GPT,F7A5E10B-2783-44D5-8392-0E47F7594425,0xEED4000,0xED9F000) 41:528 00:039 OCB: Found 4 potentially bootable filesystems 42:010 00:481 OCB: BootOrder/BootNext are not present or unsupported 42:049 00:039 OCB: Adding fs 2007C5F5 for 4 custom entries and nvram reset (aux shown) 42:089 00:039 OCB: Processing blessed list 42:129 00:039 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0xA,0x0)/HD(1,GPT,ADB4411E-D3C2-4B51-84C0-D90BD8F363C8,0x28,0x64000) 42:170 00:041 OCBP: Predefined <nil> PciRoot(0x0)/Pci(0x14,0x0)/USB(0xA,0x0)/HD(1,GPT,18697105-A0AF-4EC8-98C6-FD3D5974F6DA,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI is missing - Invalid Parameter 42:210 00:039 OCBP: Blessed file is missing 42:249 00:039 OCBP: Blessed folder is missing 42:311 00:062 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 42:352 00:040 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 42:395 00:042 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found 42:435 00:039 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0xA,0x0)/HD(1,GPT,ADB4411E-D3C2-4B51-84C0-D90BD8F363C8,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI EFI.zip opencore-2022-02-15-170759.txt Edited February 15, 2022 by markl18 more files Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/ Share on other sites More sharing options...

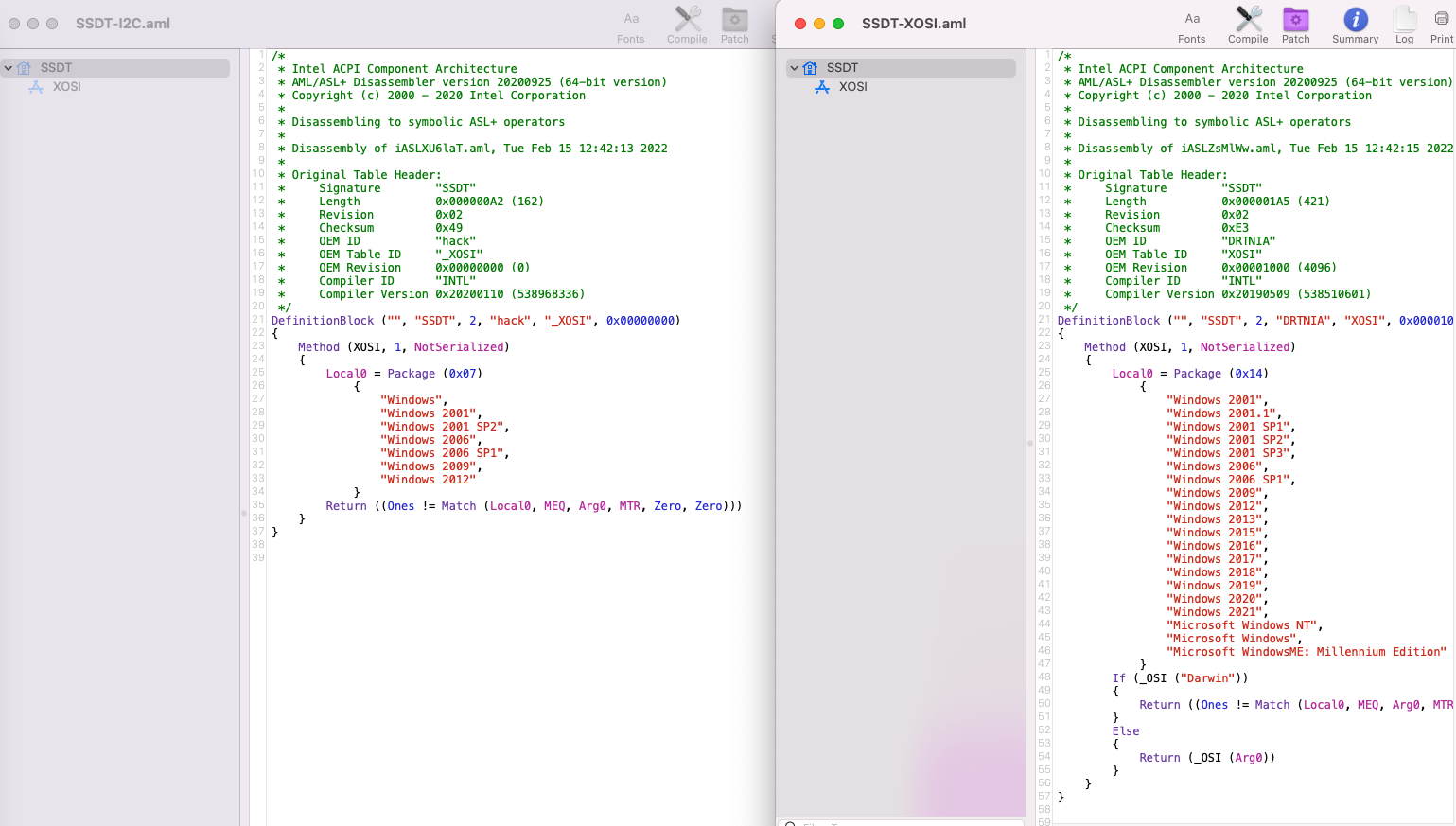

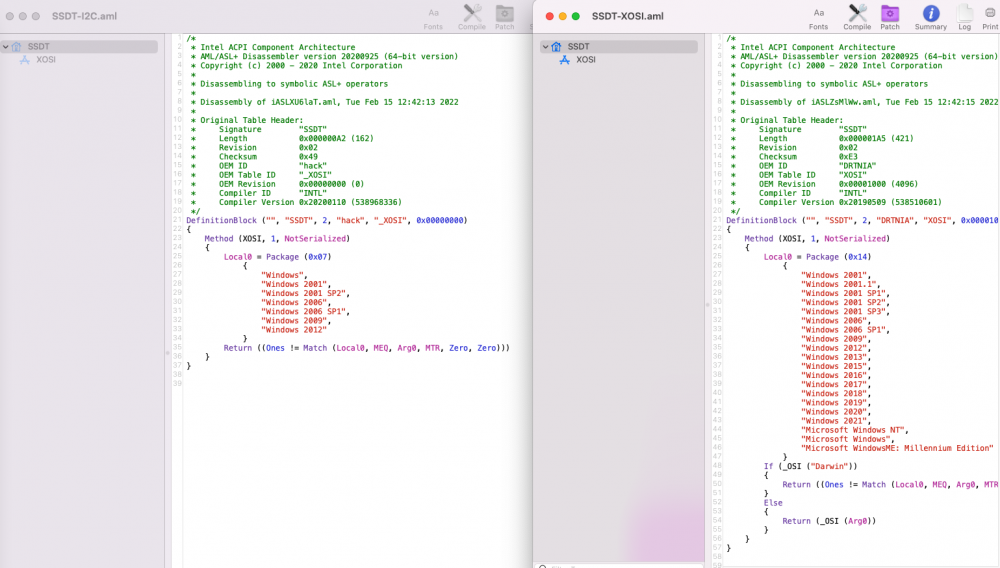

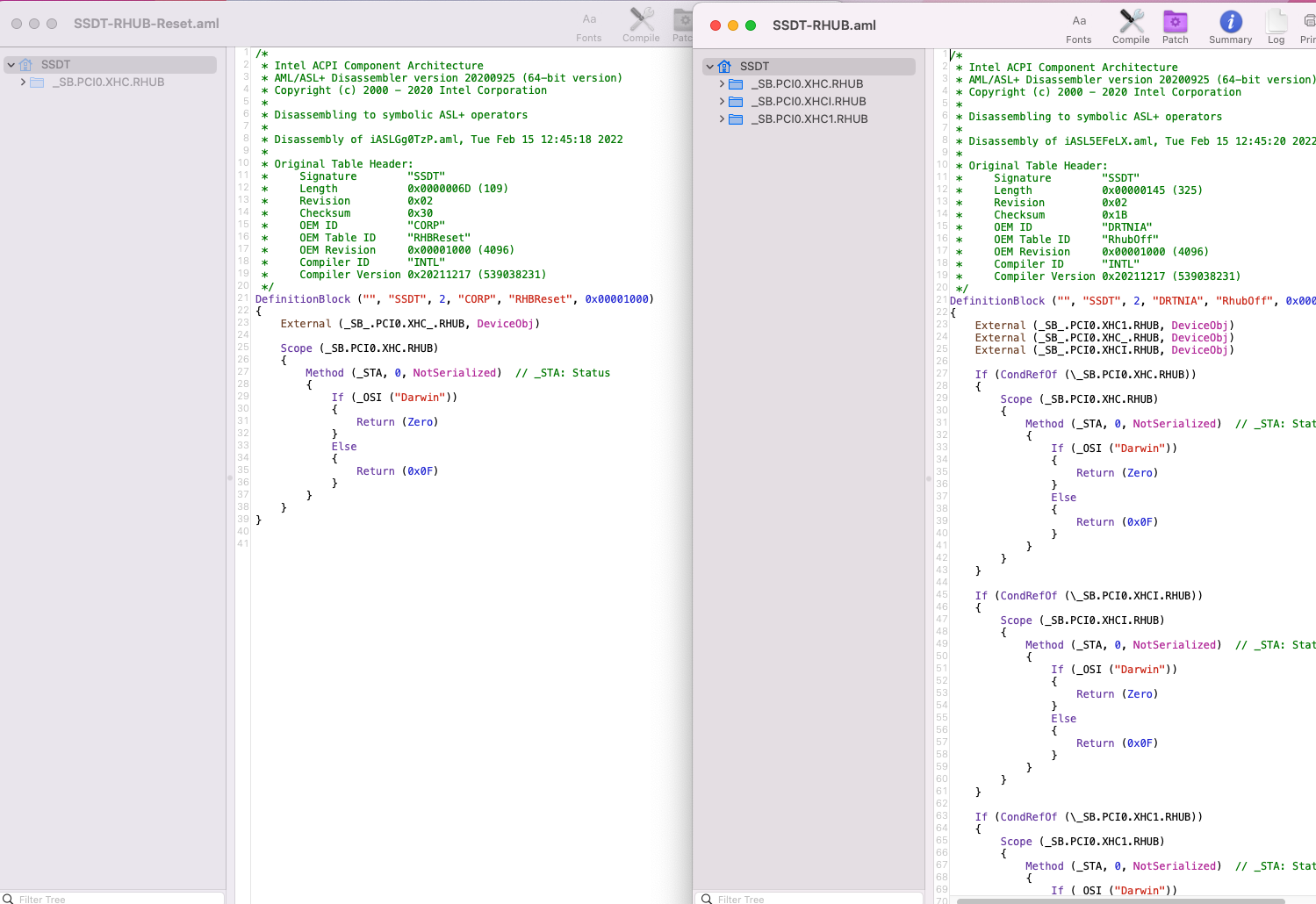

Baio77 Posted February 15, 2022 Share Posted February 15, 2022 Analyzing the EFI I see many things are not good: These SSDTs are identical and create problems for sure same thing for SSDT RHUB Test this EFI EFI.zip Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776860 Share on other sites More sharing options...
MaLd0n Posted February 15, 2022 Share Posted February 15, 2022 Use EFI folder from HERE Some Basic Information -Use USB2 port for easy installation with no remap USB -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - OpenCore use entry "Reset Nvram" / Clover use F11 key on boot screen Bios/UEFI Configuration -Sata = AHCI mode -Secure Boot = Disable if need -CSM = Disable with AMD cards -If you have only IGPU use -igfxvesa bootarg for easy installation Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776864 Share on other sites More sharing options...
markl18 Posted February 15, 2022 Author Share Posted February 15, 2022 I got this what am I supposed do with it Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776881 Share on other sites More sharing options...

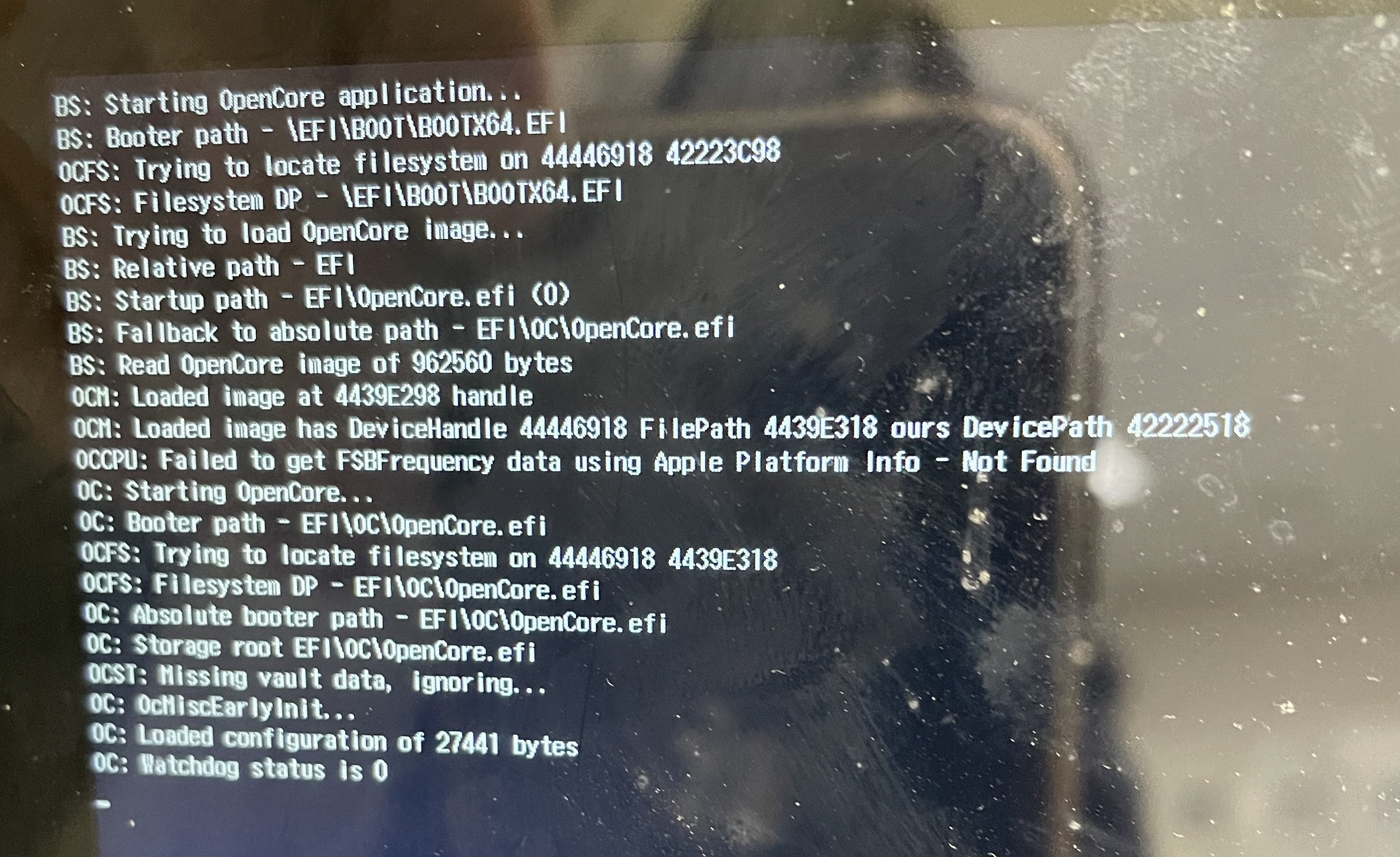

markl18 Posted February 15, 2022 Author Share Posted February 15, 2022 (edited) 11 hours ago, Baio77 said: Analyzing the EFI I see many things are not good: These SSDTs are identical and create problems for sure same thing for SSDT RHUB Test this EFI EFI.zip 5.61 MB · 0 downloads it seems to work but there is an error and then it no longer responds 00:000 00:000 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:boot-path = PciRoot(0x0)/Pci(0x14,0x0)/USB(0xA,0x0)/HD(1,GPT,ADB4411E-D3C2-4B51-84C0-D90BD8F363C8,0x28,0x64000)/EFI\OC\OpenCore.efi - Invalid Parameter 18:489 18:489 BS: Unsupported bootstrap protocol 7 vs 6 18:548 00:058 OC: Boot failed - Unsupported 19:078 00:529 OCB: StartImage failed - Unsupported opencore-2022-02-15-222523.txt Edited February 15, 2022 by markl18 more files Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776892 Share on other sites More sharing options...
MaLd0n Posted February 16, 2022 Share Posted February 16, 2022 -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - OpenCore use entry "Reset Nvram" / Clover use F11 key on boot screen Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776900 Share on other sites More sharing options...
markl18 Posted February 16, 2022 Author Share Posted February 16, 2022 where is efi I only see three tools nothing says efi Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776904 Share on other sites More sharing options...
markl18 Posted February 17, 2022 Author Share Posted February 17, 2022 (edited) I have resolved my isssues but now I have to get some tissues i get "unsupported image" Edited February 17, 2022 by markl18 Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2776971 Share on other sites More sharing options...
markl18 Posted February 18, 2022 Author Share Posted February 18, 2022 On 2/14/2022 at 8:11 AM, markl18 said: Hi I get a problem after I fixed everything unsupported image what does that mean Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2777003 Share on other sites More sharing options...

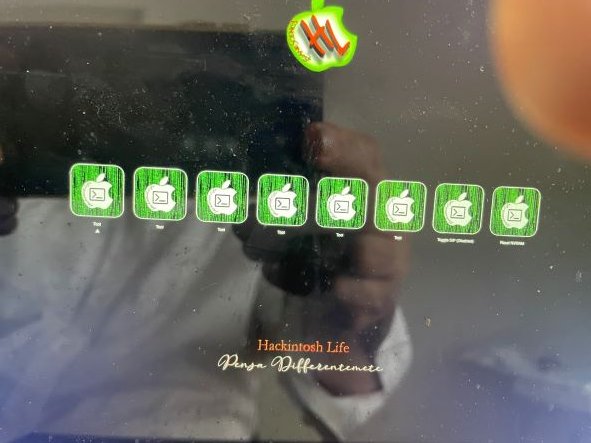

markl18 Posted March 1, 2022 Author Share Posted March 1, 2022 (edited) On 2/15/2022 at 7:36 AM, MaLd0n said: Use EFI folder from HERE Some Basic Information -Use USB2 port for easy installation with no remap USB -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - OpenCore use entry "Reset Nvram" / Clover use F11 key on boot screen Bios/UEFI Configuration -Sata = AHCI mode -Secure Boot = Disable if need -CSM = Disable with AMD cards -If you have only IGPU use -igfxvesa bootarg for easy installation hi I dont know what happened I gave your setup onother chance but this time I get a blank scree please help Edited March 1, 2022 by markl18 Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2777501 Share on other sites More sharing options...

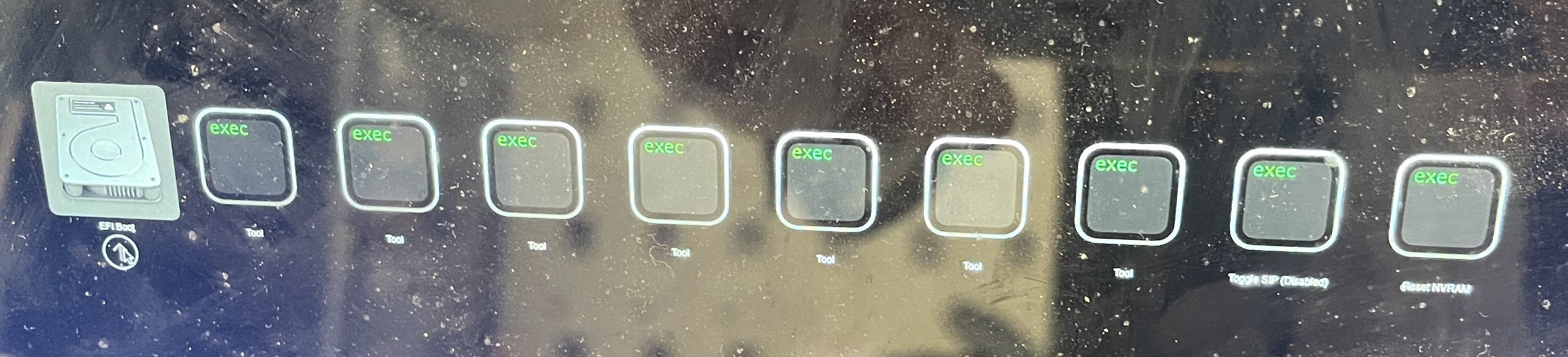

markl18 Posted March 1, 2022 Author Share Posted March 1, 2022 On 2/15/2022 at 7:36 AM, MaLd0n said: Use EFI folder from HERE Some Basic Information -Use USB2 port for easy installation with no remap USB -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - OpenCore use entry "Reset Nvram" / Clover use F11 key on boot screen Bios/UEFI Configuration hi I got it to show some icons but t=still it is not loading bootx64.efi Invalid file system policy (400/290303) for 7E40B018 228:348 00:481 OCB: Adding fs 7E40B018 (E:0|L:0|P:Security Violation) - PciRoot( On 2/15/2022 at 7:36 AM, MaLd0n said: -Sata = AHCI mode -Secure Boot = Disable if need -CSM = Disable with AMD cards -If you have only IGPU use -igfxvesa bootarg for easy installation Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2777515 Share on other sites More sharing options...
MaLd0n Posted March 1, 2022 Share Posted March 1, 2022 1 hour ago, markl18 said: check procedure ur merge files or other problem Link to comment https://www.insanelymac.com/forum/topic/350803-lenovo-yoga-2-pro-and-opencore-079/#findComment-2777518 Share on other sites More sharing options...
