Sleep/Wake Issue with Monterey

[Karet]

Thanks in advance, hopefully I selected the right section.



Hi, my Hackintosh has issues with sleep.
To be precise I can't put it to sleep with any USB device. Immediately after sleep, it wakes up (screen remains black, and PSU gives double "clock" sound every 30sec).

As soon as I press any USB key/or move mouse, system continues as normal.

This is the same behaviour with any USB device, I tested many different USB devices and tried to unplug one by one- no luck fixing.

The only solution for me is to sleep and wake with the power button on my PC case (I need to disable USB wake up in BIOS)

Could you please help to enable any USB device to properly sleep/wake my Hack?

Below is the result of Terminal command % log show --style syslog | fgrep "Wake reason" ( line below mentioned over 50 times):

Code:

2022-01-03 02:33:47.921371+0100  localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: XHCI

Hackintool:

My configuration is below, currently only KB and mouse and connected.
My Windows system on the Sata disk works without any sleep/wake issue.

CPU: Intel 10900
MB: Asus B50M-K
GPU: MSI 6600XT Mech
Storage: Seagate SSD 1TB (reserved for Windows)
Second storage for MacOS, NVME Kingston 1Tb
Mouse: Evoluent VerticalMouse 4 Right
Keyboard: Topre Realforce 87U 55g, plus Cherry NumPad CHERRY G84-4700
Bluetooth: Asus BT400 (USB dongle)

If additional files are necessary, please let me know. Thanks a lot for help

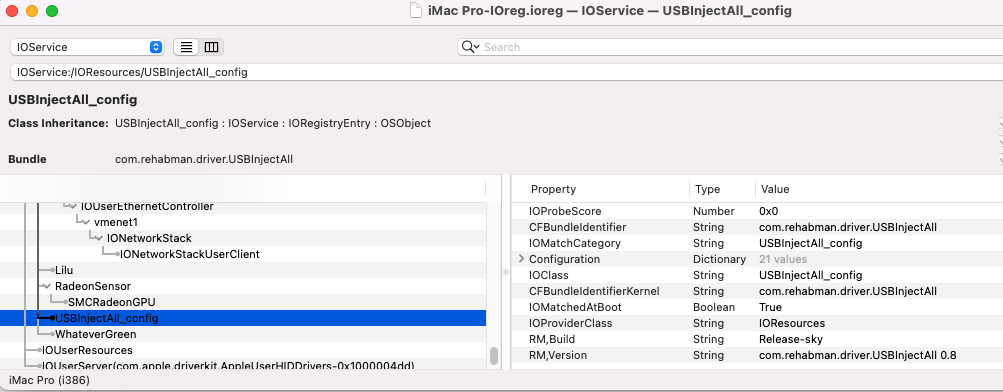

iMac Pro-IOreg.ioreg

[Baio77]

Add this file in your EFI and testArchivio.zip ioreg if start

This version Kext i s very old. For new version https://github.com/daliansky/OS-X-USB-Inject-All/releases



Edited January 3, 2022 by Baio77
