Big Sur 11.5.2 wrong colours


teargas666
 Share

12 posts in this topic

Recommended Posts


Hi,

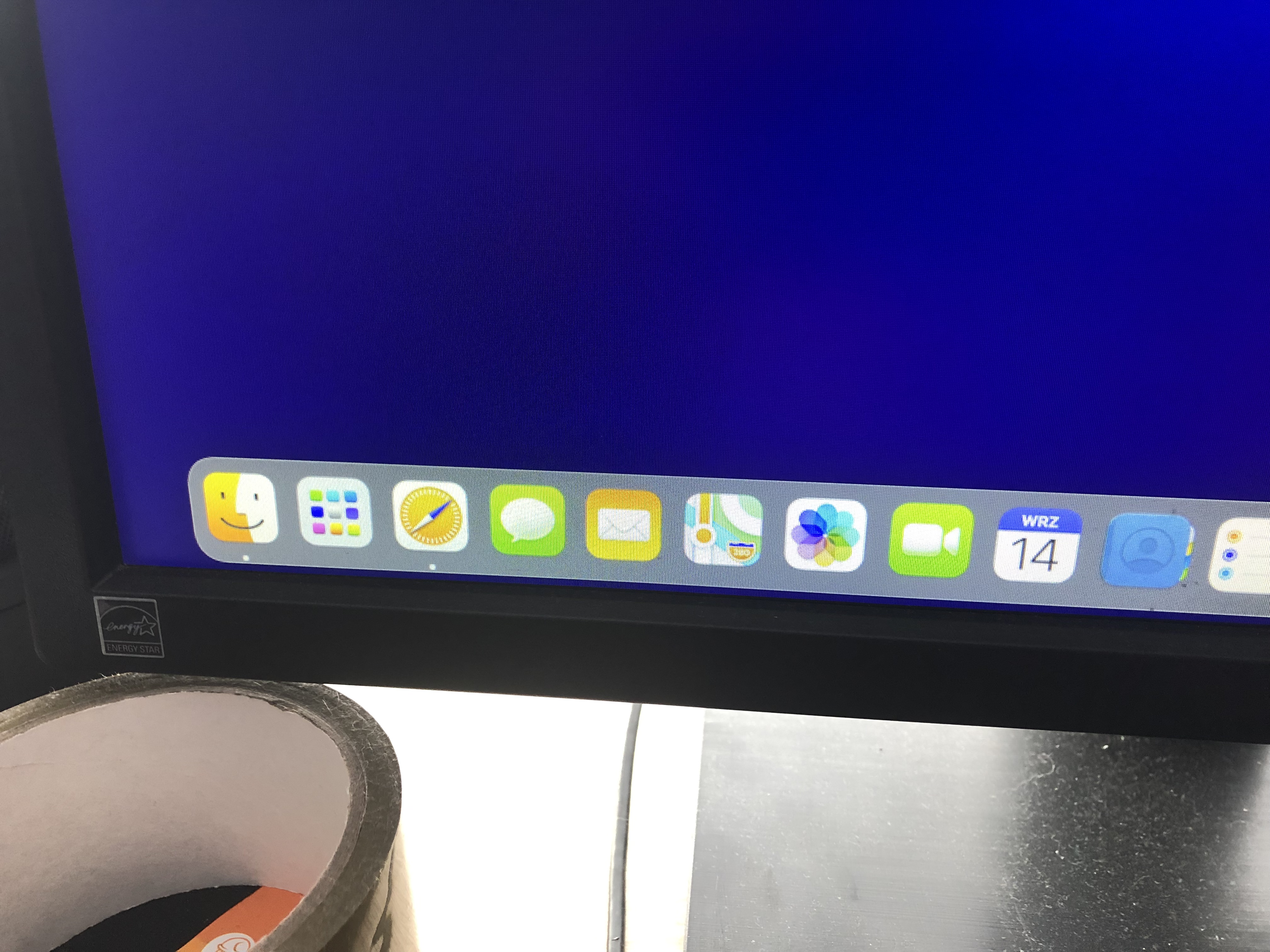

I have a problems with fake colors on my hackintosh. After installation the configuration of the user was very, very slow. After login to my account I have correctly recognized GPU, but the colors are wrong... What have I do to correct or set properly them? There is also No graphics acceleration at all.

Dock is not transparent. When I a SS and open it on my phone colors are ok. When the Big Sur is booted in safe mode everything is correct…

I have also problems with performance of the system. Minimization of the Safari takes approximately 5-6 seconds, restore of the Safari windows takes 3-4 seconds and makes some glitches...

CPU: i5-7400
MoBo: GA-H110m-S2H
RAM: 16 GB RAM
GPU: UHD630
Screen: LG E2210
OpenCore 0.7.1


Link to comment
Share on other sites

All those issues emanate from that lack of graphics acceleration you mentioned. You need to address this. Intel i5-7400 CPU is Kaby Lake desktop CPU, therefore your iGPU is HD 630 (device id 0x5912), not UHD 630. In your OC config, make sure you apply the suitable settings/device properties against the iGPU @2 and use the adequate SMBIOS. You'll find all guidance in the Dortania OpenCore documentation and/or the WhateverGreen user manual.

Link to comment
Share on other sites

Which what?



As I said, you have a Kaby Lake desktop, so you would obviously need to follow the Kaby Lake desktop guidance:

https://dortania.github.io/OpenCore-Install-Guide/config.plist/kaby-lake.html



And the same applies to the WhateverGreen manual with regards to desktop HD 630 graphics in case you miss something in your config:

https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md

Link to comment
Share on other sites

  1. Post a zipped archive of your OpenCore EFI folder containing config file and ACPI+Kexts folders.
  2. Extract/save and IOReg using IORegistryExplorer app, zip it and post it.
  3. Save an extract from SysInfo, zip it and post it.

Bear in mind that after any OC config change, you must reset NVRAM.

Link to comment
Share on other sites

On 9/14/2021 at 8:08 PM, teargas666 said:

I does it according to these tutorials.

Your posted files reflect a different picture.



On the iGPU properties front, your config shows settings different than those recommend in the Dortania guidance: you just inject the default KBL framebuffer 0x5916000, not the recommended properties at all.




Same applies for the SMBIOS: you've opted for iMac18,2 when the Dortania guidance recommends iMac18,1:




If you use iMac18,2 or iMac18,3, it's usually in the case of a dGPU alongside the iGPU. Clover Configurator recommends KBL framebuffer 0x59120003 for those SMBIOS, not 0x59120000.



KBL framebuffer 0x59160000 is actually a mobile layout when KBL framebuffer 0x59120000 is a desktop one. I understand your Hack to be a desktop computer, so...

ID: 59160000, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00000B0B
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 - ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 - ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000800, flags: 0x00000187 - ConnectorHDMI
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00080000 87010000
ID: 59120000, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000110B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 - ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 - ConnectorDP
[3] busId: 0x06, pipe: 10, type: 0x00000400, flags: 0x00000187 - ConnectorDP
01050900 00040000 87010000
02040A00 00040000 87010000
03060A00 00040000 87010000



There's a good chance things will work better if you actually apply the recommended settings.

Link to comment
Share on other sites

35 minutes ago, Hervé said:

Really?



You config shows that you've not followed the Dortania guidance on the matter of iGPU/graphics. You just inject the default KBL framebuffer 0x5916000, not the recommended properties at all. I suggest you do so.




Same applies for the SMBIOS: you've opted for iMac18,2 when the Dortania guidance recommends iMac18,1:




If you use iMac18,2 or iMac18,3, it's usually in the case of a dGPU alongside the iGPU and Clover then recommend KBL framebuffer 0x59120003 not 0x59120000.



KBL framebuffer 0x59160000 is actually a mobile layout when KBL framebuffer 0x59120000 is a desktop one. No need to say more...


ID: 59160000, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00000B0B
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 - ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 - ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000800, flags: 0x00000187 - ConnectorHDMI
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00080000 87010000

ID: 59120000, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000110B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 - ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 - ConnectorDP
[3] busId: 0x06, pipe: 10, type: 0x00000400, flags: 0x00000187 - ConnectorDP
01050900 00040000 87010000
02040A00 00040000 87010000
03060A00 00040000 87010000





You may find things will work better if you actually apply the recommended settings which you stated you did when in fact you did not.




ok. I will do it tomorrow And i will check.


a lot od these changes were made due to wrong colours.


I will back tomorrow
