sbhas2k Posted May 30, 2021 Share Posted May 30, 2021 (edited) Hello All Glad to be a part of this community. I have recently installed Catalina using OpenCore 0.6.9 on Lenovo B40-70 (seems like an unpopular laptop, as not many installation). I got everything to be working fine, however Audio was an issue since beginning. I tried voodoo which worked partially as my mic was not picking the sound. As per the IOregistry explorer I got the below details IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/HDAU@3 Hashwall ULT HD Audion Controller IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/HDEF@1B RealTek ALC 235 (8 series HD Audio Controller) For ALC235, I tried all the layout id as instructed, but I was unable to get the audio working. It would be great if someone throw some light on this. Attaching config.plist & efi folder for reference. Thanks in advance config.plist EFI.zip Edited May 30, 2021 by sbhas2k attached efi folder Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/ Share on other sites More sharing options...
Mirone Posted May 30, 2021 Share Posted May 30, 2021 Hello, none of the Layout-Id's contained in AppleALC work for you? not even the Speakers? Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759638 Share on other sites More sharing options...

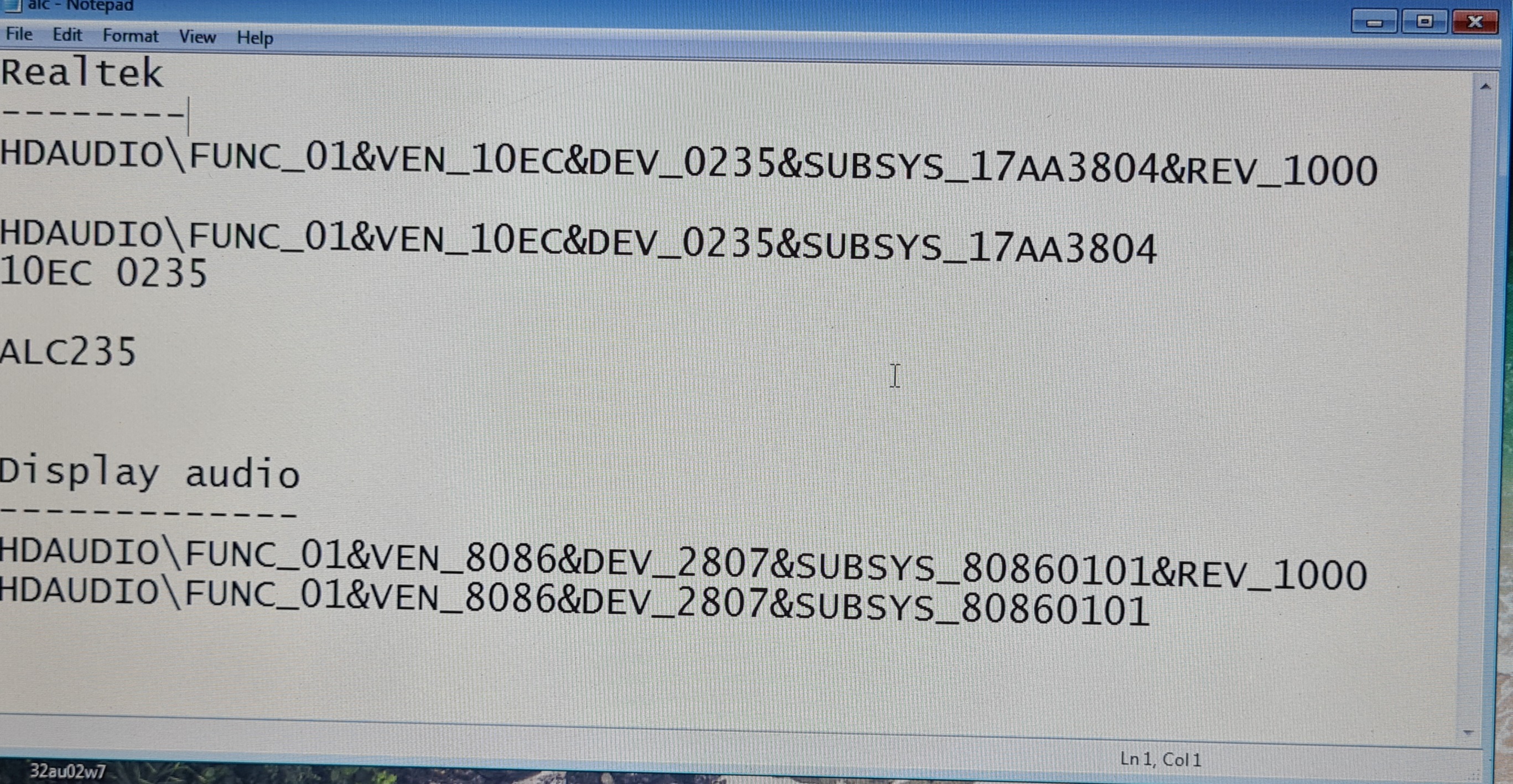

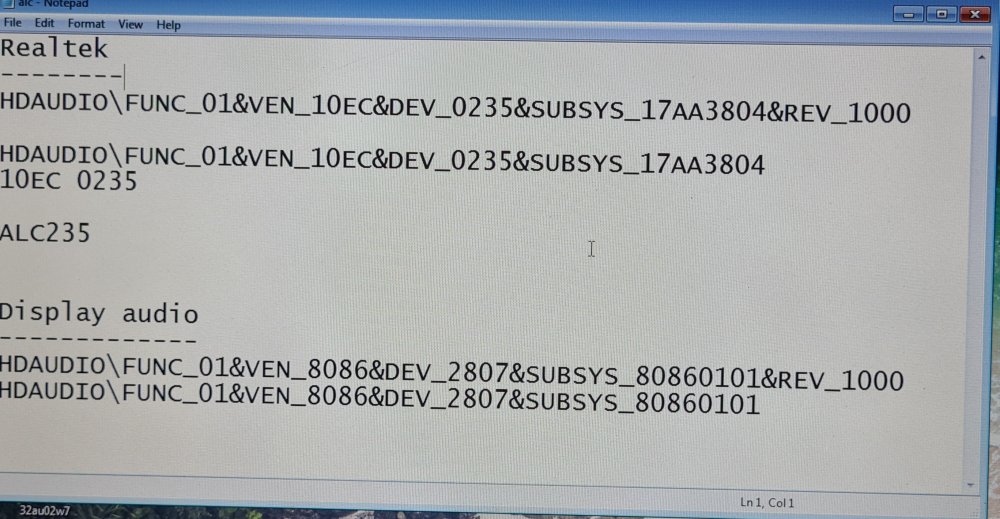

sbhas2k Posted May 30, 2021 Author Share Posted May 30, 2021 (edited) 2 hours ago, Mirone said: Hello, none of the Layout-Id's contained in AppleALC work for you? not even the Speakers? Yes, you are correct. Only voodoo kext works Even I have installed windows in a different hdd just to check the ALC codec details and confirmed it was indeed 235 Edited May 30, 2021 by sbhas2k Added windows hardware details Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759641 Share on other sites More sharing options...
Mirone Posted May 30, 2021 Share Posted May 30, 2021 Could you send me a dump of your codec extracting with the latest version of linux? Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759643 Share on other sites More sharing options...
sbhas2k Posted May 30, 2021 Author Share Posted May 30, 2021 (edited) Please find attached codec dump (used this command cat /proc/asound/card0/codec#0 ) from linux and also dump from Mac. codecdump_linux.txt codecdump_mac.txt Edited May 30, 2021 by sbhas2k Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759644 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 16 hours ago, Mirone said: Could you send me a dump of your codec extracting with the latest version of linux? Hi. Any luck ? Thanks Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759672 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 1 hour ago, sbhas2k said: Hi. Any luck ? Thanks The linux-dump shows only the digital codec. Do you see a device and have no sound? I think the issue is not AppleALC. An IOReg-dump could be useful. Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759688 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 17 minutes ago, wern apfel said: The linux-dump shows only the digital codec. Do you see a device and have no sound? I think the issue is not AppleALC. An IOReg-dump could be useful. Ioreg shows both intel hashwell hdmi and alc235. Will try to take a dump (as a result of trying multiple things my OS Is no longer booting:( ) Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759689 Share on other sites More sharing options...

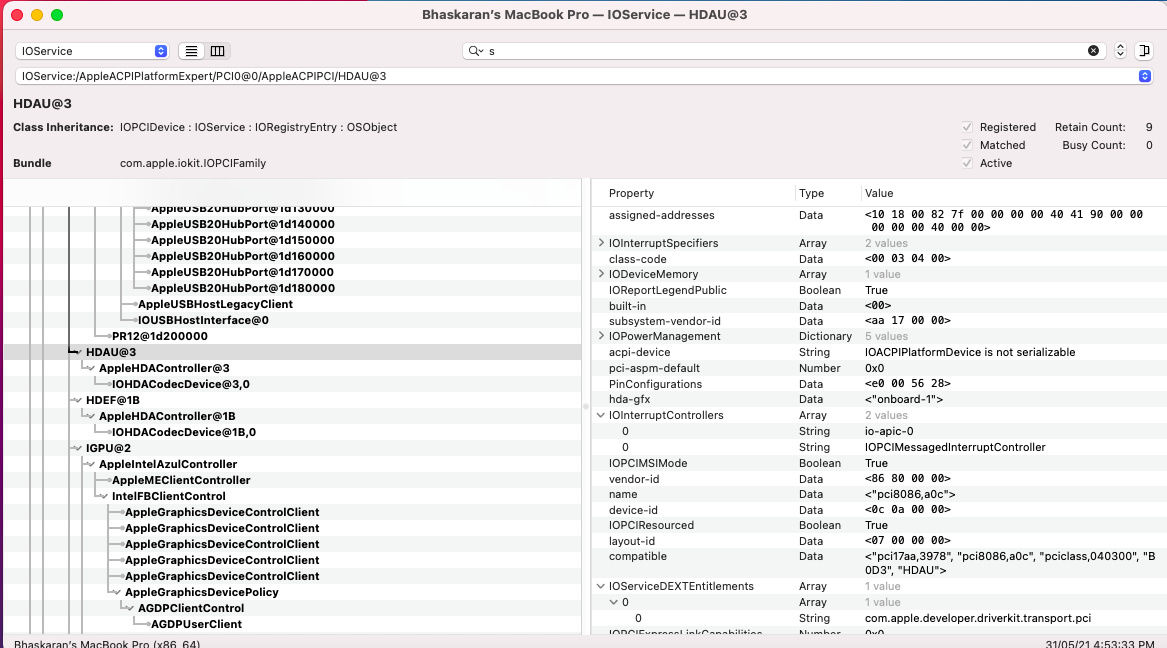

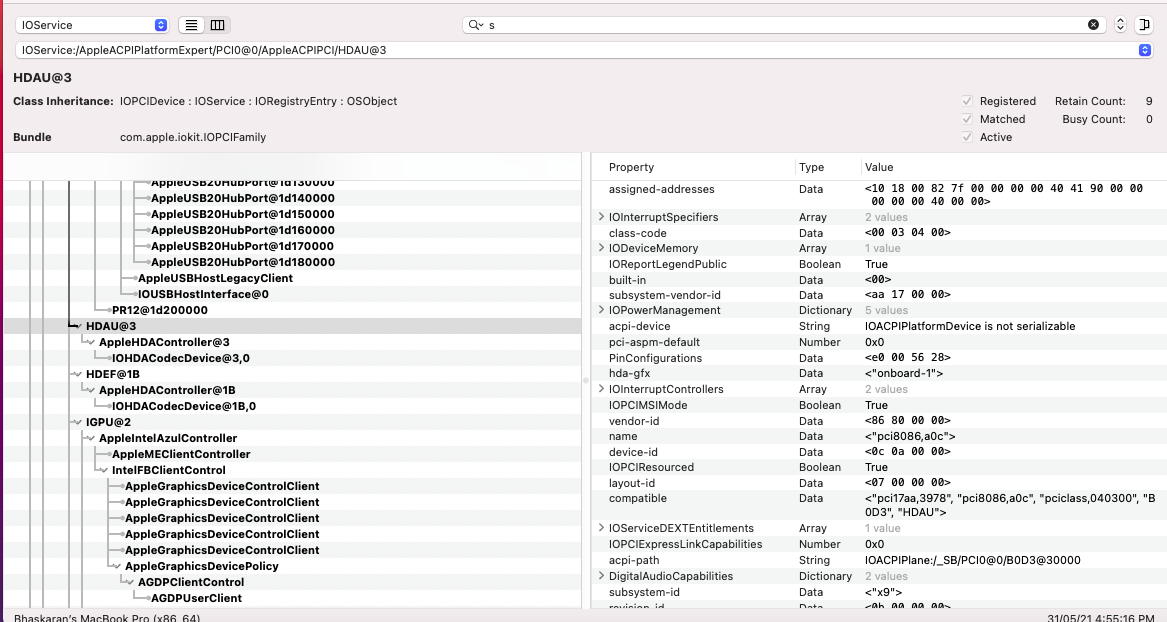

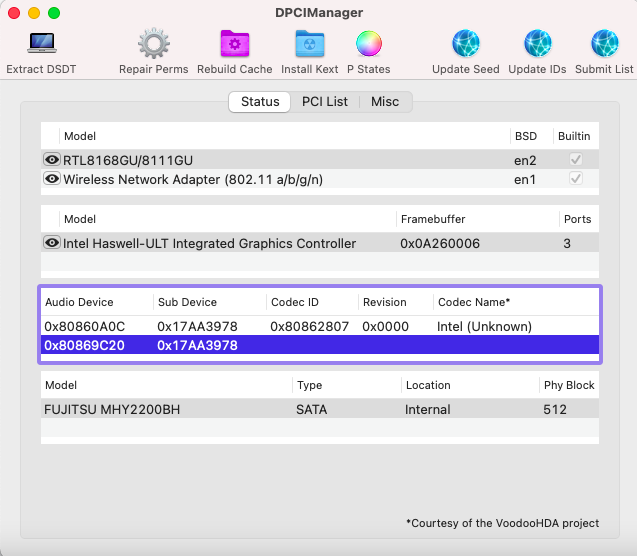

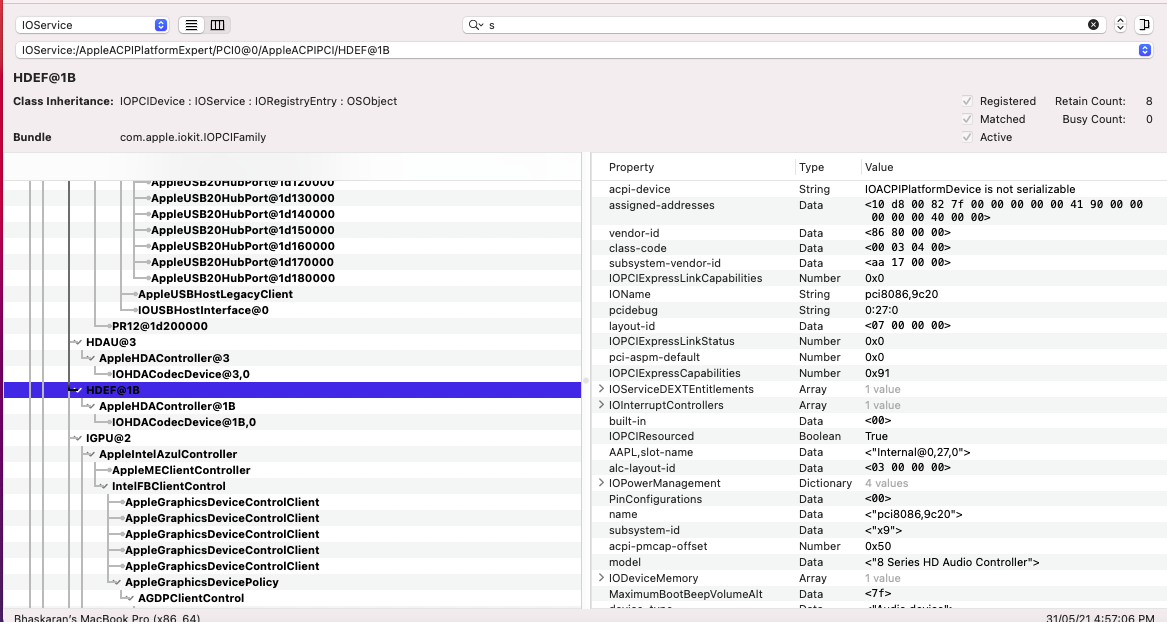

sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 (edited) 1 hour ago, sbhas2k said: Ioreg shows both intel hashwell hdmi and alc235. Will try to take a dump (as a result of trying multiple things my OS Is no longer booting:( ) I had another hdd with bigsur installed. Please find attached screenshots from IORegistry explorer (dunno the way to take dump) and dpci manager. You can see 2 entries for audio, one for intel hdmi and another alc235 Hope this helps. Edited May 31, 2021 by sbhas2k screenshots attached Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759694 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 @sbhas2k While IORegistryExplorer is open, go to save as, pack the saved file and upload it. Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759695 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 38 minutes ago, wern apfel said: @sbhas2k While IORegistryExplorer is open, go to save as, pack the saved file and upload it. My bad. Please find the same attached IORegistryExport.zip Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759700 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 40 minutes ago, sbhas2k said: My bad. Please find the same attached IORegistryExport.zip 5.68 MB · 0 downloads AppleALC is not loaded, but VoodooHDA. Remove Voodoo if you wan't to use AppleALC. Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759704 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 1 hour ago, wern apfel said: AppleALC is not loaded, but VoodooHDA. Remove Voodoo if you wan't to use AppleALC. Please find the ioreg dump with AppleALC. Thanks ioreg_alc.zip Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759707 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 18 minutes ago, sbhas2k said: Please find the ioreg dump with AppleALC. Thanks ioreg_alc.zip 5.7 MB · 1 download Try it with this SSDT, if you still see the HPET device in your IOREG try a different HPET fix. SSDT-HPET-OFF.aml.zip Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759709 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 36 minutes ago, wern apfel said: Try it with this SSDT, if you still see the HPET device in your IOREG try a different HPET fix. SSDT-HPET-OFF.aml.zip 824 B · 2 downloads Hi. I have included this ssdt and restarted. Please find attached IOReg export. Let me know anything else needs to be done or direct me on the correct path ioreg_export_hdefoff.zip Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759711 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 17 minutes ago, sbhas2k said: Hi. I have included this ssdt and restarted. Please find attached IOReg export. Let me know anything else needs to be done or direct me on the correct path ioreg_export_hdefoff.zip 5.7 MB · 0 downloads HPET is still there, try this SSDT. If you use Clover enable the HPET fix. SSDT-HPET.aml.zip Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759712 Share on other sites More sharing options...

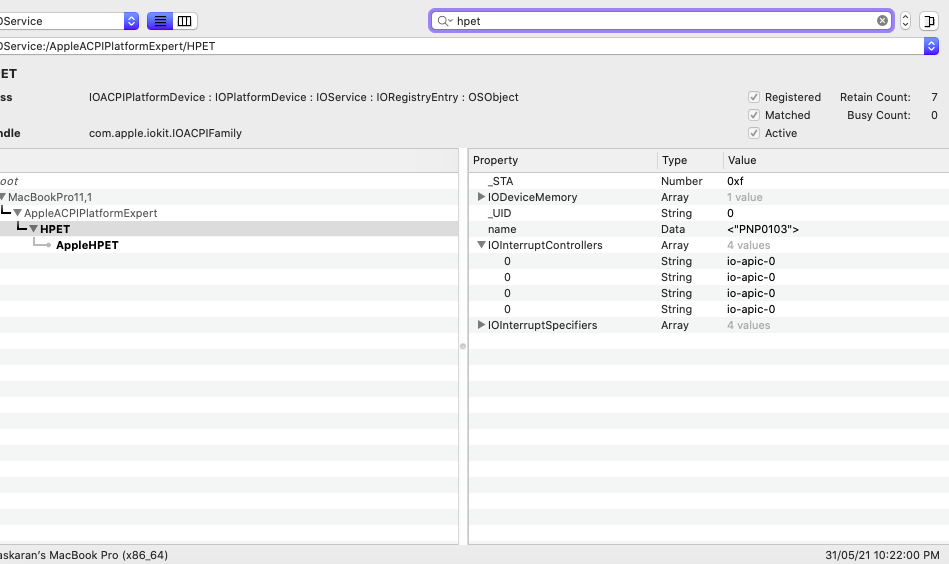

sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 25 minutes ago, wern apfel said: HPET is still there, try this SSDT. If you use Clover enable the HPET fix. SSDT-HPET.aml.zip 980 B · 2 downloads I can still see HPET Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759713 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 2 minutes ago, sbhas2k said: I can still see HPET The second SSDT does not disable HPET, but assigns low IRQs. Show me the IOInterruptSecifiers. Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759714 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 (edited) 1 hour ago, wern apfel said: The second SSDT does not disable HPET, but assigns low IRQs. Show me the IOInterruptSecifiers. How to get the interrupt specifiers? I have attached my efi folder if that contains the same. Attached IOReg output as well EFI.zip io.txt.zip Edited May 31, 2021 by sbhas2k Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759719 Share on other sites More sharing options...

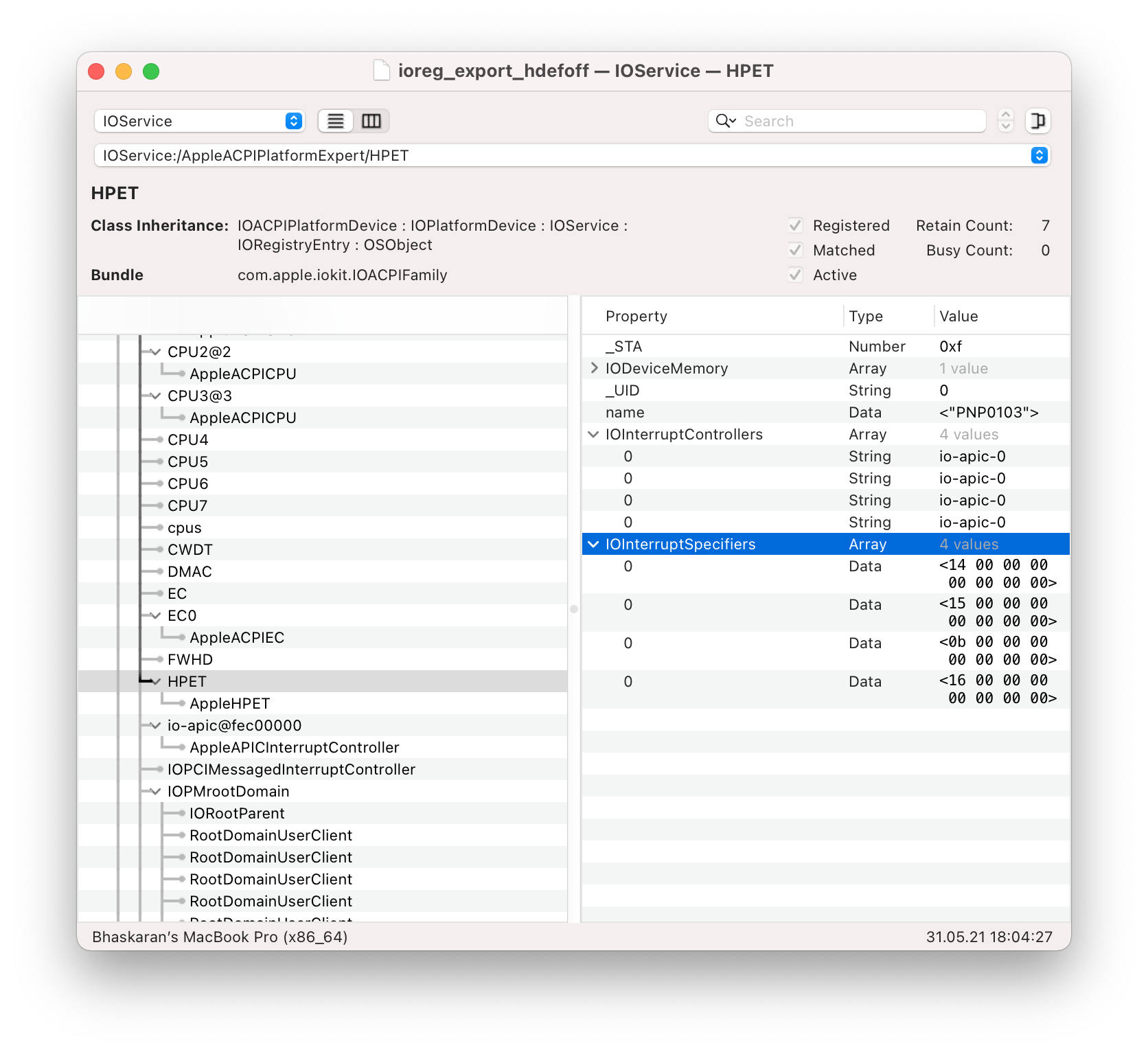

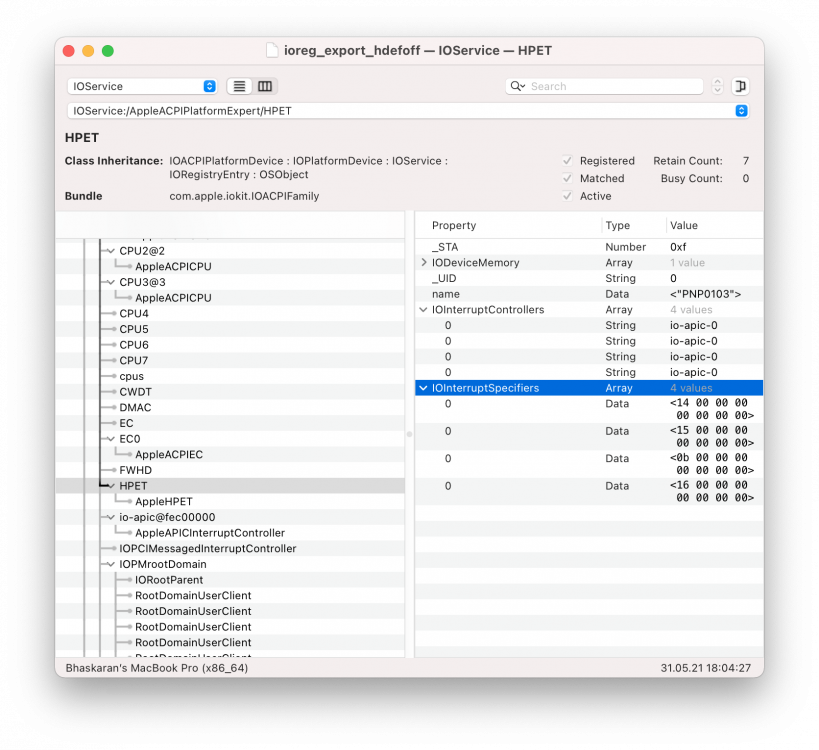

wern apfel Posted May 31, 2021 Share Posted May 31, 2021 It was very close, see screenshot. You already had that HPET-SSDT, but somehow it does not work. Can you upload your DSDT? Use MaciASL to save it. Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759721 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 8 minutes ago, wern apfel said: It was very close, see screenshot. You already had that HPET-SSDT, but somehow it does not work. Can you upload your DSDT? Use MaciASL to save it. Please find the attached. I tried to save, but it showed some compiler errors and failed to save. I exported the table set and also copy pasted into a text document. dsdttableset.acpi.zip io.txt.zip Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759722 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 17 minutes ago, sbhas2k said: Please find the attached. I tried to save, but it showed some compiler errors and failed to save. I exported the table set and also copy pasted into a text document. Ok, try the SSDT first, if it doesn't work use the DSDT ACPI.zip 1 Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759723 Share on other sites More sharing options...
sbhas2k Posted May 31, 2021 Author Share Posted May 31, 2021 (edited) 8 minutes ago, wern apfel said: Ok, try the SSDT first, if it doesn't work use the DSDT ACPI.zip 21.48 kB · 2 downloads Awesome. I just tried the HPET off with layout as 3 and all are working as expected. Mic & Speakers Thanks a lot for your help. I will try the same with bigsur on another HD tmw. Let me know what we did for my knowledge. Also, it would be great if you direct me to any tutorials that will enable me to arrive to a similar solution Also, my laptop doesn't go to sleep and restarts. Is there any kext that I can use? I can research for possible solution though Edited May 31, 2021 by sbhas2k Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759725 Share on other sites More sharing options...
wern apfel Posted May 31, 2021 Share Posted May 31, 2021 19 minutes ago, sbhas2k said: Awesome. I just tried the HPET off with layout as 3 and all are working as expected. Mic & Speakers Thanks a lot for your help. I will try the same with bigsur on another HD tmw. Let me know what we did for my knowledge. Also, it would be great if you direct me to any tutorials that will enable me to arrive to a similar solution Also, my laptop doesn't go to sleep and restarts. Is there any kext that I can use? I can research for possible solution though Ok, finally. Most tutorials recommend forcing HPET to use low IRQs, my experience it that disabling HPET also solve other issues. We can continue tomorrow. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759727 Share on other sites More sharing options...
sbhas2k Posted June 1, 2021 Author Share Posted June 1, 2021 (edited) 11 hours ago, wern apfel said: Ok, finally. Most tutorials recommend forcing HPET to use low IRQs, my experience it that disabling HPET also solve other issues. We can continue tomorrow. Hi. Good morning. Any kext I can use to enable sleep/hiberation? Let me know. Just an update - Sleep is working fine on BigSur. Only difference is BigSur is on HD, Catalina is on SSD (Sata3). Would that be a cause fo sleep issue? Edited June 1, 2021 by sbhas2k update Quote Link to comment https://www.insanelymac.com/forum/topic/347963-alc-235-lenovo-b40-70-catalina-issue/#findComment-2759739 Share on other sites More sharing options...
