!SOLVED! Intel UHD630 Working Only On DP No HDMI - H370 - Dell Optiplex 3060 SFF


5 posts in this topic

Recommended Posts

Hi All,



I have a fully working Big SUR system on my Dell Optiplex 3060 SFF,



Only issue I'm having is that I cannot output via HDMI. Only the Display Port is outputting. The UHD 630 Appears to be working along with graphics acceleration but just will not output on HDMI.



Looking through the forums on here I've found a few contradictory solutions so I'm slightly confused.



Any advise would be welcome. :-) :-) :-)



I have attached my working EFI folder.

EFI.zip

Edited by tazsummers

Solved.

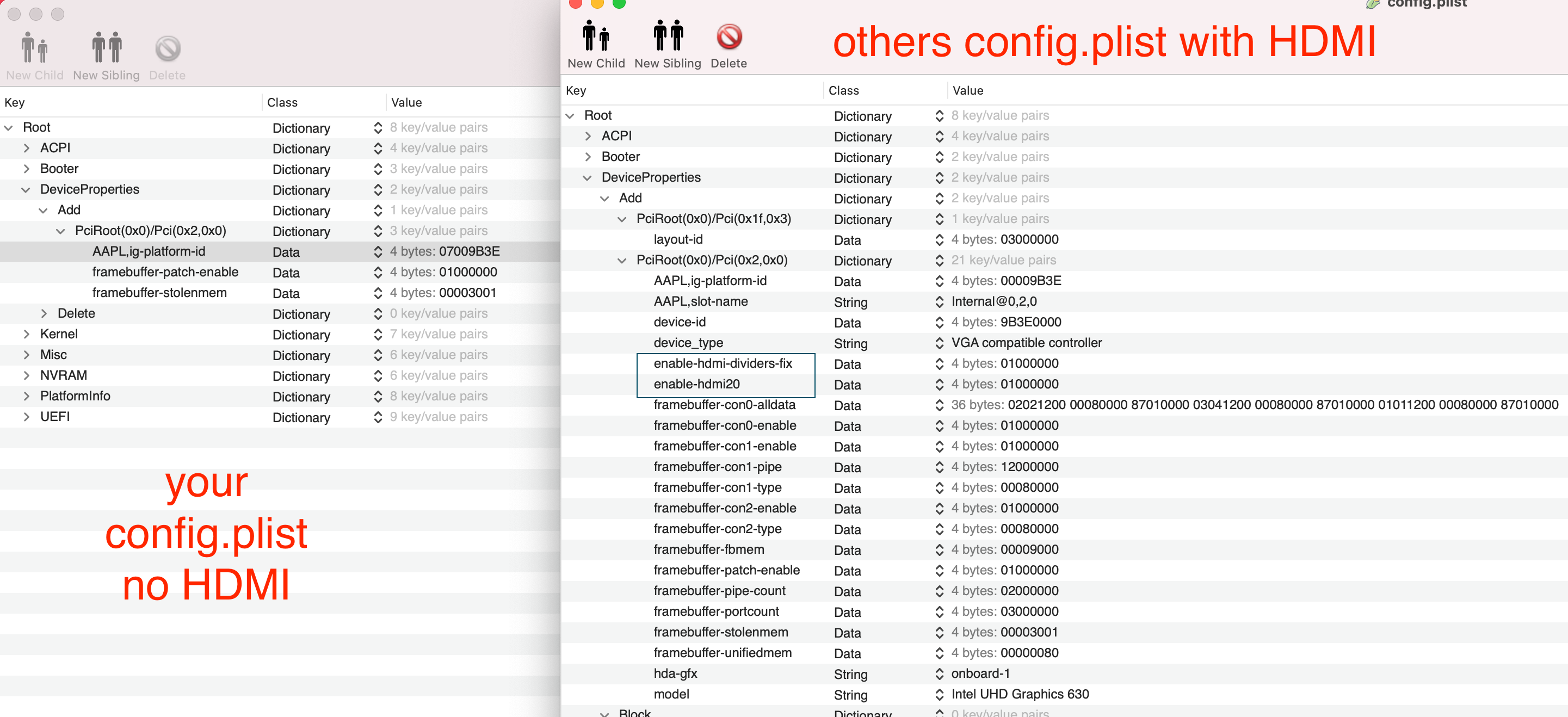

Followed the intel iGPU port patching via framebuffer in Dortania. The example they use in the guide is this chipset....so just add what they created for the example in the guide.

  • tazsummers changed the title to !SOLVED! Intel UHD630 Working Only On DP No HDMI - H370 - Dell Optiplex 3060 SFF
2 hours ago, tazsummers said:

Solved.



Followed the intel iGPU port patching via framebuffer in Dortania. The example they use in the guide is this chipset....so just add what they created for the example in the guide.

Congratulations. Complete your profile so we can know what's your hardware.

Is your cpu 8th generation?

Though I have successfully got the HDMI working I can’t seem to get any resolution above 1080p and the graphics output doesn’t wake after the computer powers on from sleep. :-(

×
×
