Laptop HDMI green screen to bad colors on integrated screen


12 posts in this topic

Recommended Posts

Hi. I've an MSI Prestige 15 laptop with Big sur and OpenCore 0.6.7 working almost good but i've an issue that i can't fix.



First I had green screen on an external monitor through HDMI that fixes after sleep and wake up or when i disable AppleALC.kext.



I've change device-id, make a new patch with hackintool and added agdpmod=vit9696. Now it works but i have bad colors and stripes on the integrated screen.



SMBIOS MacBookPro 16,3

CPU Intel Comet Lake i7-10710u

IGPU Intel Graphics UHD 630

DGPU Nvidia GTX1650 Max-Q (Disabled)

AudioRealtek ACL298






Captura-de-pantalla-2021-03-17-a-las-11-



Edited by vomesk
26 minutes ago, vomesk said:

Hi. I've an MSI Prestige 15 laptop with Big sur and OpenCore 0.6.7 working almost good but i've an issue that i can't fix. When i boot it i have green screen on an external monitor through HDMI, but it fixes after sleep and wake up. I've found that if i disable appleALC.kext it works so i think the problem comes from the HDMI audio signal (had). Any idea?...

You can try to replace hda-gfx property with No-hda-gfx, this usually fixes those failures  but the audio is lost through HDMI. Replace these 2 lines:

               <key>hda-gfx</key>
               <string>onboard-1</string>

for these other 2:

                <key>No-hda-gfx</key>
                <data>AAAAAAAAAAA=</data>



Try and comment.

5 hours ago, hardcorehenry said:

In monitor settings make sure there is: Input Color Format>RGB not YPbPr.



In the monitor you mean? Mine hasn't that option, i'll check.





5 hours ago, Hervé said:

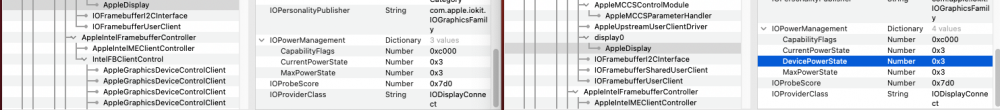

Take an IOReg extract (using IORegistryExplorer app) before and after sleep, then compare...



Where exactly? Audio? GPU?

ioreg.zip

If I boot with AppleALC.kext disabled it works but i have no sound so that makes me think there is a conflict between HDMI audio and video signal, but in the other side that fixes after sleep so maybe something in power management. I have no idea.

Posted (edited)

I've patched the framebuffer, changed device-id and add agdpmod=vit9696 and it works but i have strange colors and stripes on the integrated screen.




Edited by vomesk
  • vomesk changed the title to Laptop HDMI green screen to bad colors on integrated screen
