scanray Posted September 14, 2020 Share Posted September 14, 2020 hello, I have installed Catalina in: Asus P8Z77-V deluxe I7 3770K 2x8 GB ram 1 Intel 250GB SSD MSI AMD 5500xt thanks to the help of @jsl2000 in this link. The problem I have is that I put a second disk with win10. From that moment I cannot enter the OSX. Gives me KP. The only solution I found was to boot into recovery mode and from there assign the OSX disk as the startup disk. After this it starts in Catalina and it works very well. The downside is that I have to do it every time I turn on the PC. Anyone have any idea how to solve this problem? Thanks Link to comment Share on other sites More sharing options...
jsl2000 Posted September 15, 2020 Share Posted September 15, 2020 (edited) On September 15, 2020 at 6:19 AM, scanray said: hello, I have installed Catalina in: Asus P8Z77-V deluxe I7 3770K 2x8 GB ram 1 Intel 250GB SSD MSI AMD 5500xt thanks to the help of @jsl2000 in this link. The problem I have is that I put a second disk with win10. From that moment I cannot enter the OSX. Gives me KP. The only solution I found was to boot into recovery mode and from there assign the OSX disk as the startup disk. After this it starts in Catalina and it works very well. The downside is that I have to do it every time I turn on the PC. Anyone have any idea how to solve this problem? Thanks My advice: Use BIOS to select your booting. For example Windows in Disk1 and Mac OS in Disk2. F8 to select either Disk1 or Disk2 to boot. No need to edit your config.plist of OpenCore. If future Clover can boot Big Sur, no problem to boot Windows at all ! Or try .contentDetails method posted today in OpenCore discussion ! Edited September 15, 2020 by jsl2000 Link to comment Share on other sites More sharing options...
scanray Posted September 16, 2020 Author Share Posted September 16, 2020 Hi @jsl2000, It seems that I did not explain myself well. My problem is not with the bios. I don't need to press F8. The bios recognizes my disk with opencore. There is no problem. I can select win or Catalina in the OC menu. When I select Catalina it gives a KP error. But if I enter the osx recovery mode and there I select that my boot disk is Catalina, the computer restarts, opens OC, I select Catalina and it no longer gives me a KP error. I have a feeling it's something with nvram, but I don't know how to fix it. thanks Link to comment Share on other sites More sharing options...
jsl2000 Posted September 16, 2020 Share Posted September 16, 2020 3 hours ago, scanray said: Hi @jsl2000, It seems that I did not explain myself well. My problem is not with the bios. I don't need to press F8. The bios recognizes my disk with opencore. There is no problem. I can select win or Catalina in the OC menu. When I select Catalina it gives a KP error. But if I enter the osx recovery mode and there I select that my boot disk is Catalina, the computer restarts, opens OC, I select Catalina and it no longer gives me a KP error. I have a feeling it's something with nvram, but I don't know how to fix it. thanks In this case please show me your current config.plist to check because my original one not related to windows booting. Link to comment Share on other sites More sharing options...
scanray Posted September 17, 2020 Author Share Posted September 17, 2020 Hi @jsl2000, Sorry for the delay, I've been doing several tests. Once Catalina boots, I can reboot without problems. The KP appears when I turn on the PC. Almost always when I turn on the PC it starts Catalina and KP, it automatically reboots and if I let it continue sometimes it reaches the login. Otherwise: recovery -> startup disk: catalina -> restart: all OK thanks config.plist Link to comment Share on other sites More sharing options...
jsl2000 Posted September 17, 2020 Share Posted September 17, 2020 1 hour ago, scanray said: Hi @jsl2000, Sorry for the delay, I've been doing several tests. Once Catalina boots, I can reboot without problems. The KP appears when I turn on the PC. Almost always when I turn on the PC it starts Catalina and KP, it automatically reboots and if I let it continue sometimes it reaches the login. Otherwise: recovery -> startup disk: catalina -> restart: all OK thanks config.plist Try my modified config.plist for yours hardware. config-Z77.plist Link to comment Share on other sites More sharing options...

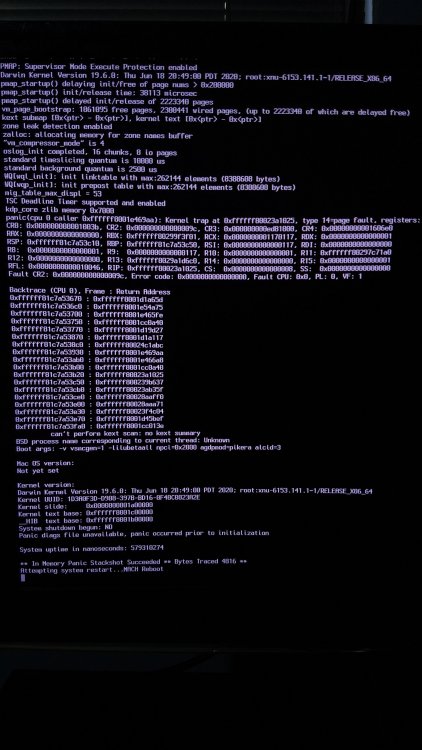

scanray Posted September 18, 2020 Author Share Posted September 18, 2020 Hi @jsl2000, Thanks for the config. It worked very well. Go back to the release version of the OC and disable the debug options. So far so good. At the end I remove the (-v) from the boot arguments. Oh ... surprise, KP again. This is the OSX report, there it gives us a light. panic(cpu 0 caller 0xffffff80242469aa): Kernel trap at 0xffffff7fa4d1349d, type 14=page fault, registers: CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x000000002d5ac000, CR4: 0x00000000001626e0 RAX: 0xffffff7fa4d13492, RBX: 0x0000000000000000, RCX: 0x0000000000000001, RDX: 0x0000000000000000 RSP: 0xffffff8216073880, RBP: 0xffffff8216073880, RSI: 0x0000000000000000, RDI: 0x0000000000000000 R8: 0xffffff8216073968, R9: 0xffffff8216073968, R10: 0xffffff804adf7c00, R11: 0x0000000000007340 R12: 0xffffff82160738e8, R13: 0x0000000000000000, R14: 0xffffff8048d08dc0, R15: 0x0000000000000000 RFL: 0x0000000000010246, RIP: 0xffffff7fa4d1349d, CS: 0x0000000000000008, SS: 0x0000000000000010 Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1 Backtrace (CPU 0), Frame : Return Address 0xffffff82160732e0 : 0xffffff802411a65d 0xffffff8216073330 : 0xffffff8024254a75 0xffffff8216073370 : 0xffffff80242465fe 0xffffff82160733c0 : 0xffffff80240c0a40 0xffffff82160733e0 : 0xffffff8024119d27 0xffffff82160734e0 : 0xffffff802411a117 0xffffff8216073530 : 0xffffff80248c1abc 0xffffff82160735a0 : 0xffffff80242469aa 0xffffff8216073720 : 0xffffff80242466a8 0xffffff8216073770 : 0xffffff80240c0a40 0xffffff8216073790 : 0xffffff7fa4d1349d 0xffffff8216073880 : 0xffffff7fa76907e8 0xffffff82160738d0 : 0xffffff7fa7a914d4 0xffffff8216073930 : 0xffffff7fa7a879eb 0xffffff82160739b0 : 0xffffff7fa7a830bf 0xffffff8216073a00 : 0xffffff7fa7aeb69a 0xffffff8216073a80 : 0xffffff7fa768fb88 0xffffff8216073b10 : 0xffffff7fa768d79c 0xffffff8216073b60 : 0xffffff7fa7681410 0xffffff8216073bb0 : 0xffffff7fa7692bb6 0xffffff8216073bd0 : 0xffffff7fa7628167 0xffffff8216073c10 : 0xffffff7fa76257b5 0xffffff8216073d00 : 0xffffff7fa6a5ade3 0xffffff8216073d80 : 0xffffff7fa7623823 0xffffff8216073de0 : 0xffffff80248075c6 0xffffff8216073e40 : 0xffffff8024807101 0xffffff8216073ef0 : 0xffffff802480649e 0xffffff8216073f50 : 0xffffff8024808c56 0xffffff8216073fa0 : 0xffffff80240c013e Kernel Extensions in backtrace: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000->0xffffff7fa4d39fff com.apple.iokit.IOAcceleratorFamily2(438.7.3)[9D052246-9911-3EB3-89E9-BDF771949C45]@0xffffff7fa6a22000->0xffffff7fa6ae5fff dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[5922E20B-D148-30DC-ABBA-0E99B3BE6940]@0xffffff7fa4b87000 dependency: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000 dependency: com.apple.iokit.IOSurface(269.11)[8AF51385-7435-3E2F-9724-6CD27894229D]@0xffffff7fa5e8f000 dependency: com.apple.iokit.IOGraphicsFamily(576.1)[92A3DAC1-1745-37AC-88DE-FA87B5EB2526]@0xffffff7fa69c7000 dependency: com.apple.iokit.IOReportFamily(47)[8F7948CF-5C25-33F4-A687-67F8A5B7906E]@0xffffff7fa4c2f000 com.apple.kext.AMDRadeonX6000(3.1)[9C58499D-A52A-346A-A6BA-86FA6190C70E]@0xffffff7fa7622000->0xffffff7fa783ffff dependency: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000 dependency: com.apple.iokit.IOSurface(269.11)[8AF51385-7435-3E2F-9724-6CD27894229D]@0xffffff7fa5e8f000 dependency: com.apple.iokit.IOGraphicsFamily(576.1)[92A3DAC1-1745-37AC-88DE-FA87B5EB2526]@0xffffff7fa69c7000 dependency: com.apple.iokit.IOAcceleratorFamily2(438.7.3)[9D052246-9911-3EB3-89E9-BDF771949C45]@0xffffff7fa6a22000 com.apple.kext.AMDRadeonX6000HWLibs(1.0)[436BD2A5-02C2-3F44-8109-26DAAC7C7C05]@0xffffff7fa7840000->0xffffff7faa176fff dependency: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000 BSD process name corresponding to current thread: kernel_task Boot args: vsmcgen=1 -lilubetaall npci=0x2000 agdpmod=pikera alcid=3 Mac OS version: 19G2021 Kernel version: Darwin Kernel Version 19.6.0: Thu Jun 18 20:49:00 PDT 2020; root:xnu-6153.141.1~1/RELEASE_X86_64 Kernel UUID: 1D3A0F3D-D908-397B-BD16-8F48C0823A2E Kernel slide: 0x0000000023e00000 Kernel text base: 0xffffff8024000000 __HIB text base: 0xffffff8023f00000 System model name: iMac20,1 (Mac-CFF7D910A743CAAF) System shutdown begun: NO Panic diags file available: YES (0x0) System uptime in nanoseconds: 9779852609 Link to comment Share on other sites More sharing options...
jsl2000 Posted September 18, 2020 Share Posted September 18, 2020 3 hours ago, scanray said: Hi @jsl2000, Thanks for the config. It worked very well. Go back to the release version of the OC and disable the debug options. So far so good. At the end I remove the (-v) from the boot arguments. Oh ... surprise, KP again. This is the OSX report, there it gives us a light. panic(cpu 0 caller 0xffffff80242469aa): Kernel trap at 0xffffff7fa4d1349d, type 14=page fault, registers: CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x000000002d5ac000, CR4: 0x00000000001626e0 RAX: 0xffffff7fa4d13492, RBX: 0x0000000000000000, RCX: 0x0000000000000001, RDX: 0x0000000000000000 RSP: 0xffffff8216073880, RBP: 0xffffff8216073880, RSI: 0x0000000000000000, RDI: 0x0000000000000000 R8: 0xffffff8216073968, R9: 0xffffff8216073968, R10: 0xffffff804adf7c00, R11: 0x0000000000007340 R12: 0xffffff82160738e8, R13: 0x0000000000000000, R14: 0xffffff8048d08dc0, R15: 0x0000000000000000 RFL: 0x0000000000010246, RIP: 0xffffff7fa4d1349d, CS: 0x0000000000000008, SS: 0x0000000000000010 Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1 Backtrace (CPU 0), Frame : Return Address 0xffffff82160732e0 : 0xffffff802411a65d 0xffffff8216073330 : 0xffffff8024254a75 0xffffff8216073370 : 0xffffff80242465fe 0xffffff82160733c0 : 0xffffff80240c0a40 0xffffff82160733e0 : 0xffffff8024119d27 0xffffff82160734e0 : 0xffffff802411a117 0xffffff8216073530 : 0xffffff80248c1abc 0xffffff82160735a0 : 0xffffff80242469aa 0xffffff8216073720 : 0xffffff80242466a8 0xffffff8216073770 : 0xffffff80240c0a40 0xffffff8216073790 : 0xffffff7fa4d1349d 0xffffff8216073880 : 0xffffff7fa76907e8 0xffffff82160738d0 : 0xffffff7fa7a914d4 0xffffff8216073930 : 0xffffff7fa7a879eb 0xffffff82160739b0 : 0xffffff7fa7a830bf 0xffffff8216073a00 : 0xffffff7fa7aeb69a 0xffffff8216073a80 : 0xffffff7fa768fb88 0xffffff8216073b10 : 0xffffff7fa768d79c 0xffffff8216073b60 : 0xffffff7fa7681410 0xffffff8216073bb0 : 0xffffff7fa7692bb6 0xffffff8216073bd0 : 0xffffff7fa7628167 0xffffff8216073c10 : 0xffffff7fa76257b5 0xffffff8216073d00 : 0xffffff7fa6a5ade3 0xffffff8216073d80 : 0xffffff7fa7623823 0xffffff8216073de0 : 0xffffff80248075c6 0xffffff8216073e40 : 0xffffff8024807101 0xffffff8216073ef0 : 0xffffff802480649e 0xffffff8216073f50 : 0xffffff8024808c56 0xffffff8216073fa0 : 0xffffff80240c013e Kernel Extensions in backtrace: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000->0xffffff7fa4d39fff com.apple.iokit.IOAcceleratorFamily2(438.7.3)[9D052246-9911-3EB3-89E9-BDF771949C45]@0xffffff7fa6a22000->0xffffff7fa6ae5fff dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[5922E20B-D148-30DC-ABBA-0E99B3BE6940]@0xffffff7fa4b87000 dependency: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000 dependency: com.apple.iokit.IOSurface(269.11)[8AF51385-7435-3E2F-9724-6CD27894229D]@0xffffff7fa5e8f000 dependency: com.apple.iokit.IOGraphicsFamily(576.1)[92A3DAC1-1745-37AC-88DE-FA87B5EB2526]@0xffffff7fa69c7000 dependency: com.apple.iokit.IOReportFamily(47)[8F7948CF-5C25-33F4-A687-67F8A5B7906E]@0xffffff7fa4c2f000 com.apple.kext.AMDRadeonX6000(3.1)[9C58499D-A52A-346A-A6BA-86FA6190C70E]@0xffffff7fa7622000->0xffffff7fa783ffff dependency: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000 dependency: com.apple.iokit.IOSurface(269.11)[8AF51385-7435-3E2F-9724-6CD27894229D]@0xffffff7fa5e8f000 dependency: com.apple.iokit.IOGraphicsFamily(576.1)[92A3DAC1-1745-37AC-88DE-FA87B5EB2526]@0xffffff7fa69c7000 dependency: com.apple.iokit.IOAcceleratorFamily2(438.7.3)[9D052246-9911-3EB3-89E9-BDF771949C45]@0xffffff7fa6a22000 com.apple.kext.AMDRadeonX6000HWLibs(1.0)[436BD2A5-02C2-3F44-8109-26DAAC7C7C05]@0xffffff7fa7840000->0xffffff7faa176fff dependency: com.apple.iokit.IOPCIFamily(2.9)[DF219CC1-366A-31FC-B8ED-17C584BA2549]@0xffffff7fa4d01000 BSD process name corresponding to current thread: kernel_task Boot args: vsmcgen=1 -lilubetaall npci=0x2000 agdpmod=pikera alcid=3 Mac OS version: 19G2021 Kernel version: Darwin Kernel Version 19.6.0: Thu Jun 18 20:49:00 PDT 2020; root:xnu-6153.141.1~1/RELEASE_X86_64 Kernel UUID: 1D3A0F3D-D908-397B-BD16-8F48C0823A2E Kernel slide: 0x0000000023e00000 Kernel text base: 0xffffff8024000000 __HIB text base: 0xffffff8023f00000 System model name: iMac20,1 (Mac-CFF7D910A743CAAF) System shutdown begun: NO Panic diags file available: YES (0x0) System uptime in nanoseconds: 9779852609 Please update your OpenCore to 0.6.2 and use my config.plist without any change. If it worked without any issue, you can remove -v again. Link to comment Share on other sites More sharing options...
scanray Posted September 18, 2020 Author Share Posted September 18, 2020 (edited) Hi @jsl2000, 9 hours ago, jsl2000 said: Please update your OpenCore to 0.6.2 and use my config.plist without any change. where I find 0.6.2 ? here acidanthera/OpenCorePkg the last is 0.6.1 thanks Edited September 18, 2020 by scanray Link to comment Share on other sites More sharing options...
jsl2000 Posted September 18, 2020 Share Posted September 18, 2020 1 hour ago, scanray said: Hi @jsl2000, where I find 0.6.2 ? here acidanthera/OpenCorePkg the last is 0.6.1 thanks You can find it by Google or Discoid. Link to comment Share on other sites More sharing options...

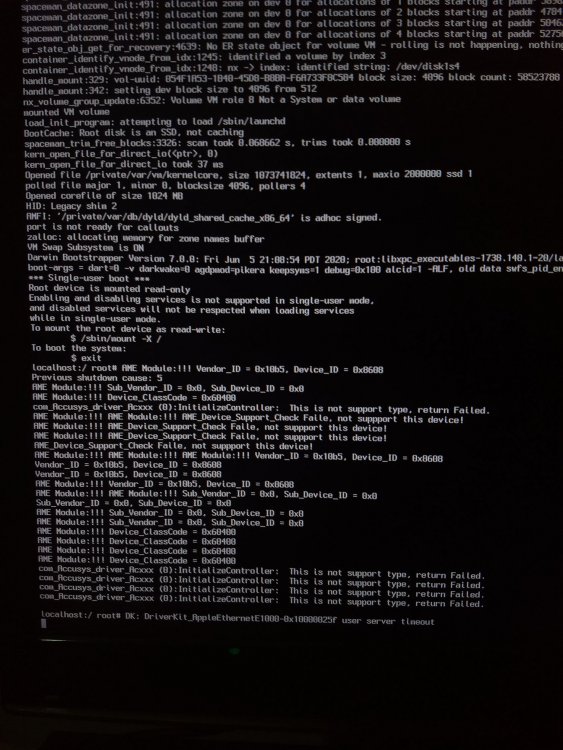

scanray Posted September 18, 2020 Author Share Posted September 18, 2020 (edited) ok, I did it. But it stops here and I cant go to recovery Edited September 18, 2020 by scanray Link to comment Share on other sites More sharing options...
jsl2000 Posted September 19, 2020 Share Posted September 19, 2020 1 hour ago, scanray said: ok, I did it. But it stops here and I cant go to recovery That means your networking kext need update or change to the compatible one. No more support of AppleEthernetE1000. You should change it to IntelMausi.kext or IntelMausiEthernet.kext as mine. Link to comment Share on other sites More sharing options...
scanray Posted September 19, 2020 Author Share Posted September 19, 2020 (edited) Im using IntelMausi.kext I wil try with IntelMausiEthernet.kext ... .... Well, after inserting IntelMausiEthernet.kext, this was the result. I had a hard time starting the osx again. For some reason it gave me KP, even with the installation usb, something that did not happen. I had to boot with a linux and erase all the EFI. Then install the OC 0.6.0 version again to be able to start the osx. Edited September 20, 2020 by scanray Link to comment Share on other sites More sharing options...
scanray Posted September 25, 2020 Author Share Posted September 25, 2020 hi @jsl2000, I have used the PC all week with no problems. The KP I had was because in the config.plist you sent me the trim was not activated. For some reason that I do not know without the trim it does not work. I also returned to OC6.1 Sorry to bother you, but help me with something. At startup I keep getting the "device not supported" messages for ... 0X60400. I googled but there is very little information. It can be the video or the USB. Tell me, is it possible to create a ssdt so that it blocks the devices and that the osx does not find them? So that unknown device errors do not appear. Thank you, I will appreciate your help. Link to comment Share on other sites More sharing options...
