denixx95

No Bluetooth /usb3 -->X99

2 posts in this topic

Recommended Posts

Posted (edited)

Hello,

Big Problem.., My Hack can not recognize my USB3 and no Bluetooth ....

I'm on High Sierra 10.13.6  (max with my NVIDIA GeForce GTX 970 CG 4070 MB)

My Setup

- Rampage V + 5820K config

- 32G Ram

- GeForce GTX 970

- full of HD ssd :)

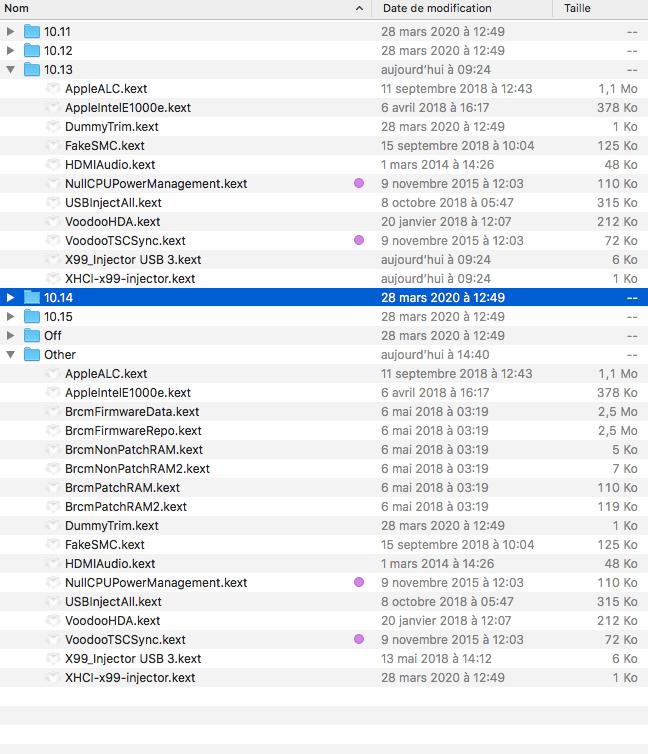

I am attaching my config.plist! and print my ktext screen ( I have to clean my room...)



Thank you for your help !!

config.plist.zip


Edited by denixx95

Share this post


Link to post
Share on other sites
Sign in to follow this
Followers 0

  • Similar Content

    • By iammask
      I am on OpenCore 0.6.3 with AirportBrcmFixup.kext, BrcmBluetoothInjector.kext, BrcmFirmwareData.kext, BrcmPatchRAM2.kext in my EFI/OC/Kexts.
      For USB mapping, USBMap.kext is being used.
      Bluetooth is loaded but there's no option to turn it on.
      please check screenshot attached, tried to include everything



    • By kushwavez
      A really good motherboard with macOS compatible bult-in Wifi & Bluetooth

      ASUS Z170-Deluxe (with Wifi)
      BIOS: v3801
      CPU: i7-6700K 4.0 to 4.2 GHz (w/o OC)
      RAM: 1x 16 GB Corsair DDR4 2400 MHz
      GPU: Intel HD 530 (Headless) & ASUS Radeon RX 5700 OC 8 GB
      Audio: ALC 1150
      Ethernet: I219V2, I211-AT
      WiFi & Bluetooth: Broadcom BCM94360HMB Half-Mini-PCI-E
      More Specs: https://www.asus.com/Motherboards/Z170-DELUXE/specifications/

      El Capitan 10.11.6 -> Big Sur 11 - Windows 10

      What is working:
      BCM94360HMB Wifi and Bluetooth AirDrop, Handoff, FaceTime, Messages, App Store, iCloud, etc. Intel HD 530 (QE/CI tested, but now I'm using it in headless) Sleep RX 5700 (QE/CI with 2 1080p monitors connected) Sound (all ports) USB Ports Two Ethernet ports macOS with a light OC (4.12 GHz - 4.5 Ghz, XMP, ASUS optimal) ASUS HyperKit and M.2 with a KINGSTON NVMe SSD - 250 GB Hardware decoding/encoding on both HD 530 and RX 5700 (HD 530 up to HEVC, RX 5700 at the time of writing VP9) iGPU only (with QuickSync) is used in the default config.plist To use dGPU for hw decode/encode and also use Intel QuickSync you need to start with "config_headless.plist" This will use iMac17,2 SMBIOS and shikigva=80 To use dGPU only boot with "config_amd.plist" also disable iGPU completely in BIOS. This will use iMacPro1,1 SMBIOS without iGPU System Integrity Protection is Enabled by default. If you need to boot with SIP disabled you may use "config_debug.plist" or disable it manually in Clover settings. If you want Enabled SIP but with allowing unsigned kexts you may boot with "CsrActiveConfig = 0x01"
      What is not working:
      -

      Not tested:
      Thunderbolt (no equipment)
      Issues:
      None
      BIOS Settings:
      Boot\CSM (Compatibility Support Module): Launch CSM: Disabled Boot\Secure Boot: OS type: Other OS Secure Boot State: Disabled Advanced\System agent (sa) Configuration: VT-d: Enabled Graphics Configuration: (This is for HD 530 in headless) Primary Display: Auto (to use dGPU only this must be PEG) iGPU Multi-monitor: Enabled (to use dGPU only this must be Disabled) RC6(Render Standby): Enabled (to use dGPU only this must be Disabled) DVMT Pre-Allocated: 128M Advanced\PCH Storage Configuration: SATA Mode Selection: AHCI HyperKit: Enable (if you have NVMe SSD with ASUS HyperKit) Advanced\CPU Configuration: Intel Virtualization Technology: Enabled CPU- Power Management Control: CPU- C-States: Enabled Intel SpeedShift: Enabled
      Getting ready for installation:
      Download the bootpack (Clover v5126): Click here -> Z170-DELUXE_Clover_v5126.zip (Tested: El Capitan 10.11.6 -> macOS Big Sur 11.0.1)
      Installation:
      Create an installer with any method you know (- Mac: createinstallmedia, gibMacOS - Windows: Transmac, Vmware, Win32diskimager, gibMacOS) Copy my Clover folder to the USB's EFI folder Boot with the Installer USB If you have any problem (kp or freeze) boot with config_debug.plist to see what causes the issue
      Post Installation:
      Download Clover Configurator and generate a new Serial Number for yourself
      Some pictures:







      El Capitan 10.11.6

      Sierra 10.12.6

      High Sierra 10.13.6

      Mojave 10.14.6

      Catalina 10.15.7

      Catalina & Windows 10 Dual-Boot (clean install, on one drive):
       Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it doesn't matter what you choose), 1 for Mac)
       Install Mac, boot with your USB, mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder (if there is no folder), copy the CLOVER folder I attached to the EFI folder, restart
      Boot into your Win installer, Format the partition you created for Win, install.
      Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:
      bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi
      You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT (UEFI) installer, also disconnect all external storage drives (except the installer USB)
      Mounting EFI from Windows:
      Open cmd in administrator mode and type: mountvol b: /s (This will mount your EFI) Open Total Commander or Explorer++ in administrator mode to manage EFI mountvol b: /d (This will unmount your EFI)
      Useful Applications for Mac:
      EFI Mountain Show -> To easily mount your EFI Clover Configurator -> To easily manage your config.plist https://mackie100projects.altervista.org/download-clover-configurator/ PlistEditPro -> Advanced plist editor https://www.fatcatsoftware.com/plisteditpro/ iStat Menus -> To monitoring your devices https://bjango.com/mac/istatmenus/ Boom 3D -> To significantly increase your audio quality https://www.globaldelight.com/boom/ TextMate -> a basic code editor just like Notepad++ on Windows https://macromates.com Modified Wineskin to run basic Windows 32-bit or 64-bit (or DX9 games) applications on Catalina -> https://www.reddit.com/r/MacOS/comments/fobx5t/i_didnt_want_to_boot_windows_every_time_when_i/ MaciASL -> View/Edit your .aml, .dsl files https://bitbucket.org/RehabMan/os-x-maciasl-patchmatic/downloads/ Hackintool -> All useful info, tools in one place https://github.com/headkaze/Hackintool IORegistryExplorer V2.1 -> To view your IO tables https://github.com/vulgo/IORegistryExplorer/releases/tag/v2.1 App Cleaner -> To delete your apps with caches https://freemacsoft.net/appcleaner/ Intel Power Gadget -> To see your frequencies https://software.intel.com/en-us/articles/intel-power-gadget Carbon Copy Cloner -> Advanced macOS drive backup utility https://bombich.com Commander One ->A Total Commander alternative for macOS https://mac.eltima.com/file-manager.html
      Useful Applications for Windows:
      Total Commander -> To easily manage EFI https://www.ghisler.com gibMacOS -> A python script for downloading/creating macOS Internet Recovery USB from Windows (working internet is needed when installing) https://github.com/corpnewt/gibMacOS mountvol b: /s -> To mount your system drive EFI
      EasyUEFI -> To manage boot orders and any bootloaders with ease https://www.easyuefi.com/index.html
      MiniTool Partition Wizard -> To mount your USB EFI, and manage other drives https://www.minitool.com/partition-manager/
      Notepad++ -> Basic code editor for all type of files https://notepad-plus-plus.org

      Notes:
      According to @albertoacj's comment Sidecar is only working in headless iGPU mode when using an AMD GPU, keep that in mind No need to change anything inside Clover from El Capitan to Big Sur For macOS Mojave and older you might need the full AirPortBrcmFixup.kext for full WiFi support
      Changelog:
      2020.11.12: Noticed that the CPU is always at 4200 Mhz, created an SSDT for proper CPU stepping. Updated to Big Sur release version, updated bootpack
      2020.11.03: Tested El Capitan, Sierra, High Sierra, Mojave, Catalina, Big Sur
      2020.11.01: Updated bootpack to Clover v5126, ready for macOS 11 Big Sur final release
      2020.04.23: Corrected layout-id to use all audio ports, updated bootpack
      2020.04.22: Deleted unnecessary boot-args, can boot without any custom boot-args (except agdpmod=pikera for RX 5700), updated bootpack
      2020.04.20: Deleted unnecessary lines from config.plist, updated bootpack
      2020.04.17: Replaced FakeSMC with VirtualSMC because FakeSMC is outdated (to see your frequencies use Intel Power Gadget) -> Removed unnecessary kexts, Updated all necessary kexts, updated Clover to v5112, updated bootpack, enabled SIP, deleted bootcamp theme
      2020.03.26: Updated to 10.15.4 -> Updated WhateverGreen, Lilu -> Updated Clover to v5107
      2020.03.23: Removed "EmuVariableUefi.efi" -> deleted, caused false nvram map, now it's native, updated Clover to v5106
      2020.02.11: Updated to 10.15.3 -> No problem when/after installing
      2020.01.19: Added ASUS HyperKit NVMe SSD to the "What is working" list
      2020.01.12: Tested system with OC, added more informations to BIOS settings
      2020.01.11: Added SmallTreeIntel82576.kext for 2nd Ethernet, Tested Ethernet ports
      2020.01.11: First upload

    • By VortexisTV
      So I've been trying to update to Big Sur from Catalina but I get stuck at the +++ message at the beginning. I made sure I have all my kexts and drivers updated. Updating to Clover revision 5126 would only get me kernel panics. Am I doing something wrong? Any response would be greatly appreciated. EFI

      ASUS Zenbook UX331FN
      Intel Core i5-8265U
      Intel UHD 620
      Clover 5120


    • By dadamaja
      Hi all!!

      After using my old Dell Clover convert for a few years, I recently built a new Catalina box using OpenCore.  Everything works perfectly and has been very stable.  The only thing that is not working is unlocking with my Apple Watch.  The screen says "Unlocking with Apple Watch" with the spinning graphic and then just prompts for my password.  It does not shake or anything as if the password is incorrect.  My 2014 MBP unlocks without issue and they both use the same iCloud account.  I purchased the Fenvi FV-T919 pci-e adapter and BT, WIFI, Handoff, and Airdrop are all working without issue.  I confirmed in system preferences that unlock is supported and made sure that automatic login is disabled in my profile.  I have cleared keys out of the keystore, restarted a number of times, logged out and back into iCloud all to no avail.  Anyone else having this issue?  Thanks in advance!!

      More info my build:
      Asus PRIME z370-A II
      Core i7 9700K
      32 GB PC3200 Crucial Ballistix RAM
      Sapphire Pulse RX380
      Samsung 970 Evo Plus
      Fenvi FV-T919
      2x Seagate Barracuda 4TB
      CoolerMaster MasterLiquid ML240L V2

    • By rvilbert
      Hi all,

      I have been trying to install Big sur on Opencore and i believe i'm almost there but i get stuck on a grey screen with my mouse pointer just before i can see the installer screen.
      I have applied the various SSDT patches for X99. I thought that was linked to VirtualSMC which I replaced by FakeSMC but same issue. I also declared my graphic card in config.plist as i thought it could come from there but that's not the issue (Radeon RX 570).
      I have been scratching my head for some time now. Any idea from anyone please.

      I have attached my EFI folder and my ioreg extract. Let me know if you need anything else.

      Thanks a million.

      My config:
      Asus X99 Deluxe
      Core-i7 5960x
      Radeon RX 570

      @RemB
      @jmacie
      I would appreciate your help please. Any views of what could be wrong? Thanks a lot

      OpenCore 0.6.2 for X99 BIG SUR.zip
      X99 iMac Pro.ioreg.zip
×
