Nikhil Chandran

DVD Drive Not working on Catalina

4 posts in this topic

Recommended Posts

I finished installing MacOS Catalina yesterday.

Everything is working except the DVD Drive. After every boot, a window pop's up saying the disk is uninitialized and ejects the tray.

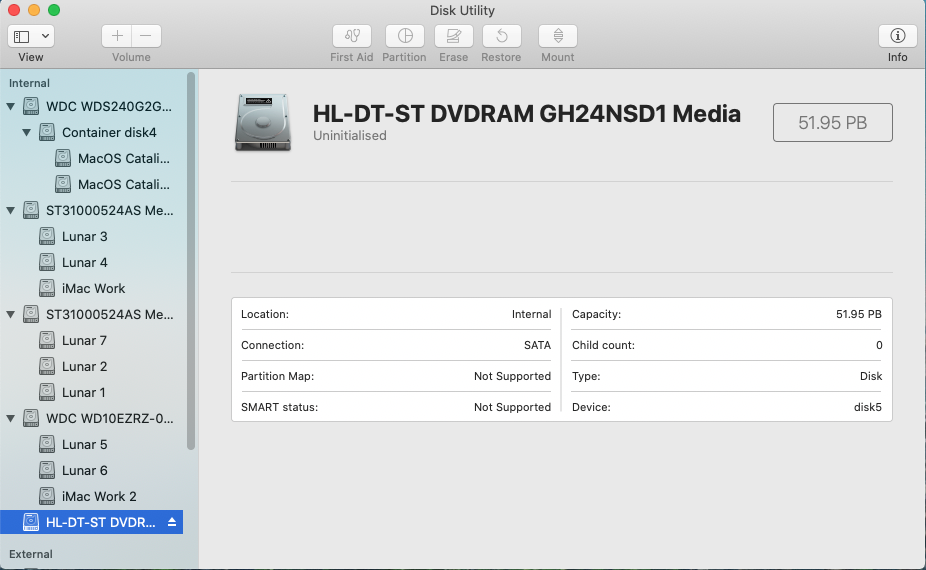

So I took a look inside the disk utility and it is saying that the drive capacity is 51.95 Peta Byte  :surprised:   :wallbash:

I tried the DVD drive in windows and it worked correctly and it was working fine in macOS HS and Sierra I didn't have to install any additional drivers or kext for it to work

Does anyone know what's happening?

Would this affect my HDD and SSD in some way?


Share this post


Link to post
Share on other sites
Advertisement

It should be working with 0 probs if your SATA drives are working



Has macOS removed internal support for optical drives? It is possible that an external DVD drive could work.

Share this post


Link to post
Share on other sites
Posted (edited)

No support removed, no. But it's probably one of those optical drives that require the little ATAPI patch usually provided as a FakeSMC injection or by dummy kext such as old Dil83's injector.

IOAHCISerialATAPI_Injector.kext.zip



Difficult to say more given that OP's has not posted any specs at all, so it's a bit of a shot in the dark.

Edited by Hervé

Share this post


Link to post
Share on other sites
Posted (edited)
2 hours ago, Hervé said:

No support removed, no. But it's probably one of those optical drives that require the little ATAPI patch usually provided as a FakeSMC injection or by dummy kext such as old Dil83's injector.

IOAHCISerialATAPI_Injector.kext.zip



Difficult to say more given that OP's has not posted any specs at all, so it's a bit of a shot in the dark.

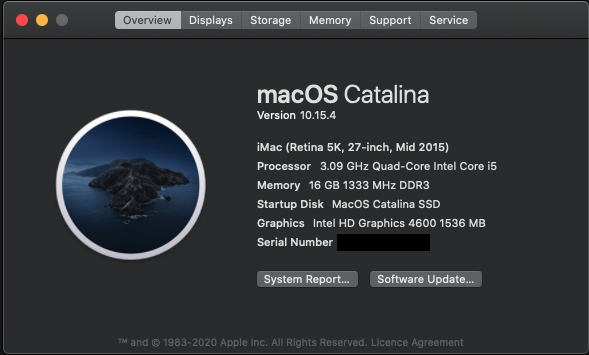

sorry, I forgot to add the specs.
what should i do with the kext. should i use it in clover/kext/other

or install it with kext utility


Screenshot 2020-05-22 at 9.26.29 PM.png

Edited by Nikhil Chandran

Share this post


Link to post
Share on other sites
