rottenpants Posted April 18, 2020 Share Posted April 18, 2020 (edited) Another issue I have is waking up the laptop (it never worked with clover as well). When it wakes up I get a black screen with the backlight on and a mouse cursor and nothing else. Followed the official configuration from OpenCore to the letter. I also used this guide as well: https://dortania.github.io/vanilla-laptop-guide/ Don't know what else to do. HP Pavilion 14-bf104np CPU: i7 8550U (Kabylake Refresh) GPU: UHD 620 RAM: 16GB DDR4 WIFI/BLuetooth: Replaced the intel card with a Broadcom one DW1560 Everything else works If someone is willing to help me I will leave here my EFI folder (removed some smbios stuff) Thank you EFI.zip bootlog.txt DSDT.aml Edited April 24, 2020 by rottenpants Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/ Share on other sites More sharing options...
Andrey1970 Posted April 18, 2020 Share Posted April 18, 2020 No kext plugins in config.plist Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718112 Share on other sites More sharing options...
rottenpants Posted April 18, 2020 Author Share Posted April 18, 2020 (edited) 31 minutes ago, Andrey1970 said: No kext plugins in config.plist Sorry i didnt understand. What do you mean by no kext plugins in config.plist? I double checked the kexts folder and I think I have them all in the config kernel-add Thank you for responding Andrey Edited April 18, 2020 by rottenpants Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718113 Share on other sites More sharing options...
Andrey1970 Posted April 18, 2020 Share Posted April 18, 2020 Look at contents kext, there is a folder PlugIns. Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718116 Share on other sites More sharing options...
rottenpants Posted April 18, 2020 Author Share Posted April 18, 2020 21 minutes ago, Andrey1970 said: Look at contents kext, there is a folder PlugIns. Ok this is what I did: copied those kexts from the plugins folder and pasted them in the EFI-OC-Kexts folder. Then I added them in the config.plist and it worked!! thank you Now the missing thing is waking the laptop properly Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718122 Share on other sites More sharing options...

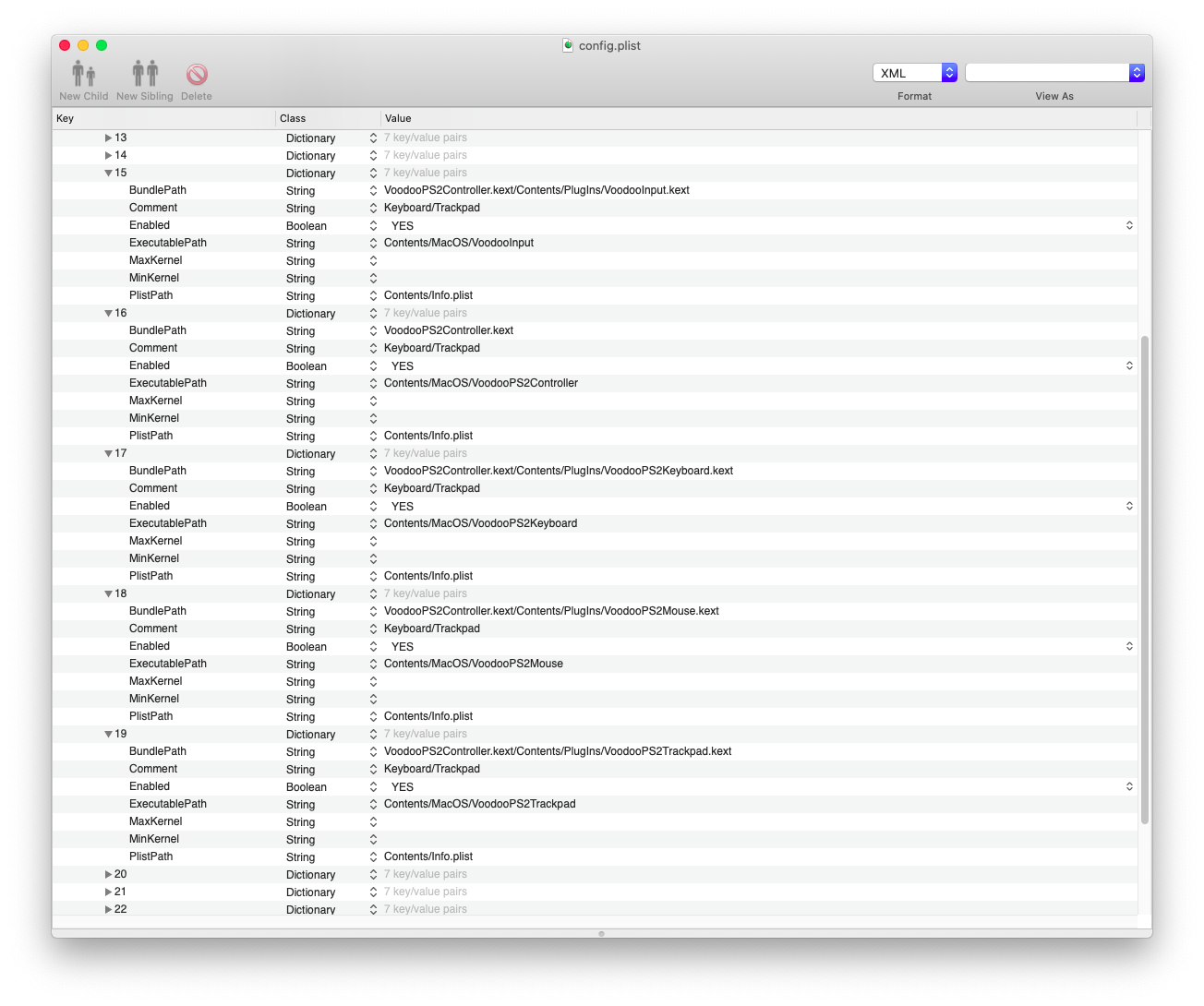

Andrey1970 Posted April 18, 2020 Share Posted April 18, 2020 (edited) 6 minutes ago, rottenpants said: I did: copied those kexts from the plugins folder and pasted them in the EFI-OC-Kexts folder It isn't reasonable. Add these keхts in config.plist with considering a way. For example: Edited April 18, 2020 by Andrey1970 Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718124 Share on other sites More sharing options...

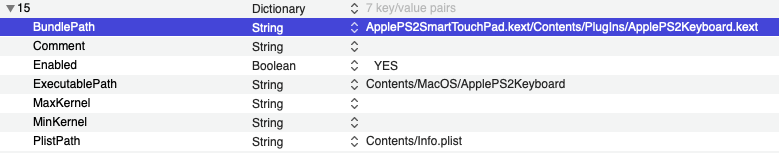

rottenpants Posted April 18, 2020 Author Share Posted April 18, 2020 (edited) 39 minutes ago, Andrey1970 said: It isn't reasonable. Add these keхts in config.plist with considering a way. For example: This is what I did Its working I will pass this information to khronokernel to maybe add this information on his guides in:https://github.com/dortania Regarding the sleep/wake problem, do you have a guess on what is causing the issue? the laptop sleeps but when it wakes up I get a black screen (with the backlight on) and a mouse cursor that i can move. Then i have to press the power button for a few seconds to turn it off Thank you Andrey Edited April 18, 2020 by rottenpants Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718128 Share on other sites More sharing options...
gorans Posted April 19, 2020 Share Posted April 19, 2020 Did You try darkwake=0 boot arg? Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718181 Share on other sites More sharing options...
rottenpants Posted April 19, 2020 Author Share Posted April 19, 2020 32 minutes ago, gorans said: Did You try darkwake=0 boot arg? I don't know if turning off darkwake is ideal but I tried it and I got the same result Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718184 Share on other sites More sharing options...
rottenpants Posted April 21, 2020 Author Share Posted April 21, 2020 On 4/18/2020 at 11:28 PM, Andrey1970 said: It isn't reasonable. Add these keхts in config.plist with considering a way. For example: Hey Andrey sorry for bothering you again but I've been trying to fix the wake issue but still no luck, still get a black screen (with backlight on) with a mouse cursor after waking. Tried to change smbios, APL,ig-platform-id/device-id, tested disabling some kexts, disabling some acpi patches but no luck.... Recently I got this sleep wake error after I hard rebooted the laptop Power button pressed during wake transition after 4742 ms. Failure code:: 0x00000010 00000027 ================================================================ Date/Time: 2020-04-21 22:01:09 +0100 OS Version: ??? ??? (Build ???) Architecture: x86_64 Report Version: 29 Data Source: Stackshots Shared Cache: 0xba8e000 933E1A9C-B1B2-3370-915F-582F8284B308 Event: Sleep Wake Failure Duration: 0.00s Steps: 1 Time Awake Since Boot: 180s Process: kernel_task [0] UUID: AB0AA7EE-3D03-3C21-91AD-5719D79D7AF6 Path: /System/Library/Kernels/kernel Architecture: x86_64 Version: Darwin Kernel Version 19.4.0: Wed Mar 4 22:28:40 PST 2020; root:xnu-6153.101.6~15/RELEASE_X86_64 Footprint: 58.32 MB Start time: 2020-04-21 22:01:09 +0100 End time: 2020-04-21 22:01:09 +0100 Num samples: 1 (1) Thread 0x6a Thread name "daemon.thread-exception" 1 sample (1) priority 80 (base 80) <IO tier 0> *1 Thread_continue + 0 (kernel + 815072) [0xffffff80002c6fe0] 1 Thread 0x6b 1 sample (1) priority 95 (base 95) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (kernel + 1537116) [0xffffff800037745c] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x6c 1 sample (1) priority 95 (base 95) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (kernel + 1537116) [0xffffff800037745c] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x6e 1 sample (1) priority 95 (base 95) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 mapping_replenish + 468 (kernel + 2297044) [0xffffff8000430cd4] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x6f Thread name "IOServiceTerminateThread" 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 IOService::terminateThread(void*, int) + 151 (kernel + 8448679) [0xffffff8000a0eaa7] 1 *1 IOService::terminateWorker(unsigned int) + 1246 (kernel + 8405278) [0xffffff8000a0411e] 1 *1 IOWorkLoop::runAction(int (*)(OSObject*, void*, void*, void*, void*), OSObject*, void*, void*, void*, void*) + 42 (kernel + 8573674) [0xffffff8000a2d2ea] 1 *1 IOWorkLoop::closeGate() + 40 (kernel + 8573000) [0xffffff8000a2d048] 1 *1 ??? (kernel + 2374475) [0xffffff8000443b4b] 1 *1 lck_mtx_lock_wait_x86 + 313 (kernel + 2376425) [0xffffff80004442e9] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] (blocked by turnstile with priority 92 waiting for kernel_task [0] thread 0x16fd) 1 Thread 0x85 Thread name "idle #2" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0x88 Thread name "idle #4" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0x8b Thread name "idle #6" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0x8e Thread name "idle #1" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0x91 Thread name "idle #3" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0x94 Thread name "idle #5" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0x97 Thread name "idle #7" 1 sample (1) priority 0 (base 0) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 idle_thread + 72 (kernel + 1337480) [0xffffff8000346888] 1 *1 processor_idle + 247 (kernel + 1337031) [0xffffff80003466c7] 1 *1 machine_idle + 736 (kernel + 2416608) [0xffffff800044dfe0] (runnable) 1 Thread 0xc4 Thread name "AppleACPIButton" 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 IOWorkLoop::threadMain() + 54 (kernel + 8571446) [0xffffff8000a2ca36] 1 *1 IOWorkLoop::runEventSources() + 286 (kernel + 8574014) [0xffffff8000a2d43e] 1 *1 IOInterruptEventSource::checkForWork() + 381 (kernel + 8579949) [0xffffff8000a2eb6d] 1 *1 ??? (<6F28A297-3C0A-3631-83B9-F1FC4A63A19A> + 7092) [0xffffff7f833c0bb4] 1 *1 ??? (<C0E7E4BE-56E8-38D5-93D5-1474FEC39BD6> + 138799) [0xffffff7f810fbe2f] 1 *1 ??? (<C0E7E4BE-56E8-38D5-93D5-1474FEC39BD6> + 144092) [0xffffff7f810fd2dc] 1 *1 IOCommandGate::runAction(int (*)(OSObject*, void*, void*, void*, void*), void*, void*, void*, void*) + 73 (kernel + 8585049) [0xffffff8000a2ff59] 1 *1 IOWorkLoop::closeGate() + 40 (kernel + 8573000) [0xffffff8000a2d048] 1 *1 ??? (kernel + 2374475) [0xffffff8000443b4b] 1 *1 lck_mtx_lock_wait_x86 + 313 (kernel + 2376425) [0xffffff80004442e9] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] (blocked by turnstile with priority 92 waiting for kernel_task [0] thread 0x16fd) 1 Thread 0x160 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 swcrypto_threadpool_worker_thread(void*, int) + 553 (apfs + 182651) [0xffffff7f81acf97b] 1 *1 lck_mtx_sleep + 112 (kernel + 1255424) [0xffffff8000332800] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x161 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 swcrypto_threadpool_worker_thread(void*, int) + 553 (apfs + 182651) [0xffffff7f81acf97b] 1 *1 lck_mtx_sleep + 112 (kernel + 1255424) [0xffffff8000332800] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x162 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 swcrypto_threadpool_worker_thread(void*, int) + 553 (apfs + 182651) [0xffffff7f81acf97b] 1 *1 lck_mtx_sleep + 112 (kernel + 1255424) [0xffffff8000332800] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x163 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 swcrypto_threadpool_worker_thread(void*, int) + 553 (apfs + 182651) [0xffffff7f81acf97b] 1 *1 lck_mtx_sleep + 112 (kernel + 1255424) [0xffffff8000332800] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x177 1 sample (1) priority 81 (base 81) <IO tier 0 and passive> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 tx_flush_thread + 619 (apfs + 913707) [0xffffff7f81b8212b] 1 *1 ??? (kernel + 6855053) [0xffffff800088998d] 1 *1 lck_mtx_sleep_deadline + 115 (kernel + 1256019) [0xffffff8000332a53] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x20d 1 sample (1) priority 81 (base 81) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (kernel + 7341464) [0xffffff8000900598] 1 *1 ??? (kernel + 6855288) [0xffffff8000889a78] 1 *1 lck_mtx_sleep + 112 (kernel + 1255424) [0xffffff8000332800] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x4ed 1 sample (1) priority 97 (base 97) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (<601E041E-0A5C-3B6A-A4E6-45ECC7F48A2B> + 56756) [0xffffff7f8146bdb4] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Thread 0x1101 Thread name "thread call kernel-high #4" 1 sample (1) priority 92 (base 92) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (kernel + 1454193) [0xffffff8000363071] 1 *1 ??? (kernel + 1455429) [0xffffff8000363545] 1 *1 IOTimerEventSource::timeoutAndRelease(void*, void*) + 82 (kernel + 8599586) [0xffffff8000a33822] 1 *1 IOWorkLoop::closeGate() + 40 (kernel + 8573000) [0xffffff8000a2d048] 1 *1 ??? (kernel + 2374475) [0xffffff8000443b4b] 1 *1 lck_mtx_lock_wait_x86 + 313 (kernel + 2376425) [0xffffff80004442e9] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] (blocked by turnstile waiting for kernel_task [0] thread 0x16fd) 1 Thread 0x16fb Thread name "thread call high #21" 1 sample (1) priority 93 (base 93) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (kernel + 1454193) [0xffffff8000363071] 1 *1 ??? (kernel + 1455429) [0xffffff8000363545] 1 *1 IOPMrootDomain::takeStackshot(bool) + 512 (kernel + 8983264) [0xffffff8000a912e0] 1 *1 stack_snapshot_from_kernel + 435 (kernel + 963443) [0xffffff80002eb373] (running) 1 Thread 0x16fd Thread name "thread call high #7" 1 sample (1) priority 93 (base 93) <IO tier 0> *1 call_continuation + 46 (kernel + 815422) [0xffffff80002c713e] 1 *1 ??? (kernel + 1454193) [0xffffff8000363071] 1 *1 ??? (kernel + 1455429) [0xffffff8000363545] 1 *1 IOService::pmDriverCallout(IOService*) + 42 (kernel + 8473610) [0xffffff8000a14c0a] 1 *1 IOService::driverSetPowerState() + 388 (kernel + 8474116) [0xffffff8000a14e04] 1 *1 ??? (<E2A12595-D183-3905-AC95-2D45BA5583CF> + 450641) [0xffffff7f840a0051] 1 *1 IOCommandGate::runAction(int (*)(OSObject*, void*, void*, void*, void*), void*, void*, void*, void*) + 312 (kernel + 8585288) [0xffffff8000a30048] 1 *1 ??? (<E2A12595-D183-3905-AC95-2D45BA5583CF> + 455668) [0xffffff7f840a13f4] 1 *1 thread_block_reason + 175 (kernel + 1317935) [0xffffff8000341c2f] 1 *1 ??? (kernel + 1324017) [0xffffff80003433f1] 1 *1 machine_switch_context + 200 (kernel + 2388456) [0xffffff80004471e8] 1 Binary Images: *0xffffff7f810da000 - ??? ??? <C0E7E4BE-56E8-38D5-93D5-1474FEC39BD6> *0xffffff7f8145e000 - ??? ??? <601E041E-0A5C-3B6A-A4E6-45ECC7F48A2B> *0xffffff7f81aa3000 - 0xffffff7f81bc0fff apfs (1412.101.1) <EA36BB76-1D94-32FF-9D55-4CBAA20C8F5A> /System/Library/Extensions/apfs.kext/Contents/MacOS/apfs *0xffffff7f833bf000 - ??? ??? <6F28A297-3C0A-3631-83B9-F1FC4A63A19A> *0xffffff7f84032000 - ??? ??? <E2A12595-D183-3905-AC95-2D45BA5583CF> *0xffffff8000200000 - 0xffffff8000bfffff kernel (6153.101.6) <AB0AA7EE-3D03-3C21-91AD-5719D79D7AF6> /System/Library/Kernels/kernel Model: MacBookPro14,1, BootROM 205.0.0.0.0, 4 processors, Quad-Core Intel Core i7, 2 GHz, 16 GB, SMC 2.43f7 Graphics: Intel UHD Graphics 620, Intel UHD Graphics 620, spdisplays_builtin Graphics: spdisplays_display, spdisplays_pcie_device Memory Module: BANK 0/Bottom-slot 1(left), 8 GB, DDR4, 2400 MHz, Samsung, M471A1K43BB1-CRC Memory Module: BANK 2/Bottom-slot 2(right), 8 GB, DDR4, 2400 MHz, Samsung, M471A1K43BB1-CRC AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x19), Broadcom BCM43xx 1.0 (7.77.111.1 AirPortDriverBrcmNIC-1600.4) Network Service: Wi-Fi, AirPort, en1 PCI Card: display, sppci_3dcontroller, Slot-1 Serial ATA Device: SanDisk SD9SN8W-512G-1006, 512,11 GB USB Device: USB 3.0 Bus USB Device: HP Wide Vision HD Camera USB Device: BCM20702A0 USB Device: Wireless Receiver Thunderbolt Bus: If you have the time please me up with this Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2718692 Share on other sites More sharing options...
rottenpants Posted April 24, 2020 Author Share Posted April 24, 2020 Anyone? Link to comment https://www.insanelymac.com/forum/topic/343484-hp-laptop-wake-from-sleep-not-working/#findComment-2719074 Share on other sites More sharing options...
