NO Sleep possible....



Hi!



I am struggling for 2 days now with my Opencore 0.57 setup.

All is working and sorted but I can't get my system to sleep.

Using clover all is fine, but OC makes the screen only black and does't sleep.

Tried with iMac 15,1 and Mac Pro 6,1

Fresh install of 10.15.4



What I notice:

When I shutdown my system, the screen stays, no dim and the Dock moves down, but stays on the screen.



My system is in my signature!



Can someone please take a look at my config please?

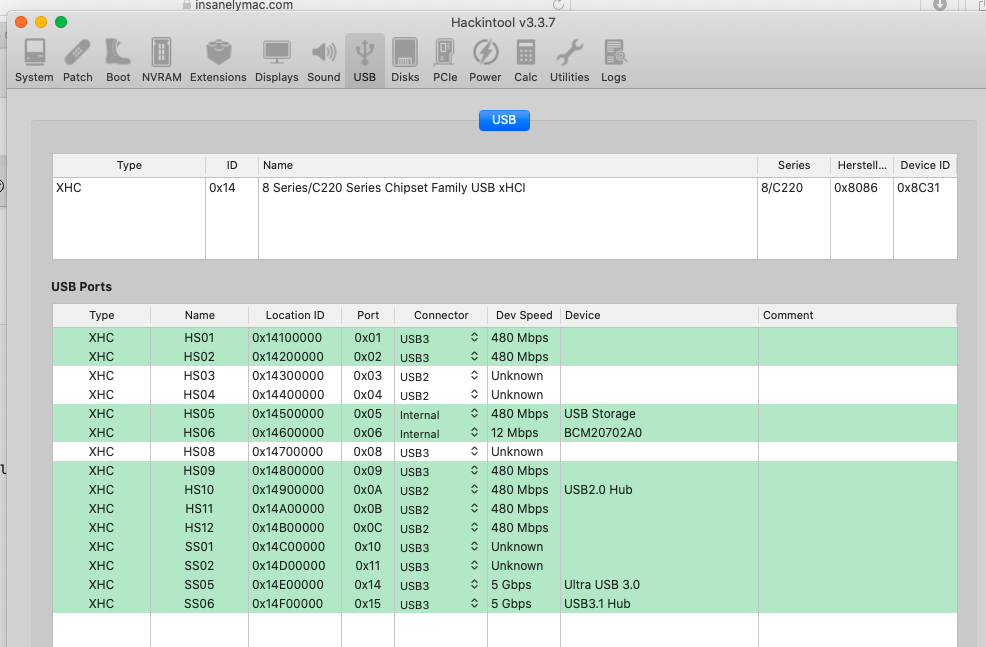

I have only 4 USB 3 ports



pmset -g
System-wide power settings:
Currently in use:
 standby              1
 Sleep On Power Button 1
 womp                 0
 hibernatefile        /var/vm/sleepimage
 proximitywake        1
 networkoversleep     0
 disksleep            10
 standbydelayhigh     4200
 sleep                10 (sleep prevented by UserEventAgent)
 hibernatemode        0
 ttyskeepawake        1
 displaysleep         10
 highstandbythreshold 50
 standbydelaylow      4200

Many thanks in advance



Best regards and Happy Easter



URBANsUNITED

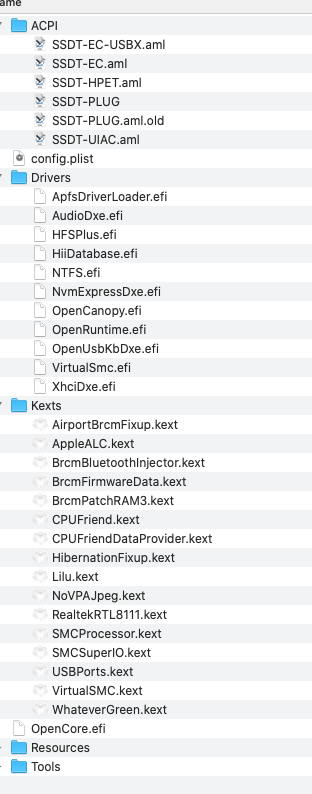

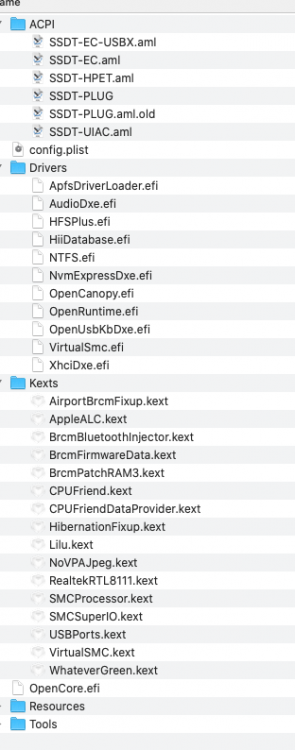

ACPI.zip

config.plist

DSDT.aml

[URBANsUNITED]

1 hour ago, Hervé said:

Same story as last year?





Possible... But I got that there working. Now I switched to Opencore and all is fine except sleep.

Maybe you can point me in proper direction?



log show --last 1d | grep "Wake reason"
2020-04-11 13:30:11.269759+0200 0xefc      Default     0x0                  69     0    powerd: [powerd:sleepWake] Wake reason: "<private>"  identity: "<private>"
