Beefcat

OpenCore - Selecting boot drive - result into black screen (Z97X gaming 5)

8 posts in this topic

Recommended Posts

Guys,



I'm bit in the dark here.



Have tried many different settings and even OpenCore fantastic trouble shoot guide. I can't get over the black screen.

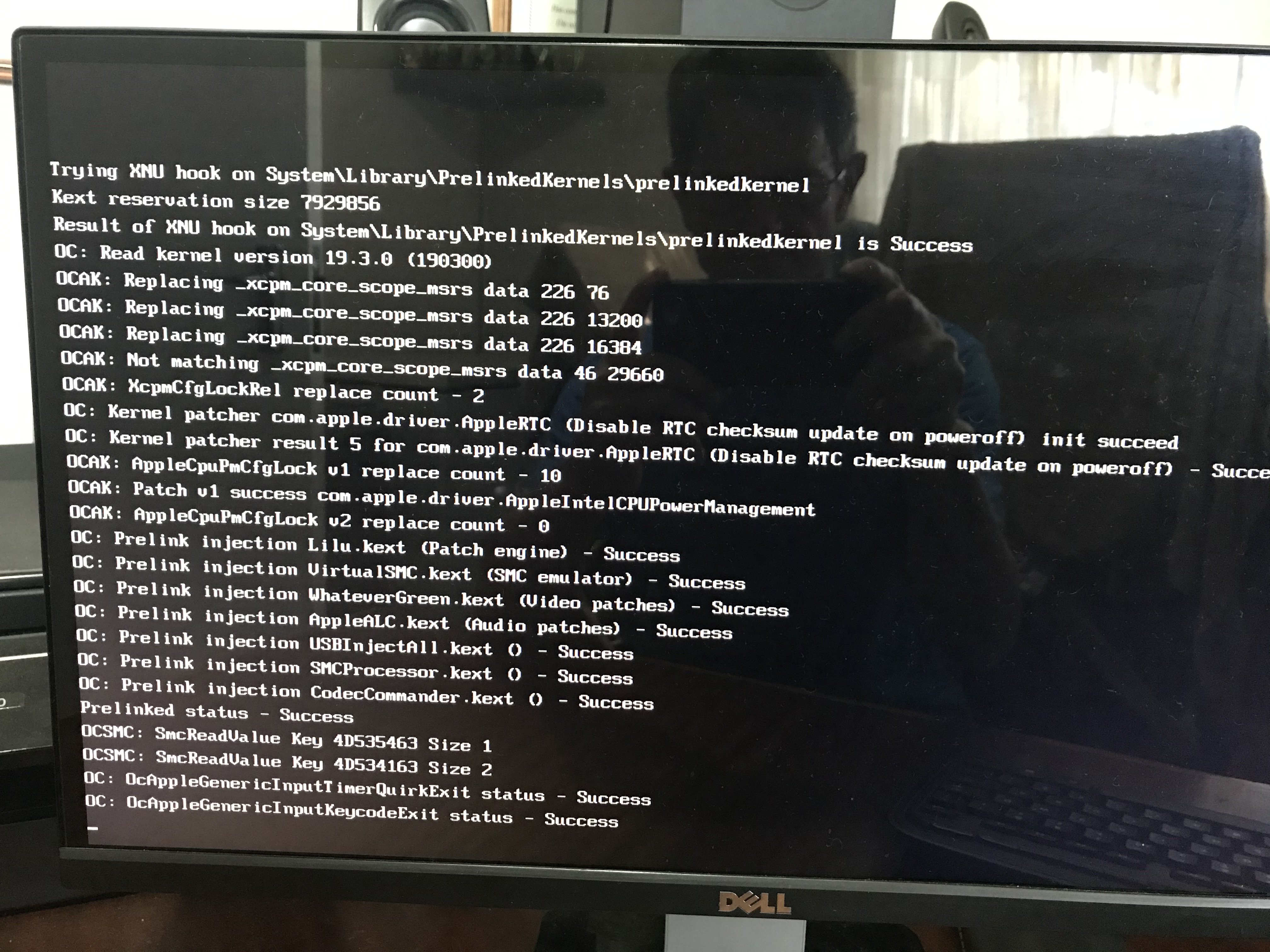

I have also run the debug version of OpenCore (see here in attached screen) to get more info, but even that is not giving me any indication. There is no failure in the logs as well.



Execution stops at at "25:850 00:040 OC: OcAppleGenericInputKeycodeExit status - Success"



Archive.zip contains my OpenCore files.



Any help or advise would be greatly appreciated.








opencore-2020-02-16-143030.txt

Archive.zip

Edited by Beefcat
Spel errors

Share this post


Link to post
Share on other sites
Advertisement
21 minutes ago, Beefcat said:

Guys,



I'm bit in the dark here.



Have tried many different settings and even OpenCore fantastic trouble shoot guide. I can't get over the black screen.



I have also run the debug version of OpenCore (see here in attached screen) to get more info, but even that is not giving me any indication. There is no failure in the logs as well.



Execution stops at at "25:850 00:040 OC: OcAppleGenericInputKeycodeExit status - Success"



Archive.zip contains my OpenCore files.



Any help or advise would be greatly appreciated.









opencore-2020-02-16-143030.txt

Archive.zip



Test

EFI.zip

Share this post


Link to post
Share on other sites
2 hours ago, ctich said:



Test

EFI.zip

Thank you for your reply,



thing is I cannot see a single thin. OC comes up with option to choose. Once I select to install Mac Catalina from usb drive with OC then I just see white screen. Nothing else.



Waited for about 5 min, Nothing happens.



Any ideas

Share this post


Link to post
Share on other sites
5 minutes ago, Beefcat said:

Thank you for your reply,



thing is I cannot see a single thin. OC comes up with option to choose. Once I select to install Mac Catalina from usb drive with OC then I just see white screen. Nothing else.



 Waited for about 5 min, Nothing happens.



 Any ideas

Nvidia gforce GTX970 not supported in 10.15(max.10.13.6)

I do not understand what the "white screen" means.
Install the system through Clover, then collect "OpenCore EFI"

Share this post


Link to post
Share on other sites
10 hours ago, ctich said:

Nvidia gforce GTX970 not supported in 10.15(max.10.13.6)

I do not understand what the "white screen" means.
Install the system through Clover, then collect "OpenCore EFI"

My sincere apology for this,



Have sold that card 2 years ago. Updated my profile signature



I'm running OC on Gigabyte Z97X.



With OC (your attached) the boot screen is coming up (whitish color of some sort) . I select the drive.



Then then screen is cleared still whitish color, but i don't see any text scrolling. Maybe the color of verbose output is also whitish , but i don't know how to change that.



I waited for 5 min. Expecting to see OS installer coming  up. Nothing.



Thank you for your effort. Any ideas ?



Edited by Beefcat

Share this post


Link to post
Share on other sites
On 2/17/2020 at 6:24 AM, Beefcat said:

My sincere apology for this,



Have sold that card 2 years ago. Updated my profile signature



I'm running OC on Gigabyte Z97X.



With OC (your attached) the boot screen is coming up (whitish color of some sort) . I select the drive.



Then then screen is cleared still whitish color, but i don't see any text scrolling. Maybe the color of verbose output is also whitish , but i don't know how to change that.



I waited for 5 min. Expecting to see OS installer coming  up. Nothing.



Thank you for your effort. Any ideas ?



I recommend installing the system through Clover and then booting through OpenCore.
I don’t know what the problem is right now.

Share this post


Link to post
Share on other sites
On 2/18/2020 at 8:23 AM, ctich said:

I recommend installing the system through Clover and then booting through OpenCore.
I don’t know what the problem is right now.

Hi,



Thank you for getting back to me and interest in helping.



In the end, and interestingly it was virtualsmc which was not defined in the config but was in drivers.



So , installed from OpenCore and all good.



Maybe you have experienced the following:



With OpenCore running on Z97X gaming 5 and RX 580 and 15.3 sleep is a problem:

The log says :"system sleep prevented by kpmcpuassertion"



Have never seen this before and even google has very little to say about this.



Where do i start ?



Share this post


Link to post
Share on other sites

Did you create an ssdt.aml?

What is the energy saving window show as possible options?





Gesendet von iPhone mit Tapatalk

Did you create a ssdt.aml?

What is the energy saving window show as possible options?





Gesendet von iPhone mit Tapatalk
