RX580 MSI Armor Only Displayport working - HDMI Black Screen High Sierra

4 posts in this topic

Recommended Posts

Hello team!

I have a small issue wiith my RX580 MSI on High Sierra, only one DP is working, no hdmi... Any clue?

Supermicro X8DTL-6F
2 x Xeon X5650
RX580 MSI

Share this post


Link to post
Share on other sites
On 2/2/2020 at 1:17 AM, neoskateur said:

Hello team!

I have a small issue wiith my RX580 MSI on High Sierra, only one DP is working, no hdmi... Any clue?

Supermicro X8DTL-6F
2 x Xeon X5650
RX580 MSI

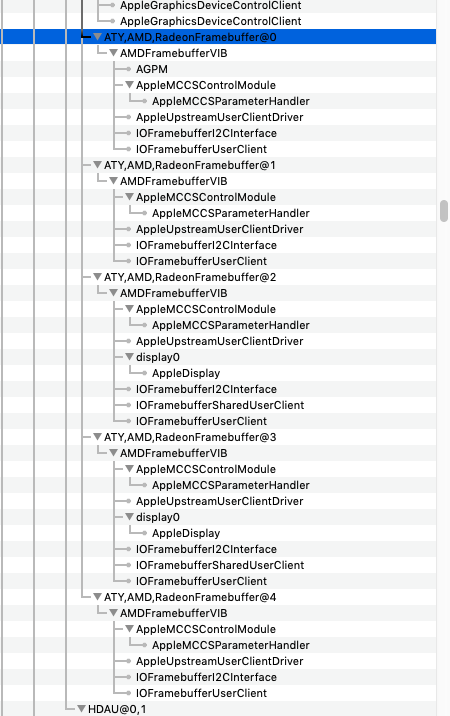

work - 2 HDMI 2 DP. DVI nothing to check but ioreg 5 ports shows. MSI RX580 Armor OC 8G /10.14.6

Снимок экрана 2020-02-03 в 14.27.32.png

Edited by Nuacho

Share this post


Link to post
Share on other sites
On 2/1/2020 at 5:17 PM, neoskateur said:

Hello team!

I have a small issue wiith my RX580 MSI on High Sierra, only one DP is working, no hdmi... Any clue?

Supermicro X8DTL-6F
2 x Xeon X5650
RX580 MSI



I have Catalina running on my own Nehalem-based system.  If you want to run Mojave as @Slice suggested, your system will run perfectly as MacPro5,1.  If you want to run Catalina, it will still run perfectly with Clover bootflag -no_compat_check.

My RX580 is working with the following configuration items:

  •  Configure CLOVER config.plist with the following options
    1. Fixes: FixDisplay
    2. Boot Arg: -no_compat_check (for Catalina)
    3. Graphics: Vendor ID: 0x1002, Product ID: 0x67DF, FB Name: Orinoco, Inject ATI, RadeonDeInit
  • Lilu.kext and WhateverGreen.kext

  • Add Fake EC if your DSDT doesn't have one (I think this was required for Catalina - not sure)

Edited by tonyx86

Share this post


Link to post
Share on other sites
