Rajan Pandit

Black Screen with Gigabyte Radeon RX 560

6 posts in this topic

Recommended Posts

Hai, I have,

i5 2500k

GA-z68 AP D3 Rev.1

Corsair 8 GM Ram

Gigabyte Radeon RX 560 OC 4G Graphic Card

500 GB Samsung SSD EVOf



with this configuration I tried to install Mojave but After Apple Logo there was a black screen

then nothing... please help

I have create USB with terminal and Install Clover_v2.4k_r4961-Legacy.pkg to activate boot

then I have recessary kext to EFI/KEXT/OTHER

but I am struck at Black Screen after apple logo

Share this post


Link to post
Share on other sites
Advertisement

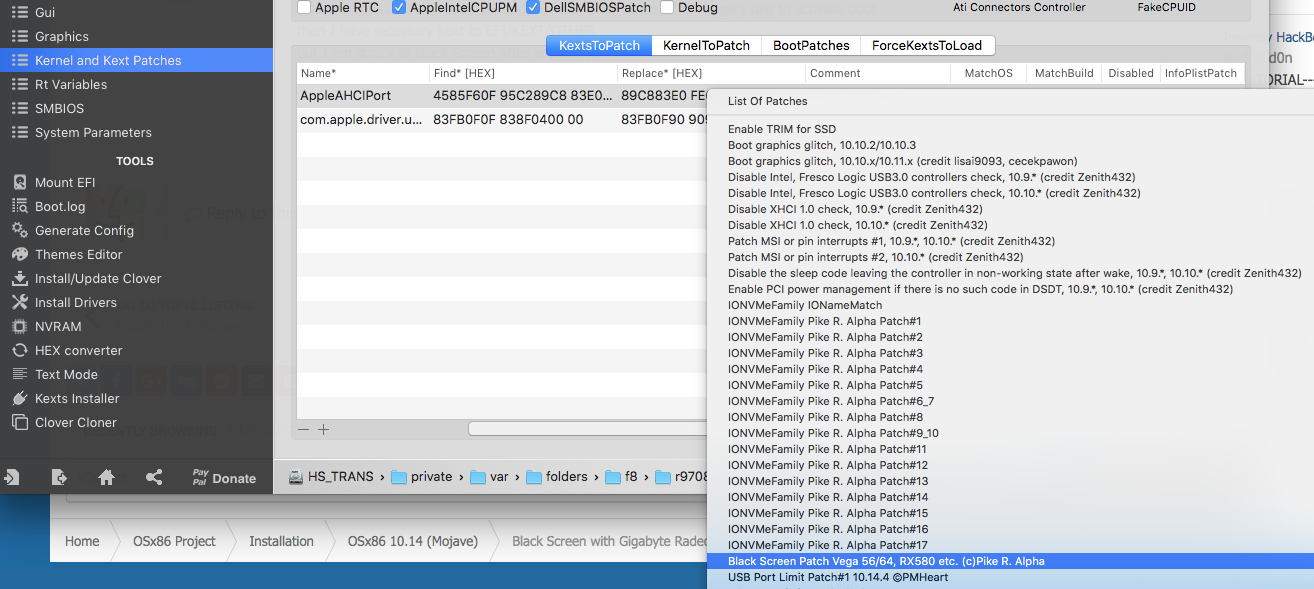

i have add the Patch 'Black Screen path for Vega*****' for Kernel and Kext Patches

but it still black screen after apple logo progress bar

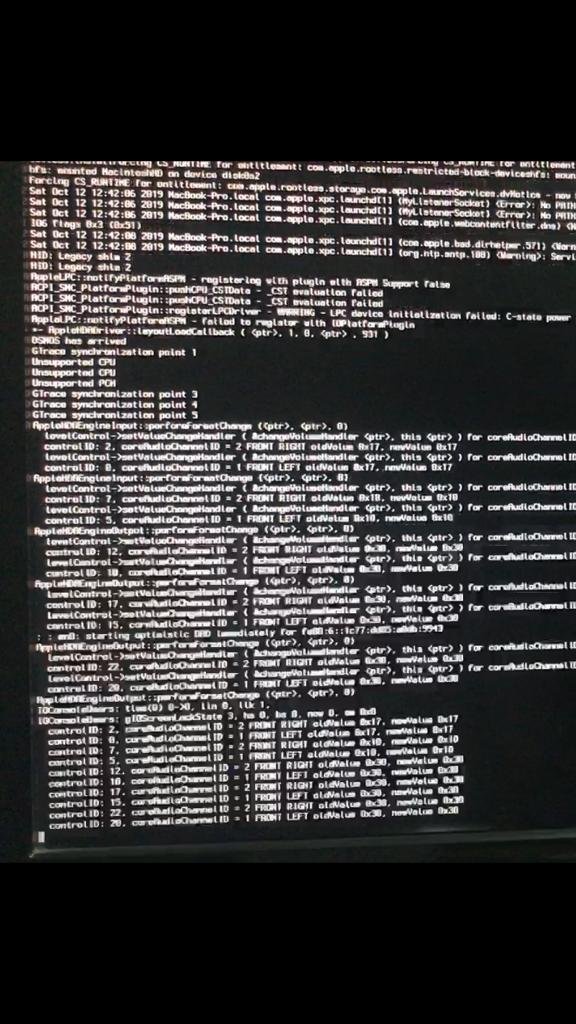

my verboose screenshot is attached

21 hours ago, iCanaro said:

Schermata 2019-10-11 alle 17.37.22.png



WhatsApp Image 2019-10-12 at 6.30.25 PM.jpeg

Share this post


Link to post
Share on other sites
