Unable to start the Mojave installer - HUANANZHI X79-8D + Dual Xeon

19 posts in this topic

Recommended Posts

Hi Guys, I've been at this for a few days now, and I haven't been able to get any further.

This is my 4th Hackintosh build, and I've literally never been so stuck. I'm pretty sure it's related to my motherboard...



Here's my hardware:

  • HUANANZHI X79-8D
  • Dual XEON E5-2680v2 CPUs
  • 128 GB of DDR3 Ram
  •

Radeon R580 (reusing from my previous Hackintosh, I know it's 100% compatible)



Here's what I've done so far:



Created the clover USB with EUFI

Disabled VTd & serial ports in BIOS

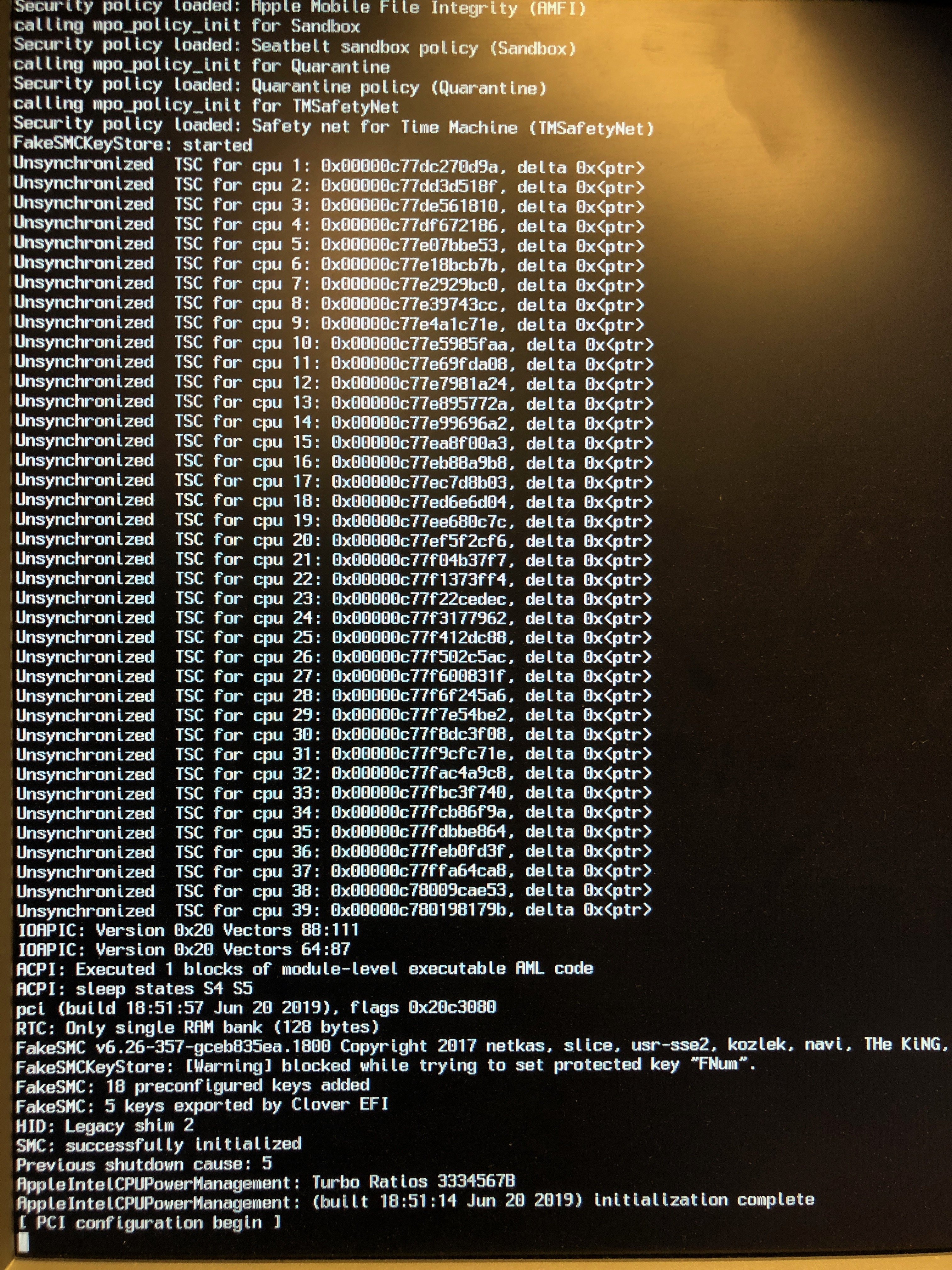

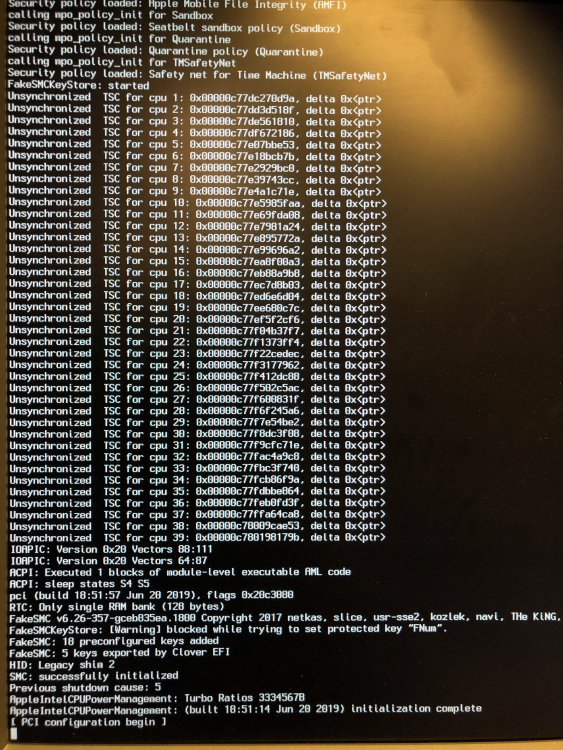

if I boot with these arguments, here my error:


-v
Keep Symbols
Don't reboot at panic

Here's a link to my EFI files


Edited by DannyG16
newb

Share this post


Link to post
Share on other sites
Advertisement

Thank you sooo much for this help.
really appreciate it.

This definitively, definitively went a lot further on boot.

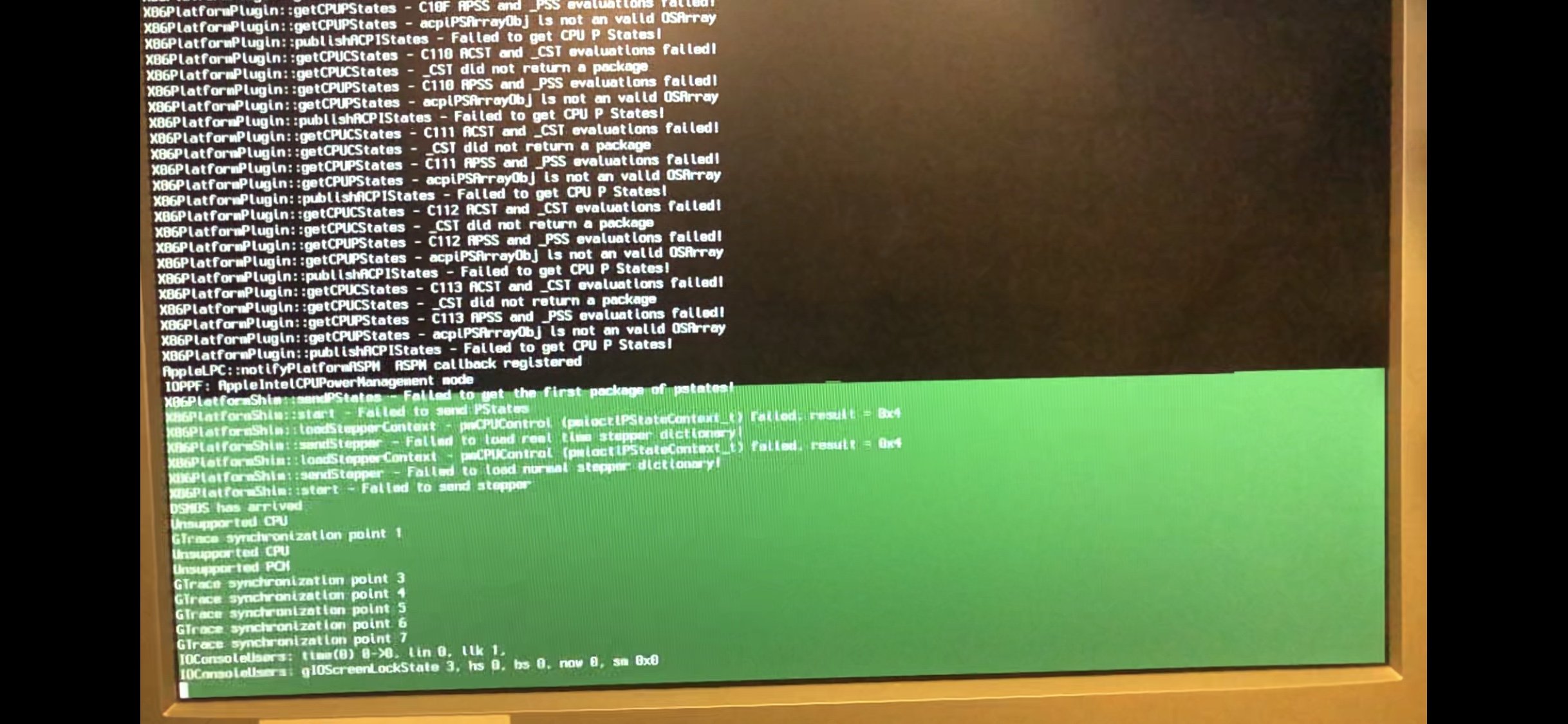

Last error message I saw on screen was CPU not supported, then it was just a blank screen.

I pressed space bar, selected -v & "no reboot" but the screen still goes black
Here's my new EFi folder


Share this post


Link to post
Share on other sites
22 minutes ago, DannyG16 said:

Thank you sooo much for this help.
really appreciate it.

This definitively, definitively went a lot further on boot.
Last error message I saw on screen was CPU not supported, then it was just a blank screen.

I pressed space bar, selected -v & "no reboot" but the screen still goes black
Here's my new EFi folder


try with -x



use uefi mode ever ;)

Share this post


Link to post
Share on other sites

Hey MaLd0n, I appreciate the reply and the help.



How to I use UEFI mode?
I created my USB stick with [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] and selected UEFI, I see UEFI is "enabled" in my bios (even though, it's an old school looking bios)

What am I missing?

Share this post


Link to post
Share on other sites
23 hours ago, DannyG16 said:




if u use whatevergreen, block this kext and try, the problem is about video

Share this post


Link to post
Share on other sites

I'm not using whatevergreen, I had to google it to know what you were talking about.

I'm literally only using what [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] created  + the EFI folder you suggested I copy over.
My Video card worked OoB with my previous Mojave build on an intel board.

Edited by DannyG16

Share this post


Link to post
Share on other sites
4 minutes ago, DannyG16 said:

not sure why it's adding a "tony 86" link removal... I'm jsut typing U.N.I.B.E.A.S.T



We don't support that stuff here. The reason for it is described in the link it replaced it with:



Share this post


Link to post
Share on other sites

Alright, so I've learned a lot today.

1) I created a new USB installer with "Clover EFI v2 Bootloader".

2) I figured out what @MaLd0n meant by "block whatevergreen" - this is a kext that he added in the EFI Folder.



I didn't block the whatevergreen - after I created my new installed, I just moved your original EFI folder and tried it.
I actually start the install now.
However, I'm stuck on the Language page.

My Mouse works.. but I can't click on next.



EDIT: I just realized that if I'm on the language page... I should be able to format my disks.. but I don't see the "osx bar" at the top. I wonder why that is.

Edited by DannyG16

Share this post


Link to post
Share on other sites

Got it working!





for anyone searching for this later.
here's what I did to get it to work:

  1. install the latest clover (2.5K_r5 at the time of writing)
  2. copy over Mald0m's EFI folder
  3. Download this youtuber's image file:
  4. it downloads a rdr file, I wasn't able to extract it. I had to fire up my Windows VM, install the Rtool that's included in the youtuber's google drive.
  5. Extract files/folder and copy over the EFI folder (it's the 200mb fat partition)
  6. I tried copying over his entire EFI folder on my key... but that didn't work.
  7. what worked was copying over (replacing) all his KEXTs in the "other" folder to my key.

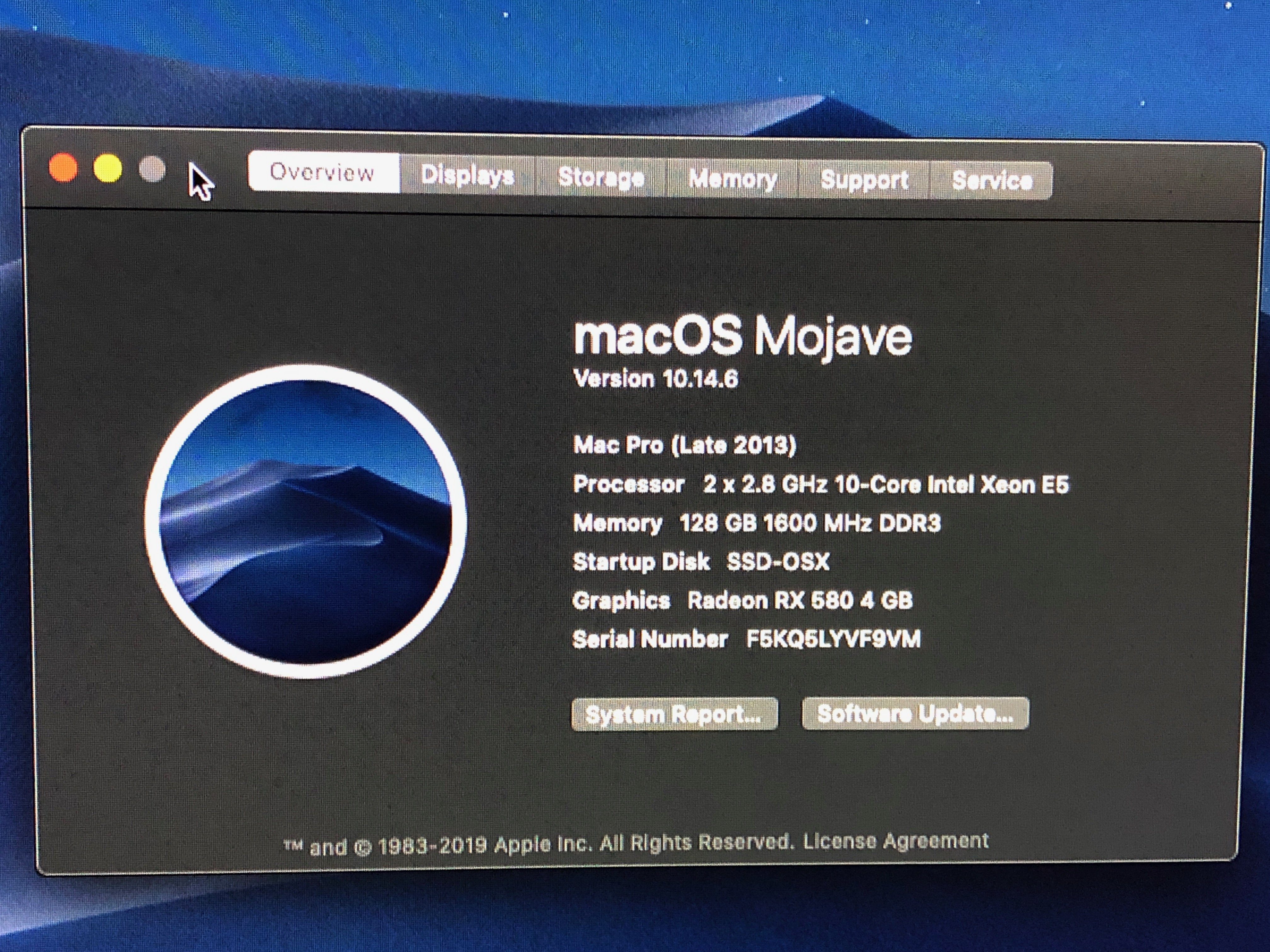

  8. I was finally able to boot the installer and install OSX.


Share this post


Link to post
Share on other sites

I followed your technique and installed High Sierra first than Mojave. I gotta be honest, this wasn't an easy project, in fact, it took me days to have a fully functional machine.

Much appreciated.

Share this post
