r00tdvd Posted July 18, 2019 Share Posted July 18, 2019 I have Catalina Beta 3 working on my E6540 but I still have 2 main issues I need to fix and would appreciate some assistance please. 1- Only the mouse USB and a 2GB USB are working but not if I insert an Additional SSD USB or Internal 2nd SSD Drive 2- HDMI works but sound is not synced properly to the Samsung TV Regarding the USB Do we need to find and replace any address in Kernel and Kext to Patch in the config as we did for 10.14.x? If I try to install AppleAHCIPort.kext into L/E under 10.15.x it will create a Kernel Panic upon boot and I cannot fix it after that.! I have attached my EFI.zip and clover origin dump files E6540_origin.zip Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/ Share on other sites More sharing options...
r00tdvd Posted July 18, 2019 Author Share Posted July 18, 2019 Also the Darwin dump files are here:- DarwinDumper.zip Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682036 Share on other sites More sharing options...
igorw Posted July 19, 2019 Share Posted July 19, 2019 Yes, you need to remove the port limit, as posted by PMHeart #1 com.apple.iokit.IOUSBHostFamily Find: 83FB0F0F Replace: 83FB3F0F #2 com.apple.driver.usb.AppleUSBXHCI Find: 83F90F0F Replace: 83F93F0F Also by him, kernel to patch: find 00 85 C0 0F 84 87 00 00 00 49 repl 00 85 C0 90 90 90 90 90 90 49 Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682119 Share on other sites More sharing options...
r00tdvd Posted July 19, 2019 Author Share Posted July 19, 2019 2 hours ago, igorw said: Yes, you need to remove the port limit, as posted by PMHeart Hi Thanks for the response, I believe I already have all of these done, could you please take a quick look at my Config.plist and see if I have done anything incorrectly. I think I've done all of these already correctly but I am not sure. Thank you Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682123 Share on other sites More sharing options...
igorw Posted July 19, 2019 Share Posted July 19, 2019 (edited) I fixed the USB patch on your config.plist Your kexts folder EFI/CLOVER/KEXTS only has 10.14 on it. You should add wether 10.15 or "Other". I wonder how you're being able to boot at all on Catalina. I suggest you install the newest clover, if you haven't done so. Use a USB Drive before you mess with your original one. Your AppleALC kext is a bit outdated, get the latest build https://github.com/acidanthera/AppleALC/releases/ Maybe you should also try Whatevergreen. config.plist Edited July 19, 2019 by igorw Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682165 Share on other sites More sharing options...

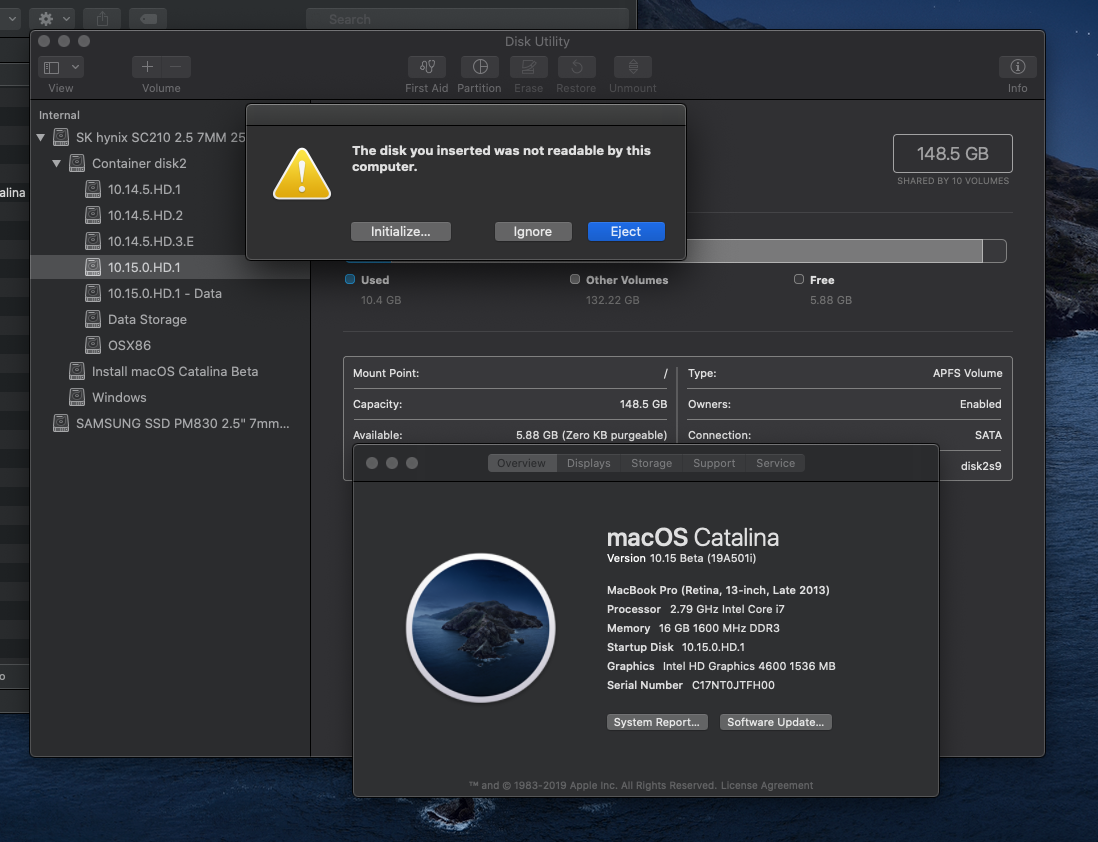

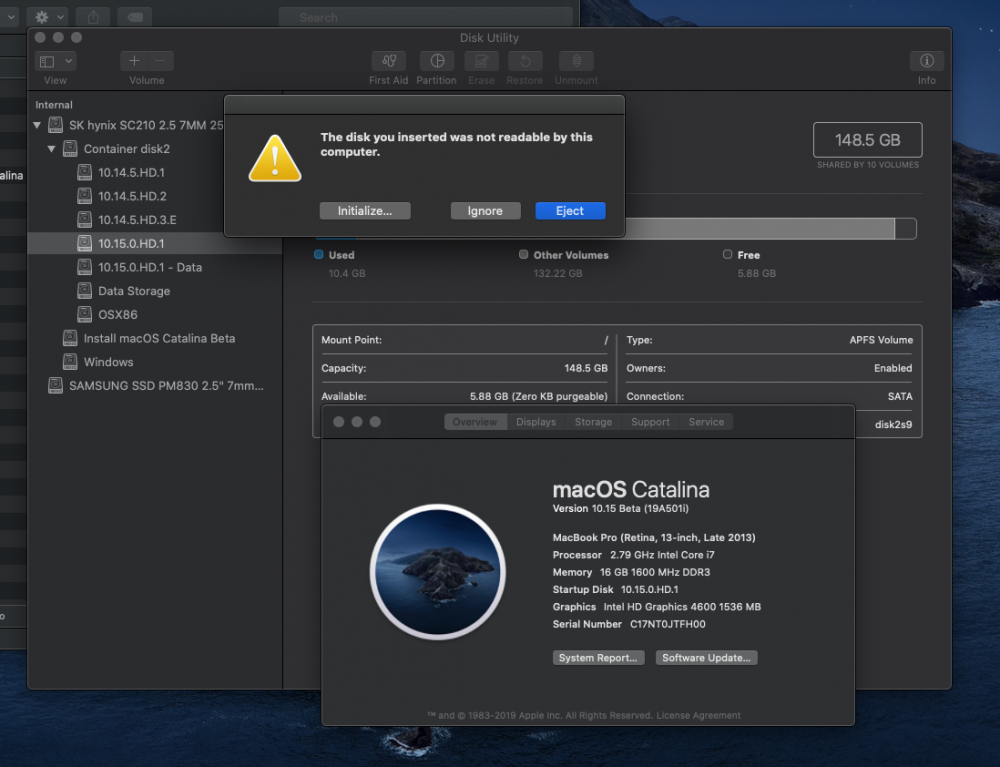

r00tdvd Posted July 22, 2019 Author Share Posted July 22, 2019 Hi igorw, Thank you for fixing the config.plist, the external USB 128GB SSD is now recognized. :), I modified it slightly to fix it for 10.14.5 and 10.15.0 now. I had uploaded the incorrect EFI before so I have uploaded the correct modified one EFI.zip now, I was already running Catalina ofcourse screenshot attached I just have 2 issues right now that I have been investigating and I hope you can help: 1- HDMI when connecting to a Samsung TV is not working but its working perfectly fine on 10.14.5 with sound also 2- Second 128GB Samsung SSD PM830... internal Drive in 10.14.5 it works perfectly fine because I placed AppleAHCIPort.kext.zip in L/E but not in 10.15.0. This SSD has my Data. Thank you. Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682405 Share on other sites More sharing options...
igorw Posted July 22, 2019 Share Posted July 22, 2019 15 hours ago, r00tdvd said: Hi igorw, Thank you for fixing the config.plist, the external USB 128GB SSD is now recognized. :), I modified it slightly to fix it for 10.14.5 and 10.15.0 now. I had uploaded the incorrect EFI before so I have uploaded the correct modified one EFI.zip now, I was already running Catalina ofcourse screenshot attached I just have 2 issues right now that I have been investigating and I hope you can help: 1- HDMI when connecting to a Samsung TV is not working but its working perfectly fine on 10.14.5 with sound also 2- Second 128GB Samsung SSD PM830... internal Drive in 10.14.5 it works perfectly fine because I placed AppleAHCIPort.kext.zip in L/E but not in 10.15.0. This SSD has my Data. Thank you. Try Placing AppleAHCIPort.kext.zip in EFI/Clover/Kexts/10.15 (or EFI/Clover/Kexts/Other). about the HDMI issue, you are getting no video or just no audio? Place a print here of your "About this Mac">>System Report>>Graphics Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682469 Share on other sites More sharing options...
r00tdvd Posted July 24, 2019 Author Share Posted July 24, 2019 (edited) On 7/23/2019 at 1:55 AM, igorw said: Place a print here of your "About this Mac">>System Report>>Graphics The video doesn't work yet with HDMI in Catalina. This is the output for Mojave and HDMI works: Intel HD Graphics 4600: Chipset Model: Intel HD Graphics 4600 Type: GPU Bus: Built-In VRAM (Dynamic, Max): 1536 MB Vendor: Intel Device ID: 0x0412 Revision ID: 0x0006 Metal: Supported, feature set macOS GPUFamily1 v4 Displays: Display: Resolution: 1920 x 1080 (1080p FHD - Full High Definition) UI Looks like: 1920 x 1080 @ 60 Hz Framebuffer Depth: 24-Bit Color (ARGB8888) Main Display: Yes Mirror: Off Online: Yes Rotation: Supported Automatically Adjust Brightness: No Connection Type: DisplayPort This is the output for Catalina and HDMI does not work: Intel HD Graphics 4600: Chipset Model: Intel HD Graphics 4600 Type: GPU Bus: Built-In VRAM (Dynamic, Max): 1536 MB Vendor: Intel Device ID: 0x0412 Revision ID: 0x0006 Metal: Supported, feature set macOS GPUFamily1 v4 spdisplays_metalfamily: spdisplays_mtlgpufamilymac1 Displays: Display: Resolution: 1920 x 1080 (1080p FHD - Full High Definition) UI Looks like: 1920 x 1080 @ 60 Hz Framebuffer Depth: 24-Bit Color (ARGB8888) Main Display: Yes Mirror: Off Online: Yes Rotation: Supported Automatically Adjust Brightness: No Connection Type: DisplayPort Edited July 25, 2019 by r00tdvd Update Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682727 Share on other sites More sharing options...
r00tdvd Posted July 25, 2019 Author Share Posted July 25, 2019 Never mind about the internal SSD, I have it working now. Just the HDMI video not working right now. As soon as I connect the HDMI cable the screen goes blank / grey. Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682819 Share on other sites More sharing options...
igorw Posted July 25, 2019 Share Posted July 25, 2019 Ok. I researched your model and it seems to come with a Discrete GPU, alongside with your iGPU. Is that correct? If so, did you disable it on purpose? About the Intel IGPU, go to IORegistryExplorer , search for IGPU, and get the values of: ig-platform-id and device-id. Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682835 Share on other sites More sharing options...

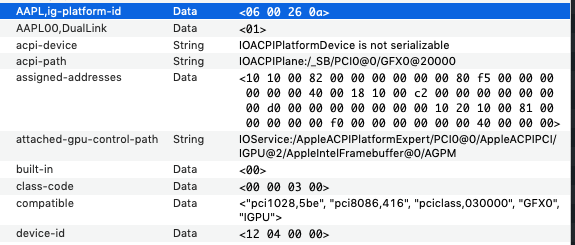

r00tdvd Posted July 26, 2019 Author Share Posted July 26, 2019 (edited) Thank you. Here are the info:- ig-platform-id <06 00 26 0a> device-id <12 04 00 00> I am using the same EFI Clover files for Mojave and Catalina. HDMI is working on Mojave but not Catalina This is the latest EFI.zip I am still not sure what's wrong because I am pretty sure at some point the HDMI video on Catalina was working. Either I changed something in my EFI that stopped the HDMI video from working or it was an earlier beta of Catalina that worked. Edited July 26, 2019 by r00tdvd Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682952 Share on other sites More sharing options...
r00tdvd Posted July 26, 2019 Author Share Posted July 26, 2019 Also the complete reg dump is here Catalina.ioreg Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2682953 Share on other sites More sharing options...
igorw Posted July 27, 2019 Share Posted July 27, 2019 Try this config.plist Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2683105 Share on other sites More sharing options...
r00tdvd Posted July 30, 2019 Author Share Posted July 30, 2019 (edited) On 7/28/2019 at 2:03 AM, igorw said: Try this config.plist Unfortunately it didn't do the trick. Its ok thank you for your help . When I boot while HDMI connected, it just gets stuck at the loading bar screen after it was booted and if I boot without it, the screen just goes black when I connect the HDMI. I will keep trying I am sure some day I will figure out what it is. Edited July 30, 2019 by r00tdvd Link to comment https://www.insanelymac.com/forum/topic/339560-e6540-working-efi-attached-for-catalina-beta-3-except-usb-internal-2nd-ssd-hdmi-sound-sync-with-tv/#findComment-2683403 Share on other sites More sharing options...
