Gigabyte GA-B360M D3H with UHD630 iGPU AMD dGPU

1 post in this topic

Recommended Posts

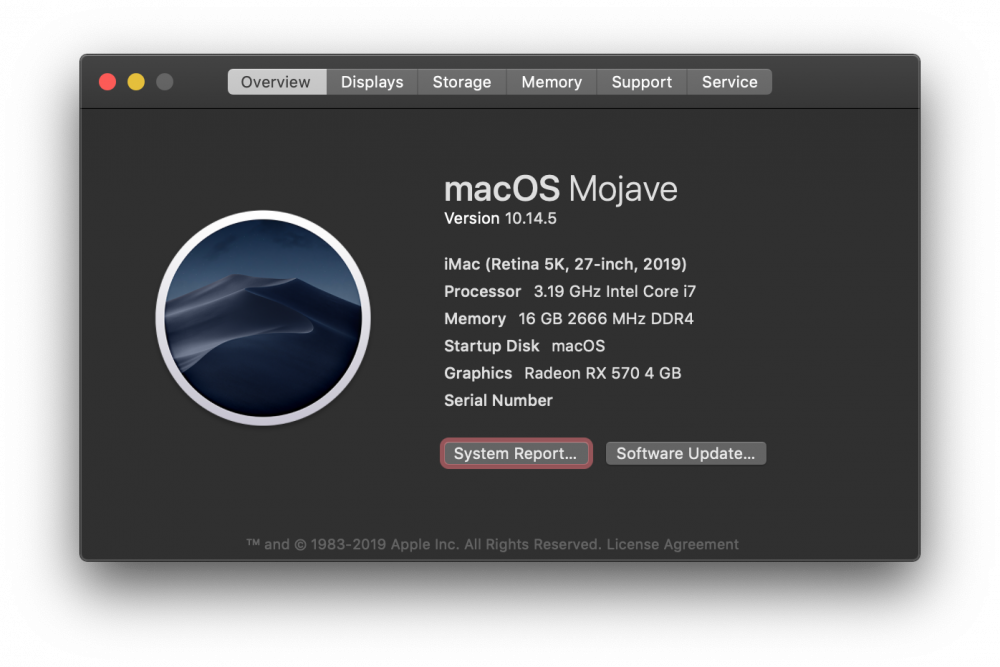

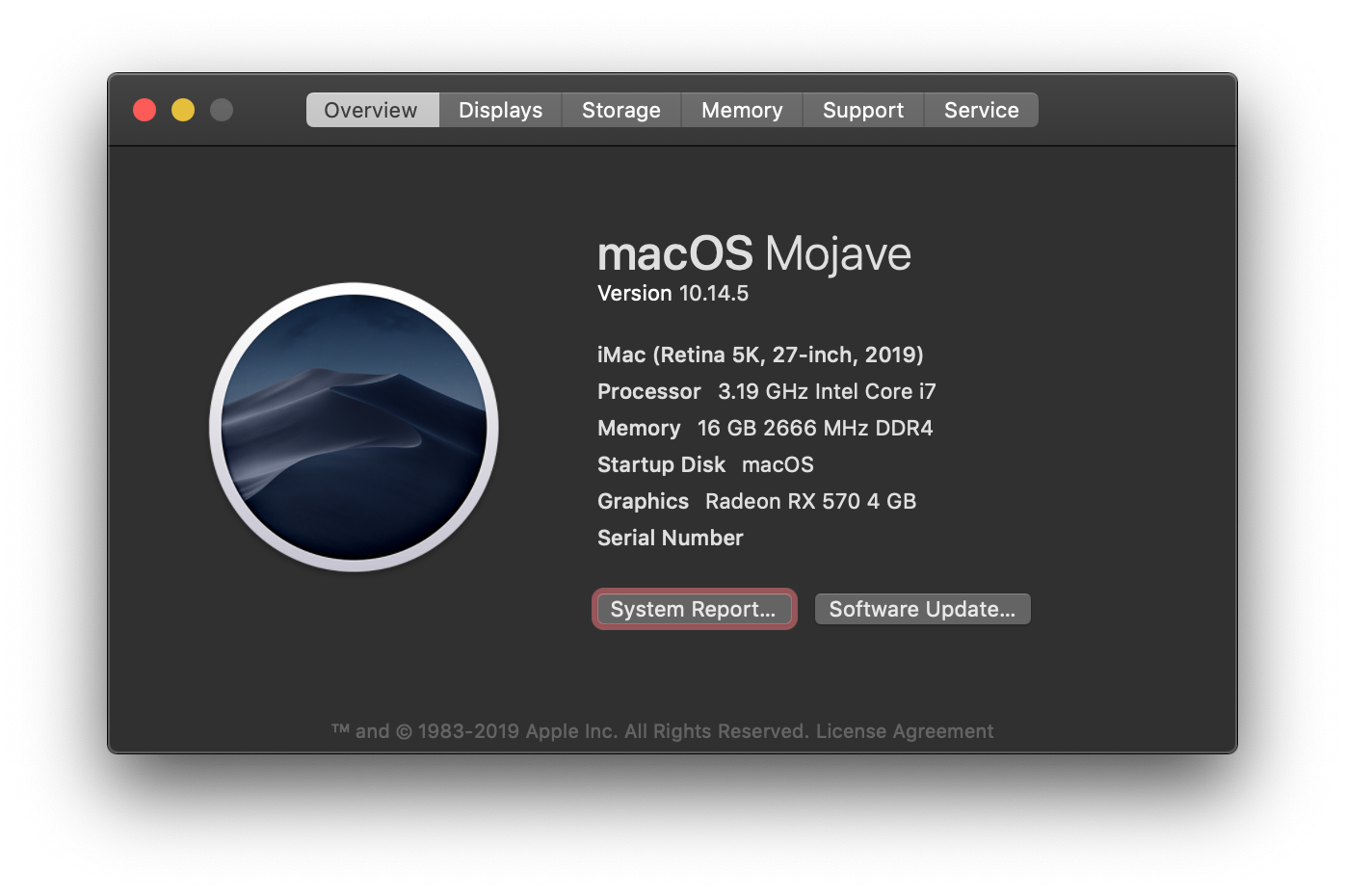

GA-B360M D3H with UHD630 iGPU AMD dGPU CLOVER

Specifics

  • CPU : Intel® Core™ i7-8700 Processor (12M Cache, up to 4.60 GHz)
  • Mainboard : Gigabyte GA-B360M D3H Durable Edition

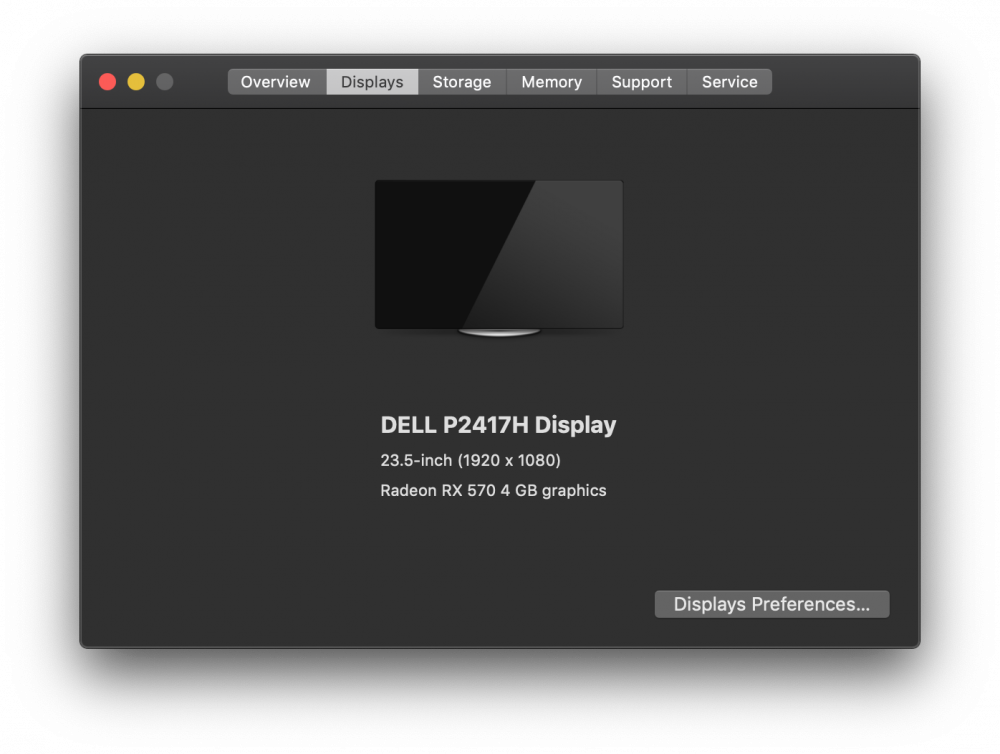

  • Graphics : Intel® UHD Graphics 630, SAPPAIRE RX 570 4GB
  • Sound : Realtek ALC892
  • Wireless : BCM943602CS

Bios/Clover Bootloader/macOS Version

  • Bios : F12
  • Clover Bootloader : v2.4k r4920 (or Higher)
  • macOS : Above 10.14

Bios Setup

  • Load Optimized Defaults
  • [Internal Graphics] Enable

Kexts

  • AirportBrcmFixup.kext
  • AppleALC.kext
  • BrcmFirmwareRepo.kext
  • BrcmPatchRAM2.kext
  • EFICheckDisabler.kext
  • FakeSMC_ACPISensors.kext
  • FakeSMC_CPUSensors.kext
  • FakeSMC_GPUSensors.kext
  • FakeSMC_LPCSensors.kext
  • FakeSMC_SMMSensors.kext
  • FakeSMC.kext
  • IntelMausiEthernet.kext
  • Lilu.kext
  • USBPorts.kext - Hackintool generated
  • VoodooPS2Controller.kext

Issues

none



Files and Details (Github)

https://github.com/laelsirus/Dell-Latitude-5290-2-in-1-UHD620-iGPU-CLOVER
