Mojave ASUS TUF Z390M -- Epic Failure to This Point

3 posts in this topic

Recommended Posts

Posted (edited)

Hi everyone,



Brand new to this forum, and excited to be here! Unfortunately, I'm struggling to get Mojave installed on the following hardware:

  • Motherboard: Asus TUF Z390M-Pro Gaming (Wi-Fi)
  • CPU: Intel i5-9600K
  • RAM: 32gb Corsair Vengenace 2667MHz (Disabled XMP, so running slower)
  • Graphics: Intel UHD 630 (no discrete GPU)
  • SSD: HP EX950 M.2/NVMe 1 TB



I have followed a combination of both this install guide, and this post (mostly used that config.plist) in attempting to set this thing up.



My kexts are the following:

  • whatevergreen.kext
  • VirtualSMC.kext
  • usbinjectall.kext
  • lilu.kext
  • intelmausiethernet.kext
  • AppleALC.kext



I have also included the following EFI drivers:

  • OsxAptioFix2Dr-64.efi
  • EmuVariableUefi-64.efi
  • NvmExpressDxe-64.efi
  • HFSPlus.efi
  • AptioMemoryFix-64.efi
  • ApfsDriverLoader-64.efi



Boot options:

  • dart=0
  • debug=0x100
  • keepsyms=1
  • shikigva=40
  • -v



Product: iMac18,1



For the BIOS, I loaded optimized defaults and set the following five changes:

  • Advanced\System Agent (SA) Configuration\VT-d - Disabled
  • Advanced\System Agent (SA) Configuration\Above 4G - Decoding Enabled
  • Advanced\USB Configuration\Legacy USB Support - Disabled
  • Advanced\USB Configuration\XHCI Hand-off - Disabled
  • Boot\Fast boot - Disabled



The Problem:

Every time I try to install Mojave, I can boot from the USB (2.0) stick -> I get the install screen -> select language -> wipe the SSD with Disk Utility -> and proceed with the install.

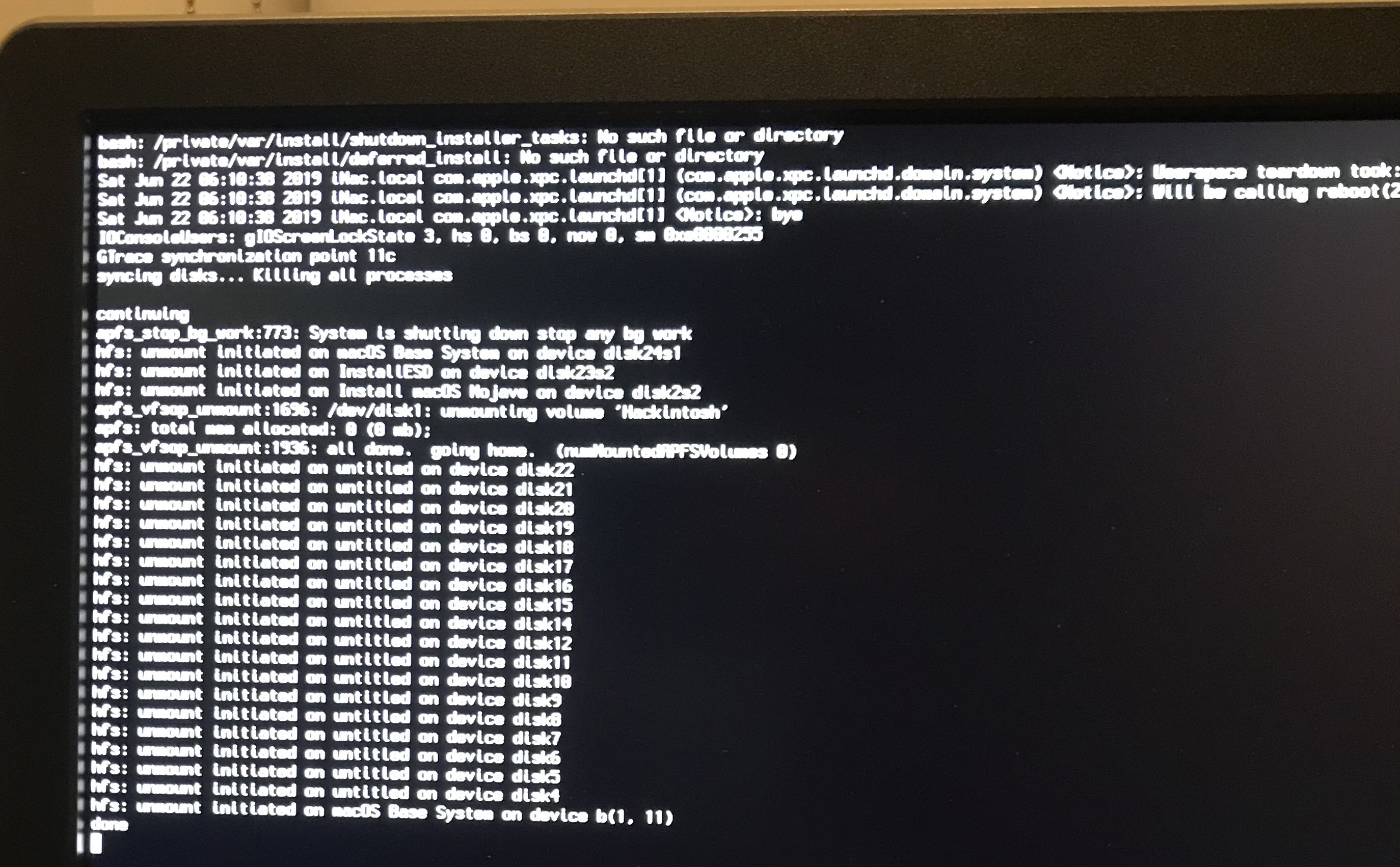

The problem is at 2 minutes remaining/~70%, the system restarts and I'm left with the following screen briefly (see attached). When the system restarts and I can continue with the installation, it takes me back to the start with language selection and accepting the TOS.



I've spent quite a bit of time trying to fix this to no avail. Any help will be appreciated!


Edited by cmaster
Spelling error

Share this post


Link to post
Share on other sites
Advertisement

Disconnect all discs except the SSD disk.

If not disks, check in Oralia Instalation if these are the correct EFI drivers for your NVME:

  • OsxAptioFix2Dr-64.efi
  • EmuVariableUefi-64.efi
  • NvmExpressDxe-64.efi
  • HFSPlus.efi
  • AptioMemoryFix-64.efi
  • ApfsDriverLoader-64.efi

Share this post


Link to post
Share on other sites
