I have tried to install clover via no UEFI legacy mode (and with UEFI method) using the method here (http://www.tonymacx86.com/yosemite-desktop-guides/144426-how-install-os-x-yosemite-using-clover.html)
both times I can get to just past the clover boot screen and it freezes after that.
I have verbose (-v) selected in boot options: On the non-UEFI install then it hangs on:
"Waiting on <dict ID="0"><key>IOProviderClass</key>...."

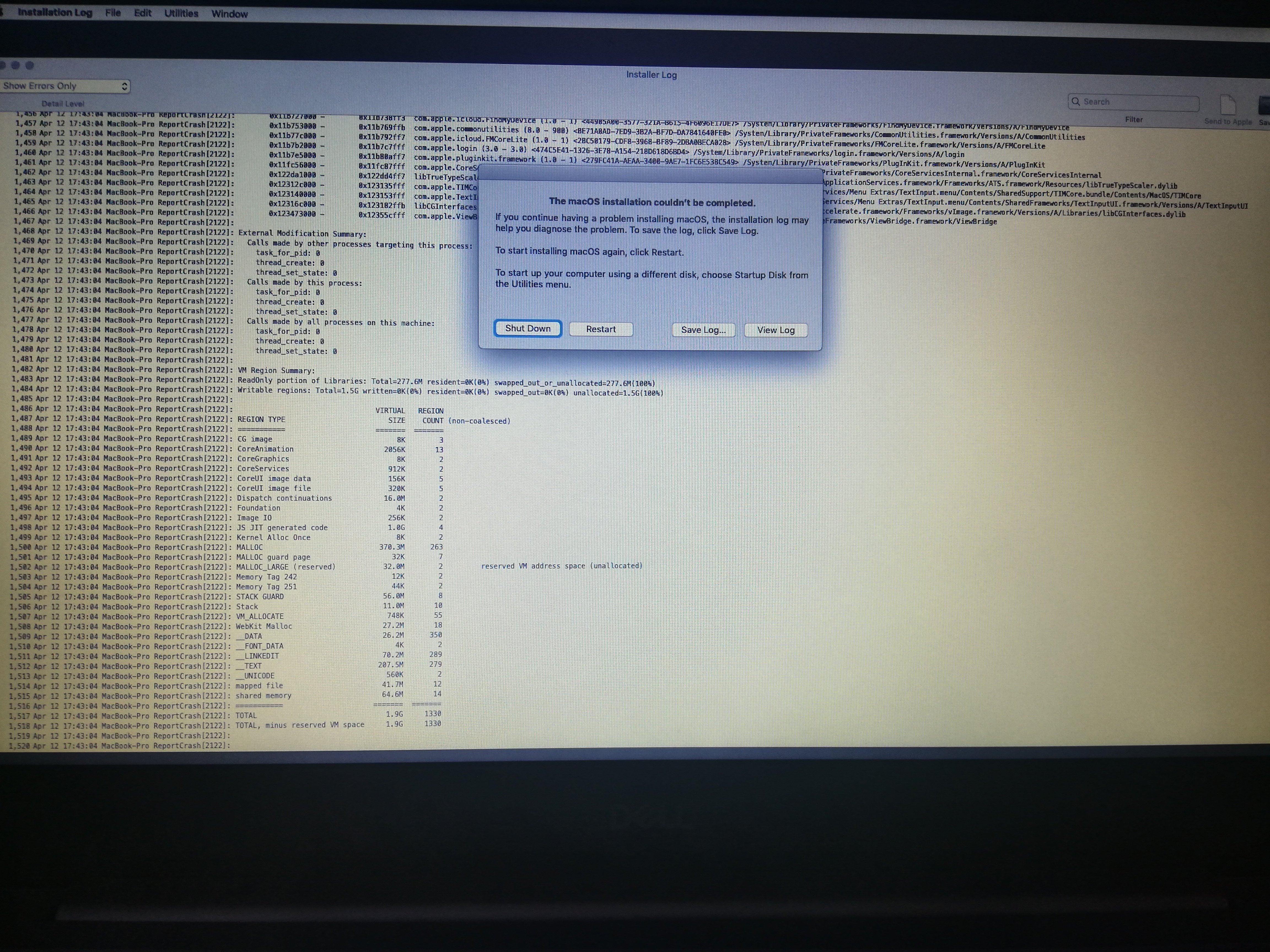

I have had a lot of issues with trying to get the installer working and many different things that had to be disabled but now it just gets to here and stops. Some times it will glitch out on this screen and give me a the circle with the line through it and text garbage around it where the text in the pictures are.
Need help please.
This is the laptop im using the specs are the same nothing has changed.
MOJAVE HACKINTOSH GUIDE
**FOR** GIGABYTE Z390 AORUS PRO
CREDITS & THANKS
His help with EFI configuration and DSDT
Slice, Kabyl, usr-sse2, jadran, Blackosx, dmazar, STLVNUB, pcj, apianti, JrCs, pene, FrodoKenny, skoczy, ycr.ru, Oscar09, xsmile, SoThOr, rehabman, Download-Fritz, Zenit432, cecekpawon Et al
autumnrain, slice2009, zenith432
ESP PRO MOUNTER
JoniVR & theOneyouseek
• Intel I7 8700
• Gigabyte Z390 AORUS PRO
• Gigabyte AORUS RADEON RX 580 8GB
• Corsair Vengeance LPX 16GB ( 2 x 8GB ) 2666MHz – CMK16GX4M2A2666C16 In this build, both memory modules are installed in memory slots DDR4_A1 and DDR4_B1
• Corsair RM650x 80 Plus Gold Power Supply Unit
• Corsair H100i V2 AIO Hydro/Water RGB LED CPU Cooler
• Samsung EVO 500GB SSD (2.5) macOS Mojave
• Samsung EVO 250 GB SSD (2.5) Windows 10 Pro
• NZXT H500 Mid Tower ATX Case
• RECOMMENDED WIFI CARD → ABWB 802.11AC WI-FI With Bluetooth 4.0 PCI-Express (PCI-E) BCM943602CS
• WIFI and Bluetooth with BCM94331CD with PCI-e adapter (but will require AirportBrcmFixup.kext for AirDrop.. )
** Avoid Samsung EVO 970 PLUS as Hackintosh has problem with that device **
• HDMI audio on RX580
• Ethernet Port
• SSD Trim
• USB 3.0 & 2.0
• Hardware Acceleration
PART 1 - DOWNLOAD
Download the following:
• PRE-INSTALL Aorus Pro Z390 EFI - RX580.zip
• POST-INSTALL Aorus Pro Z390 EFI - RX580.zip
// INTEL UHD 630 EFI Aorus Pro Z390 EFI's below. For those who do not have a Graphics Card Installed in PCIe Slot, requires Initial Display Output BIOS setting to be changed to IGFX spoiler below!
• PRE-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip
• POST-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip
• ESP MOUNTER PRO v1.9
• macOS MOJAVE
• CLOVER CONFIGURATOR
• EmuVariableUefi-64.efi ( Used only to initialise iMessages. It then must be removed from Clover drivers64UEFI folder as will cause intermittent memory allocation errors on boot, explained in guide)
• Native Display Brightness with MonitorControl
PART 2 - BIOS SETTINGS (version F5 )
Here is a list of the BIOS settings that I have used ( Screenshots in spoiler below )
• Enter BIOS → Press F12 → Enter Setup
• Save & Exit → Load Optimized Defaults
• BIOS → Windows 8/10 Features → Other OS
• BIOS → CSM Support → Enabled
• Peripherals → Initial Display Output → PCIe 1 Slot
• Peripherals → Trusted Computing → Security Device Support → Disable
• Peripherals → Intel(R)Bios Guard → Intel BIOS Guard Support → Disable
• Peripherals → USB Configuration → Legacy USB Support → Enabled
• Peripherals → USB Configuration → XHCI Hand-off → Enabled
• Peripherals → Network Stack Configuration → Network Stack → Disabled
• Peripherals → SATA And RST Configuration → SATA Mode Selection → AHCI
• Chipset → Vt-d → Disabled
• Chipset → Internal Graphics → Enabled
• Chipset → DVMT Pre-Allocated → 64M
• Chipset → DVMT Total Gfx Mem → 256M
• Chipset → Audio Controller → Enabled
• Chipset → Above 4G Decoding → Disabled
• Power → ErP → Disabled
• Power → RC6 (Render Standby) → Enabled
// IF USING CORSAIR H100i V2 AIO CPU WATER COOLER
• MIT → Smart Fan 5 Settings → CPU Fan Control mode → PWM
• Save & Exit → Save & Exit Setup
SCREEN DUMP SPOILERS
PART 3 – CREATE A MOJAVE USB FLASH INSTALLER
Prepare USB Installer for Mojave ( Video below )
• Insert USB drive
• Launch /Applications/Utilities/Disk Utility
• Disk Utility → View → Show All Devices
• On Left-hand panel → External →(Identify your USB device in left hand panel)
• Click and highlight your USB device in the left-hand panel.
• Click erase button.
• Name: USB
• Format: Mac OS Extended (Journaled )
• Scheme: GUID Partition Map
• Click Erase button.
• Place the downloaded MacOS Mojave app into Applications folder.
• Open Terminal copy and paste:
sudo /Applications/Install\ macOS\ Mojave.app/Contents/Resources/createinstallmedia --volume /Volumes/USB --nointeraction && say Mojave Drive Created • Enter
PART 4 – INSTALL CLOVER ON THE MOJAVE USB INSTALLER
Make Mojave USB flash drive installer bootable.( Video below )
• Launch Clover application, double click.
• Click Continue → Continue → Continue
• Click Change Install Location button.
• Click Install macOSMojave USB installer → Continue
• Click Customise button
Clover for UEFI booting only Install Clover in the ESP Themes UEFI Drivers Install RC scripts on target volume NO NEED TO INSTALL RC SCRIPTS ON USB INSTALLER • Click Install button
• Installation Complete!
PART 5 – CUSTOMIZE MOJAVE USB INSTALLER FOR AORUS Z390 PRO
Replace Clover EFI folder with PRE-INSTALL Aorus Pro Z390 EFI - RX580.zip OR if no graphics card installed in PCIe slot, then use PRE-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip ( Video below )
• Install ESP Mounter Pro v1.9
• Using ESP Mounter Pro, Mount ESP on disk2s1 ( Your disk name may be different )
• Open mounted EFI partition found on desktop
• Copy all the contents from Aorus 390 Pro EFI folder
• Replace USB EFI folder with all the contents inside the Aorus 390 Pro EFI folder.
PART 6 – INSTALL MAC OS MOJAVE ON INTERNAL DRIVE
ENSURE BIOS: Above 4G Decoding is set to Disabled
if Above 4G decoding is set to enabled then macOS Mojave install will freeze at 2 mins remaining and will not shut down properly!!!!
Please be patient during install, so when install gets to 2 or 3 mins remaining then it may take extra time. Be ready to boot from UEFI USB installer by pressing F12 when install initiates restarts.
• INSERT USB INSTALLER INTO THE USB 2.0 PORT
• Power on PC and press F12• Choose bootable USB drive from boot menu.
• Install macOS Mojave to internal solid state or hard drive.
When system returns to the Clover boot menu choose:
• Boot macOS Install from Macintosh
At next restart, press F12 and boot from external UEFI USB device and choose:
• Boot macOS Install from Macintosh
Proceed with macOS Mojave install
macOS Mojave is now installed, but it can only boot at this moment thanks to FakeSMC and Clover on the Mojave USB flash drive installer.
PART 7 – MAKE AORUS Z390 PRO INTERNAL DRIVE BOOTABLE
Make internal drive bootable ( Video below )
So far, the Aorus Pro can only boot the internal system drive with the aid of the Mojave USB Installer.
To boot from the internal system drive without the installer:
Download and install Clover with RC Scripts on target volume.
If your Aorus Pro Z390 has AMD RX 580 then copy the EFI folder from inside POST-INSTALL Aorus Pro Z390 EFI - RX580.zip folder and paste it inside the the System Drive EFI partition. OR
If your Aorus Pro Z390 has no graphics card installed in PCIe slot, then copy the EFI folder from inside POST-INSTALL Aorus Pro Z390 EFI - Intel UHD630.zip folder and paste it inside the the System Drive EFI partition.
• Remove USB Mojave installer and shut down and restart.
Aorus Hackintosh should now be able to boot to macOS Mojave, Done, well almost !
PART 8 – ENABLE IMESSAGES & FACETIME
Configure Config.plist for iMessages. ( Video below )
• SMBIOS = Mac Mini 8.1
• Rt Variables —> ROM —> is your MAC address (delete colons from Mac address)
• MLB field = Enter serial number generated and append 5 random characters
• SmUUID = in Terminal run command “uuidgen” and copy it to SmUUID field
• Board Serial is same as MLB field.
• Clover Configurator —> Save
• Mount internal drive EFI/ESP partition
• Go to folder CLOVER → drivers64UEFI
• Delete AptoMemoryFix-64.efi
• Place both EMUVariableUefi-64.efi and OsxAptoFix2Drvfree2000.efi inside → drivers64UEFI
Using Clover Configurator, add the following argument to config.plist using Clover Configurator.
• Slide = 0
Shutdown and then press power on button on PC.
• You should now be able to Log into iCloud, iMessages and FaceTime
• NOW delete EMUVariableUefi-64.efi from CLOVER → drivers64UEFI Folder
• Shutdown and restart Aorus Pro hackintosh. iMessages etc is now operational without EMUVariableUefi-64.efi ( EMUVariableUefi-64.efi only needed to initialise iMessages )
• It is important to delete EMUVariableUefi-64.efi, this will avoid very intermittent boot errors such as: “Couldn’t allocate runtime area” post errors.
PART 9 – ENABLE TRIM for Solid State Flash Drives
Open Terminal and enter the following command:
sudo trimforce enable
DEFAULT SSDT – DEFAULT SSDT USB PORTS FIX CONFIGURATION - SSDT ALREADY INSIDE AORUS Z390 EFI FOLDER
Limitation: USB2 devices can not be used on SS03 → SS08
------------ GUIDE FINISHED YOU SHOULD NOW HAVE WORKING AORUS Z390 PRO HACKINTOSH WITH SSDT USB FIX ------------
OPTIONAL: Set Wi-Fi Country Code
OPTIONAL: System Information - PCI
OPTIONAL: Enable HDMI Audio on RX580
OPTIONAL: Native Display Brightness - with MonitorControl
OPTIONAL: Dual Boot macOS Mojave & Windows 10
OPTIONAL: Replace the default "About This Mac" Apple Logo with RED AORUS APPLE
OPTIONAL - ALTERNATIVE SSDT 1 – SSDT Ports configuration below - replace SSDT inside Clover /ACPI/PATCHED folder
OPTIONAL - ALTERNATIVE SSDT 2 - SSDT Ports configuration below - replace SSDT inside Clover /ACPI/PATCHED folder
OPTIONAL - ALTERNATIVE SSDT 3 – Create your own SSDT
FRAMEBUFFER PATCHING – For working Intel UHD 630 Graphics, working HDMI Port, working HDMI Audio on Aorus Z390 Pro
FOR MORE HACKINTOSH INFORMATION SUCH AS USB PORTS FIX, CLOVER CONFIGURATOR, HACKINTOSH BACKUP WITH CARBON COPY CLONER ..... THEN SEE MY PREVIOUS GUIDE FOR ASUS Z370-G Strix
Hi, i've installed on my pc MacOS Mojave but after installation my pc, sometimes, crash giving kernel panic.
I came to the conclusion that it is a random kernel panic because sometimes it starting up and other times it isn't starting up
CPU: Intel i7 6500U
Wi-Fi & Bluetooth: Dell DW1820A
TLDR: I've gotten myself up a creek without even a working keyboard and mouse.
Asus X99 Deluxe motherboard
Dual Asus Radeon R9 280x GPU's
i7 5930K CPU
G.Skill - Ripjaws Series 32 GB (4 x 8 GB) DDR4-2400 Memory
Highpoint 2721 RAID controller + 4 hard drives
EVO 850 Pro SSD
I had installed Mojave and had set it up to boot directly into my user account with no need for a password. Both Clover and IORegistryExplorer were set as log-in items. This was because I was working on activating my SS ports. The X99 Deluxe USB ports are set up as follows:
USB3_E1 to USB3_E10 at the rear (Asmedia controller)
USB_13 & USB_14 at the rear (Intel)
USB1112 & USB1314 (headers on the motherboard)
USB3_12 & USB3_34 (front)
This adds up to potentially 34 ports, far more than I need. I had three patches enabled to remove the 15 port limit but they weren't doing the trick. So I disabled the ten USB3 ports on the rear that are subject to the Asmedia controller in BIOS. I also disabled the Asmedia USB3 controller. All I really need are the four USB3 ports on the front panel, along with one of the motherboard USB2 headers. This should have gotten me down to under 15 ports. One SS port appeared in IORegistryExplorer but I couldn't locate it when I tested every active port.
I'm not sure what I did but everything went sideways. I found that I was booting into Mojave, Clover and IORegistryExplorer were launching but the mouse cursor was frozen in the corner and the keyboard was dead. Moving the keyboard and mouse to different ports didn't help. Meanwhile the OS was giving me a message about looking for a BT keyboard which I don't have.
I've tried the following to no avail:
-- reinstalling Mojave
-- various combinations of USBInjectAll.kext, XHCI-X99-injector.kext, X99_Injector USB 3.kext, and GenericUSBXHCI.kext
-- resetting the CMOS
-- enabling and disabling the ten Asmedia USB3 ports on the rear
-- enabling and disabling the port limit patches below:
I haven't reflashed my BIOS which is something I do when starting from scratch, although I don't see why it would matter. I'm open to that, burning incense, whatever will help. In the end, I need at least 1-2 working USB3 ports. But right now, I just need to get my keyboard and mouse working again. I've been going in circles on this all day and could really use some good ideas.
Thanks so much.
