fujitsu lifebook T732 black screen right after clover (install)

6 posts in this topic

Recommended Posts

hi I have a new laptop/tablet combo a Fujitsu lifebook T732 according to linux mint (current OS) my specs are these:



Processor intel core i3-3110M (2.4GHZ dual core)

Intel HD 3rd Gen HD4000



I get a black screen on install no verbose no nothing I have enclosed my 2 config.plist based off of rehabman's github for the HD4000 and pictures of my kext folder and driver64uefi folder I will update my profile once i get all necessary data

config3.plist

config4.plist

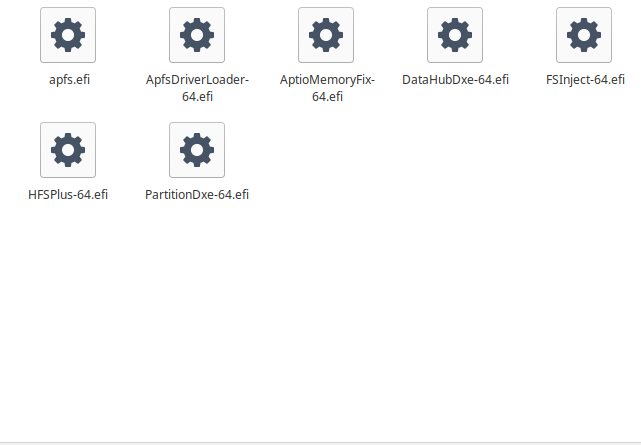

Screenshot from 2019-01-01 01-09-40.png

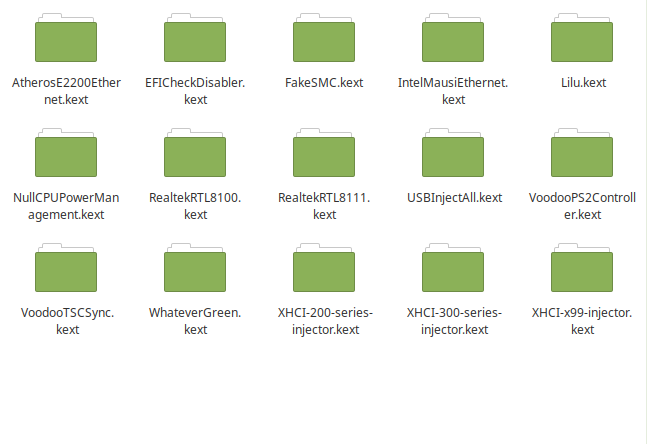

Screenshot from 2019-01-01 01-10-54.png

Share this post


Link to post
Share on other sites
Advertisement
Posted (edited)

You should not need any of the following kexts:

  • NullCPUPowerManagement
  • VoodooTSCSync
  • XHCI-200-Series-Injector
  • XHCI-300-Series-Injector
  • XHCI-x99-Series-Injector

Make sure you enable Clover's AppleIntelCPUPowerManagement patch to avoid KP and inject Darwin OS in your DSDT to enable USB3.0 ports.



Regarding your network card(s), identify the hardware you have in order to inject the right kext. At the moment, you inject 4 x different drivers (their name being self explanatory...):

  • AtherosE2200Ethernet
  • IntelMausiEthernet
  • RealtekRTL8100
  • RealtekRTL8111



Best thing to do is to post your hardware specs (LAN, Wireless, audio, SD card reader, etc.) in order to identify the appropriate drivers. You can obtain those specs through computer's data sheet/use manual, IOReg extract with apps such as IORegistryExplorer or lspci utility.



Regarding the 2 x Clover configs you posted, there are many things to modify or adjust. Especially on the graphics front where you inject and enable various options for Intel, AT and nVidia GPUs all at the same time. Try this config file instead to begin with and make sure you use the latest Lilu + WhateverGreen kexts:



Edited by Hervé

Share this post


Link to post
Share on other sites

I'm trying sierra for now once i burn it to my usb

Share this post


Link to post
Share on other sites
Posted (edited)

update sierra install won't boot either, I dumped my DSDT I'll post it here

DSDT.aml

Edited by chrisrlink

Share this post


Link to post
Share on other sites

also high sierra black screen no verbose

Share this post


Link to post
Share on other sites

same with el capitan

Share this post


Link to post
Share on other sites
