djeans Posted December 1, 2018 Share Posted December 1, 2018 (edited) I just finished a new build. Here are the parts ASUS ROG Maximus XI Hero (Wifi) Intel I9-9900k PowerColor Red Devil Radeon RX Vega 64 32 GB Ram G.SKILL TridenZ RGB Series 32GB (4X8) (PC4 25600) and i swapped the stock wifi card out for a Broadcom BCM94352Z DW1560 802.11a/b/g/n/ac WLAN + Bluetooth 4.0 M.2 NGFF Mini Card 867Mbps So far it boots into Mojave, but I have no Wifi, No Bluetooth, only 6 of the 8 cores (12 threads) seem to be working, and when I try to restart or shut down, it hangs at the spinning wheel just before it finishes. Has anyone had success with this setup? Or does anyone have any suggestions on how to fix these issues? Thanks My EFI Folder In addition to these kexts, I also have BrcmFirmwareRepo.kext BrcmNonPatchRAM2.kext BrcmPatchRAM2.kext in /Library/Extensions Edited December 1, 2018 by djeans Link to comment Share on other sites More sharing options...
styrian Posted December 1, 2018 Share Posted December 1, 2018 Hello! I have a suggestion on how to fix your signature missing for more then five years. Here you go: https://www.insanelymac.com/forum/topic/336486-video-how-to-add-a-signature/?tab=comments#comment-2647874 Have fun. Link to comment Share on other sites More sharing options...
djeans Posted December 1, 2018 Author Share Posted December 1, 2018 37 minutes ago, styrian said: Hello! I have a suggestion on how to fix your signature missing for more then five years. Here you go: https://www.insanelymac.com/forum/topic/336486-video-how-to-add-a-signature/?tab=comments#comment-2647874 Have fun. Signature added. Pardon my tardiness in doing so. Link to comment Share on other sites More sharing options...
MaLd0n Posted December 1, 2018 Share Posted December 1, 2018 use it with last clover version CLOVER.zip run it https://olarila.com/files/Utils/disablehibernate.command.zip run it too https://olarila.com/files/Utils/RepairPermissions.zip reboot run my app for full dump and post here RunMe.app Link to comment Share on other sites More sharing options...
djeans Posted December 1, 2018 Author Share Posted December 1, 2018 7 hours ago, MaLd0n said: use it with last clover version CLOVER.zip run it https://olarila.com/files/Utils/disablehibernate.command.zip run it too https://olarila.com/files/Utils/RepairPermissions.zip reboot run my app for full dump and post here RunMe.app Thank you so much for helping. RunMe.app times out in the IOREG dump, but I think I was able to get everything. This should be the full dump Link to comment Share on other sites More sharing options...
MaLd0n Posted December 2, 2018 Share Posted December 2, 2018 4 hours ago, djeans said: Thank you so much for helping. RunMe.app times out in the IOREG dump, but I think I was able to get everything. This should be the full dump check if work CLOVER.zip Link to comment Share on other sites More sharing options...
djeans Posted December 2, 2018 Author Share Posted December 2, 2018 (edited) Thanks! Im at work now, but will check when I get home. Edited December 2, 2018 by djeans Link to comment Share on other sites More sharing options...
djeans Posted December 2, 2018 Author Share Posted December 2, 2018 10 hours ago, MaLd0n said: check if work CLOVER.zip unfortunately, still no wifi, or Bluetooth. Activity monitor CPU window only shows 12 threads still, instead of 16. Basically, no change that I can tell. Link to comment Share on other sites More sharing options...
MaLd0n Posted December 2, 2018 Share Posted December 2, 2018 8 hours ago, djeans said: unfortunately, still no wifi, or Bluetooth. Activity monitor CPU window only shows 12 threads still, instead of 16. Basically, no change that I can tell. extract new SEND_ME Link to comment Share on other sites More sharing options...
djeans Posted December 2, 2018 Author Share Posted December 2, 2018 34 minutes ago, MaLd0n said: extract new SEND_ME Here it is. send_me Link to comment Share on other sites More sharing options...

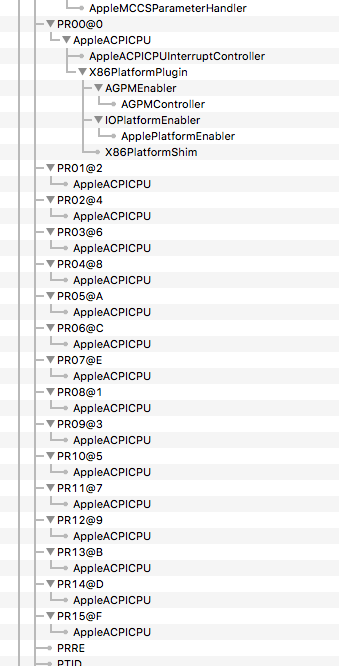

MaLd0n Posted December 3, 2018 Share Posted December 3, 2018 in ioreg appears 16 for wifi try this patch <dict> <key>Comment</key> <string>10.11-BT4LE-Handoff-Hotspot-lisai9093</string> <key>Disabled</key> <false/> <key>Find</key> <data> SIX/dEdIiwc= </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>IOBluetoothFamily</string> <key>Replace</key> <data> Qb4PAAAA60Q= </data> </dict> <dict> <key>Comment</key> <string>10.11-BCM94352-Airport-Extreme-skvo</string> <key>Disabled</key> <false/> <key>Find</key> <data> axAAAHUN </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> axAAAJCQ </data> </dict> <dict> <key>Comment</key> <string>10.11-BCM94352-Airport-Extreme-skvo</string> <key>Disabled</key> <false/> <key>Find</key> <data> axAAAHUN </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> axAAAJCQ </data> </dict> <dict> <key>Comment</key> <string>10.12-BCM94352-5GHz-US-FCC-darkvoid</string> <key>Disabled</key> <false/> <key>Find</key> <data> gflSqgAAdSk= </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> gflSqgAAZpA= </data> </dict> Link to comment Share on other sites More sharing options...
djeans Posted December 3, 2018 Author Share Posted December 3, 2018 10 hours ago, MaLd0n said: in ioreg appears 16 for wifi try this patch <dict> <key>Comment</key> <string>10.11-BT4LE-Handoff-Hotspot-lisai9093</string> <key>Disabled</key> <false/> <key>Find</key> <data> SIX/dEdIiwc= </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>IOBluetoothFamily</string> <key>Replace</key> <data> Qb4PAAAA60Q= </data> </dict> <dict> <key>Comment</key> <string>10.11-BCM94352-Airport-Extreme-skvo</string> <key>Disabled</key> <false/> <key>Find</key> <data> axAAAHUN </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> axAAAJCQ </data> </dict> <dict> <key>Comment</key> <string>10.11-BCM94352-Airport-Extreme-skvo</string> <key>Disabled</key> <false/> <key>Find</key> <data> axAAAHUN </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> axAAAJCQ </data> </dict> <dict> <key>Comment</key> <string>10.12-BCM94352-5GHz-US-FCC-darkvoid</string> <key>Disabled</key> <false/> <key>Find</key> <data> gflSqgAAdSk= </data> <key>InfoPlistPatch</key> <false/> <key>Name</key> <string>AirPortBrcm4360</string> <key>Replace</key> <data> gflSqgAAZpA= </data> </dict> Weird. I was confused because the activity monitor cpu graphs only showed 12 instead of 16. I'm beginning to wonder if I have a bad wifi/bluetooth card? Bluetooth worked on my first boot, but hasn't worked since. Wifi never has. Currently, in the wifi Menu Bar area it says "Wifi:No Hardware installed" and in the bluetooth menu it says "Bluetooth: Not available." I wasn't sure if the patch goes in the "Kexts to patch" area, or the regular patches area. Tried in both - no luck with either. Link to comment Share on other sites More sharing options...
MaLd0n Posted December 3, 2018 Share Posted December 3, 2018 3 hours ago, djeans said: Weird. I was confused because the activity monitor cpu graphs only showed 12 instead of 16. I'm beginning to wonder if I have a bad wifi/bluetooth card? Bluetooth worked on my first boot, but hasn't worked since. Wifi never has. Currently, in the wifi Menu Bar area it says "Wifi:No Hardware installed" and in the bluetooth menu it says "Bluetooth: Not available." I wasn't sure if the patch goes in the "Kexts to patch" area, or the regular patches area. Tried in both - no luck with either. u use activity monitor from Apple in utilities folder? post ur config.plist here, i'll add Link to comment Share on other sites More sharing options...
djeans Posted December 3, 2018 Author Share Posted December 3, 2018 5 hours ago, MaLd0n said: u use activity monitor from Apple in utilities folder? post ur config.plist here, i'll add Yes, from utilities folder. config.plist Link to comment Share on other sites More sharing options...
MaLd0n Posted December 4, 2018 Share Posted December 4, 2018 3 hours ago, djeans said: Yes, from utilities folder. config.plist config.plist.zip use with fakepciid kexts 1 Link to comment Share on other sites More sharing options...
djeans Posted December 4, 2018 Author Share Posted December 4, 2018 (edited) 23 hours ago, MaLd0n said: config.plist.zip use with fakepciid kexts Added all the fakepciid kexts to "other" and booted with new config.plist Same thing - no wifi hardware, no bluetooth. Today I took apart the build, checked that the wifi/bluetooth card was seated properly and that the antenna wires were connected. Reassembled and reboots, still no wifi hardware detected. Edited December 5, 2018 by djeans Link to comment Share on other sites More sharing options...
djeans Posted December 5, 2018 Author Share Posted December 5, 2018 On 12/3/2018 at 2:54 PM, MaLd0n said: config.plist.zip use with fakepciid kexts I just ordered a different card (https://www.aliexpress.com/item/Fenvi-FV-T919-802-11AC-Desktop-Wifi-Card-802-11-A-B-G-N-AC-BCM94360CD/32778371977.html and will try again with that. Thank You Maldon for all your help. Enjoy a few beers on me. Might I suggest Belching Beaver Peanut Butter Milk Stout, one of my all time favorites. Link to comment Share on other sites More sharing options...
MaLd0n Posted December 6, 2018 Share Posted December 6, 2018 21 hours ago, djeans said: I just ordered a different card (https://www.aliexpress.com/item/Fenvi-FV-T919-802-11AC-Desktop-Wifi-Card-802-11-A-B-G-N-AC-BCM94360CD/32778371977.html and will try again with that. Thank You Maldon for all your help. Enjoy a few beers on me. Might I suggest Belching Beaver Peanut Butter Milk Stout, one of my all time favorites. this nw card is native, really native, bcm94360 enjoy Link to comment Share on other sites More sharing options...
djeans Posted December 7, 2018 Author Share Posted December 7, 2018 12 hours ago, MaLd0n said: this nw card is native, really native, bcm94360 enjoy Thanks. Hopefully it will work. Today tho, Bluetooth was working. Wifi still not, but at least I know the card is not completely dead. Link to comment Share on other sites More sharing options...
