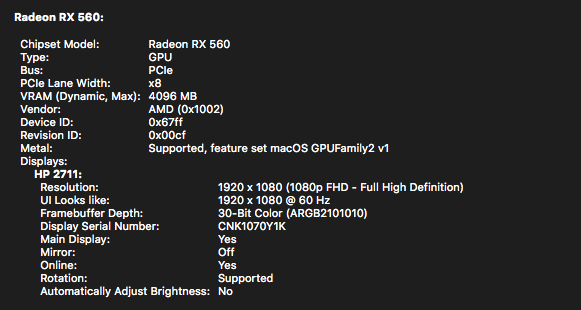

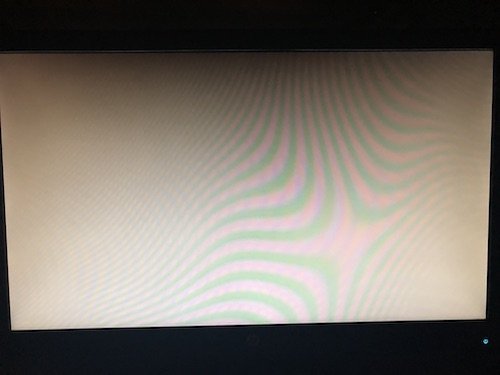

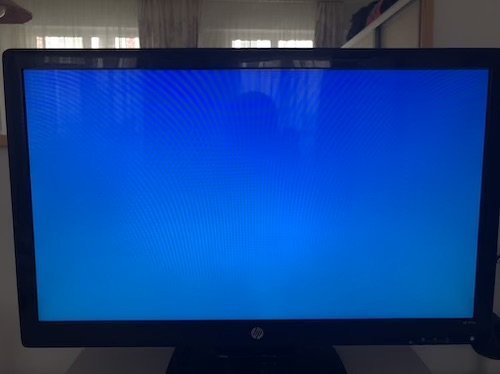

telepati Posted November 21, 2018 Share Posted November 21, 2018 (edited) I really need help 'cause I really don't know what's going on. When I am using my Hackintosh, for example, I am using for 5 days without any problem and suddenly I am losing my screen while using it and turns different colors. This is not happening all the time but suddenly screen turns full of grey and no cursor. This grey looks like apple installer background greyish. But this doesn't mean it turns each every time grey sometimes turn blue sometimes green. I really don't get it why this happening. When this happening I am making force restart from the case. This problem started after installing Mojave. I never faced of this type of screen error in High Sierra. I also tried on windows and dont get any error. I updated all kexts with the latest versions but it doesn't help. I removed all SSDT and add DSDT (which @MaLd0n created) it doesn't help either. I checked my Ioreg but doesn't seem anything wrong. Getting full acceleration from RX560. I disabled and enabled IGPU from BIOS it doesn't help either. I also tried to pull off the HDMI cable and pull back when this happening nothing changed still full grey. I attached my all files. Here is some picture of the error. A very long time I didn't get blue or green screen error but I pictured it when turned blue. Very long time didnt get blue screen. debug_1712.zip Edited November 21, 2018 by telepati Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/ Share on other sites More sharing options...
MaLd0n Posted November 21, 2018 Share Posted November 21, 2018 use only my clover folder CLOVER.zip don't need any ssdt, u have a collection check CSM option in bios enable IntelHDGraphics in bios 1 Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2648890 Share on other sites More sharing options...
telepati Posted November 21, 2018 Author Share Posted November 21, 2018 8 hours ago, MaLd0n said: use only my clover folder CLOVER.zip don't need any ssdt, u have a collection check CSM option in bios enable IntelHDGraphics in bios is CSM must be enabled or disabled don't get it? Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649036 Share on other sites More sharing options...
MaLd0n Posted November 22, 2018 Share Posted November 22, 2018 enable only if u use multi monitors 1 Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649043 Share on other sites More sharing options...
telepati Posted November 22, 2018 Author Share Posted November 22, 2018 3 hours ago, MaLd0n said: enable only if u use multi monitors I am not using multi-monitor. I have only one display. Thank you, I'm going to test it and let you know how it goes. Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649053 Share on other sites More sharing options...
telepati Posted November 23, 2018 Author Share Posted November 23, 2018 On 11/21/2018 at 6:20 PM, MaLd0n said: use only my clover folder CLOVER.zip don't need any ssdt, u have a collection check CSM option in bios enable IntelHDGraphics in bios USB 3.0 Flash Drives doesn't work. When I connect my USB 3.0 Flash Drive to the Hack nothing happening. Just USB 2.0 working. Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649391 Share on other sites More sharing options...
MaLd0n Posted November 23, 2018 Share Posted November 23, 2018 30 minutes ago, telepati said: USB 3.0 Flash Drives doesn't work. When I connect my USB 3.0 Flash Drive to the Hack nothing happening. Just USB 2.0 working. patch don't work more, u need other way, u can check here https://olarila.com/forum/viewtopic.php?p=65287#p65287 1 Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649402 Share on other sites More sharing options...

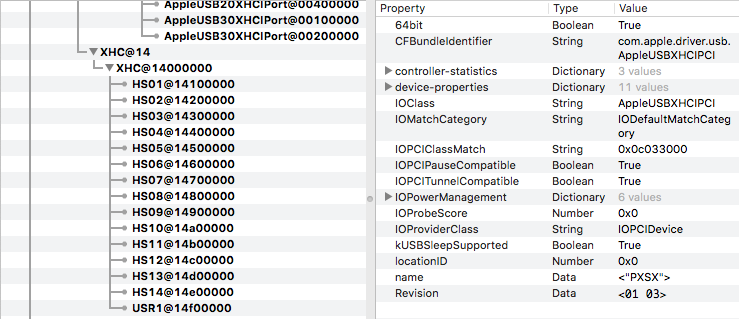

telepati Posted November 23, 2018 Author Share Posted November 23, 2018 (edited) 45 minutes ago, MaLd0n said: patch don't work more, u need other way, u can check here https://olarila.com/forum/viewtopic.php?p=65287#p65287 Thanks but problem is there is no any SSP in the ioreg I think this is DSDT related. I discovered my port before; These are all included ports. If I add these ports to the boot argument SS port will show again or? HS01 // HS Case USB3 Front Right HS02 // HS Case USB3 Front Left HS05 // HS Case USB3 Rear Middle Right HS06 // HS Case USB3 Rear Middle Left HS09 // HS Case USB2 Rear Top Right HS10 // HS Case USB2 Rear Top Left HS12 Inside Left// Bluetooth SS01 Case Front Right SS02 Case Front Left SS05 Middle Right SS06 Middle Left Edited November 23, 2018 by telepati Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649414 Share on other sites More sharing options...
MaLd0n Posted November 23, 2018 Share Posted November 23, 2018 1 hour ago, telepati said: Thanks but problem is there is no any SSP in the ioreg I think this is DSDT related. I discovered my port before; These are all included ports. If I add these ports to the boot argument SS port will show again or? HS01 // HS Case USB3 Front Right HS02 // HS Case USB3 Front Left HS05 // HS Case USB3 Rear Middle Right HS06 // HS Case USB3 Rear Middle Left HS09 // HS Case USB2 Rear Top Right HS10 // HS Case USB2 Rear Top Left HS12 Inside Left// Bluetooth SS01 Case Front Right SS02 Case Front Left SS05 Middle Right SS06 Middle Left the problem is limit, 15 ports if u exclude some HSxx, SSxx start appears 1 Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649442 Share on other sites More sharing options...

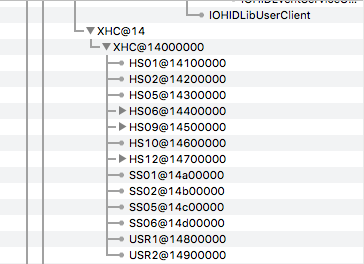

telepati Posted November 25, 2018 Author Share Posted November 25, 2018 On 11/24/2018 at 12:23 AM, MaLd0n said: the problem is limit, 15 ports if u exclude some HSxx, SSxx start appears Thank you MaLd0n after excluding unused ports all working ports came. Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2649723 Share on other sites More sharing options...
telepati Posted January 11, 2019 Author Share Posted January 11, 2019 @MaLd0n my main problem still continues. 1 hour ago screen turned grey again while watching video on Safari. I didn't change any files from last you are created. I am really dont know how should I diagnose this problem. Where should I look after force restart? I do this but I am not sure this is the correct way to diagnose the problem. After force restart, I go to console app and look the system log before boot; Jan 12 00:21:29 Murats-Mac com.apple.xpc.launchd[1] (com.apple.imfoundation.IMRemoteURLConnectionAgent): Unknown key for integer: _DirtyJetsamMemoryLimit Jan 12 00:22:01 Murats-Mac com.apple.xpc.launchd[1] (com.apple.WebKit.Networking.D039F2D0-2BF6-4924-8F8C-08A39D35F183[935]): Service exited with abnormal code: 1 Jan 12 00:25:27 Murats-Mac xpcproxy[955]: libcoreservices: _dirhelper_userdir: 529: bootstrap_look_up returned (ipc/send) invalid destination port Jan 12 00:25:27 Murats-Mac com.apple.xpc.launchd[1] (com.apple.imfoundation.IMRemoteURLConnectionAgent): Unknown key for integer: _DirtyJetsamMemoryLimit Jan 12 00:27:53 localhost bootlog[0]: BOOT_TIME 1547242073 0 I am really don't know what should I do? I thought maybe the problem is my graphics card but used windows all day and I didn't get any problem on that. Here are my latest problem report files. In ıoreg, all Graphics looks ok, USB ok, your DSDT ok, CPU looks ok all power management looks ok but I am still getting this problem. Problem Reports Files.zip Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2658539 Share on other sites More sharing options...
MaLd0n Posted January 12, 2019 Share Posted January 12, 2019 15 hours ago, telepati said: @MaLd0n my main problem still continues. 1 hour ago screen turned grey again while watching video on Safari. I didn't change any files from last you are created. I am really dont know how should I diagnose this problem. Where should I look after force restart? I do this but I am not sure this is the correct way to diagnose the problem. After force restart, I go to console app and look the system log before boot; Jan 12 00:21:29 Murats-Mac com.apple.xpc.launchd[1] (com.apple.imfoundation.IMRemoteURLConnectionAgent): Unknown key for integer: _DirtyJetsamMemoryLimit Jan 12 00:22:01 Murats-Mac com.apple.xpc.launchd[1] (com.apple.WebKit.Networking.D039F2D0-2BF6-4924-8F8C-08A39D35F183[935]): Service exited with abnormal code: 1 Jan 12 00:25:27 Murats-Mac xpcproxy[955]: libcoreservices: _dirhelper_userdir: 529: bootstrap_look_up returned (ipc/send) invalid destination port Jan 12 00:25:27 Murats-Mac com.apple.xpc.launchd[1] (com.apple.imfoundation.IMRemoteURLConnectionAgent): Unknown key for integer: _DirtyJetsamMemoryLimit Jan 12 00:27:53 localhost bootlog[0]: BOOT_TIME 1547242073 0 I am really don't know what should I do? I thought maybe the problem is my graphics card but used windows all day and I didn't get any problem on that. Here are my latest problem report files. In ıoreg, all Graphics looks ok, USB ok, your DSDT ok, CPU looks ok all power management looks ok but I am still getting this problem. Problem Reports Files.zip idk about it, need investigate some acpi error fixs DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/336553-rx560-i-am-losing-my-display-while-using-it/#findComment-2658635 Share on other sites More sharing options...
