zeuscba Posted November 9, 2018 Share Posted November 9, 2018 Board: Z77X-UD5h CPU: i7 3770K Using Intel HD4000 (until Nvidia release web drivers) Mojave 10.14.1 I'm trying to run the sleep mode as in my Sierra installation but I don't find what the problem is, some with this same board has managed to make it work? CLOVER.zip Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/ Share on other sites More sharing options...
MaLd0n Posted November 9, 2018 Share Posted November 9, 2018 check log if appears what cause it log show --style syslog | fgrep "Wake reason" Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646532 Share on other sites More sharing options...
zeuscba Posted November 9, 2018 Author Share Posted November 9, 2018 My particular problem with Sleep Mode is that the Mac go to the Sleep without apparent problem, but when I want to come back from that state only receive a black screen, with no disk reading at all. The terminal result of Wake Reason is 2018-10-16 01:53:58.879805-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EH02 2018-10-16 01:53:58.879806-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EH02 2018-10-16 12:24:00.755913-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-16 12:24:00.755914-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-16 14:57:47.979897-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-16 14:57:47.979898-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-16 22:19:00.847370-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: RTC (Alarm) 2018-10-16 22:19:00.847371-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: RTC (Alarm) 2018-10-16 23:11:14.317101-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-16 23:11:14.317103-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-17 14:07:14.031489-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-17 14:07:14.031491-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-17 14:29:47.484482-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-17 14:29:47.484483-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-17 16:20:08.356865-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: PWRB (User) 2018-10-17 16:20:08.356866-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: PWRB (User) 2018-10-17 16:32:52.282284-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: PWRB (User) 2018-10-17 16:32:52.282285-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: PWRB (User) 2018-10-17 17:10:49.214136-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: PWRB (User) 2018-10-17 17:10:49.214137-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: PWRB (User) 2018-10-18 21:26:47.879412-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC1 2018-10-18 21:26:47.879413-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC1 2018-10-18 22:44:39.039369-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-18 22:44:39.039371-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC2 2018-10-18 23:01:53.066122-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC1 2018-10-18 23:01:53.066124-0300 localhost kernel[0]: (AppleACPIPlatform) AppleACPIPlatformPower Wake reason: EHC1 Send me iMac-de-Seba.zip Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646636 Share on other sites More sharing options...
MaLd0n Posted November 9, 2018 Share Posted November 9, 2018 try DSDT.aml.zip use it change EHC1 to EH01 45484331 45483031 change EHC2 to EH02 45484332 45483032 Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646644 Share on other sites More sharing options...
zeuscba Posted November 9, 2018 Author Share Posted November 9, 2018 Test with your DSDT and add EHC1/2 patchs but don't work ; my Bios Version is F14, can be this a problem? Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646651 Share on other sites More sharing options...
MaLd0n Posted November 9, 2018 Share Posted November 9, 2018 idk, i just disable ur nvidia, don't work in mojave Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646689 Share on other sites More sharing options...

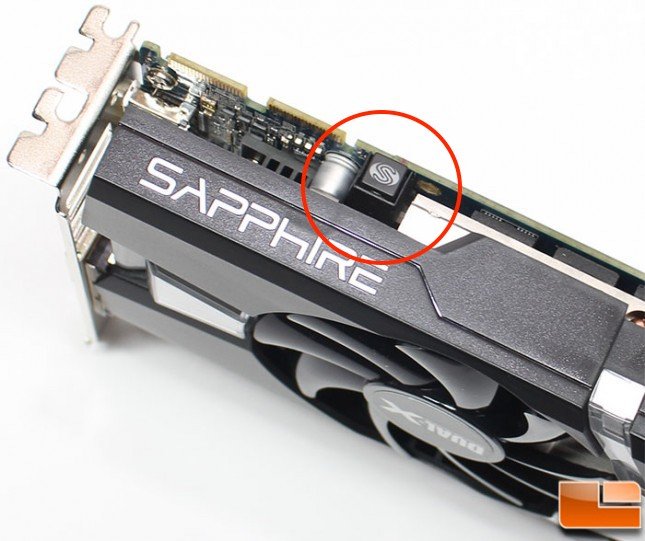

Taruga Posted November 9, 2018 Share Posted November 9, 2018 (edited) I have the same board, I don't worry about sleep now but I think I had it fixed when I used to put my system to sleep. I think I had to change in bios: OS Type to Windows 8 WHQL CMS Support to Never and press a button in my 280x GFX to switch the dual bios from normal to EFI, the button looks like this: Edited November 9, 2018 by Taruga Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646721 Share on other sites More sharing options...

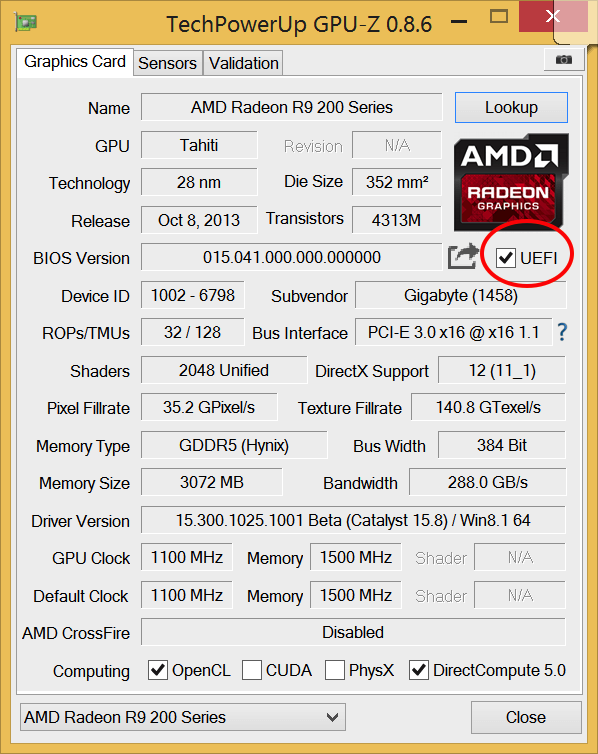

Taruga Posted November 9, 2018 Share Posted November 9, 2018 This is an example image from GPU-Z that I remember using when I was testing this issue. In my case, it did not show up the UEFI check box checked, after pressing that button on the GFX card to switch bios, then GPU-Z showed UEFI checked like in this screenshot example. Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646722 Share on other sites More sharing options...
zeuscba Posted November 9, 2018 Author Share Posted November 9, 2018 3 hours ago, MaLd0n said: idk, i just disable ur nvidia, don't work in mojave When you sat that disable my Nvidia, you mean that I need to disconnect the Video Card from motherboard? I only using the onboard video (Intel HD4000) trougth HDMI cable when testing Mojave. 26 minutes ago, Taruga said: OS Type to Windows 8 WHQL What Bios Version your have? I can't find that option Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646725 Share on other sites More sharing options...

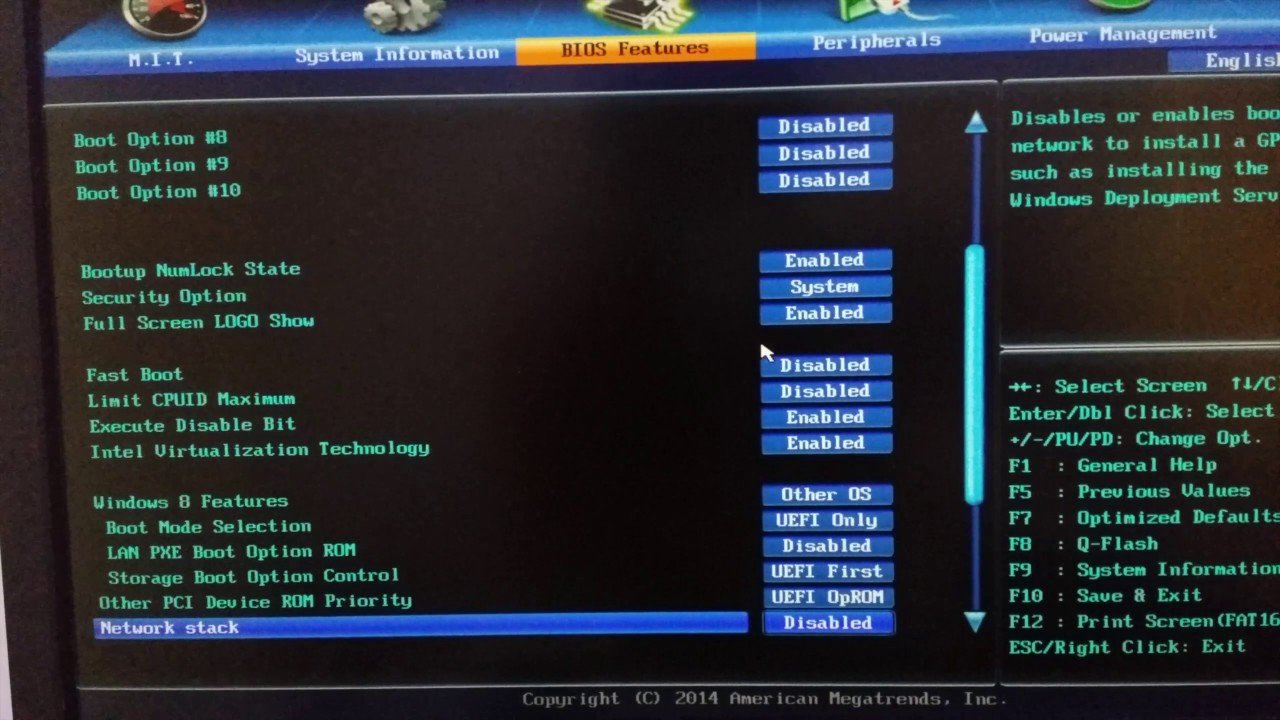

Taruga Posted November 9, 2018 Share Posted November 9, 2018 2 minutes ago, zeuscba said: What Bios Version your have? I can't find that option I'm using F16j It's that "Windows 8 Features", change it to "Windows 8 WHQL" Then CMS will appear below, and change it to "Never" 1 Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646726 Share on other sites More sharing options...
MaLd0n Posted November 10, 2018 Share Posted November 10, 2018 2 hours ago, zeuscba said: When you sat that disable my Nvidia, you mean that I need to disconnect the Video Card from motherboard? I only using the onboard video (Intel HD4000) trougth HDMI cable when testing Mojave. don't need, disable via DSDT, if nvidia release driver, just remove _DSM into PEG0/PEGP Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2646740 Share on other sites More sharing options...
Fabiuzi Posted December 18, 2018 Share Posted December 18, 2018 Hi guys, I have the same mobo and intel i3770K and Mojave 10.14.1 Did you managed to get it work? I also have same issue. I can go to sleep. But waking up gives a problem. I can hear my hard drive startup, and sound. But Finder freezes and I get the spinning wheel forever. I have to manually reboot... I'm running with F16 bios, and changed OS Type to Windows 8 WHQL and CSM support to never, but no luck. Still the same... Everything else is working! Intel HD 4000, Audio, internet, speed step, imessage.... So this last step is important for me :-) Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2654392 Share on other sites More sharing options...
Fabiuzi Posted December 20, 2018 Share Posted December 20, 2018 Got everything working now! See: Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2654761 Share on other sites More sharing options...
dodo Posted April 8, 2020 Share Posted April 8, 2020 (edited) i am not still able to get the sleep working machine is trying to go to sleep and it wakes up after few second (black screen but i click the mouse or hit any key it's display comes back) Z77X-UD5H Rev 1.0 i7 3770k RTX 580 32 GB RAM 500 GB SSD Catalina 10.15.4 Edited April 8, 2020 by dodo Link to comment https://www.insanelymac.com/forum/topic/336399-z77x-ud5h-mojave-sleep-dont-working/#findComment-2716135 Share on other sites More sharing options...
