Derty

ATI RX 560...

36 posts in this topic

Recommended Posts

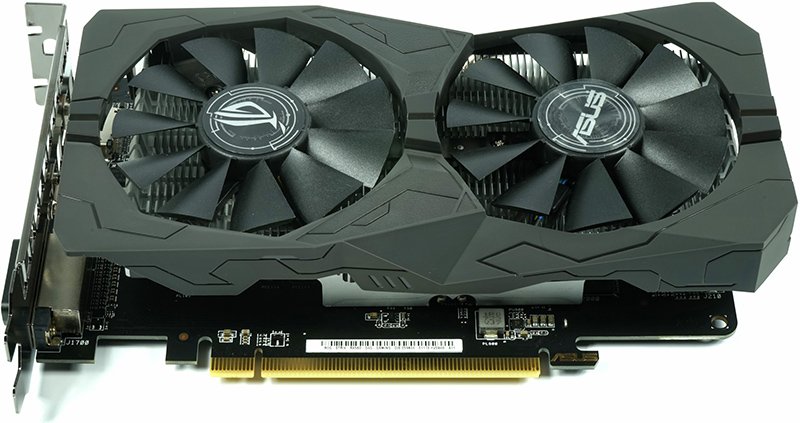

Bueno, me agoté con el tema de los controladores web para nvidia y cambié a ATI, encontré una "reacondicionada" en una tienda por 150 €, que esta realmente impecable.



seteo de clover:



ID del dispositivo ATI - RX 560 = 0x67FF1002

[X] EDID de inyección - ID de proveedor = 0x1002

[X] Cargar VBIOS

[X] inyectar ATI

[X] RadeonDeInit



se precisan:

WhateverGreen KEXT

Lilu Kext






760017980_Capturadepantalla2018-11-07alas19_49_00.jpg.81247a0731b7d67f3673aa7ba8c66ba8.jpg









WhateverGreen.kext.zip

Lilu.kext.zip

Edited by Derty

Share this post


Link to post
Share on other sites
Advertisement

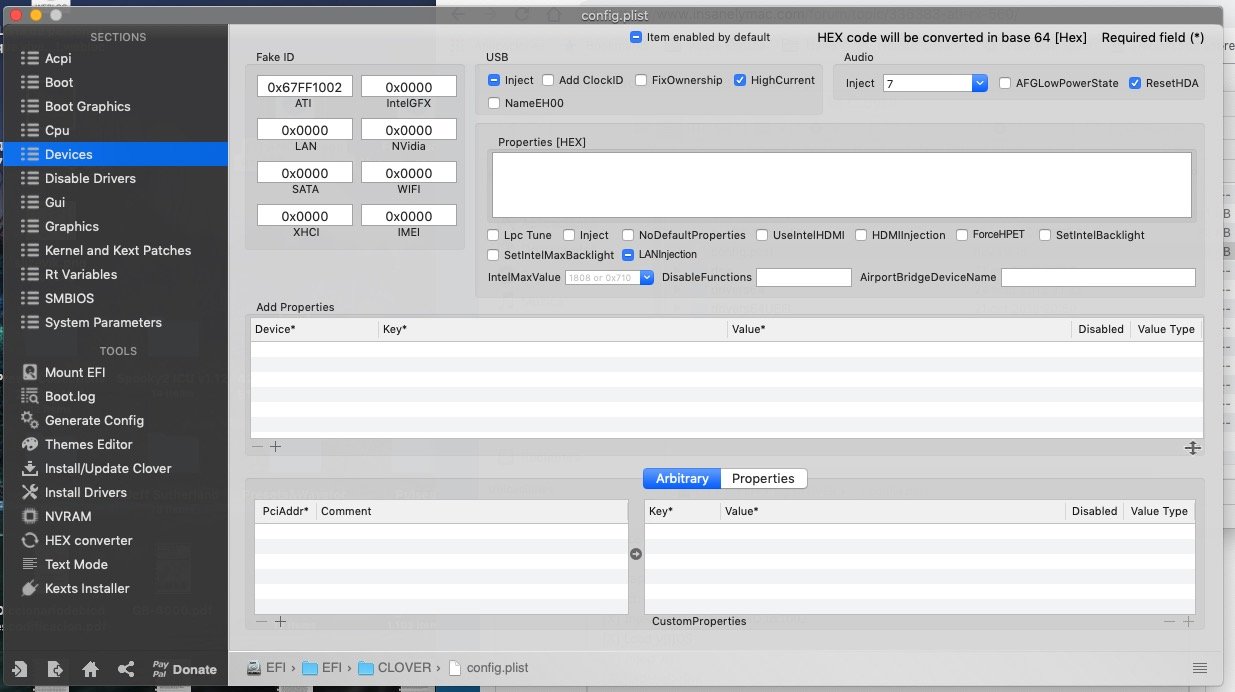

Set in clover:



In Devices:

Device ID ATI - RX 560 - 0x67FF1002

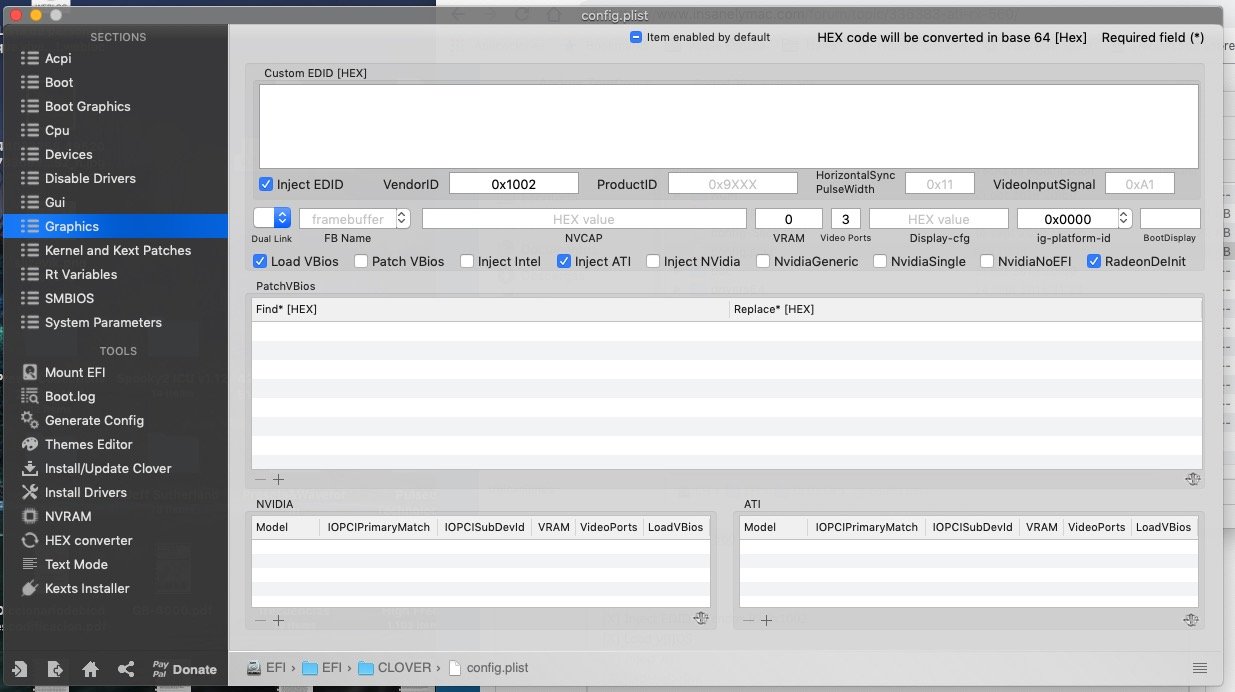

In graphics:

Select:

[X] Inject EDID - Vendor ID 0x1002

[X] Load VBIOS

[X] Inject ATI

[X] RadeonDeInit



Install:

Lilu & WhateverGreen - EFI/EFI/CLOVER/KEXTS/Other145364432_clovera.thumb.jpg.9deb15a3d9190fadf2159eb83ec77c05.jpg614558391_cloverb.thumb.jpg.7793d821993e636cf9220e699fda013a.jpg

Share this post


Link to post
Share on other sites
Set in clover:

In Devices:
Device ID ATI - RX 560 - 0x67FF1002

In graphics:
Select:
[X] Inject EDID - Vendor ID 0x1002
[X] Load VBIOS
[X] Inject ATI
[X] RadeonDeInit

Install:
Lilu & WhateverGreen - EFI/EFI/CLOVER/KEXTS/Other145364432_clovera.thumb.jpg.9deb15a3d9190fadf2159eb83ec77c05.jpg614558391_cloverb.thumb.jpg.7793d821993e636cf9220e699fda013a.jpg
Why should you use fakeid of ati??? Rx560 is support natively at high sierra and mojave

Sent from my Mi Note 2 using Tapatalk

Share this post


Link to post
Share on other sites
8 minutes ago, MARZILLO said:

ok thank you





Can you dump new OEM Table??? Delete all file inside EFI/CLOVER/ACPI/Origin. Then reboot,, at CLOVER GUI press F4,, and send me all file inside "EFI/CLOVER/ACPI/Origin". I am waiting.

And please write your detail specifications :)

Edited by Andres ZeroCross

Share this post


Link to post
Share on other sites
1 minute ago, MARZILLO said:

this file are new...i do yesterday





Ok,, then wait for 15 minutes,, make sure there is no addition kexts installed at System/Library/Extensions or Library/Extensions. We will inject from Clover only. I still don't get information about your detail specifications. Write it, it's important to make configurations

Edited by Andres ZeroCross

Share this post


Link to post
Share on other sites
Spoiler
my installation is vanilla

clover is installed legacy

And you still didn't read carefully. I ask about your specifications. And you don't answer it

Sent from my Mi Note 2 using Tapatalk

Share this post


Link to post
Share on other sites
7 minutes ago, MARZILLO said:

what specifics do you want to know

asus p5k-vm

core due duo 8400

rx 560

4 GB di RAM



When you get black screen after verbose log?? or after press entry boot clover?? It's will be different solutions

Edited by Andres ZeroCross

Share this post


Link to post
Share on other sites
with sierra it works fine ... with high sierra and mojave does normalke loading then the screen turns black but the computer is active ..
the monitor is illuminated but black

Share this post


Link to post
Share on other sites
47 minutes ago, MARZILLO said:

with sierra it works fine ... with high sierra and mojave does normalke loading then the screen turns black but the computer is active ..

the monitor is illuminated but black



Use this,, delete entire your clover folder and paste the clover folder attached. Let me know for the result



EFI.zip

Share this post


Link to post
