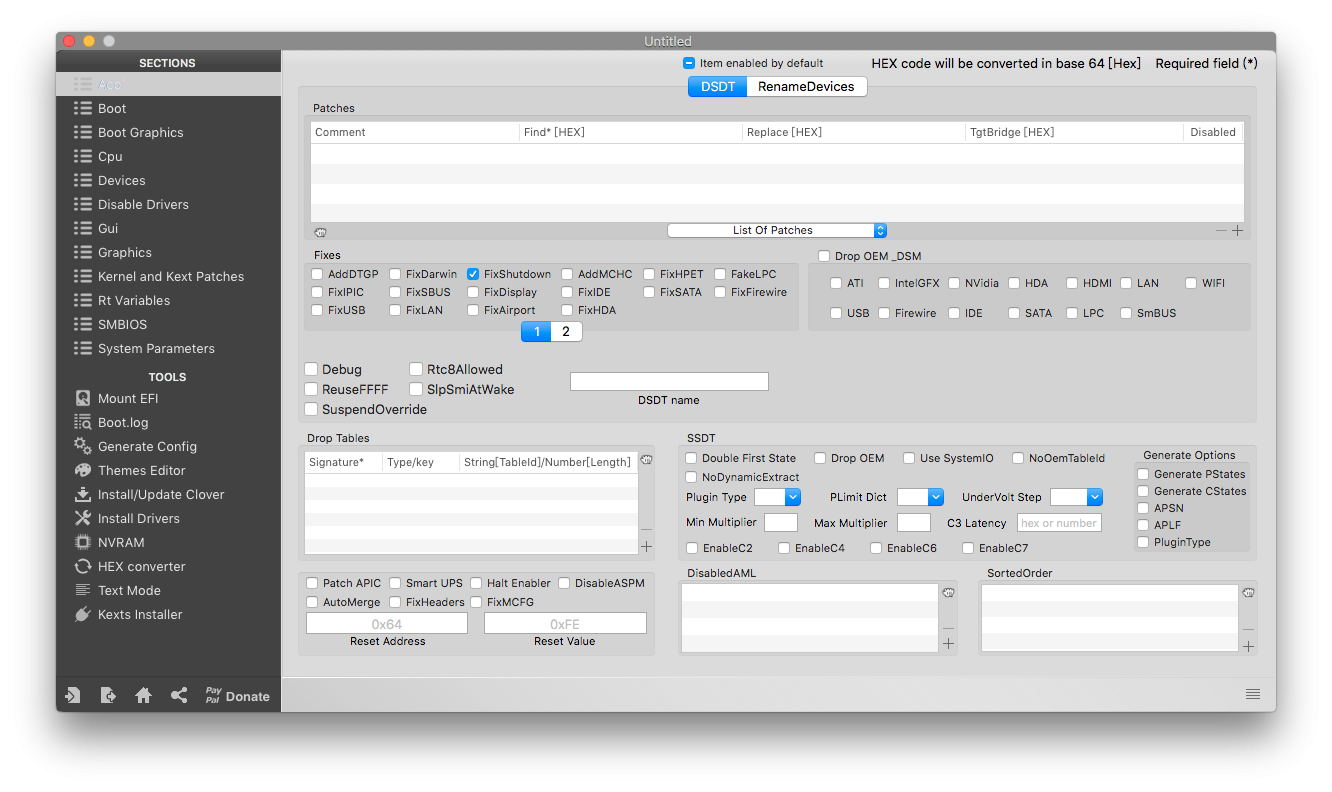

ZHLI Posted September 24, 2018 Share Posted September 24, 2018 (edited) CPU：i3 7100 主板：B250ET2 显卡：HD630 操作系统版本：10.13.6 我试过在三叶草中选择fixshutdown，DSDT命中关机关机补丁。但是，它没有效果 dsdt.aml Edited September 24, 2018 by ZHLI added attached Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/ Share on other sites More sharing options...
foskvs Posted September 24, 2018 Share Posted September 24, 2018 Try with this one (without FixShutdown in config.plist). DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636453 Share on other sites More sharing options...
ZHLI Posted September 24, 2018 Author Share Posted September 24, 2018 (edited) 8 hours ago, foskvs said: Try with this one (without FixShutdown in config.plist). DSDT.aml.zip thank you ,l've tried this one (without fixshutdown in config.plist) nothing happened I uploaded the dsdt extracted from the clover interface. DSDT.aml.zip Edited September 24, 2018 by ZHLI added attached Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636580 Share on other sites More sharing options...
foskvs Posted September 25, 2018 Share Posted September 25, 2018 Attach your EFI folder. Explain your problem better... do you have reboot when you shut down the pc or something else? Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636628 Share on other sites More sharing options...
ZHLI Posted September 25, 2018 Author Share Posted September 25, 2018 7 hours ago, foskvs said: 附上您的EFI文件夹。 更好地解释您的问题...当您关闭电脑或其他东西时，您是否重新启动？ Just Shut down the pc, power off automatically after a few minutes EFI.zip Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636710 Share on other sites More sharing options...
foskvs Posted September 25, 2018 Share Posted September 25, 2018 ACPI patching is wrong: 1) SSDT-IGPU injects layout-id on Device IGPU, but your HD 630 is named GFX0 in OEM tables. Remove it. 2) ig-platform-id in config.plist is good for SkyLake mobile, not KabyLake desktop. Use 59120000 instead. 3) SMBIOS: use iMac18,1 or iMac18,2 3) config.plist -> Kernel and Kext Patches 4) Why are you using fake ids to fake it like a Skylake CPU/GPU? As of 10.13.6 there's full support for Kaby Lake CPUs/GPUs DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636726 Share on other sites More sharing options...

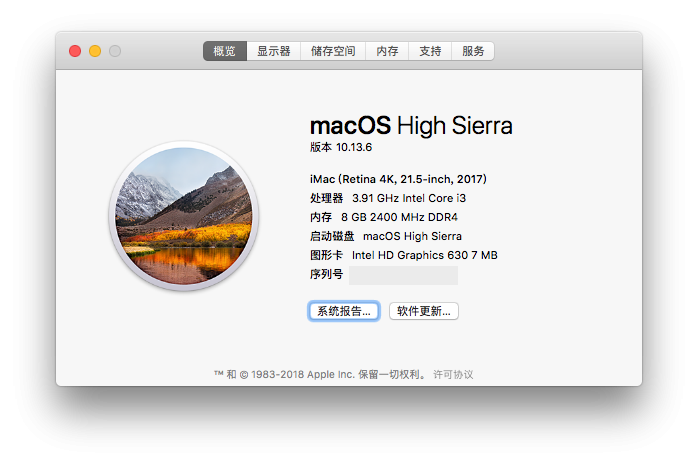

ZHLI Posted September 25, 2018 Author Share Posted September 25, 2018 (edited) 12 hours ago, foskvs said: ACPI patching is wrong: 1) SSDT-IGPU injects layout-id on Device IGPU, but your HD 630 is named GFX0 in OEM tables. Remove it. 2) ig-platform-id in config.plist is good for SkyLake mobile, not KabyLake desktop. Use 59120000 instead. 3) SMBIOS: use iMac18,1 or iMac18,2 3) config.plist -> Kernel and Kext Patches 4) Why are you using fake ids to fake it like a Skylake CPU/GPU? As of 10.13.6 there's full support for Kaby Lake CPUs/GPUs DSDT.aml.zip I searched on internet Find that one person use same CPU or Mainboard,So I using fake id like a Skylake CPU/GPU I changed ig-platform-id=0x59120000,SMIBIOS,Kernel and Kext Patches, And how remove ssdt-igpu injects ? SMBIOS 18,1 18,2 The HD630 always 7M Edited September 26, 2018 by ZHLI added attached Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636815 Share on other sites More sharing options...
foskvs Posted September 26, 2018 Share Posted September 26, 2018 Attach an ioreg and the new config.plist. 8 hours ago, ZHLI said: And how remove ssdt-igpu go to EFI/CLOVER/ACPI/patched and move SSDT-IGPU.aml to trash Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2636888 Share on other sites More sharing options...
ZHLI Posted September 26, 2018 Author Share Posted September 26, 2018 14 hours ago, foskvs said: Attach an ioreg and the new config.plist. go to EFI/CLOVER/ACPI/patched and move SSDT-IGPU.aml to trash Only 0x19120000 and SMBIOS17,1 Display memory was correct Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637081 Share on other sites More sharing options...
foskvs Posted September 27, 2018 Share Posted September 27, 2018 No ioreg attached... 0x19120000 is a platform-id used for Skylake graphics. Read here: https://en.wikipedia.org/wiki/Skylake_(microarchitecture) and here: https://en.wikipedia.org/wiki/Kaby_Lake As you can easily see, 7100 is a Kaby Lake processor. They are fully supported Out Of the Box, so there is no need to fake their ids. Shutdown problems might also be related to incorrect power management. Hard to say without an ioreg. Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637200 Share on other sites More sharing options...
LockDown Posted September 27, 2018 Share Posted September 27, 2018 Might be your cpu temp? Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637203 Share on other sites More sharing options...
ZHLI Posted September 27, 2018 Author Share Posted September 27, 2018 48 minutes ago, foskvs said: No ioreg attached... 0x19120000 is a platform-id used for Skylake graphics. Read here: https://en.wikipedia.org/wiki/Skylake_(microarchitecture) and here: https://en.wikipedia.org/wiki/Kaby_Lake As you can easily see, 7100 is a Kaby Lake processor. They are fully supported Out Of the Box, so there is no need to fake their ids. Shutdown problems might also be related to incorrect power management. Hard to say without an ioreg. Remove ig platform id, Then ? Uploaded IOReg attached IOReg.zip Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637219 Share on other sites More sharing options...

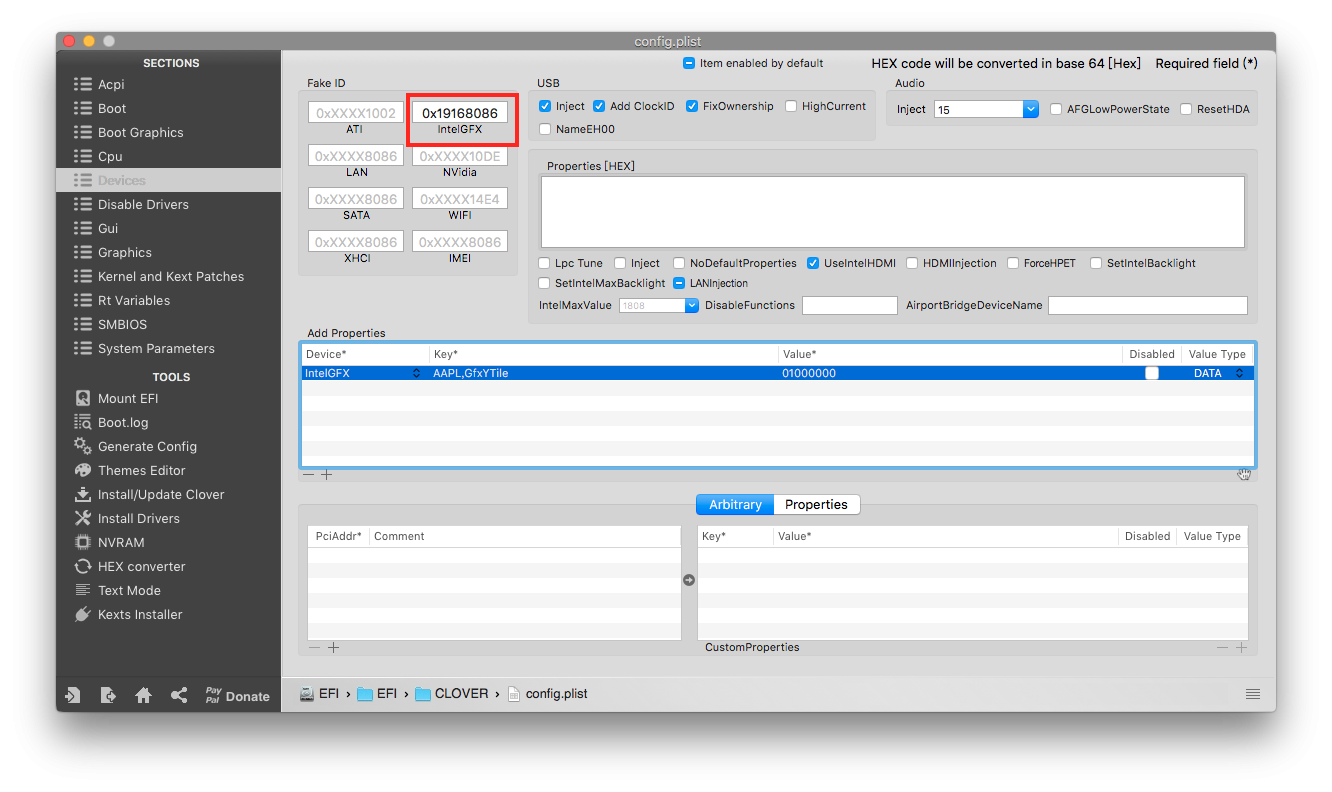

foskvs Posted September 27, 2018 Share Posted September 27, 2018 2 minutes ago, ZHLI said: Remove ig platform id, Then ? Inject ig-platform-id = 0x59120000 Remove any fake-id from Devices section. Your IGPU is detected as HD 520 (8086-1916), thus loading Skylake framebuffer rather than KBLFramebuffer. Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637222 Share on other sites More sharing options...
ZHLI Posted September 27, 2018 Author Share Posted September 27, 2018 4 minutes ago, foskvs said: Inject ig-platform-id = 0x59120000 Remove any fake-id from Devices section. Your IGPU is detected as HD 520 (8086-1916), thus loading Skylake framebuffer rather than KBLFramebuffer. Remove it ? Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637223 Share on other sites More sharing options...
foskvs Posted September 27, 2018 Share Posted September 27, 2018 Yes Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637225 Share on other sites More sharing options...
ZHLI Posted September 27, 2018 Author Share Posted September 27, 2018 4 minutes ago, foskvs said: Yes You are right .The HD 630 Display memory is normal. Next Help me to Solved the power off and automatically after a few mintues Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637226 Share on other sites More sharing options...
foskvs Posted September 27, 2018 Share Posted September 27, 2018 Place the DSDT attached here in EFI/CLOVER/ACPI/patched, boot in verbose mode, log in and then shut down the computer. Does the problem still persist? Any error message on the display? Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637228 Share on other sites More sharing options...
ZHLI Posted September 27, 2018 Author Share Posted September 27, 2018 19 minutes ago, foskvs said: Place the DSDT attached here in EFI/CLOVER/ACPI/patched, boot in verbose mode, log in and then shut down the computer. Does the problem still persist? Any error message on the display? After clicking Shutdown, the display is black, is not powered off. Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637232 Share on other sites More sharing options...
foskvs Posted September 27, 2018 Share Posted September 27, 2018 53 minutes ago, ZHLI said: After clicking Shutdown, the display is black, is not powered off. Remove the DSDT and try FixShutdown patch in config.plist Retry. Same issue? Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637244 Share on other sites More sharing options...
ZHLI Posted September 28, 2018 Author Share Posted September 28, 2018 14 hours ago, foskvs said: Remove the DSDT and try FixShutdown patch in config.plist Retry. Same issue? The First time power off,Display turn offed But the Host Desktop Keep on,Tried again turn offed Normal. Thank you for your help. Can you explaning the reason? Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637356 Share on other sites More sharing options...
foskvs Posted September 28, 2018 Share Posted September 28, 2018 2 hours ago, ZHLI said: The First time power off,Display turn offed But the Host Desktop Keep on,Tried again turn offed Normal. Thank you for your help. Can you explaning the reason? Golden rule for hackintosh. One fix at a time. Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637375 Share on other sites More sharing options...
ZHLI Posted September 28, 2018 Author Share Posted September 28, 2018 (edited) On 9/28/2018 at 4:21 PM, foskvs said: Golden rule for hackintosh. One fix at a time. got it So experienced, how long has it been to use hackintosh? ALC+Lilu inject layoutid do not have Microphone input，How to solve it? Edited September 29, 2018 by ZHLI Link to comment https://www.insanelymac.com/forum/topic/335620-power-off-and-power-off-automatically-after-a-few-minutes/#findComment-2637406 Share on other sites More sharing options...
