Hello, guys!



I just bought a new SSD, a Kingston SA400S37240G and it's (apparently) working as expected...

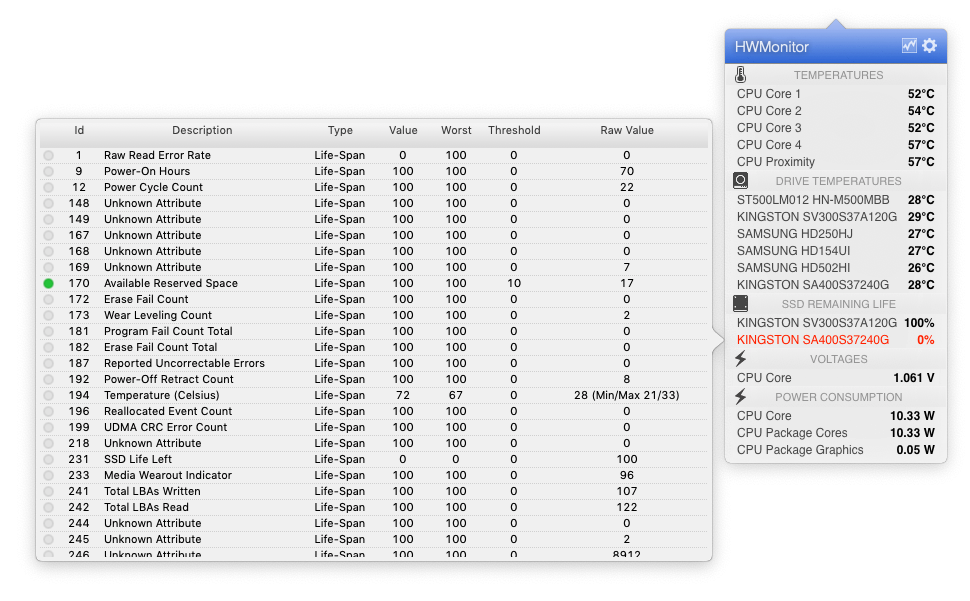

As I was making "clean" installations of all OSs I use and, macOS were the only installed OS when I plugged it, the fact that HWMonitor showed me a warning about its SMART status caught my attention but, as I just started to use VirtualSMC and, I thought that it may be some other issue...

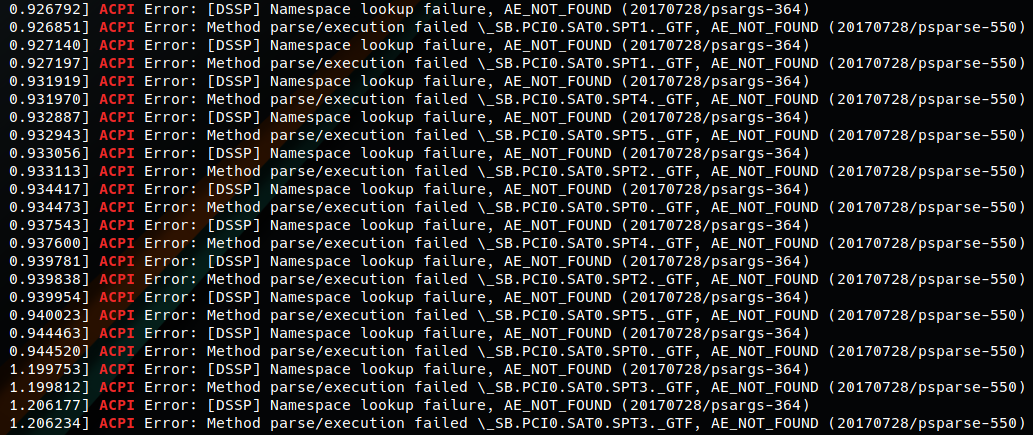

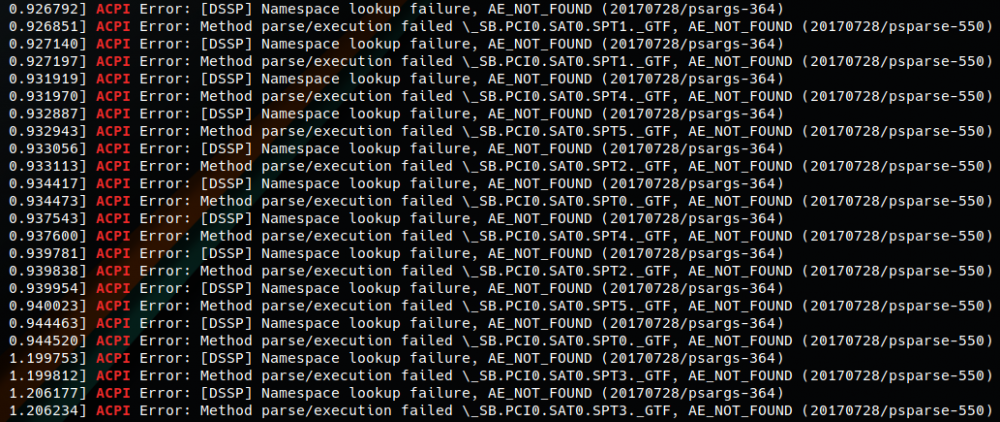

But, after finish, I noticed some ACPI errors at Linux boot...














Then, I looked back to macOS and surprisingly, I found a less detailed trace of the same error...








2018-09-15 23:03:47.711538-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) SSDT 0x00000000DD624000 00036D (v01 SataRe SataTabl 00001000 INTL 20091112)

2018-09-15 23:03:47.711539-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) SSDT 0x00000000DD624000 00036D (v01 SataRe SataTabl 00001000 INTL 20091112)

2018-09-15 23:03:47.736824-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Error:

2018-09-15 23:03:47.736826-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Error:

2018-09-15 23:03:47.736832-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) Namespace lookup failure, AE_ALREADY_EXISTS

2018-09-15 23:03:47.736833-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) Namespace lookup failure, AE_ALREADY_EXISTS

2018-09-15 23:03:47.736839-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,

2018-09-15 23:03:47.736840-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,

2018-09-15 23:03:47.736842-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) During name lookup/catalog

2018-09-15 23:03:47.736842-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) During name lookup/catalog

2018-09-15 23:03:47.736872-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,

2018-09-15 23:03:47.736873-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Exception: AE_ALREADY_EXISTS,

2018-09-15 23:03:47.737322-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Error:

2018-09-15 23:03:47.737323-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) ACPI Error:

2018-09-15 23:03:47.737325-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) 1 table load failures, 5 successful

2018-09-15 23:03:47.737326-0300 0x71 Default 0x0 0 0 kernel: (AppleACPIPlatform) 1 table load failures, 5 successful








[EDIT]



Windows has issues too...








[EDIT]



They are related to "Method (_GTF, 0, NotSerialized)"  and, looking at ACPI specs, apparently it's properly applied at the SSDT... > SSDT1.dsl.zip



My question is, where I have an issue?

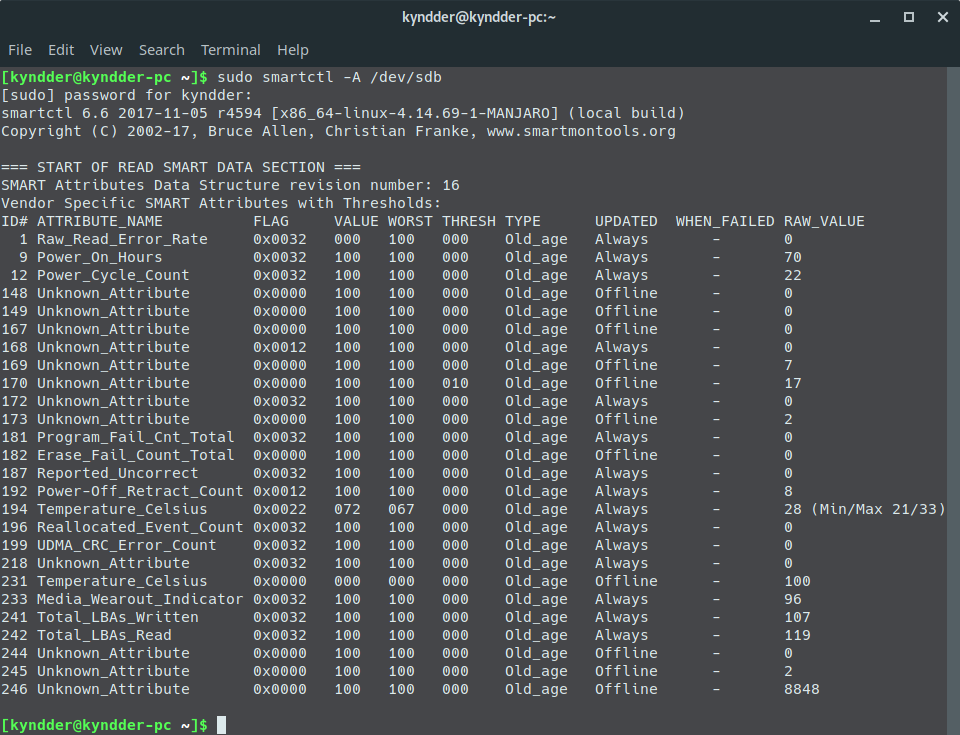

SMART information isn't clear at Linux, Windows or macOS...

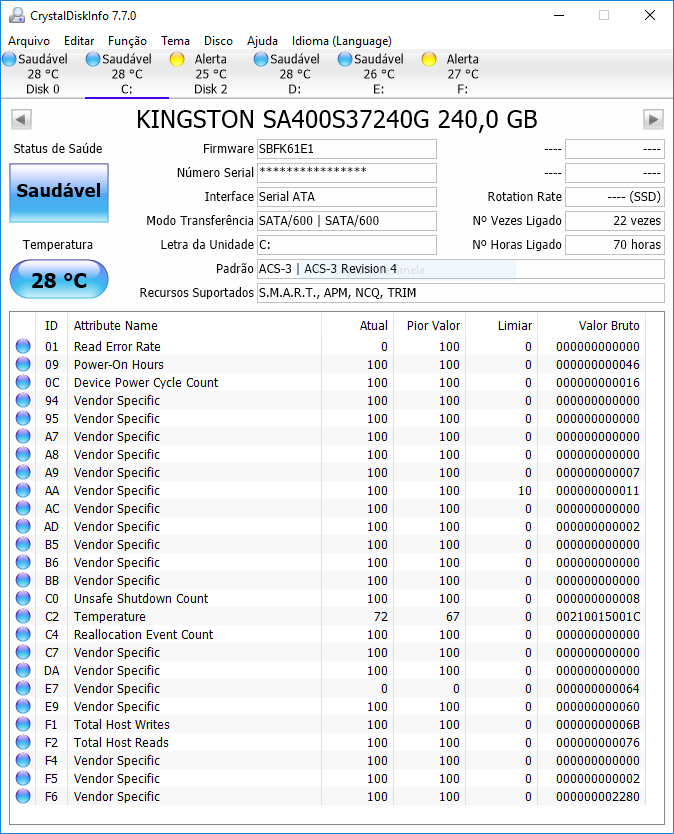

At CrystalDiskInfo I have the more "friendly" info, and also, it shows SATA ACS-3 Revision 4 standard, my old SSD, from where I can get detailed SMART information, is from Revision 3...

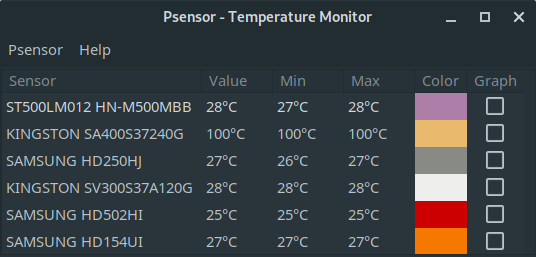

Sensors are crazy at Linux too...














So, I bought a damaged SSD or this is only a malformed information due to a lack of firmware capabilities by using a relative new hardware into an old one, that doesn't fit the new ACPI specs and, because of this, its data cannot be collected?



Or this is only a OEM feature, meaning that this hardware was made in some way that the data really can't be read?



Thanks!



Edited by kyndder

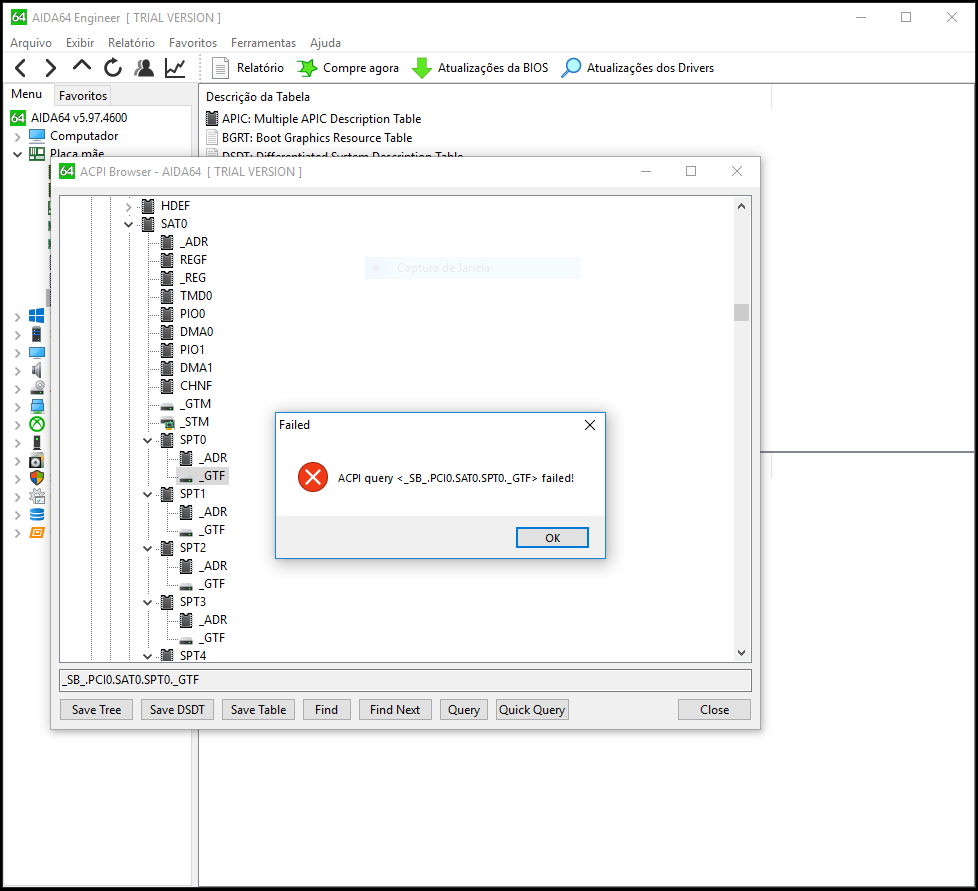

Added AIDA64 report...
×
×
