kultrun Posted May 29, 2018 Share Posted May 29, 2018 Hi everyone! Sorry for the English, I write from Argentina but I wanted to share this experience in case it helps someone I was able to install successfully macOS High Sierra (10.13.4) on my new PC recently builded: - Intel i5 8400 Coffe Lake 4.0 - Mobo Gigabyte GA-Z370 HD3 - 8 GB RAM DDR4 2400 Crucial - HDD 1 TB Wester Digital Caviar Blue (I know, it's not the best option but the budget was short for a SSD) - Wifi TP-Link Archer T9E 1900 (works out of the box, no kets needed) Basically, I took this link into account to follow the instructions: https://hackintosher.com/builds/400-budget-coffee-lake-hackintosh-build-guide-gigabyte-z370-hd3/ Considering that the processor is i5, I did not follow the final indication about i3 processors IMPORTANT: for a correct operation of the UHD 630 graphics (without glitches or artefacts), set SMBIOS in iMac 18,1 I updated Clover to the latest version and everything working ok After that, I updated High Sierra (App Store) with the 10.13.4 security update and everything is ok! you just have to apply this USB patch in Clover: Mount EFI Partition with Clover Configurator Navigate to /Volumes/EFI/EFI/Clover/ Right-click open config.plist with Clover Configurator Click Kernel and Kext Patches under SECTIONS of Clover Configurator Click the “+” button near the bottom to add this patch: Name*: com.apple.driver.usb.AppleUSBXHCI Find* [HEX]: 837d940f 0f839704 0000 Replace* [HEX]: 837d940f 90909090 9090 Comment: USB 10.13.4+ by PMHeart MatchOS: 10.13.x Save config.plist See this: https://hackintosher.com/guides/hackintosh-high-sierra-10-13-4-update-guide/ regards! 1 Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/ Share on other sites More sharing options...
MaLd0n Posted May 29, 2018 Share Posted May 29, 2018 u need patch ur tables, Kabylake/Coffeelake have many acpi errors, etc just check log show --last boot --style syslog u can check a full solution here https://www.insanelymac.com/forum/topic/321872-guide-sierra-high-sierra-on-mobos-serie-100-200-300-skylake-kabylake-coffeelake-dsdt/ 2 Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2615717 Share on other sites More sharing options...
kultrun Posted May 30, 2018 Author Share Posted May 30, 2018 Hi! thanks for the reply I attach te config.plist so, just if you can... tell me if the configs are ok The config have the patches in DSDT and others... i believe it's ok, because untill now, everything seems to work without problems I have the kets in Clover/kets/other: AppleALC.kext AtherosE2200Ethernet.kext (maybe it's not necessary) CodecCommander.kext FakeSMC.kext IntelGraphicsFixup.kext IntelMausiEthernet.kext Lilu.kext RealtekRTL8111.kext (maybe it's not necessary) Shiki.kext SmallTreeIntel82576.kext USBInjectAll.kext WhateverGreen.kext XHCI-200-series-injector.kext config.plist Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2615739 Share on other sites More sharing options...
MaLd0n Posted May 30, 2018 Share Posted May 30, 2018 6 minutes ago, kultrun said: Hi! thanks for the reply I attach te config.plist so, just if you can... tell me if the configs are ok The config have the patches in DSDT and others... i believe it's ok, because untill now, everything seems to work without problems I have the kets in Clover/kets/other: AppleALC.kext AtherosE2200Ethernet.kext (maybe it's not necessary) CodecCommander.kext FakeSMC.kext IntelGraphicsFixup.kext IntelMausiEthernet.kext Lilu.kext RealtekRTL8111.kext (maybe it's not necessary) Shiki.kext SmallTreeIntel82576.kext USBInjectAll.kext WhateverGreen.kext XHCI-200-series-injector.kext config.plist post a full dump RunMe.app.zip 1 Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2615740 Share on other sites More sharing options...
kultrun Posted June 2, 2018 Author Share Posted June 2, 2018 Hi! I attach the file after run your application I believe all the information is in those files (inside zip file) thanks! Send me dinkas-iMac.zip Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616248 Share on other sites More sharing options...
kultrun Posted June 2, 2018 Author Share Posted June 2, 2018 (edited) Now I have a problem that I did not have before: there is no audio after sleep it's strange, I did not have that problem befor... If you can help me, many thanks! edit: in fact, the audio is lost when the screen is turned off ... but if I put the computer to sleep, when I come back from sleep the audio works ok So, specifically the audio is lost when the screen is turned off after a while without using the computer (approximately 15 minutes, for example) Edited June 2, 2018 by kultrun more info about the issue Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616258 Share on other sites More sharing options...
MaLd0n Posted June 2, 2018 Share Posted June 2, 2018 take a shot use full clover folder CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616270 Share on other sites More sharing options...
kultrun Posted June 2, 2018 Author Share Posted June 2, 2018 hi MaLd0n so, if I understand you... you say that I replace the clover folder for the one you attached? thanks! Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616300 Share on other sites More sharing options...

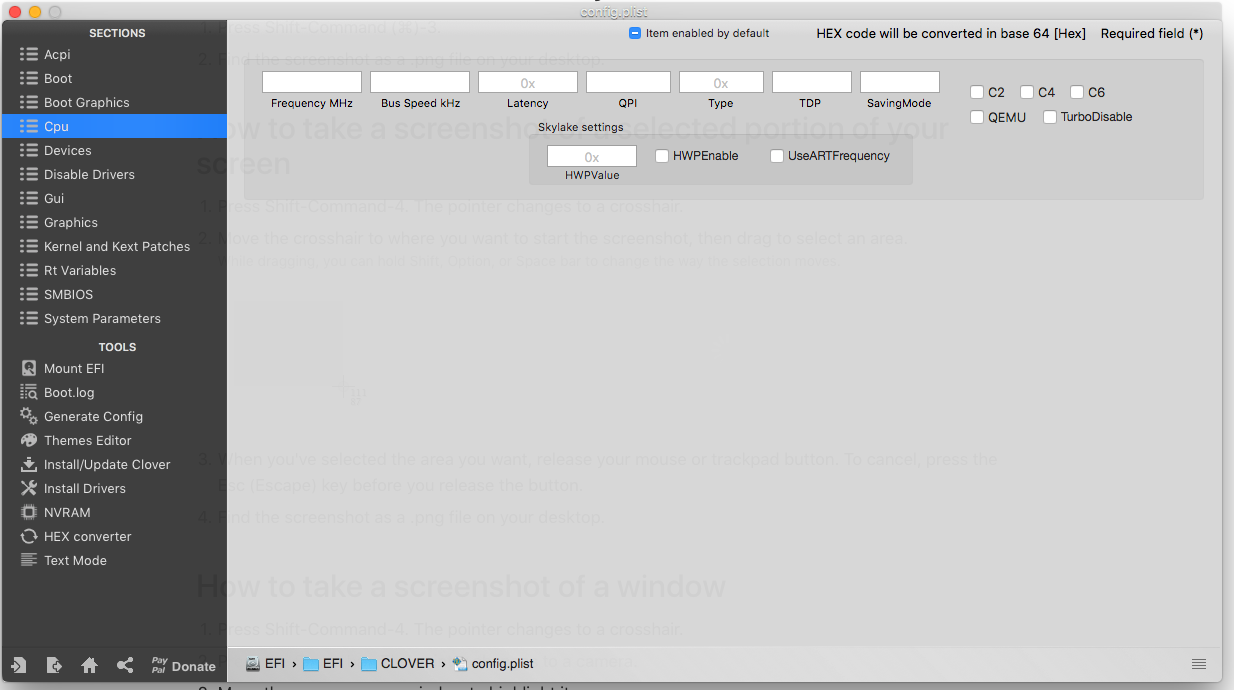

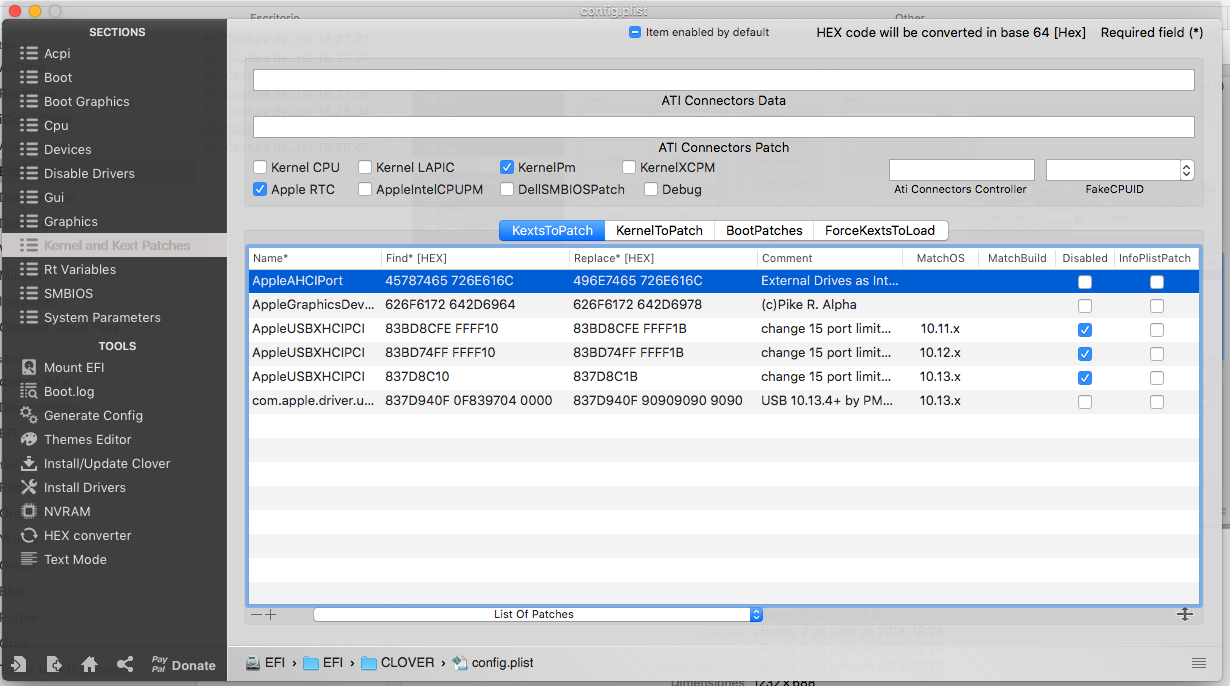

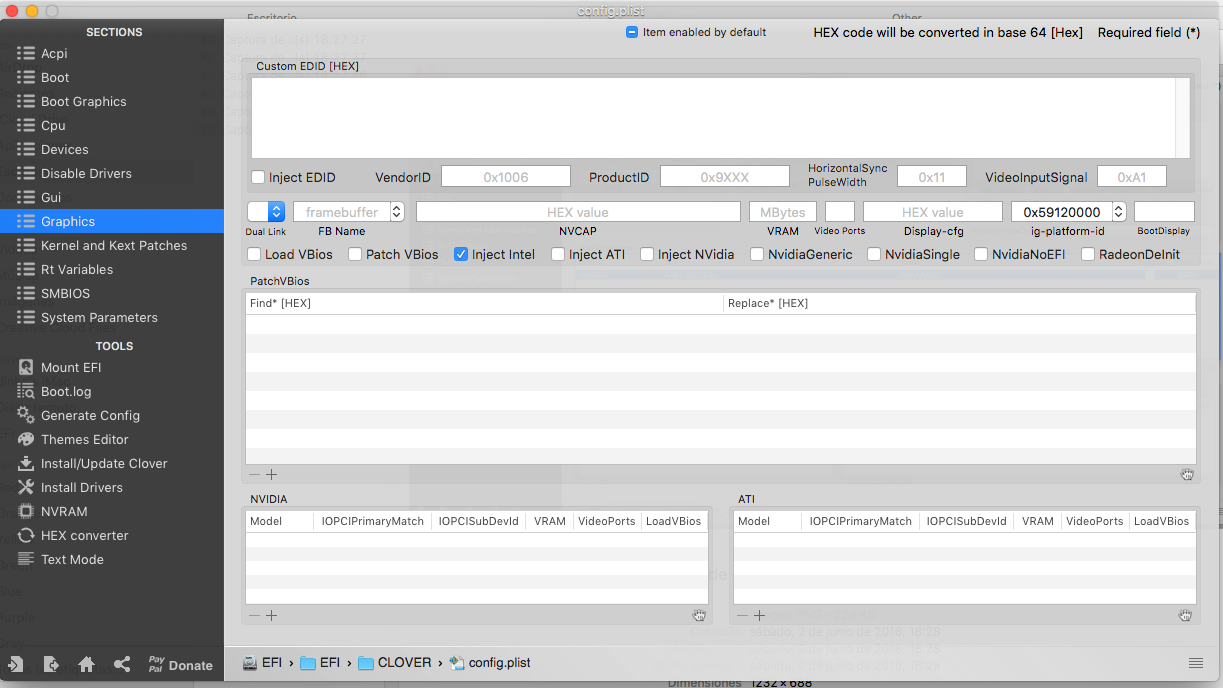

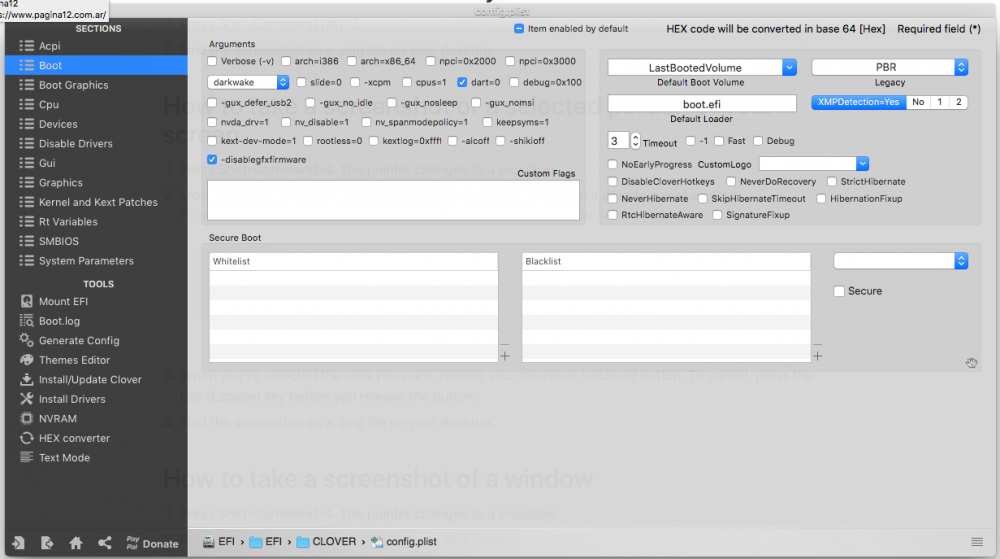

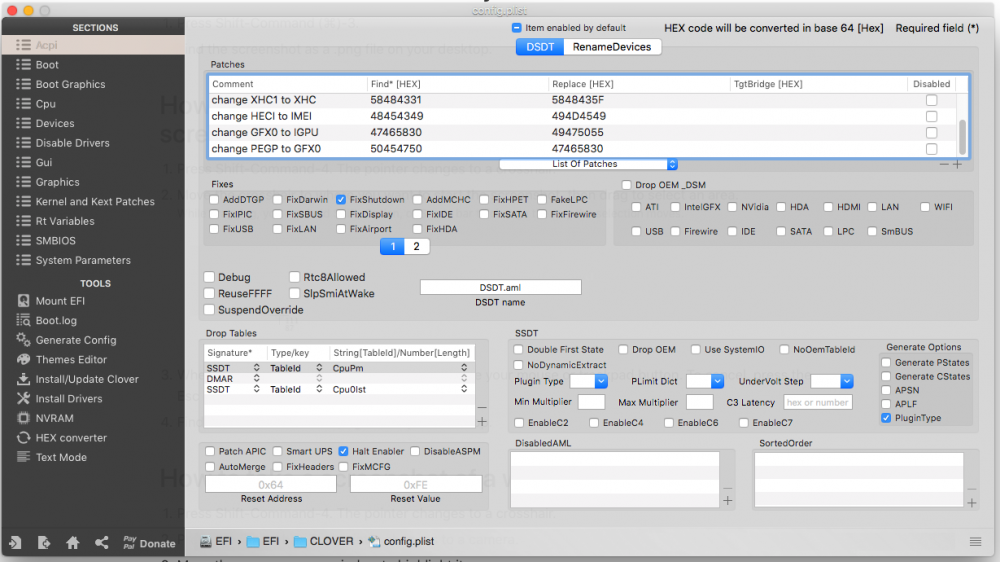

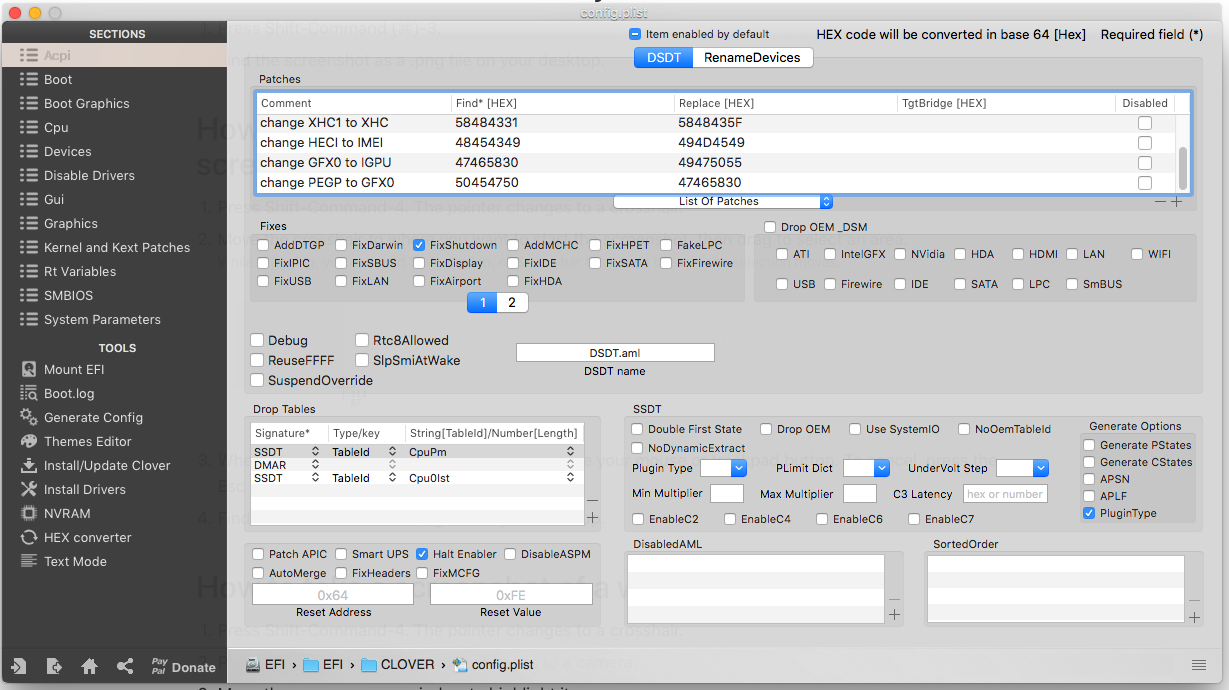

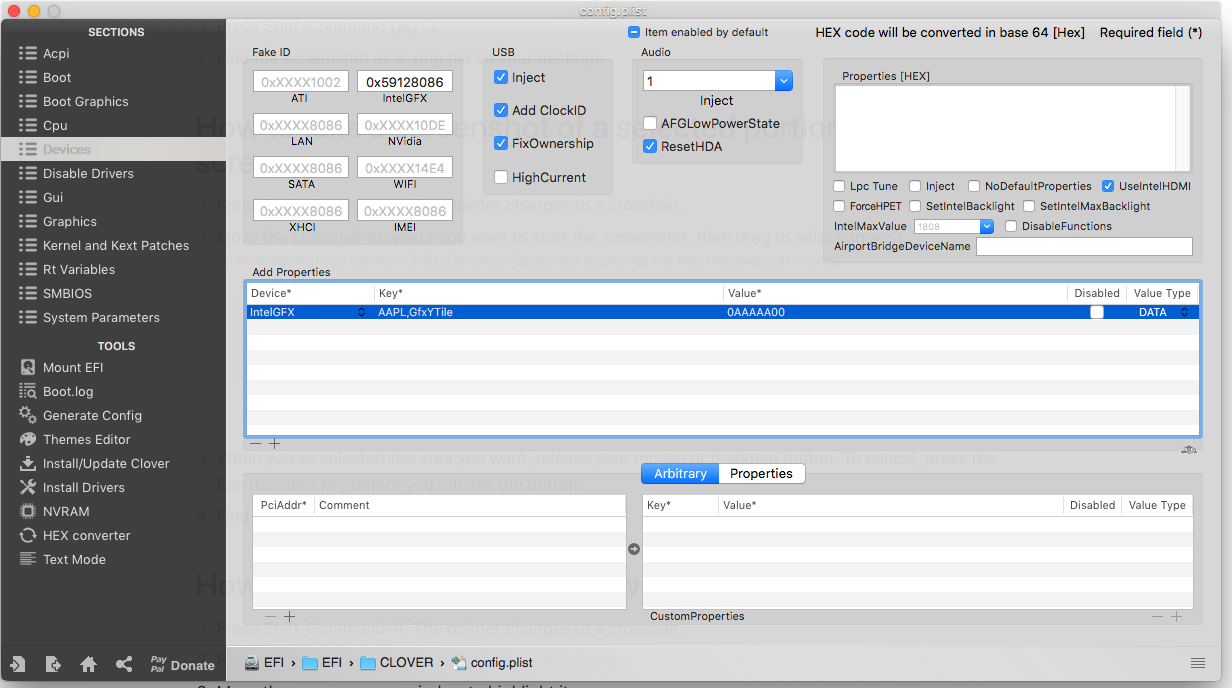

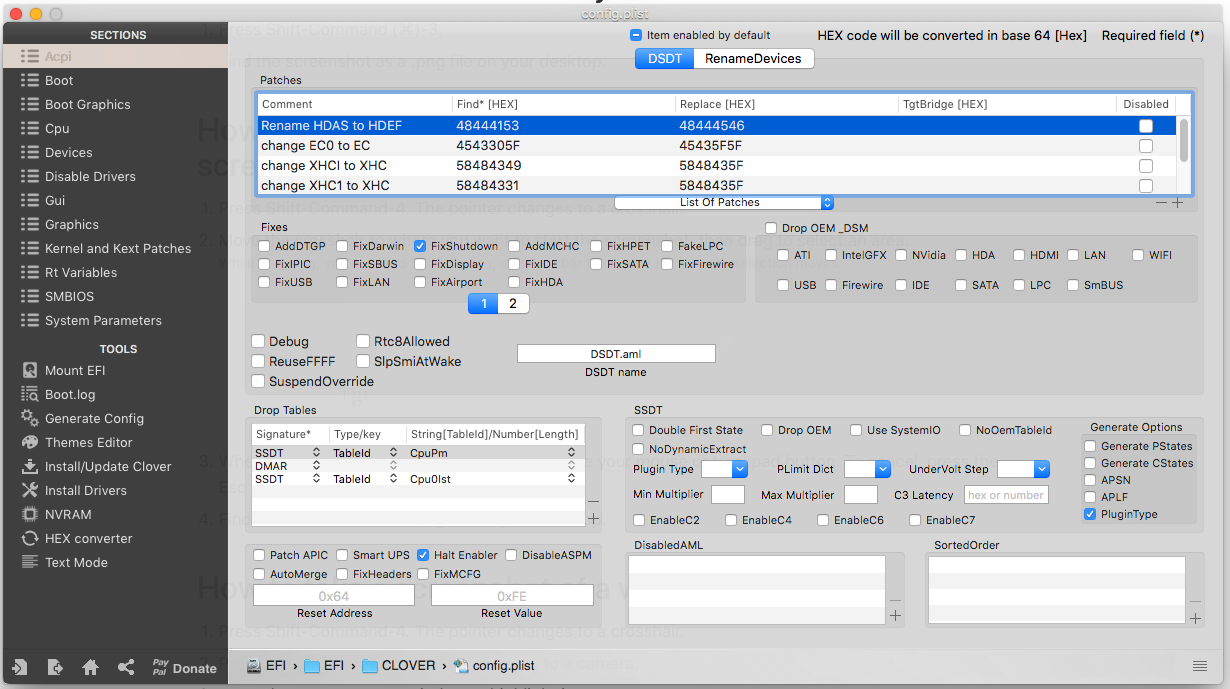

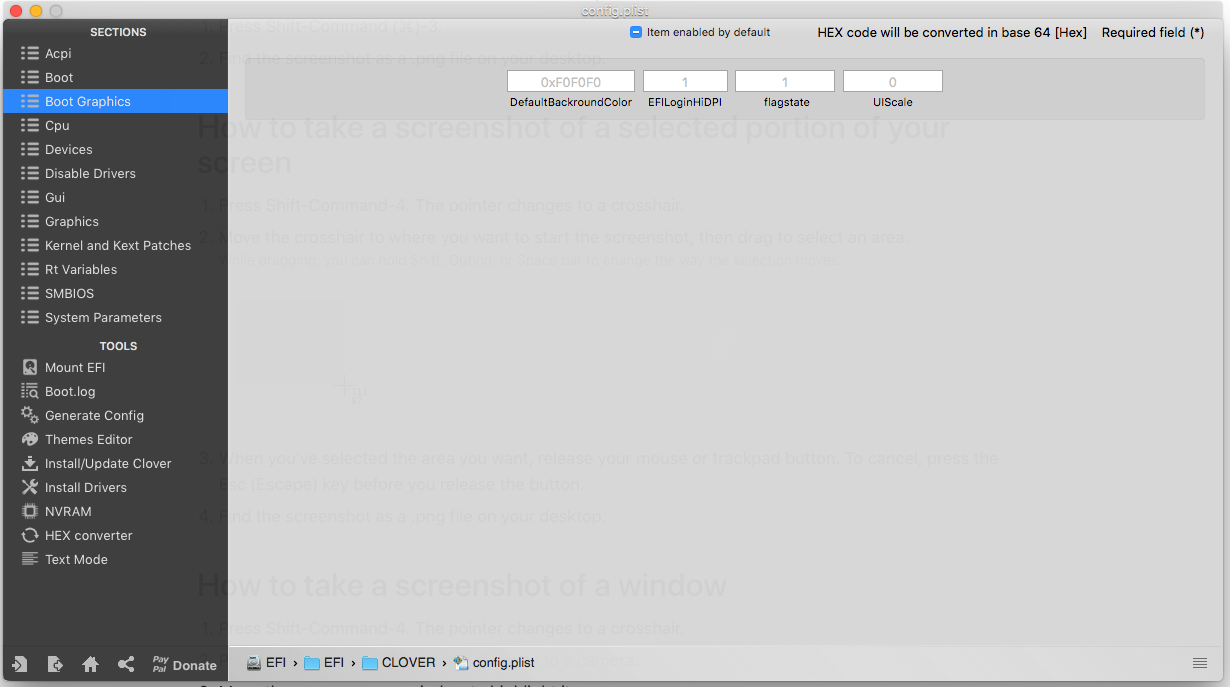

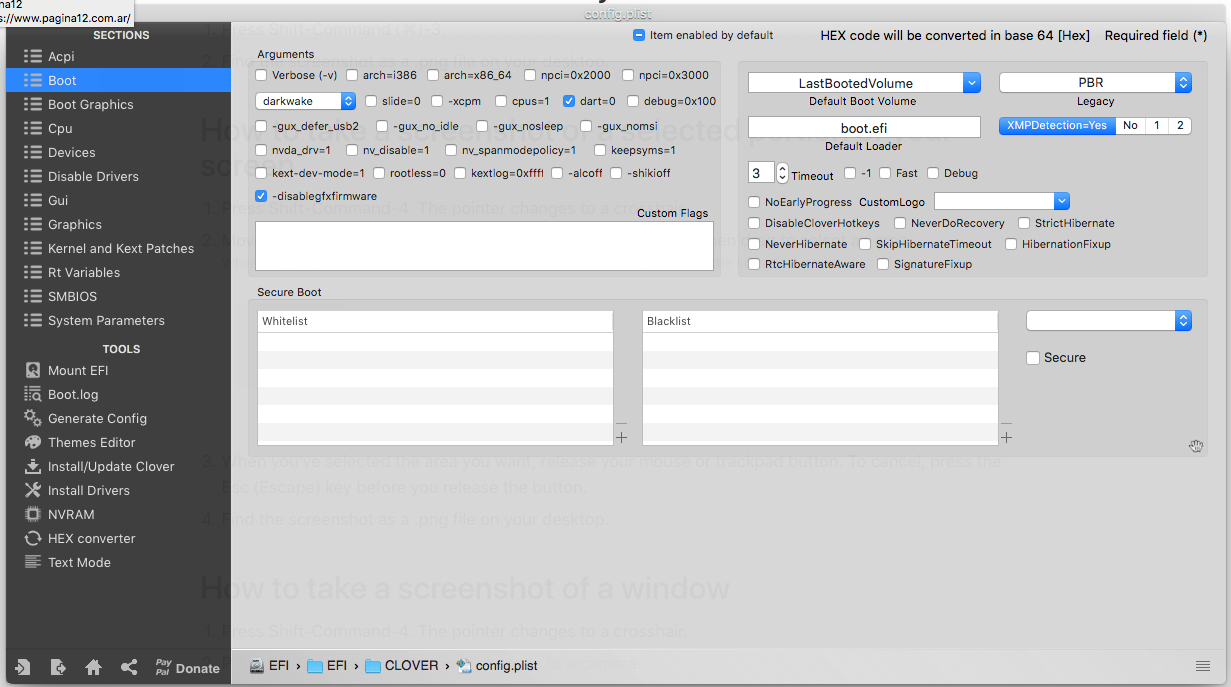

kultrun Posted June 2, 2018 Author Share Posted June 2, 2018 I mean... I do not know if you have found something wrong in the configuration that I currently have of the clover or the presents ketxs , etc. Do you recommend replacing the current clover configuration that I have for which you attached? I attach some screenshots Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616303 Share on other sites More sharing options...
MaLd0n Posted June 2, 2018 Share Posted June 2, 2018 use my full clover folder 1 Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616309 Share on other sites More sharing options...
kultrun Posted June 4, 2018 Author Share Posted June 4, 2018 thank you very much! I really do not understand how the DSDT.aml are configured but I trust in your vast experience about these things ... I mean, you recommend replacing the entire Clover directory of my hack with the clover you sent, right? I have seen that some configurations in the config.plist are quite different, but I imagine all those settings are in the dsdt patch? Thank you very much, I'll try it as soon as I can set it up Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616544 Share on other sites More sharing options...
MaLd0n Posted June 4, 2018 Share Posted June 4, 2018 2 minutes ago, kultrun said: thank you very much! I really do not understand how the DSDT.aml are configured but I trust in your vast experience about these things ... I mean, you recommend replacing the entire Clover directory of my hack with the clover you sent, right? I have seen that some configurations in the config.plist are quite different, but I imagine all those settings are in the dsdt patch? Thank you very much, I'll try it as soon as I can set it up Yes, all essentials, cosmetics and other patched in DSDT and minimal config in config.plist use other HDD/SSD for ur tests, take a shot it's fun xD Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616545 Share on other sites More sharing options...
kultrun Posted June 4, 2018 Author Share Posted June 4, 2018 how fast in response! Thank you very much again ... the dsdt.aml file includes all the essentials for the mobo GA-Z370 HD3 ... right? especially considering that in that Hackintosh I also have a TP-Link Archer T9E wifi network card (that works OOB) ... and I use the onboard graphics, Intel UHD 630. If I include in the future an SSD, is it necessary to add some additional configuration? Another query: once you check that everything is working correctly, there are no problems with updating the system via AppStpre or combo update, right? thanks a lot for all your help!! Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2616547 Share on other sites More sharing options...
kultrun Posted June 7, 2018 Author Share Posted June 7, 2018 Thanks @MaLd0n for all the help given so far ... I still could not do the tests with the configuration that you sent me, but I will try to do it in a short time when I finally buy an SSD. In this sense, I would like to ask you ... What do you recommend me? It will be an SSD only for Mac Os and Apps - Kingston A400 240GB (cheaper) - Samsung EVO 860 250GB - Crucial MX500 250GB and... would be necessary then some additional configuration in clover or the dsdt.aml? thanks a lot, again! Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2617583 Share on other sites More sharing options...
MaLd0n Posted June 7, 2018 Share Posted June 7, 2018 Samsung EVO 860 dont need nothing more Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2617603 Share on other sites More sharing options...
kultrun Posted June 8, 2018 Author Share Posted June 8, 2018 thanks Mald0n! I will try everything soon and I will send you a report to see all is ok saludos! Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2617730 Share on other sites More sharing options...
kultrun Posted June 8, 2018 Author Share Posted June 8, 2018 last inquiry, so as not to bother you ... what about the Samsung 970 EVO NVMe M.2? I know it's much faster, but it's just "plug and play" out of box? considering that I am thinking of a disk only for the system and applications, not for moving large files Is it worth spending a little more on this NVMe model? I've heard they raise a lot of temperature, is that it? thanks! Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2617745 Share on other sites More sharing options...
MaLd0n Posted June 8, 2018 Share Posted June 8, 2018 1 hour ago, kultrun said: last inquiry, so as not to bother you ... what about the Samsung 970 EVO NVMe M.2? I know it's much faster, but it's just "plug and play" out of box? considering that I am thinking of a disk only for the system and applications, not for moving large files Is it worth spending a little more on this NVMe model? I've heard they raise a lot of temperature, is that it? thanks! i think 970 is like 960, have a full native support Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2617783 Share on other sites More sharing options...
kultrun Posted June 8, 2018 Author Share Posted June 8, 2018 thnaks a lot! Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2617785 Share on other sites More sharing options...
kultrun Posted July 20, 2018 Author Share Posted July 20, 2018 Hi! I plan to reinstall the Mac OS on a new disk, SSD (Evo 860) that I that I bought recently. For this purpose, I downloaded the image from the oralila web, the High Sierra 10.13.6 (https://olarila.com/forum/viewtopic.php?f=51&t=6393), that have the lastest update in the OS In that case, can I use the full clover Folder that you have provided me in this post? or are some adjustments needed in the DSDT, the config.plist, the kexts, etc? considering the latest update please, if you can help me, thanks a lot! just in case: mobo: Gigabyte Z370 HD3 i5 8400 4.0 video UHD 630 Link to comment https://www.insanelymac.com/forum/topic/334224-i5-8400-40-gigabyte-ga-z370-hd3-succes/#findComment-2626734 Share on other sites More sharing options...
