ASUS X99-A/USB 3.1 | I7-5930K SpeedStep And Other Things | High Sierra 10.13.4

fariel23 · May 18, 2018

Hello there!!!

First of all before i was making this topic i did a research on the internet to find out if i can fix my issues by me self and so far I was not able to fix it so that’s why I decide to make this topic to see if anyone can help me out.

- I have trouble getting my CPU SpeedStep working in High Sierra 10.13.4. so this way my cpu is always running at 3,5ghz.

i try to make a SSDT and this is what i try so far:

1. in the bios is SpeedStep: ENABLE (don’t know if it need to be on or off)

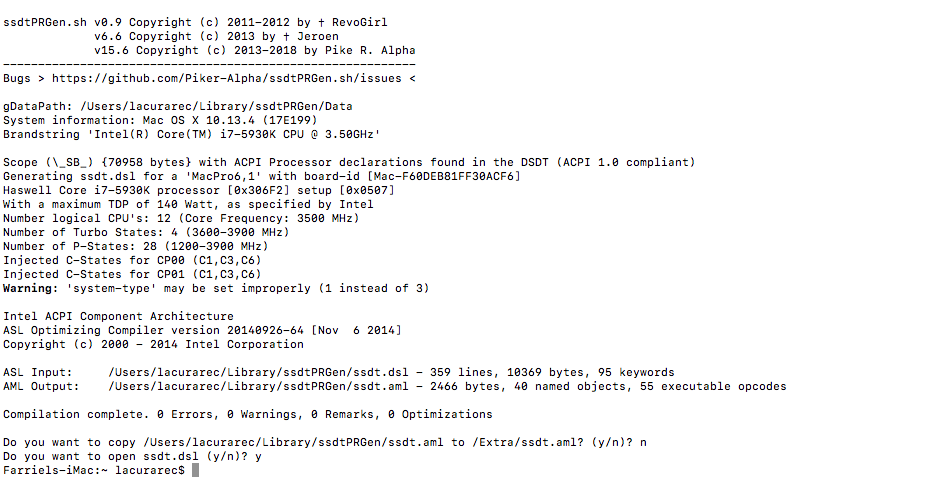

2. i follow the following guide: Pike Alpha's ssdtPRGen.sh

as you can see in the screenshot it did generated a ssdt file but it doesn't work and the speed stay the same. SSDT.aml SSDT.dsl

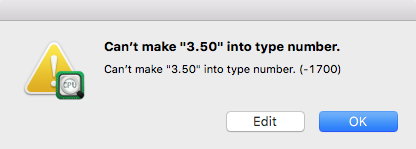

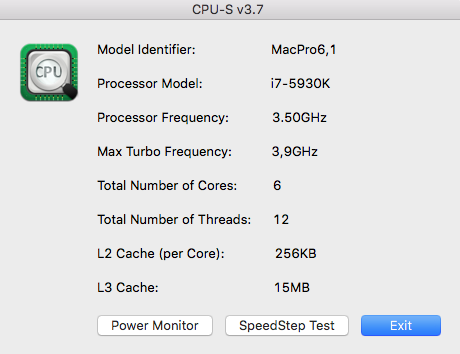

3. i also try the following app: CPU-S



so far no luck

- Geekbench result are not that great!

After the installation was finnish i installed Geekbench app and ran a benchmark in single core the score where above 4300 an multicore was 22+ and after messing around now the score are Singlecore: 3586 and Multicore: 22687. I don’t remember what I did that the performance degress.

- Nvida GTX980TI

I installed the official drivers + the Cuda drivers and the graphics are working fine with the exception a few things: when I play video on youtube an do full screen there is a glitch and i feel somethings a bit laggy. I also notice in the app MacX Video Converter that there is No Hardware Encoding


so I don’t know how to make It work either I did a research on the net but no luck!

TWEAKS

- I really hope to fix my hackintosh to the maximum if someone could take a look and can tweak my settings to get the most of it! it’s been long without a solution for this problems

- in the attachments i ran the RunMe.app and attach the SendMe.zip and I also added a few screenshot so u can see the result. if u need something else let me know.

thanks in advance

link for the SendMe.zip: https://www120.zippyshare.com/v/7HRBywVW/file.html

Edited May 18, 2018 by fariel23

MaLd0n · May 18, 2018

u need check correct Kernel to Patch for ur processor, X99 dont have a full native support

CLOVER.zip

fariel23 · May 18, 2018

thanks @MaLd0n that was fast!!! I need to replace my EFI I guess with the one u post. anything else that need to be checked?

MaLd0n · May 18, 2018

14 minutes ago, fariel23 said:

thanks @MaLd0n that was fast!!! I need to replace my EFI I guess with the one u post. anything else that need to be checked?

yes, new files after reboot, but u need check kernel to patch

fariel23 · May 18, 2018

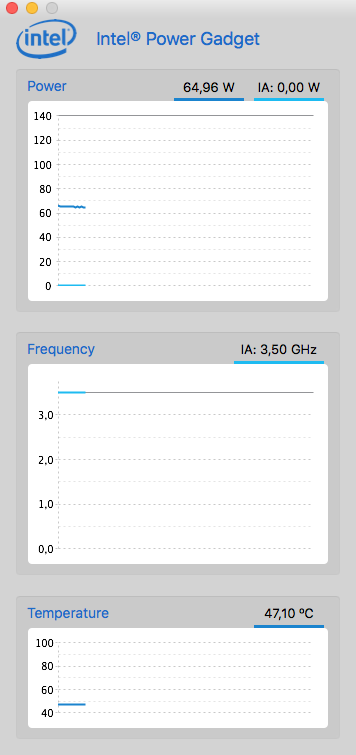

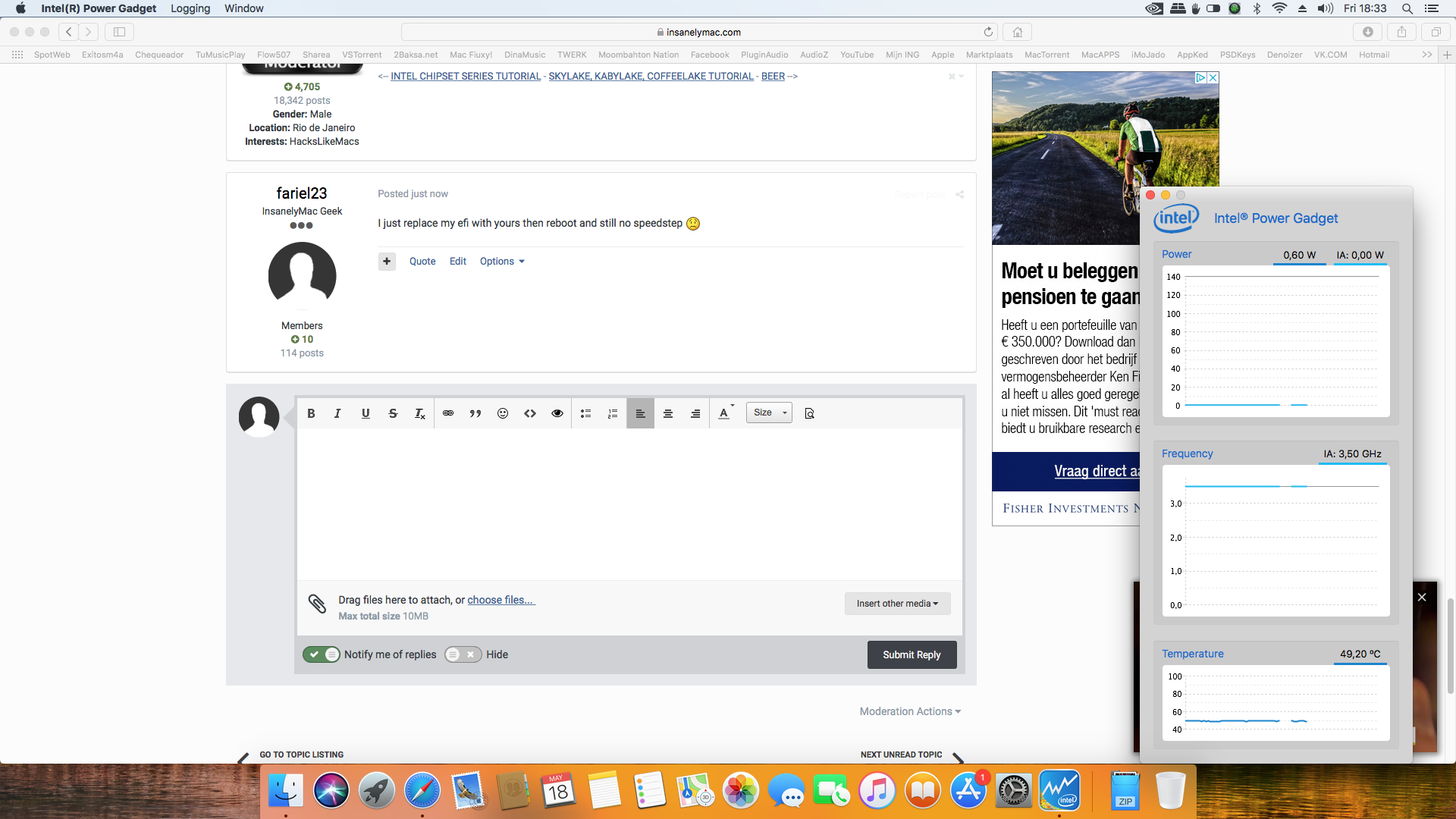

I just replace my efi with yours then reboot and still no speedstep

the fans are almost always at full speed and I have water-cooling cooler

Edited May 18, 2018 by fariel23

fariel23 · May 18, 2018

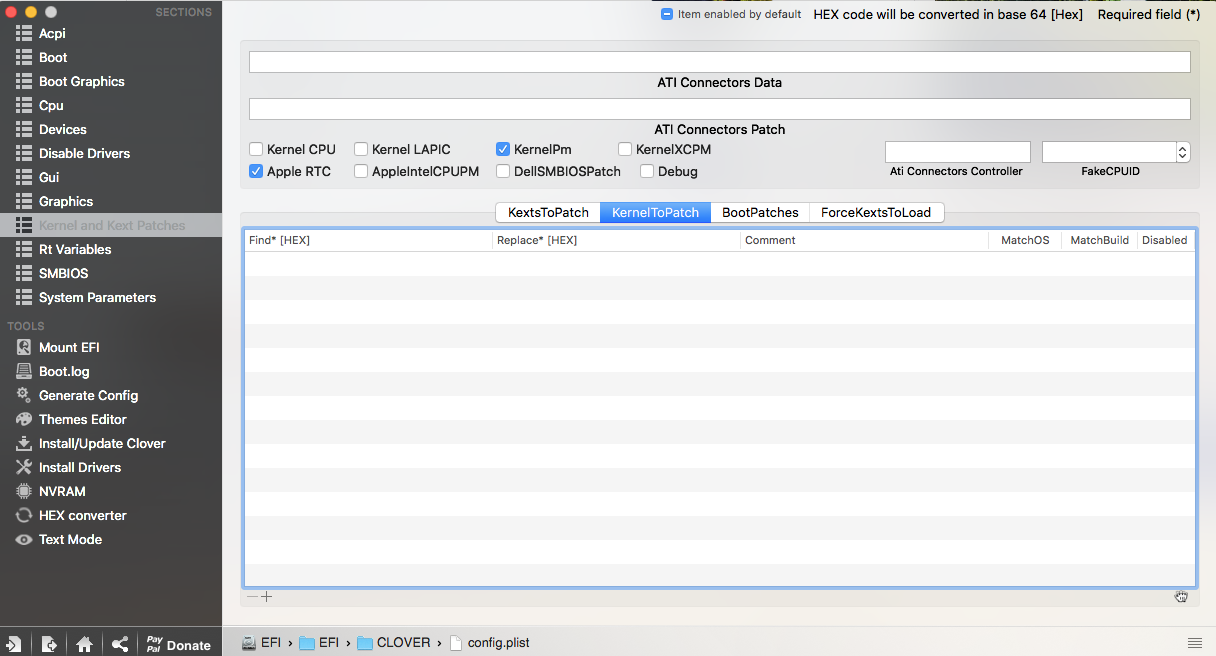

I think you mean this

but is empty what doe I need to put?

fariel23 · May 18, 2018

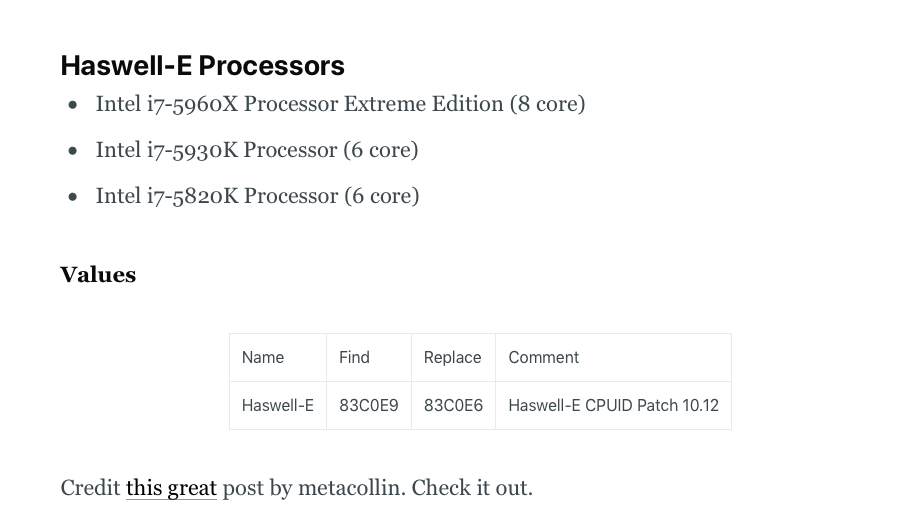

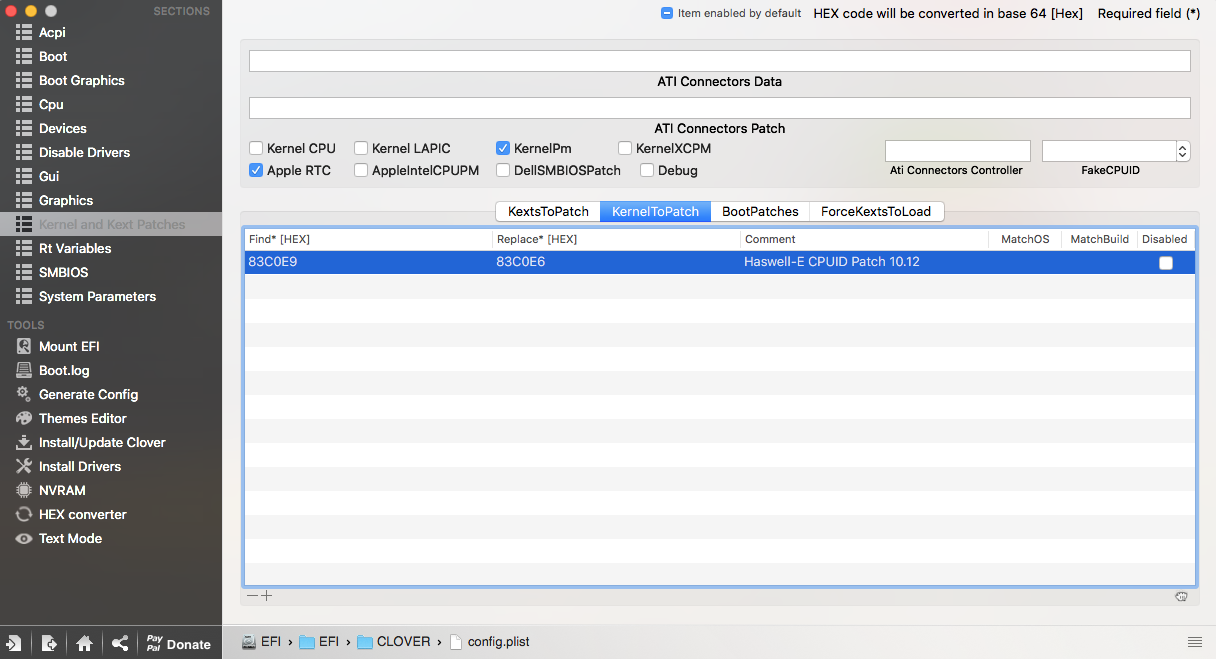

I found this but is for 10.12:


I gone to try it anyway but if someone know the patch for 10.13 would be great

I reboot and still the same

fariel23 · May 18, 2018

MaLd0n · May 18, 2018

<key>KernelToPatch</key>
       <array>
           <dict>
               <key>Comment</key>
               <string>xcpm_cpuid_set_info © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               cjzQd1APtsA=
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               bzzQd1APtsA=
               </data>
           </dict>
           <dict>
               <key>Comment</key>
               <string>xcpm_bootstrap © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               idgExDwidyI=
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               idgEwTwidyI=
               </data>
           </dict>
           <dict>
               <key>Comment</key>
               <string>xcpm_pkg_scope_msrs © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               vgcAAAAx0uiP/P//
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               vgcAAAAx0pCQkJCQ
               </data>
           </dict>
           <dict>
               <key>Comment</key>
               <string>xcpm_SMT_scope_msrs © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               vgsAAABd6QgAAAA=
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               vgsAAABdw5CQkJA=
               </data>
           </dict>
           <dict>

fariel23 · May 18, 2018

40 minutes ago, MaLd0n said:

<key>KernelToPatch</key>
       <array>
           <dict>
               <key>Comment</key>
               <string>xcpm_cpuid_set_info © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               cjzQd1APtsA=
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               bzzQd1APtsA=
               </data>
           </dict>
           <dict>
               <key>Comment</key>
               <string>xcpm_bootstrap © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               idgExDwidyI=
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               idgEwTwidyI=
               </data>
           </dict>
           <dict>
               <key>Comment</key>
               <string>xcpm_pkg_scope_msrs © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               vgcAAAAx0uiP/P//
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               vgcAAAAx0pCQkJCQ
               </data>
           </dict>
           <dict>
               <key>Comment</key>
               <string>xcpm_SMT_scope_msrs © Pike R. Alpha</string>
               <key>Disabled</key>
               <false/>
               <key>Find</key>
               <data>
               vgsAAABd6QgAAAA=
               </data>
               <key>MatchOS</key>
               <string>10.13.x</string>
               <key>Replace</key>
               <data>
               vgsAAABdw5CQkJA=
               </data>
           </dict>
           <dict>

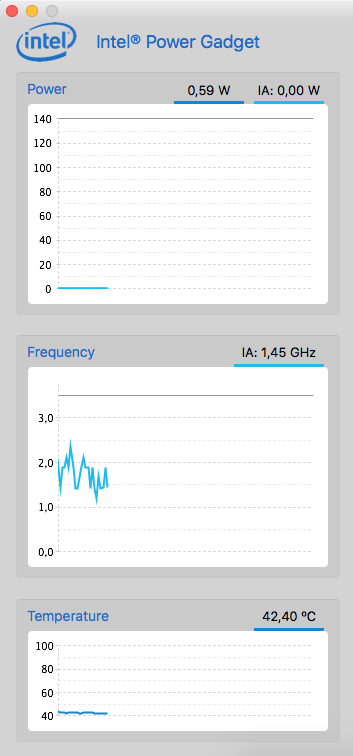

thanks bro that did the trick

MaLd0n · May 18, 2018

13 minutes ago, fariel23 said:

thanks bro that did the trick

now u need check performance fix for ur build system xD

fariel23 · May 18, 2018

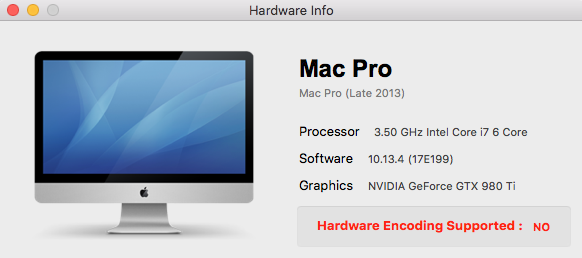

do you know why MacX video Converter is showing no hardware encoding?

Screen Shot 2018-05-16 at 20.57.45.png

MaLd0n · May 18, 2018

i use it with IntelHD + RX 580, only DGPU idk if work good, need check it

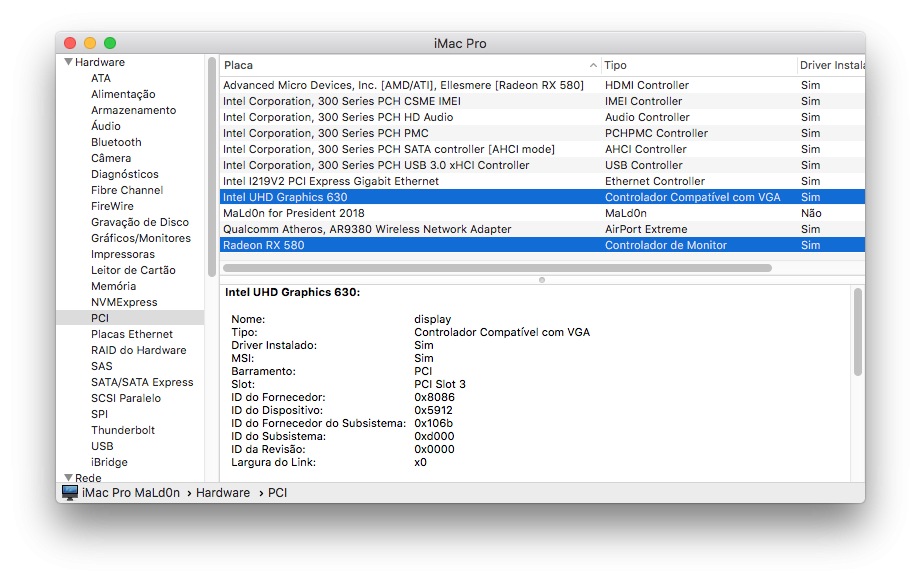

MaLd0n 2018-05-18 às 15.24.53.png

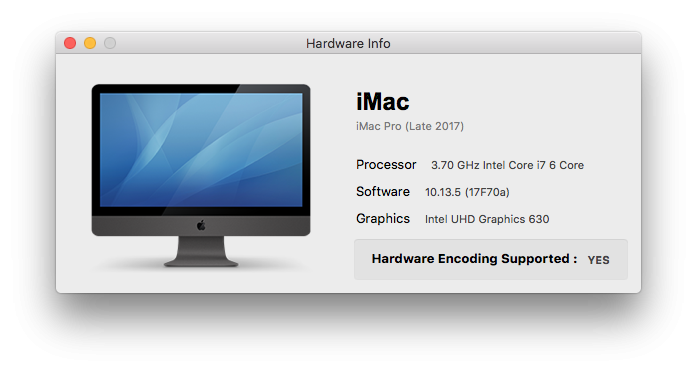

MaLd0n 2018-05-18 às 15.25.07.png

fariel23 · May 18, 2018

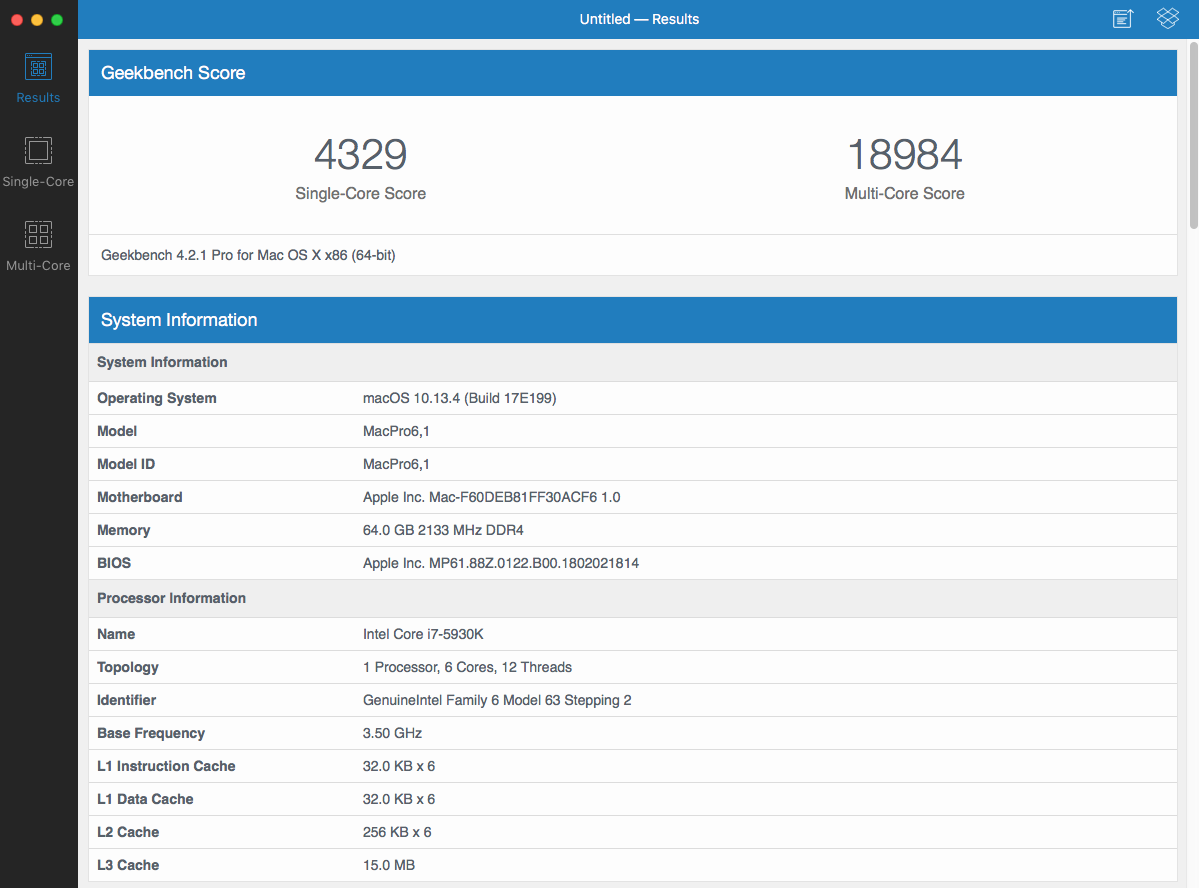

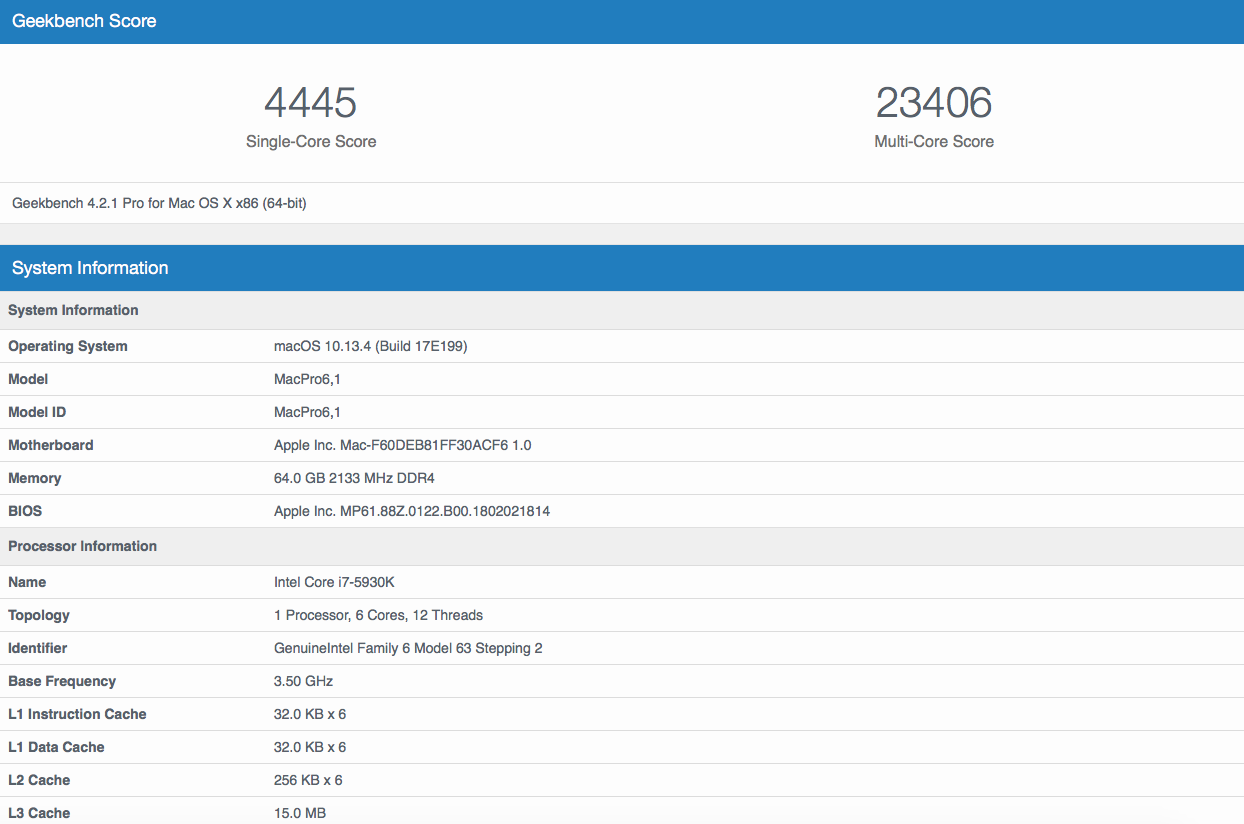

Now in single core is good but in multicore performance is drop take a look:

I don't know why

MaLd0n · May 18, 2018

u need a perfomance fix by oskrait / pmheart

send me new files, run my app again

fariel23 · May 18, 2018

oke bro here you go:

https://www57.zippyshare.com/v/bsOaBHw4/file.html

MaLd0n · May 19, 2018

u need a performance fix

here have to 10.13.5

Apple change some times now

fariel23 · May 19, 2018

thanks bro but i don't know how to do it

ACIDSky · May 19, 2018

Try theses patches

my 5930k 4,3 GHz - 26800 score in Geekbench

		<key>KernelToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>xcpm_bootstrap_HASwell_E © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				idgExDwidyI=
				</data>
				<key>Replace</key>
				<data>
				idgEwTwidyI=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>C6/C7_If=E2-Enabled=0x7E000403 BY N.Mano/Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				4gAAAEwAAAAAAAAAAAAAAA8EAAAAAAAABQAAHg==
				</data>
				<key>Replace</key>
				<data>
				4gAAAEwAAAAAAAAAAAAAAA8EAAAAAAAAAwQAfg==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BY N.Mano/Pike R. Alpha / xcpm support Pike R. Alpha/MSR_POWER_CTL/0x1FC/0x21040059/If C1E-Disabled</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				/AEAANxzAAAAAAAAAAAAAAAAAAAAAAAAGgAEAA==
				</data>
				<key>Replace</key>
				<data>
				/AEAANxzAAAAAAAAAAAAAAAAAAAAAAAAWQAEIQ==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BY N.Mano/Pike R. Alpha Sierra xcpm MSR Patch 1 / xcpm support Pike R. Alpha/0x82D300/MSR_MISC_PWR_MGMT/0x1AA/EIST_IF=Enabled=0x400000</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				qgEAANxzAAAAAAAAAAAAAAAAAAAAAAAAAQAAAA==
				</data>
				<key>Replace</key>
				<data>
				qgEAANxzAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BY N.Mano/Pike R. Alpha Sierra xcpm MSR Patch 4 / xcpm support Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QgYAANwzAAAAAAAAAAAAAB8AAAAAAAAAGAAAAAAAAAAA
				AAAAAAAAAAAAAAAAAAAA
				</data>
				<key>Replace</key>
				<data>
				QgYAAAAAAAAAAAAAAAAAAB8AAAAAAAAAGAAAAAAAAAAA
				AAAAAAAAAAAAAAAAAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>SammlerG Sierra xcpm MSR Patch 3 / xcpm support Pike R. Alpha/0x82D390/MSR_PP0_POLICY 0x63a</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				OgYAANwzAAAAAAAAAAAAAB8=
				</data>
				<key>Replace</key>
				<data>
				OgYAAAAAAAAAAAAAAAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>xcpm_cpuid_set_info_add HASWELL-E © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				cjzQd1APtsA=
				</data>
				<key>Replace</key>
				<data>
				bzzQd1APtsA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>cpuid_set_info_rdmsr © vit9696</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uaABAAAPMg==
				</data>
				<key>Replace</key>
				<data>
				uaABAAAxwA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>new performance fix (By PMHeart)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				weMISGPTidBIweoguZkBAAAPMEj/BcmeawBIg8QIW13D
				Zi4PH4QAAAAAAA==
				</data>
				<key>Replace</key>
				<data>
				uwD/AABIY9OJ0EjB6iC5mQEAAA8wSP8FyZ5rAEiDxAhb
				XcOQkJCQkJCQkA==
				</data>
			</dict>
		</array>

fariel23 · May 19, 2018

9 hours ago, ACIDSky said:

Try theses patches

my 5930k 4,3 GHz - 26800 score in Geekbench


		<key>KernelToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>xcpm_bootstrap_HASwell_E © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				idgExDwidyI=
				</data>
				<key>Replace</key>
				<data>
				idgEwTwidyI=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>C6/C7_If=E2-Enabled=0x7E000403 BY N.Mano/Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				4gAAAEwAAAAAAAAAAAAAAA8EAAAAAAAABQAAHg==
				</data>
				<key>Replace</key>
				<data>
				4gAAAEwAAAAAAAAAAAAAAA8EAAAAAAAAAwQAfg==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BY N.Mano/Pike R. Alpha / xcpm support Pike R. Alpha/MSR_POWER_CTL/0x1FC/0x21040059/If C1E-Disabled</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				/AEAANxzAAAAAAAAAAAAAAAAAAAAAAAAGgAEAA==
				</data>
				<key>Replace</key>
				<data>
				/AEAANxzAAAAAAAAAAAAAAAAAAAAAAAAWQAEIQ==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BY N.Mano/Pike R. Alpha Sierra xcpm MSR Patch 1 / xcpm support Pike R. Alpha/0x82D300/MSR_MISC_PWR_MGMT/0x1AA/EIST_IF=Enabled=0x400000</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				qgEAANxzAAAAAAAAAAAAAAAAAAAAAAAAAQAAAA==
				</data>
				<key>Replace</key>
				<data>
				qgEAANxzAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>BY N.Mano/Pike R. Alpha Sierra xcpm MSR Patch 4 / xcpm support Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QgYAANwzAAAAAAAAAAAAAB8AAAAAAAAAGAAAAAAAAAAA
				AAAAAAAAAAAAAAAAAAAA
				</data>
				<key>Replace</key>
				<data>
				QgYAAAAAAAAAAAAAAAAAAB8AAAAAAAAAGAAAAAAAAAAA
				AAAAAAAAAAAAAAAAAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>SammlerG Sierra xcpm MSR Patch 3 / xcpm support Pike R. Alpha/0x82D390/MSR_PP0_POLICY 0x63a</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				OgYAANwzAAAAAAAAAAAAAB8=
				</data>
				<key>Replace</key>
				<data>
				OgYAAAAAAAAAAAAAAAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>xcpm_cpuid_set_info_add HASWELL-E © Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				cjzQd1APtsA=
				</data>
				<key>Replace</key>
				<data>
				bzzQd1APtsA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>cpuid_set_info_rdmsr © vit9696</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				uaABAAAPMg==
				</data>
				<key>Replace</key>
				<data>
				uaABAAAxwA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>new performance fix (By PMHeart)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				weMISGPTidBIweoguZkBAAAPMEj/BcmeawBIg8QIW13D
				Zi4PH4QAAAAAAA==
				</data>
				<key>Replace</key>
				<data>
				uwD/AABIY9OJ0EjB6iC5mQEAAA8wSP8FyZ5rAEiDxAhb
				XcOQkJCQkJCQkA==
				</data>
			</dict>
		</array>

thanks mate for the help i wil try the and let you know

question do i need to combine this with the one MaL0N put in this post?

Edited May 19, 2018 by fariel23

ACIDSky · May 19, 2018

27 minutes ago, fariel23 said:

thanks mate for the help i wil try the and let you know

question do i need to combine this with the one MaL0N put in this post?

Only the ones I wrote above.

fariel23 · May 19, 2018

59 minutes ago, ACIDSky said:

Only the ones I wrote above.

i try it and it reboots at the apple logo

fariel23 · May 19, 2018

update: I try only the Performance Fix that MaLd0n give and now is working flawless

I want it to thank u too ACIDSky for the help!!

fariel23 · May 20, 2018

i notice some when my pc goes to deep sleep and i move the mouse to wake it up it doesn't wake however when i press the power button it does wake up. is this normal? is there a fix for it? or should i don't worry about it?

MaLd0n · May 20, 2018

1 hour ago, fariel23 said:

i notice some when my pc goes to deep sleep and i move the mouse to wake it up it doesn't wake however when i press the power button it does wake up. is this normal? is there a fix for it? or should i don't worry about it?

to avoid problem, i kill wake from usb or other devices, but is easy to add it again

ASUS X99-A/USB 3.1 | I7-5930K SpeedStep And Other Things | High Sierra 10.13.4

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
