14 hours ago, MaLd0n said:

CLOVER.zip

use full clover folder, dont change nothing

let me know if work



I did a clean install and use your clover folder sound works thanks but I now have two issues



1. Now I can't install Nvidia Web Driver any I ve tried many things with no success

2. No Sound from HDMI



thanks

Edited by Andrew+

Share this post


Link to post
Share on other sites
21 hours ago, MaLd0n said:



what method did you used to repackage the web driver?

Nvidia GTX 1070 6GB



Thanks for all you help :)



Update: I manage to get it working by editing the Nvidiastartupweb kext and change the build reqirement to match the current OS Build but system report is only showing 8 MB of VRAM when I should have 6GB



Update2: I manage to get it register the correct VRAM with the following below and correct about information as well but I still like to know how you



Quote
 Open a terminal and enter the following commands:


sudo chmod -R 755 /Library/Extensions/NVDAStartupWeb.kext
sudo chown -R root:wheel /Library/Extensions/NVDAStartupWeb.kext
sudo touch /System/Library/Extensions && sudo kextcache -u /
sudo touch /Library/Extensions && sudo kextcache -u /

vii.) Reboot.

1.) Open a terminal and use the following commands:

cp /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/Resources/English.lproj/AppleSystemInfo.strings ~/Desktop/

sudo mv /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/Resources/English.lproj/AppleSystemInfo.strings /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/Resources/English.lproj/AppleSystemInfo.strings-Backup

2.) Open "AppleSystemInfo.strings" on your Desktop with TextWrangler and change

<key>UnknownCPUKind</key>
<string>Unknown</string>



to what ever you want. In my case I choose:


<key>UnknownCPUKind</key>
<string>4,5 GHz 18-core 36-thread Skylake-X i9-7980XE</string>

Save  "AppleSystemInfo.strings"


3.) Run the following terminal commands:

sudo codesign -f -s - ~/Desktop/AppleSystemInfo.strings

sudo cp ~/Desktop/AppleSystemInfo.strings /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/Resources/English.lproj/




Edited by Andrew+
Update2

Share this post


Link to post
Share on other sites
2 hours ago, Andrew+ said:



what method did you used to repackage the web driver?

Nvidia GTX 1070 6GB



Thanks for all you help :)



Update: I manage to get it working by editing the Nvidiastartupweb kext and change the build reqirement to match the current OS Build but system report is only showing 8 MB of VRAM when I should have 6GB



Update2: I manage to get it register the correct VRAM with the following below and correct about information as well but I still like to know how you





just use it, dont loose time :P



HIGH SIERRA

sudo /usr/libexec/PlistBuddy -c "Set :IOKitPersonalities:NVDAStartup:NVDARequiredOS "$(sw_vers -buildVersion) /Library/Extensions/NVDAStartupWeb.kext/Contents/Info.plist



SIERRA
sudo /usr/libexec/PlistBuddy -c "Set :IOKitPersonalities:NVDAStartup:NVDARequiredOS "$(sw_vers -buildVersion) /System/Library/Extensions/NVDAStartupWeb.kext/Contents/Info.plist



NvidiaPatcher.command.zip



and run kext utility after

Kext Utility.app.zip

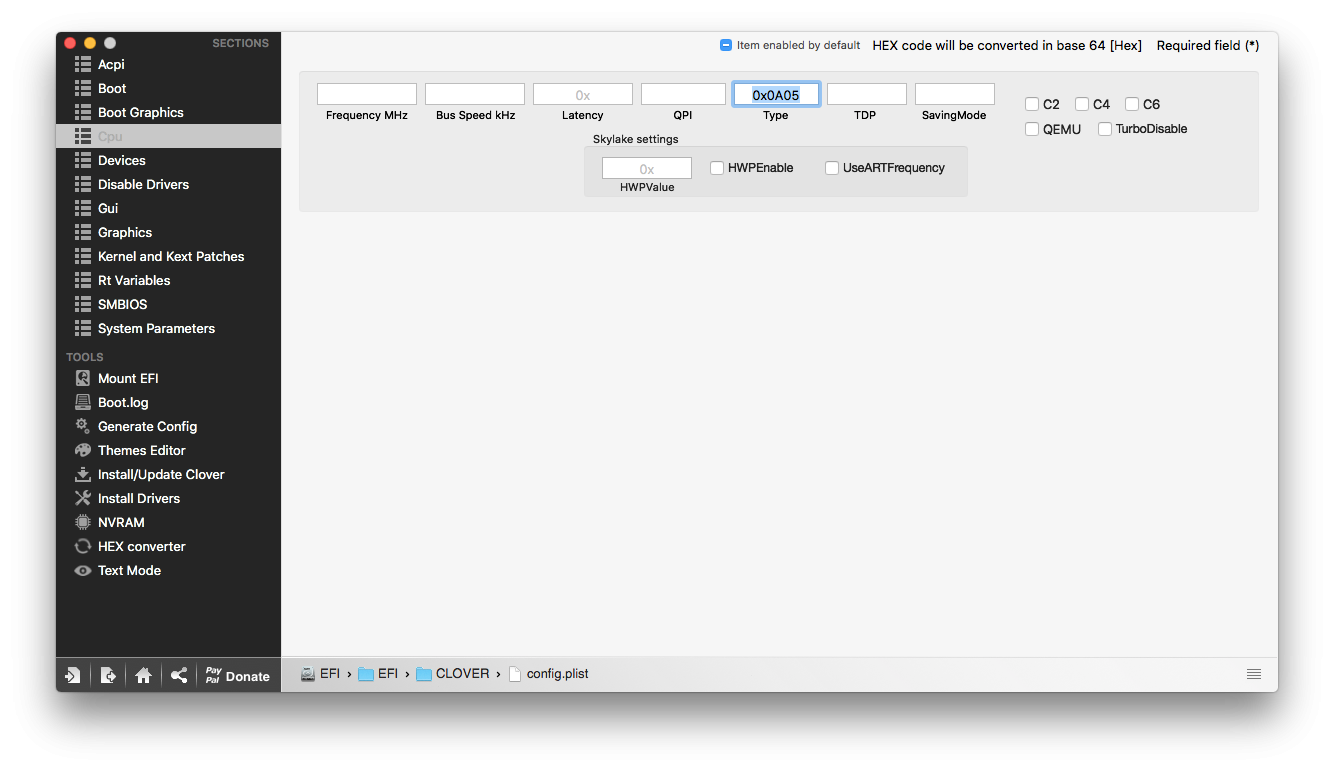

Processor use it

MaLd0n 2018-05-03 às 11.06.41.png

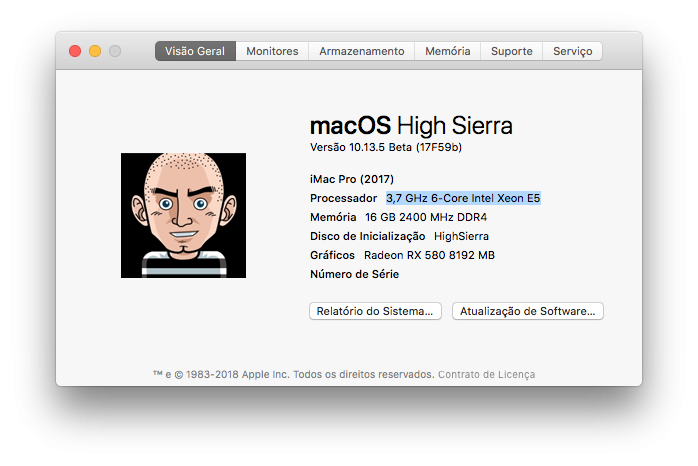

MaLd0n 2018-05-03 às 11.06.53.png

Share this post


Link to post
Share on other sites

the cpu type you gave was inaccurate (wrong cpu) the way I did was to manually enter the cpu name in file AppleSystemInfo.strings :) simple but effective and the kext ult app fix the permissions of Extensions Folders



I Thank you for getting me a working Hackintosh :) I ve done them in the past but on a X299 was more difficult than usual



Only thing is I still lost Audio from HDMI (if I can't get back I can live with if its not possible)


Edited by Andrew+

Share this post


Link to post
Share on other sites
