1 hour ago, MaLd0n said:

use DPCI MANAGER

DPCIManager.app.zip

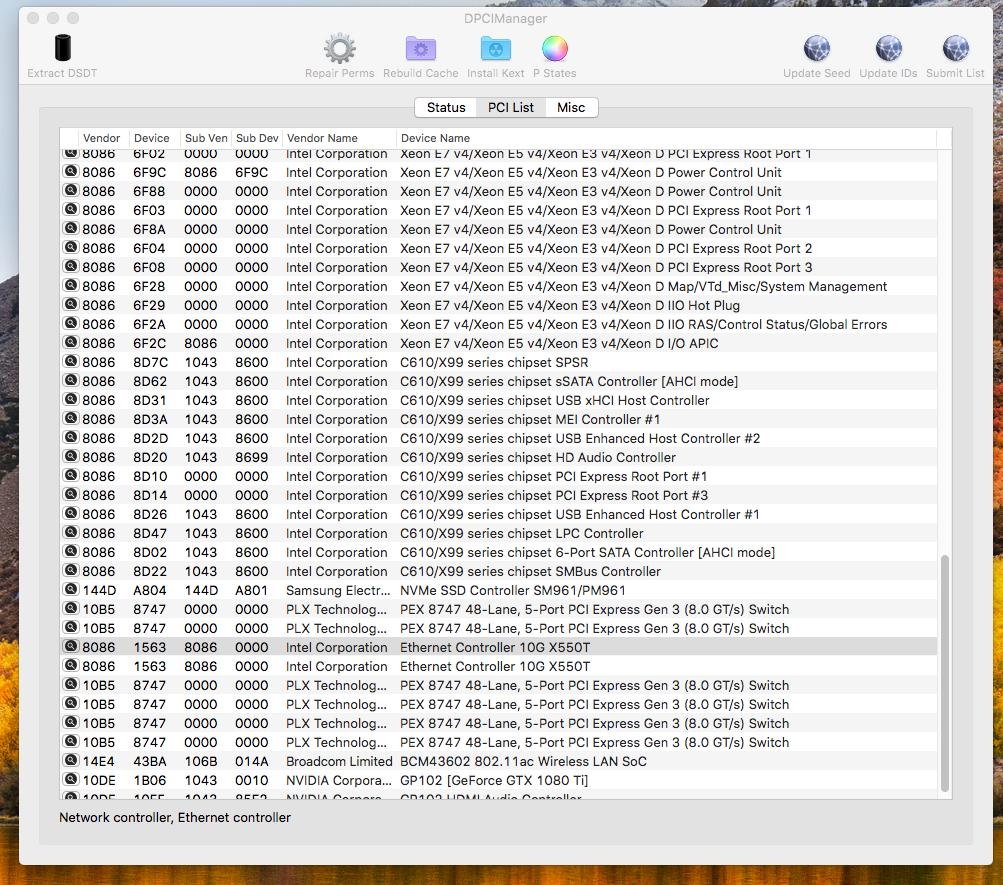

PCI List Tab

Thanks for helping me

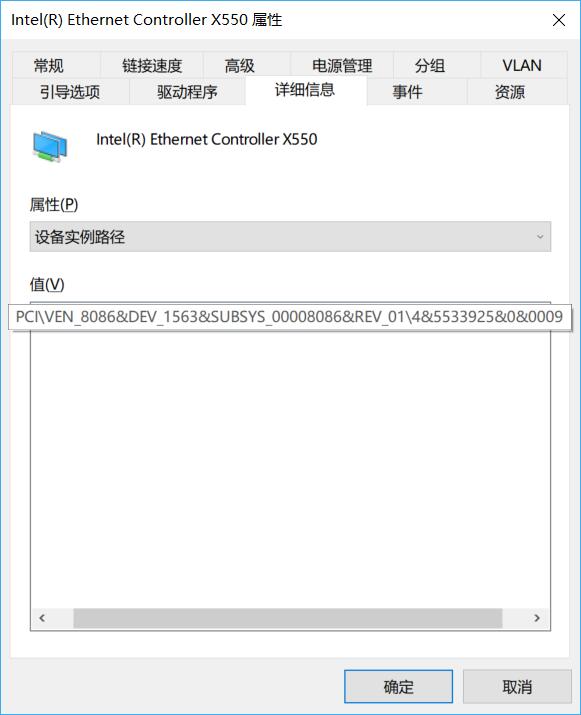

http://pci-ids.ucw.cz/read/PC/8086/1563


------------------------------------------------------------------------------------------------------

x540 driver ,Can modify it?

 SmallTreeIntel8259x.kext.zip

Linux:ixgbe-5.3.6.tar.zip

https://www.small-tree.com/support/download_category?cat_id=6

Adding 10 gigabit ethernet networking to your hackintosh is now extremely easy. You simply need to add these three kexts to your EFI/CLOVER/KEXTS/OTHER folder and you will have a working card! This method works so far on the following cards:

Supported devices for SmallTreeIntel8254x.kext:

  • 8086:1010 82546EB Gigabit Ethernet Controller (Copper)
  • 8086:1011 82545EM Gigabit Ethernet Controller (Fiber)
  • 8086:1012 82546EB Gigabit Ethernet Controller (Fiber)
  • 8086:101d 82546EB Gigabit Ethernet Controller
  • 8086:1026 82545GM Gigabit Ethernet Controller
  • 8086:1027 82545GM Gigabit Ethernet Controller
  • 8086:1028 82545GM Gigabit Ethernet Controller
  • 8086:105e 82571EB Gigabit Ethernet Controller (Also covered by AppleIntel8254XEthernet.kext)
  • 8086:105f 82571EB Gigabit Ethernet Controller
  • 8086:1079 82546GB Gigabit Ethernet Controller
  • 8086:107a 82546GB Gigabit Ethernet Controller
  • 8086:107b 82546GB Gigabit Ethernet Controller
  • 8086:107c 82541PI Gigabit Ethernet Controller
  • 8086:107d 82572EI Gigabit Ethernet Controller (Copper)
  • 8086:107e 82572EI Gigabit Ethernet Controller (Fiber)
  • 8086:10a4 82571EB Gigabit Ethernet Controller
  • 8086:10b5 82546GB Gigabit Ethernet Controller (Copper)
  • 8086:10b9 82572EI Gigabit Ethernet Controller (Copper)
  • 8086:10bc 82571EB Gigabit Ethernet Controller (Copper)

SmallTreeIntel82576.kext:

  • 8086:1521 I350 Gigabit Network Connection
  • 8086:1522 I350 Gigabit Fiber Network Connection
  • 8086:1533 I210 Gigabit Network Connection (Also covered by AppleIntelI210Ethernet.kext)

SmallTreeIntel8259x.kext:

  • 8086:10c6 82598EB 10-Gigabit AF Dual Port Network Connection
  • 8086:10c7 82598EB 10-Gigabit AF Network Connection
  • 8086:10c8 82598EB 10-Gigabit AT Network Connection
  • 8086:10ec 82598EB 10-Gigabit AT CX4 Network Connection
  • 8086:10d8 82599EB 10 Gigabit Network Connection
  • 8086:10fb 82599ES 10-Gigabit SFI/SFP+ Network Connection
  • 8086:10f1 82598EB 10-Gigabit AF Dual Port Network Connection
  • 8086:151c 82599 10 Gigabit TN Network Connection
  • 8086:150b 82598EB 10-Gigabit AT2 Server Adapter
  • 8086:1528 Ethernet Controller 10-Gigabit X540-AT2
  • 8086:10fc 82599 10 Gigabit Dual Port Network Connection
  • 8086:1560 Ethernet Controller X540

SmallTreeIntel8259x.kext.zip

Share this post


Link to post
Share on other sites

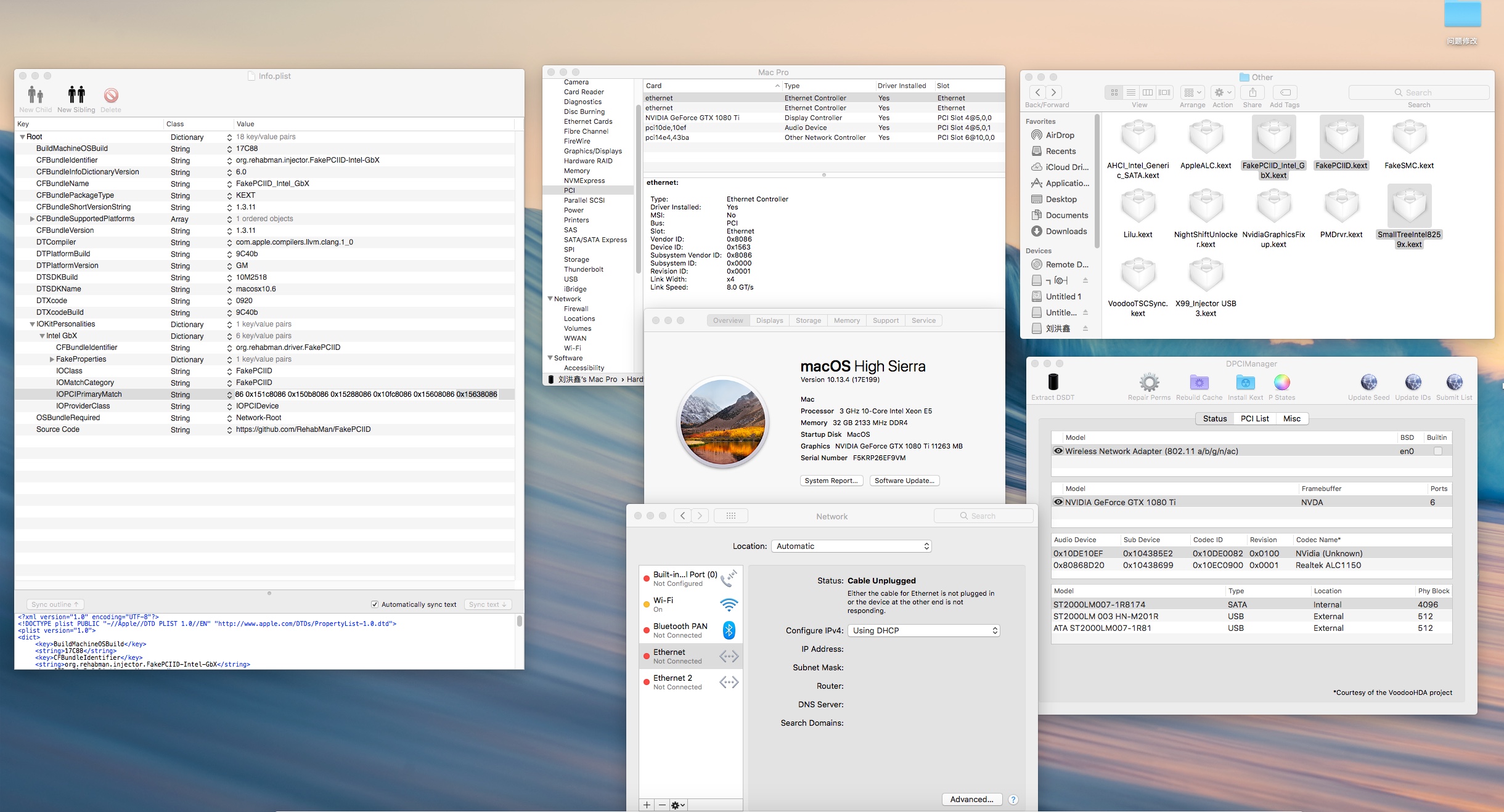

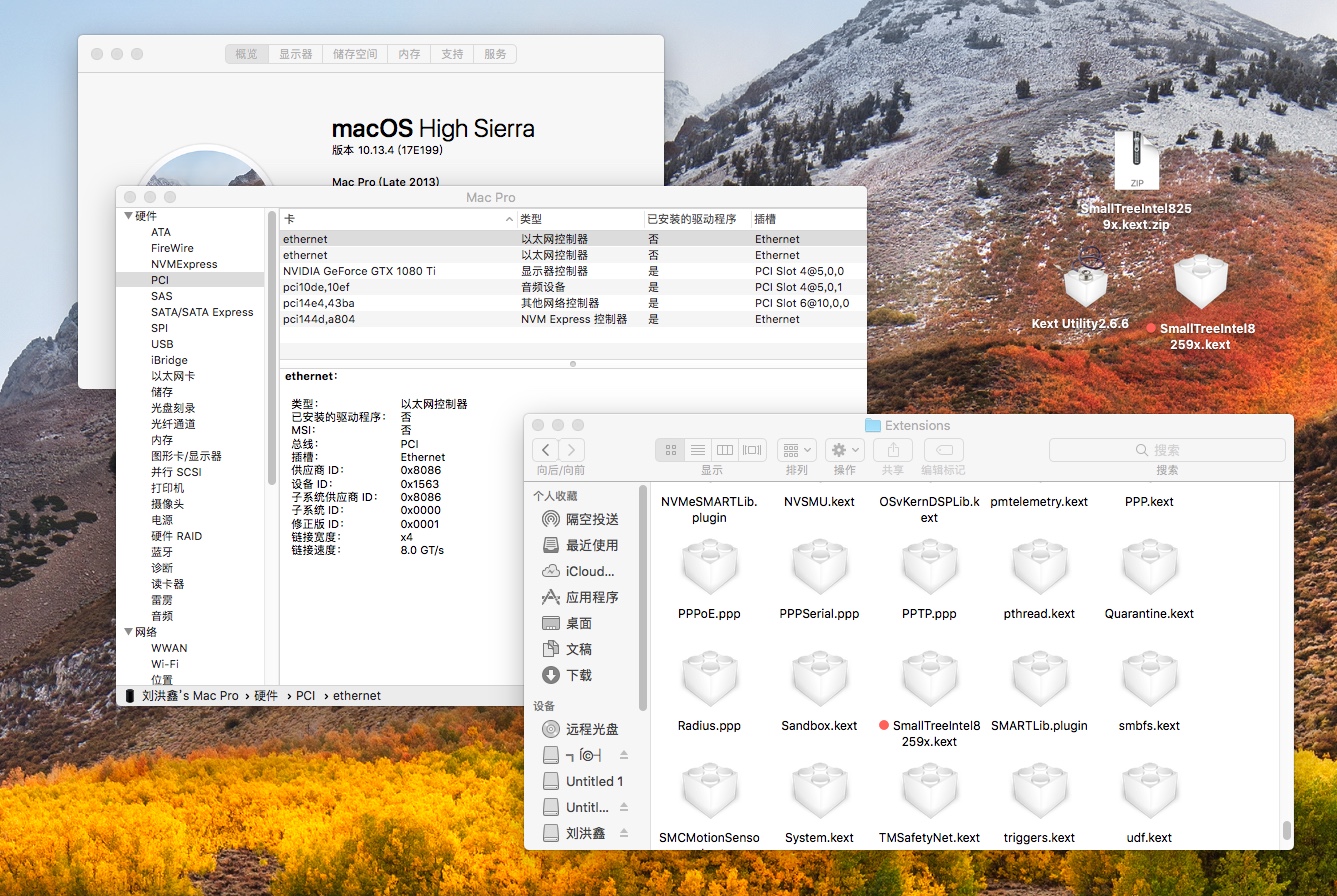

FakePCIID_Intel_GbX.kext  & FakePCIID.kext & SmallTreeIntel8259x.kext  in EFI\CLOVER\kexts\Other

driver controller : YES

status:cable unplugged

FakePCIID_3.zip


FakePCIID_Intel_GbX.kext :IOPCIPrimaryMatch 0x15638086

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>BuildMachineOSBuild</key>
	<string>17C88</string>
	<key>CFBundleIdentifier</key>
	<string>org.rehabman.injector.FakePCIID-Intel-GbX</string>
	<key>CFBundleInfoDictionaryVersion</key>
	<string>6.0</string>
	<key>CFBundleName</key>
	<string>FakePCIID_Intel_GbX</string>
	<key>CFBundlePackageType</key>
	<string>KEXT</string>
	<key>CFBundleShortVersionString</key>
	<string>1.3.11</string>
	<key>CFBundleSupportedPlatforms</key>
	<array>
		<string>MacOSX</string>
	</array>
	<key>CFBundleVersion</key>
	<string>1.3.11</string>
	<key>DTCompiler</key>
	<string>com.apple.compilers.llvm.clang.1_0</string>
	<key>DTPlatformBuild</key>
	<string>9C40b</string>
	<key>DTPlatformVersion</key>
	<string>GM</string>
	<key>DTSDKBuild</key>
	<string>10M2518</string>
	<key>DTSDKName</key>
	<string>macosx10.6</string>
	<key>DTXcode</key>
	<string>0920</string>
	<key>DTXcodeBuild</key>
	<string>9C40b</string>
	<key>IOKitPersonalities</key>
	<dict>
		<key>Intel GbX</key>
		<dict>
			<key>CFBundleIdentifier</key>
			<string>org.rehabman.driver.FakePCIID</string>
			<key>FakeProperties</key>
			<dict>
				<key>RM,subsystem-id</key>
				<data>
				CgAAAA==
				</data>
			</dict>
			<key>IOClass</key>
			<string>FakePCIID</string>
			<key>IOMatchCategory</key>
			<string>FakePCIID</string>
			<key>IOPCIPrimaryMatch</key>
			<string>0x10c68086 0x10c78086 0x10c88086 0x10ec8086 0x10d88086 0x10fb8086 0x10f18086 0x151c8086 0x150b8086 0x15288086 0x10fc8086 0x15608086 0x15638086</string>
			<key>IOProviderClass</key>
			<string>IOPCIDevice</string>
		</dict>
	</dict>
	<key>OSBundleRequired</key>
	<string>Network-Root</string>
	<key>Source Code</key>
	<string>https://github.com/RehabMan/FakePCIID</string>
</dict>
</plist>



Edited by liuhongxin1993

Share this post


Link to post
Share on other sites

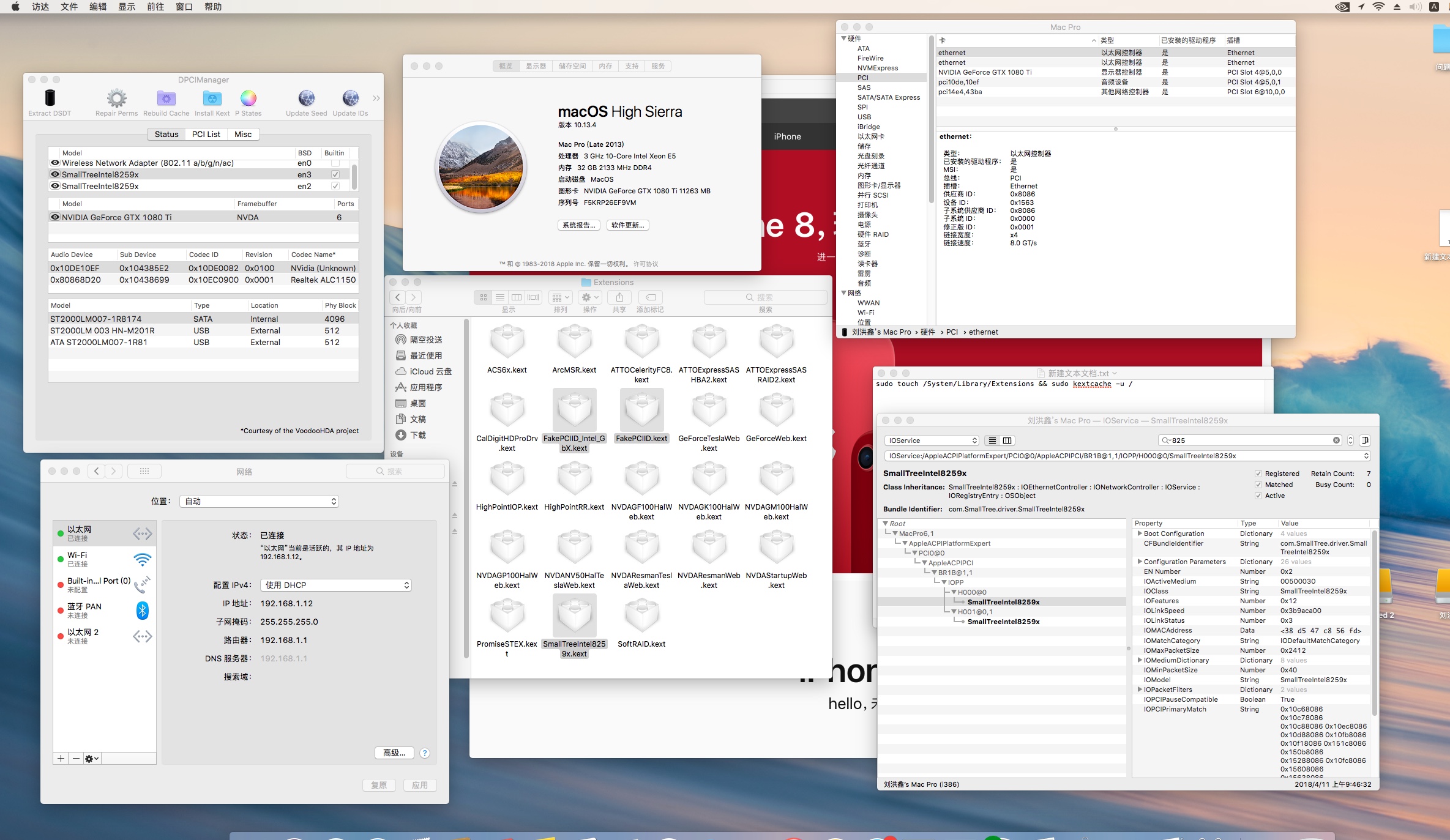

FakePCIID_Intel_GbX.kext  & FakePCIID.kext & SmallTreeIntel8259x.kext  in  L/E    &   S/L/E

sudo touch /System/Library/Extensions && sudo kextcache -u /


Thank you for helping me.

Share this post


Link to post
Share on other sites

I have moved the three .kext to the EFI partition and they work as expected on 10.15.3 but I am still not sure if this will unlock full potential, I think I'm not getting full bandwitch this way, perhaps with just the SmallTree driver instead of having to load 3 extensions just for one device.



I have tried to swap subsystemID's with ubuntu to no avail, for some reason ethtool does nothing when entering the correct code... Any ideas? @MaLd0n@liuhongxin1993??

Edited by dolgarrenan
