Andres ZeroCross

macOS High Sierra 10.13.4 Build 17E199 at Asus A455LF-WX159D

5 posts in this topic

Recommended Posts

A. Notebook Specifications

Name : Asus A455LF-WX159D

Processor : Intel Core i3 5005U

IGPU : Intel HD Graphics 5500

Discrette GPU : Nvidia GT930M

RAM : 8GB PC12800/1600Mhz

Wifi Card : Atheros AR9565

Bios Version : 300

Audio Codec : Conexant

Storage : Samsung SSD 850 Evo 500GB

Boot Mode : UEFI with CSM Disabled



B. How To Install


  1. I am not good for make a tutorial, so i upload my CLOVER folder (zipped), just use it :D (overwrite your USB Installer's Clover Folder)
  2. Set SATA Controller to AHCI at BIOS
  3. Make sure your BIOS version is "300"
  4. Set DVMT to 64MB
  5. XHC set to "Smart AUTO"

C. Make a USB Installer with CreateInstallMedia method, install Clover Bootloader R4423 or above, then delete Clover Folder inside it and replace with mine

=======

SPECIAL NOTE

D. Normally for broadwell IGPU (IHD 5500), you only need to Inject Intel and set ig-platform-id=0x16160002 or 0x16260006. But some notebook will face RANDOM KERNEL PANIC or STUCK at IGPU log (hang) when you inject ig-platform-id. This is not DVMT Pre-Allocation Problem. I found the solution :D Just set FakeIGFX to 0x16268086, Tick Inject Intel and set ig-platform-id as 0x16260006 or 0x16160002. Now you will get QE/CI :D For me, i set those values at SSDT-1.aml (check my attachment file)

======


Whats Working??
- QE/Ci

- Audio OUT and Mic

- Wifi Card

- LAN Ethernet

- Battery Indicator

- Fn + Brightness Button

- Touchpad

- Sleep, Restart and Shutdown

- All USB Port (High Speed and Super Speed)

- Battery Indicator

- Etc



Thanks :)



My Clover Folder's Link : https://drive.google.com/open?id=1qzvT155DZ1r8cI0ceBW4OjWAEMUu491-

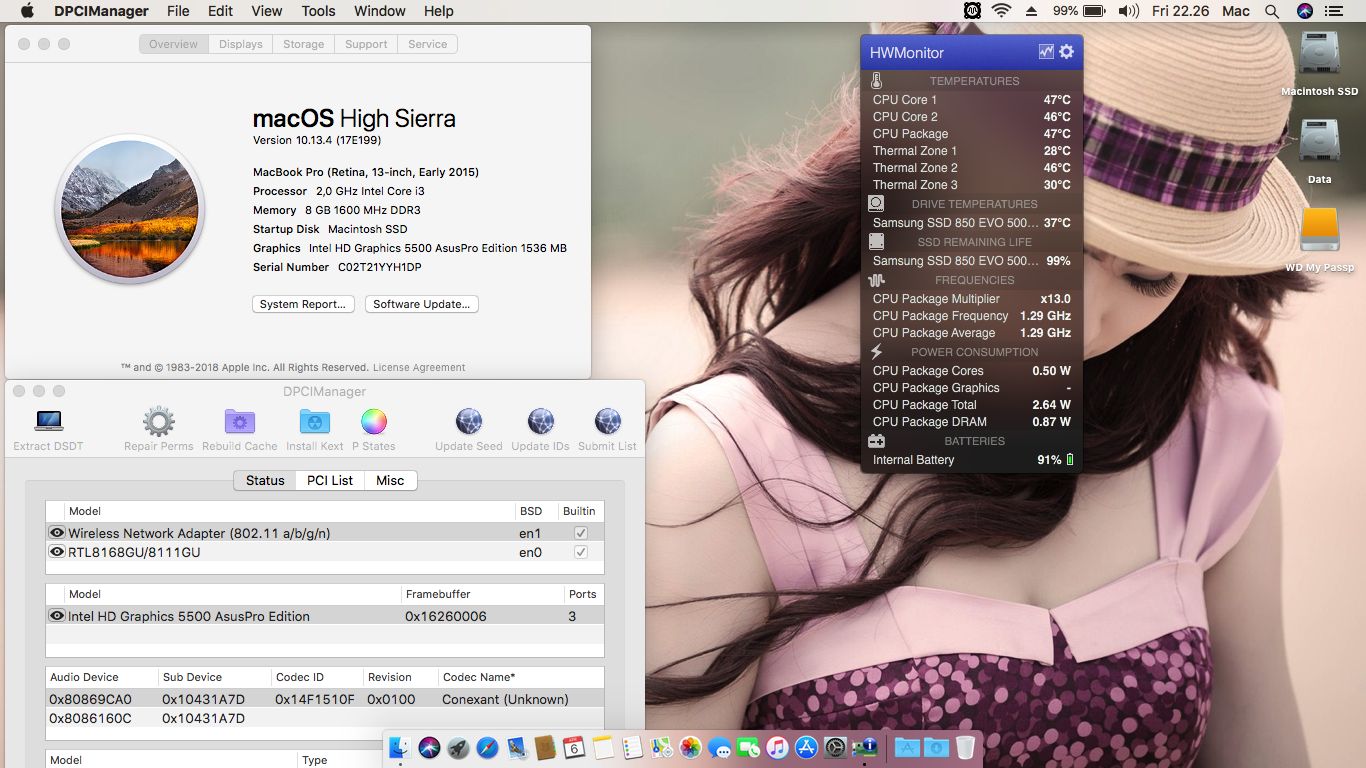

Screen Shot 2018-04-06 at 22.26.13.png

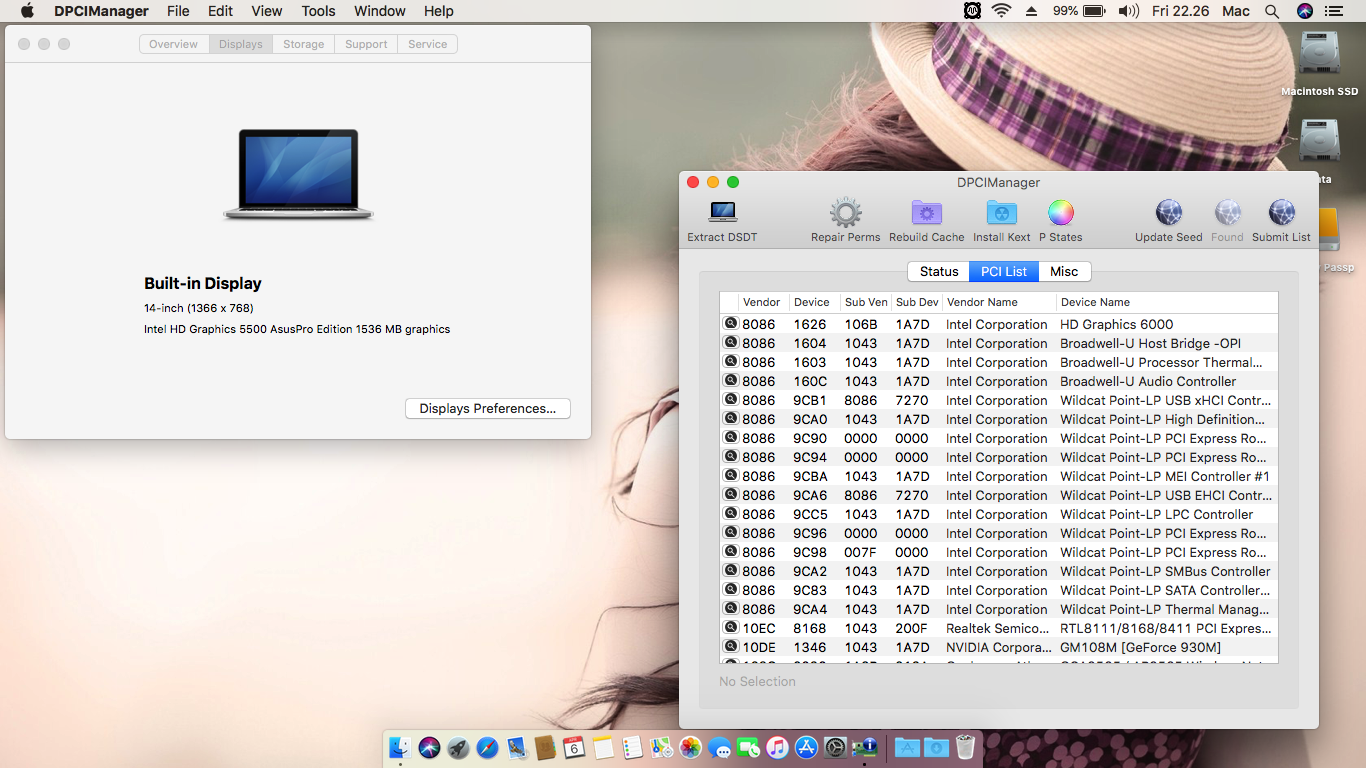

Screen Shot 2018-04-06 at 22.26.32.png

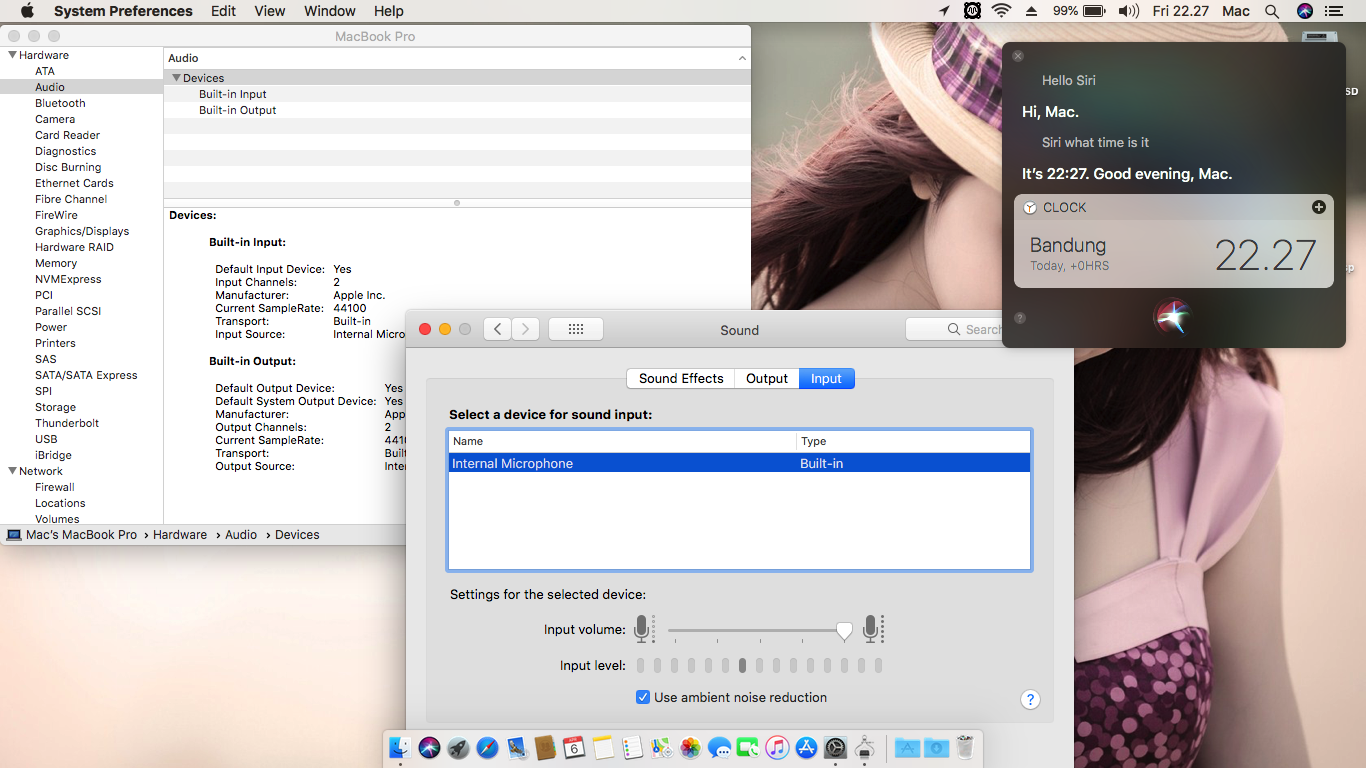

Screen Shot 2018-04-06 at 22.27.31.png

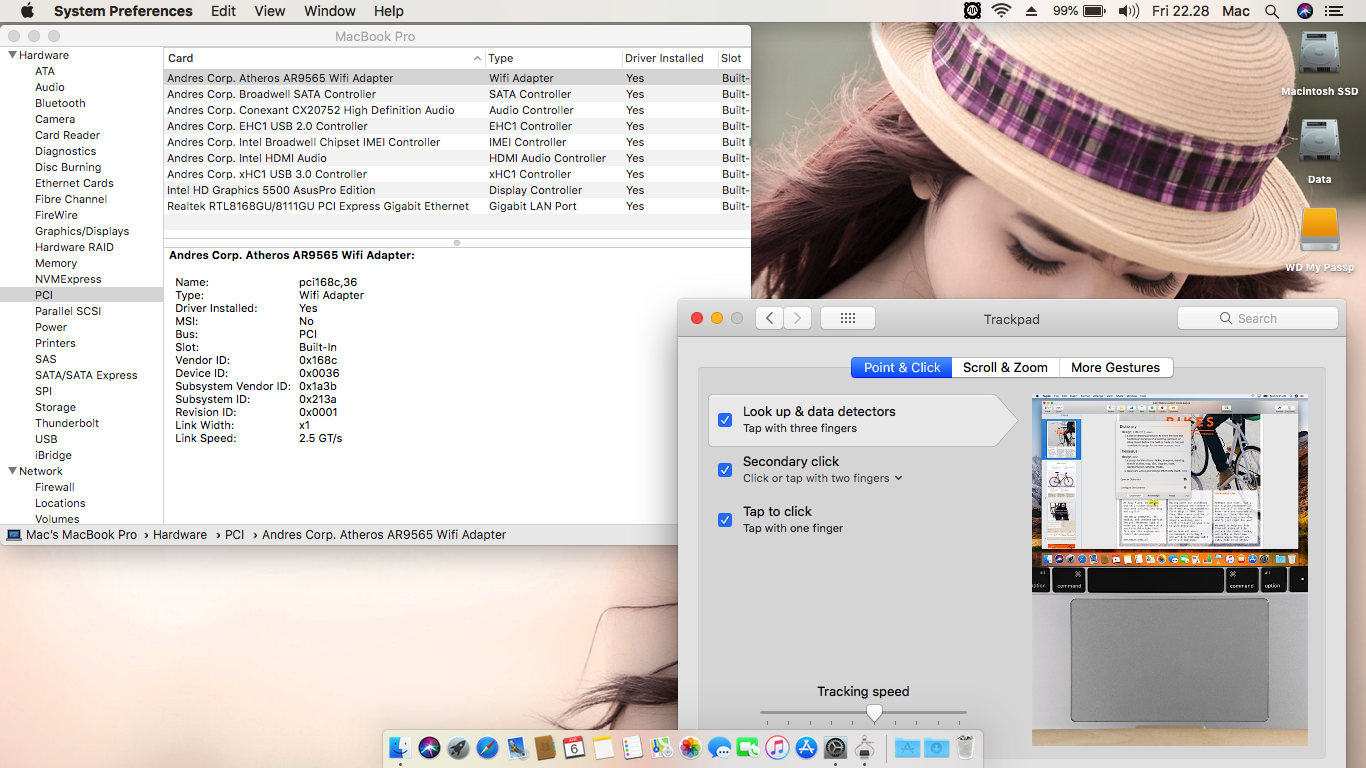

Screen Shot 2018-04-06 at 22.28.02.png

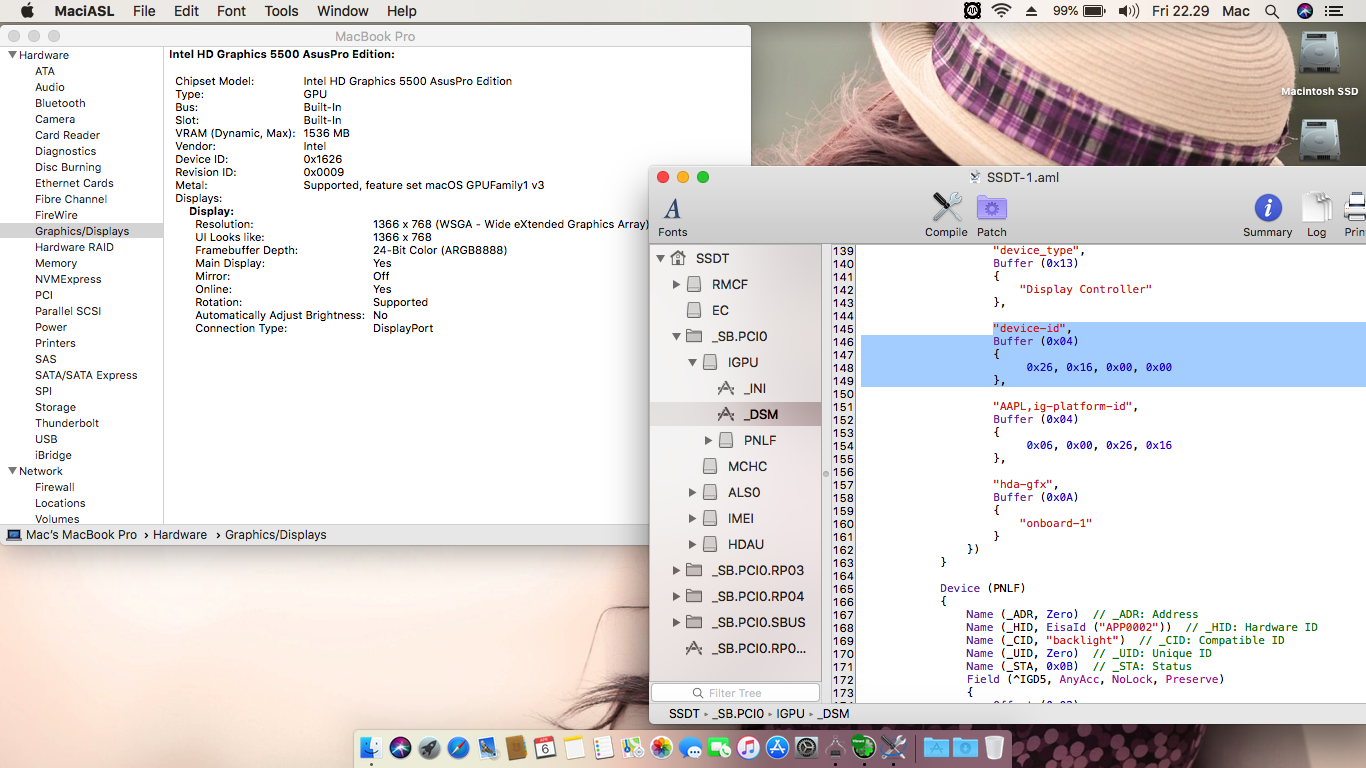

Screen Shot 2018-04-06 at 22.29.02.png

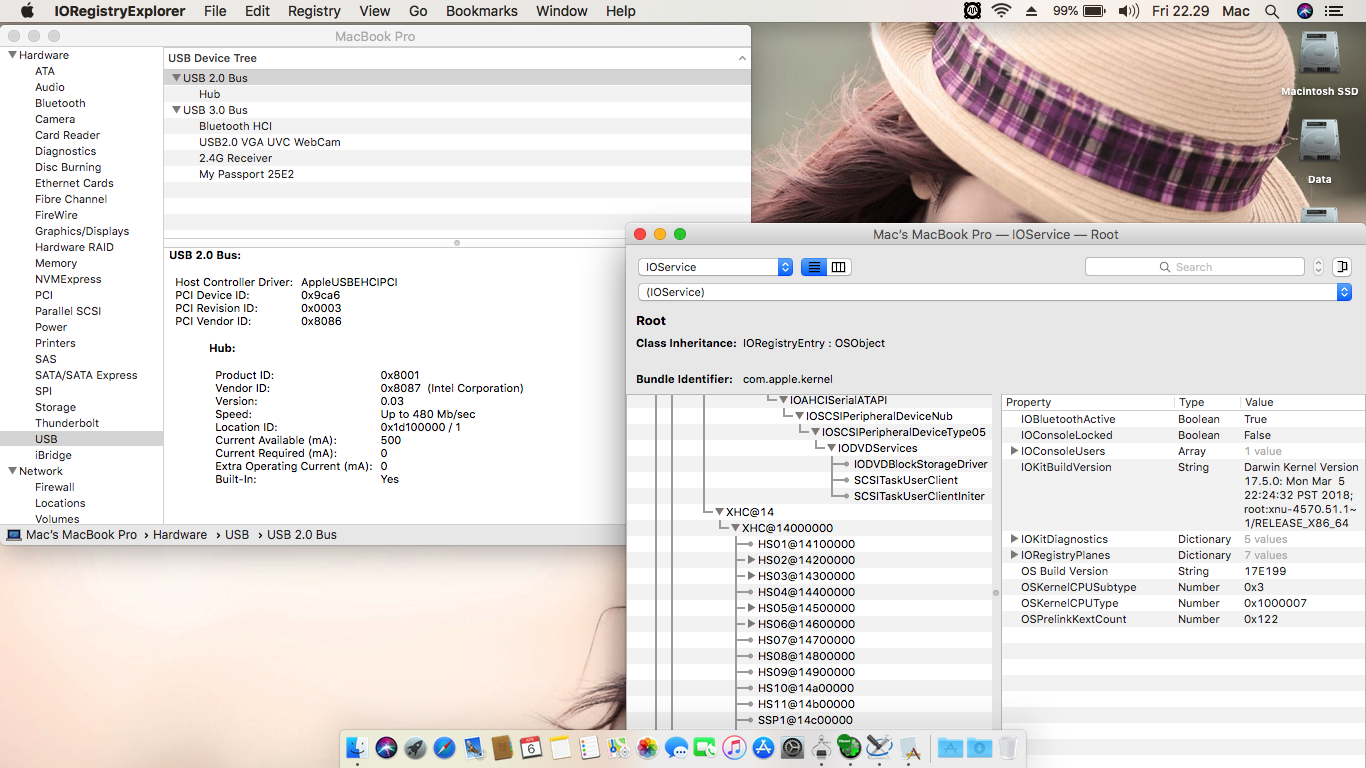

Screen Shot 2018-04-06 at 22.29.37.png

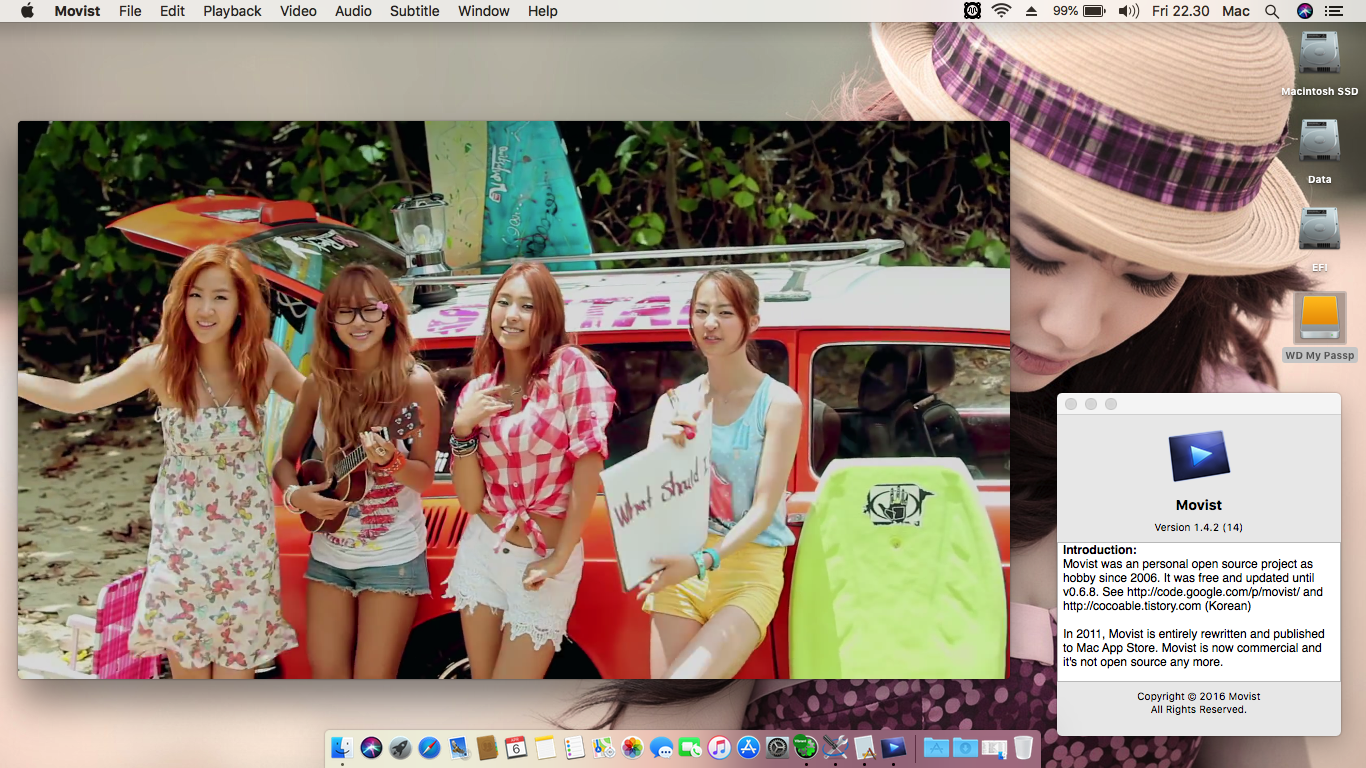

Screen Shot 2018-04-06 at 22.30.51.png

Edited by Andres ZeroCross
Add Clover Folder

Share this post


Link to post
Share on other sites
Advertisement
use your settings on my Asus X540L and get only black screens to the point of not having video.



You would help me compile my DSDT and SSDT.
Edited by Bernardo415
