noisegate Posted January 31, 2018 Share Posted January 31, 2018 Hi all, I use this setup (X79 Deluxe - 4930K - HD6870) as an audio rig. It all works fine, I'm only experiencing stability issues with everything USB (audio sound card, MIDI controllers). Logic Pro X keeps randomly losing sync with them. I installed GenericUSBXHCI (v1.2.11) from the rampagedev X79 dmg. Has anyone successfully used other USB kexts? I mostly use USB 2 ports. Thanks! 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/ Share on other sites More sharing options...
MaLd0n Posted January 31, 2018 Share Posted January 31, 2018 -Post your full Clover folder -Send me tables http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=278494 -Send me one Ioreg too http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=278495 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2580916 Share on other sites More sharing options...
noisegate Posted January 31, 2018 Author Share Posted January 31, 2018 Thanks Maldon, there you go EDIT - forgot to add clover folder: https://ufile.io/3wejy 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581147 Share on other sites More sharing options...
MaLd0n Posted January 31, 2018 Share Posted January 31, 2018 Check CLOVER.zip check ur voodootscsync, i think u need 11 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581189 Share on other sites More sharing options...
noisegate Posted January 31, 2018 Author Share Posted January 31, 2018 Should I replace the whole Clover folder? I see you added a DSDT and changed the SSDT? Can you please explain a bit more about the voodootscsync? Thank you very much for your help 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581202 Share on other sites More sharing options...
MaLd0n Posted January 31, 2018 Share Posted January 31, 2018 u have a 12 core processor, correct? Voodoo for ur processor VoodooTSCSync.kext.zip ye, replace full folder, Kexts, i add only UsBInjectAll in folder, i think u use ur kexts in Library/Extensions or System/Library/Extensions i need one new ioreg after reboot Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581213 Share on other sites More sharing options...
noisegate Posted January 31, 2018 Author Share Posted January 31, 2018 Thanks! The i7 4930K has 6 cores Just to be sure, please check my Clover folder > ACPI > patched: the content is not the same Should I maybe use the latest update for USBInjectAll (2018-0102)? Yours is a one year older 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581216 Share on other sites More sharing options...
MaLd0n Posted January 31, 2018 Share Posted January 31, 2018 USBInjectAll use old version inside my folder Acpi/patched, have all patches in DSDT Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581282 Share on other sites More sharing options...
noisegate Posted January 31, 2018 Author Share Posted January 31, 2018 Ok thank you very much, I'll test this tomorrow and let you know how it goes! 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581361 Share on other sites More sharing options...
noisegate Posted February 1, 2018 Author Share Posted February 1, 2018 Hey there MaLd0n, I booted on your clover folder this morning, all went fine. Here's the new ioreg you asked for: https://ufile.io/unw4p I'll tell you how USB stability goes after a day's work. Thank you very much for your time, I appreciate it! 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581823 Share on other sites More sharing options...
MaLd0n Posted February 1, 2018 Share Posted February 1, 2018 looks good let me know Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2581994 Share on other sites More sharing options...
noisegate Posted February 1, 2018 Author Share Posted February 1, 2018 Hey MaLd0n, no luck unfortunately. Logic Pro X still randomly loses connection with the USB sound card and MIDI devices. 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582105 Share on other sites More sharing options...
MaLd0n Posted February 1, 2018 Share Posted February 1, 2018 ur usb3 is not intel and need kext(genericusb) for work, try use ur USB Sound only in USB2 ports, USB2 is intel and work good more easy Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582123 Share on other sites More sharing options...
noisegate Posted February 1, 2018 Author Share Posted February 1, 2018 Yep I'm only using USB 2 ports. I don't know where the problem comes from... Thank you very much for your help anyway 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582125 Share on other sites More sharing options...
MaLd0n Posted February 1, 2018 Share Posted February 1, 2018 -Replace DSDT in Clover/Acpi/Patched DSDT.02.zip -Replace config.plist config.plist.zip -Replace VoodooTSC Sync VoodooTSCSync.kext.zip Send me new ioreg with new files after reboot Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582128 Share on other sites More sharing options...
noisegate Posted February 1, 2018 Author Share Posted February 1, 2018 Thanks a ton MaLd0n, I'll try this and let you know I replaced your files, here's the ioreg: https://ufile.io/iv4u5 Thanks! 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582129 Share on other sites More sharing options...
MaLd0n Posted February 1, 2018 Share Posted February 1, 2018 Thanks a ton MaLd0n, I'll try this and let you know I replaced your files, here's the ioreg: https://ufile.io/iv4u5 Thanks! k take a test and let me know, i need check voodootscsync Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582156 Share on other sites More sharing options...
noisegate Posted February 2, 2018 Author Share Posted February 2, 2018 I will let you know how things go today. Someone also advised to disable the Fresco Logic controller using a Clover patch. Would you recommend that? If yes, how is it done? Thank you very much 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582633 Share on other sites More sharing options...
noisegate Posted February 2, 2018 Author Share Posted February 2, 2018 MaLd0n, This morning I deactivated USB 3.0 in the BIOS and started working with your new setup: no problem whatsoever so far. I know what to do to easily reproduce the connectivity loss, and this time I couldn't. I'll reactivate USB 3.0 later just to be sure, but I think the new files you just sent definitely helped sort the issue. I'm happy as heck Thank you very very much for your time, I'll keep you posted! 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582759 Share on other sites More sharing options...

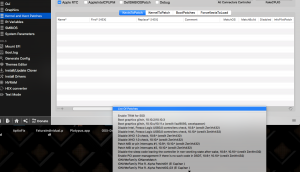

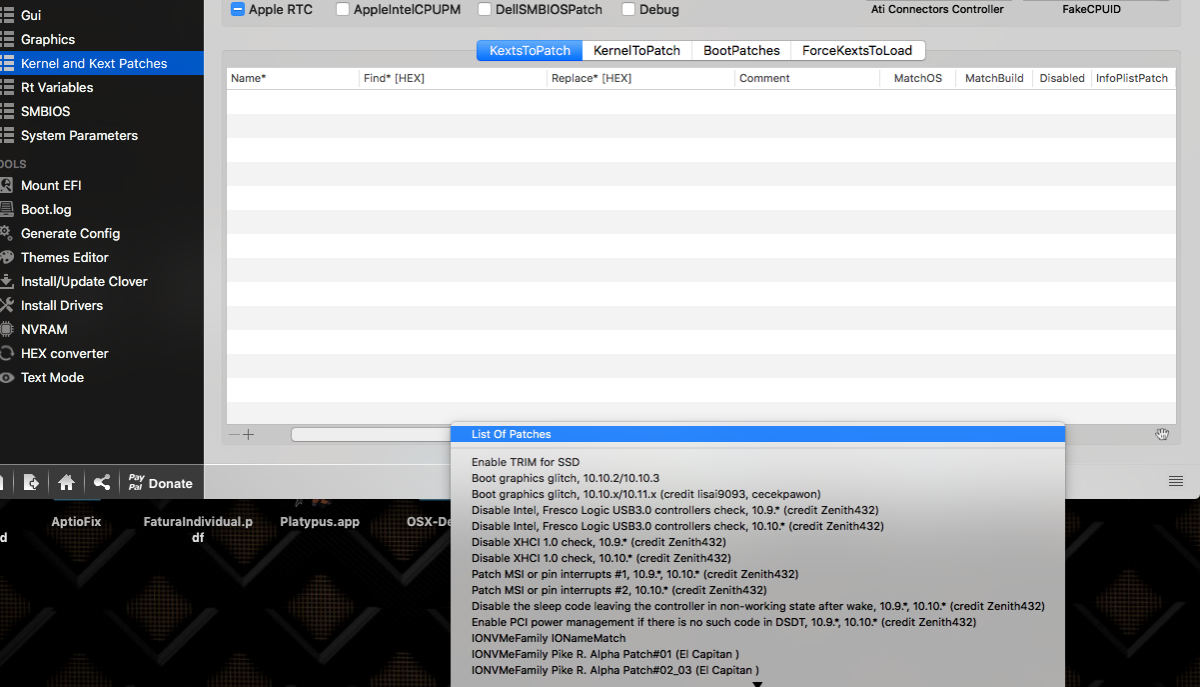

MaLd0n Posted February 2, 2018 Share Posted February 2, 2018 I will let you know how things go today. Someone also advised to disable the Fresco Logic controller using a Clover patch. Would you recommend that? If yes, how is it done? Thank you very much Clover Configurator have it, check here need test for check if work in Sierra/High Sierra MaLd0n, This morning I deactivated USB 3.0 in the BIOS and started working with your new setup: no problem whatsoever so far. I know what to do to easily reproduce the connectivity loss, and this time I couldn't. I'll reactivate USB 3.0 later just to be sure, but I think the new files you just sent definitely helped sort the issue. I'm happy as heck Thank you very very much for your time, I'll keep you posted! Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582774 Share on other sites More sharing options...
noisegate Posted February 2, 2018 Author Share Posted February 2, 2018 Oh I see, I don't use this. I suppose disabling USB 3.0 in the BIOS gives the exact same results, right? Thanks again! 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582782 Share on other sites More sharing options...
MaLd0n Posted February 2, 2018 Share Posted February 2, 2018 Yes! if bios have option Disable...is good. Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2582788 Share on other sites More sharing options...
noisegate Posted February 3, 2018 Author Share Posted February 3, 2018 So far the USB problems are gone even with USB 3.0 enabled in the BIOS. So this last batch of files you just sent definitely did the trick. I will let you know if it comes back but I think you sorted it. Thank you very much for your help man, it's priceless 1 Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2583361 Share on other sites More sharing options...
MaLd0n Posted February 3, 2018 Share Posted February 3, 2018 Good news, noise! take more tests and let me know Enjoy Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2583524 Share on other sites More sharing options...
noisegate Posted February 3, 2018 Author Share Posted February 3, 2018 No issue today either, thank you so much bro! If you had to guess, what file do you think was most likely the culprit? Link to comment https://www.insanelymac.com/forum/topic/332179-usb-issues-on-asus-x79-deluxe/#findComment-2583814 Share on other sites More sharing options...
