ACDindia Posted January 26, 2018 Share Posted January 26, 2018 Hey guys! Hope you are doing great! I recently upgraded my system and now encountering issues with installing HacOS 10.13. I've created a copy of USB installer with Clover as an EFI bootloader. I am unable to reach the installation screen as the boot crashes before giving some errors. It starts with Abnormal Exit code 1. Then a kernel panic. I've tried looking and found that the Panic is due to the Intek SKL graphics kept. My system has a Kabylake GPU (optimus nvidia 1050Ti which will not work I know) There is no DSDT for the system available yet too. Can somebody help ? Specs: Intel 7th Gen Core i7 7700HQ Intel HD 630 Graphics + Nvidia GTX1050Ti (4GB DDR5) 8 GB DDR4 RAM USB 3.0 x 2 USB 2.0 x 1 1 Link to comment Share on other sites More sharing options...

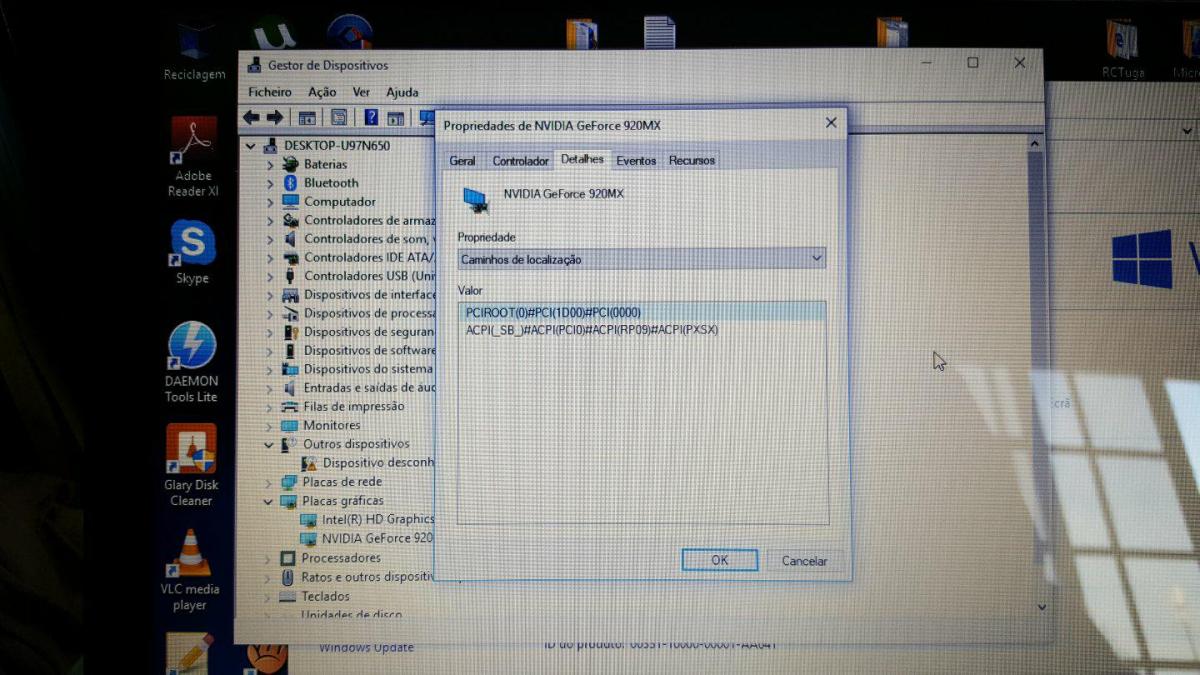

MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 CLOVER.zip u need check device NVIDIA for disable u have windows? is here 1 Link to comment Share on other sites More sharing options...

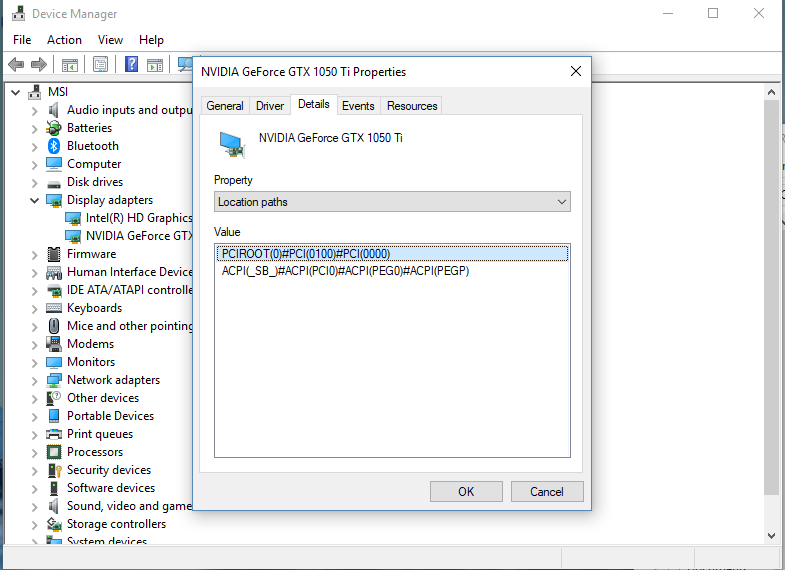

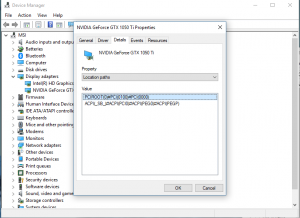

ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 Thank you brother! I will check and get back to you!!! CLOVER.zip u need check device NVIDIA for disable u have windows? is here 27329798_1622742251128986_1714409452_o.jpg Here.. I am sending you a screen grab of the NVIDIA path... Please let me know what I should do now ? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 here CLOVER.zip after install send me files run it RunMe.app.zip ioreg IORegistryExplorer.app.zip 1 Link to comment Share on other sites More sharing options...
ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 here CLOVER.zip after install send me files run it RunMe.app.zip ioreg IORegistryExplorer.app.zip Hey! Thank you so much for such a prompt response!! I am downloading the files and will report back brother!! 1 Link to comment Share on other sites More sharing options...

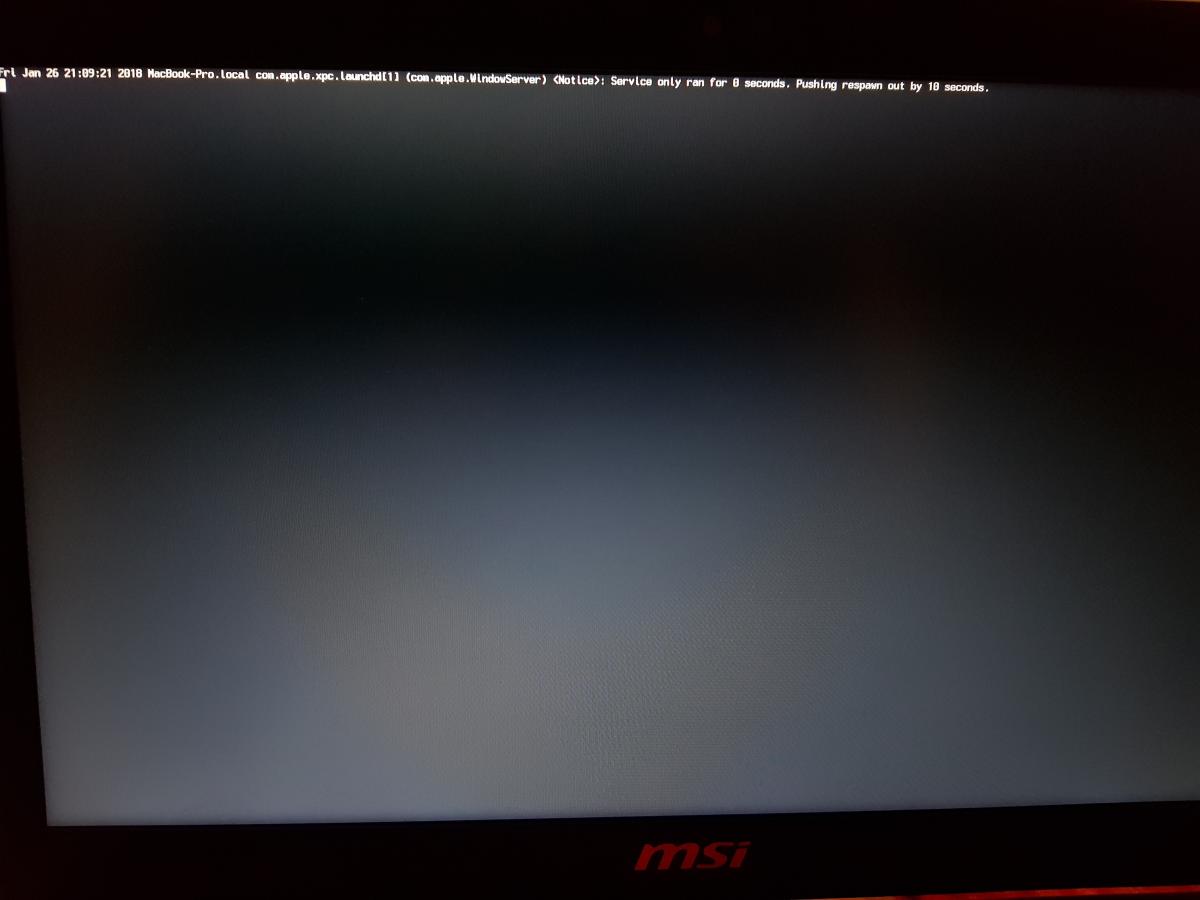

ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 Hi! I tried with your clover folder. The error of "Service existed with abnormal code 1" was still there but it did not crash. It went forward but then got stuck at the error (attached image) Service only ran for 0 seconds pushing respawning out by 10 seconds. Any leads ?? Thanks in advance.. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 extract ur DSDT in windows use it RwPortableV1.5.2.zip save DSDT.bin 1 Link to comment Share on other sites More sharing options...
ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 I hope I've given you the correct file... Thank you! Sorry! I missed the file... Now attached. It was removed as it was a BIN file... Zipped it. Thank you! DSDT.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 open rw.exe go to Access menu/ACPI tables select DSDT check above, u see image with one Disket with BIN name inside 1 Link to comment Share on other sites More sharing options...
ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 open rw.exe go to Access menu/ACPI tables select DSDT check above, u see image with one Disket with BIN name inside I am sorry for the mistake. Actually, the software says out of memory when I try to access ACPI tables.... I've extracted the whole Original DSDT from clover (Pressing F4)... Will it work ? Meanwhile, I am trying accessing the ACPI tables from the app using a newer version of the software.... Thank you! open rw.exe go to Access menu/ACPI tables select DSDT check above, u see image with one Disket with BIN name inside Hey! Finally I was able to extract the DSDT.bin from RW using the latest version. I am attaching the same. Thank you and sorry for the troubles! Clover_origin.zip DSDT.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 lego try CLOVER.zip 1 Link to comment Share on other sites More sharing options...
ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 lego try CLOVER.zip Hey! Thank you so much! I will give it a spin and get back to you as soon as I do that! Thanks a ton for your efforts!! lego try CLOVER.zip Yes! I see the installer right now! Thanks a ton man! Thanks for your efforts..I will revert back with the details you asked in tge first post. For this issue, your DSDT solves it... thanks again!! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 u can use same folder in SSD/HDD too, install Clover and replace with foder above, after we can try solve battery, brightness, sound... 1 Link to comment Share on other sites More sharing options...

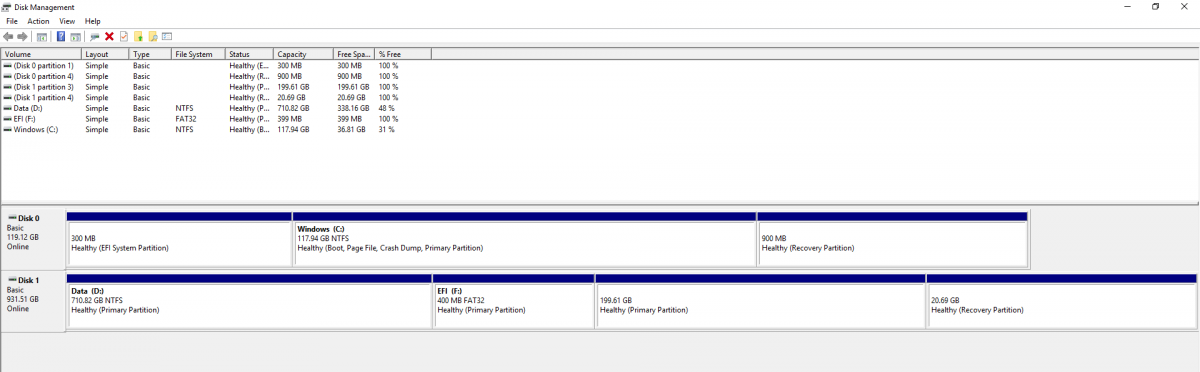

ACDindia Posted January 26, 2018 Author Share Posted January 26, 2018 u can use same folder in SSD/HDD too, install Clover and replace with foder above, after we can try solve battery, brightness, sound... Hey brother! I've tried installing the system and encountering the following errors: 1. While fomatting the drive for Mac: Mediakit reports not enough space for operation." I read that the EFI system should be larger than 200 MB, mine is 300 MB. 2. Still, I tried clicking on "Install macOS High Sierra", it ends up in an error: "this copy of install macOS high sierra is damaged". I am attaching the complete log of the same.... also my partition scheme (please note that the EFI partition on the second disk (HDD) was created by me, it isn't a system partition either. I thought maybe it will help so did it....... Any leads ? Thanks in advance!! Installer Log 26-Jan-2018_all.txt 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 26, 2018 Share Posted January 26, 2018 idk, i format in DiskUtility in installer Link to comment Share on other sites More sharing options...
ACDindia Posted January 27, 2018 Author Share Posted January 27, 2018 Ok ok.. no worries.. I'll figure it out somehow.. and will get back to you once it's done. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 28, 2018 Share Posted January 28, 2018 k let me know 1 Link to comment Share on other sites More sharing options...
ACDindia Posted January 29, 2018 Author Share Posted January 29, 2018 k let me know Hey! Finally I installed hacOS successfully. For issue 1: My HDD lacked an EFI partition. For issue 2: Downloaded fresh copy of Install macOS High Sierra.app I will be running the files you sent me and will send you the data as soon as possible. Thank you @MaLd0N Link to comment Share on other sites More sharing options...
ACDindia Posted January 29, 2018 Author Share Posted January 29, 2018 k let me know Here are the files. Sound card is detected, volume controls working but no audio. GPU working. nVidia Disabled. Bluetooth OK WiFi : No Battery : No Ethernet : No Touchpad : As basic mouse Rest you'll probably know from the attached files! Thank you again! acdindia_Files.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 29, 2018 Share Posted January 29, 2018 what ur audio codec? wifi model? ethernet card? touchpad? we need some information use dpci manager and try check DPCIManager.app.zip 1 Link to comment Share on other sites More sharing options...

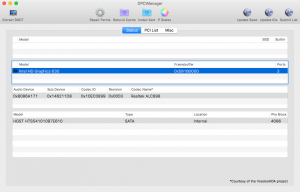

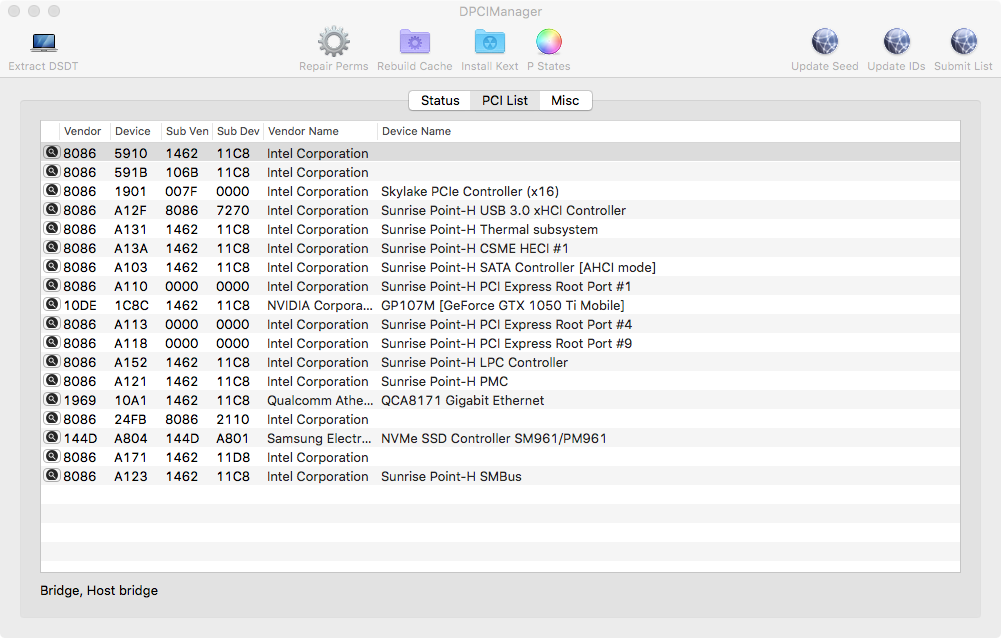

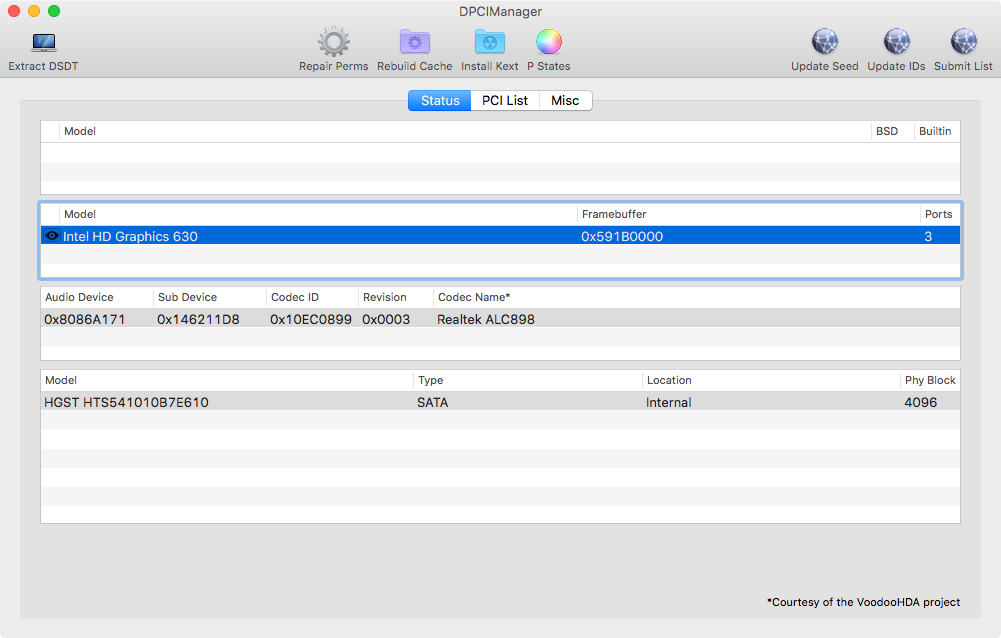

ACDindia Posted January 30, 2018 Author Share Posted January 30, 2018 what ur audio codec? wifi model? ethernet card? touchpad? we need some information use dpci manager and try check DPCIManager.app.zip Hey! Sorry for my late response. My internet was down... The screen grabs from the DPCI manager are attached. Please let me know if anything else is required... Thanking you! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 Ethernet http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/ Audio u can test some ids check here Use this DSDT and Inject id in config.plist and reboot, one by one, use AppleAlc + Lilu.kext DSDT.aml.zip here Link to comment Share on other sites More sharing options...

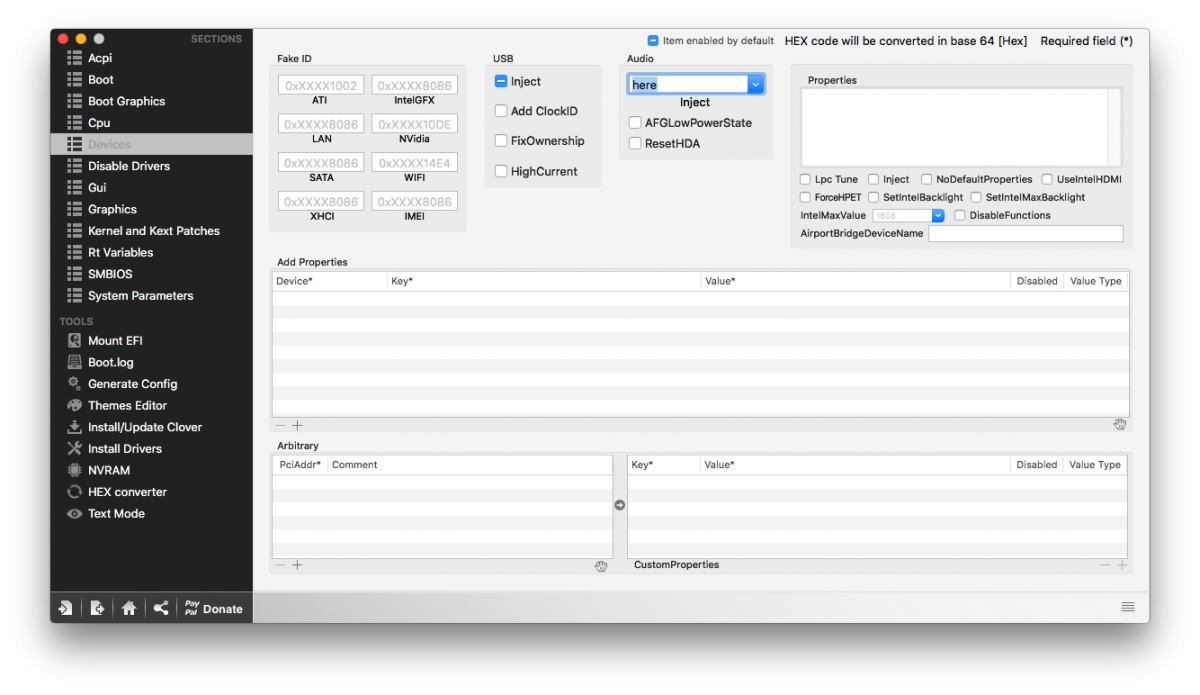

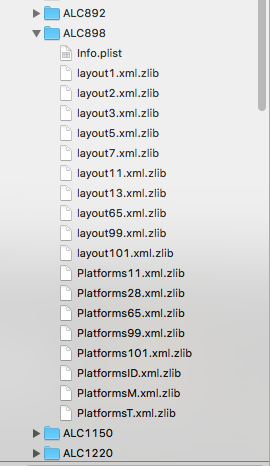

ACDindia Posted January 30, 2018 Author Share Posted January 30, 2018 Ethernet http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/ Audio u can test some ids check here MaLd0n 2018-01-30 às 11.02.00.png Use this DSDT and Inject id in config.plist and reboot, one by one, use AppleAlc + Lilu.kext DSDT.aml.zip here MaLd0n 2018-01-30 às 11.06.37.png Thank you so much brother! Thanks for all the efforts you’re putting.. I will surely get back to you once I’ve tried these. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 let me know, gradually we get there Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 your bios is totally different it's not a good idea Link to comment Share on other sites More sharing options...
