Peke Posted January 18, 2018 Share Posted January 18, 2018 Hello guys. I need all the help that anyone can give me to load the best DSDT for my Hackintosh. Sadly this is my first time doing this and my knowledge over DSDT or SSDT is near zero. I spent a lot of time reading different post and everything that was possible but all that I achieved was my DSDT.aml via F4 over Clover when booting. System specs. -Mac OS High Sierra 10.13.2 (17C88) -MB: Asus Maximus Hero VIII (BIOS 3703) -RAM 16 GB ( 8 x 2) DDR 4 Kingston Hyper X 2400 MHX (OC 2666) -GPU Asus Strix 980 Ti OC DC3 6MB -High Sierra OS installed over Kingston Hyperx Savage SSD 480GB ( I got 2 more SSD and a HDD but those are under windows 10. I got dual boot managed by clover over different SSD to avoid UEFI boot loaders mess) -Display LG 24GM77 DVI My build is functional with Nvidia Web Driver : 3378.10.10.10.25.102 at this moment. Got HWmonitor working with all sensors. Ethernet is ok. Im going now to install now my sound kext that I got identified. I`ll appreciate any help. Until today I installed and created the install media reading and watching videos but DSDT is beyond my understanding right now and sadly I didn't found any patch DSDT for my motherboard. If something is needed I`ll attach it later. Thanks in advance for any advice. Cristian 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 18, 2018 Share Posted January 18, 2018 send me tables extract with f4 key in clover boot screen or run it RunMe.app.zip Link to comment Share on other sites More sharing options...
Peke Posted January 18, 2018 Author Share Posted January 18, 2018 send me tables extract with f4 key in clover boot screen or run it RunMe.app.zip Hi Mald0n. here is the output zip from RunMe.app.zip. Thanks!! Send me Maximus’s iMac.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 18, 2018 Share Posted January 18, 2018 extract original DSDT with F4 key in Clover Boot screen, files generated in clover/acpi/origin Link to comment Share on other sites More sharing options...
Peke Posted January 18, 2018 Author Share Posted January 18, 2018 extract original DSDT with F4 key in Clover Boot screen, files generated in clover/acpi/origin This is the output DSDT.aml F4 output from Clover. Regards C. DSDT.aml.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 DSDT DSDT.aml.zip Clover Folder CLOVER.zip dont need plugintype, etc, just DSDT and clover folder ur audio is alc1150? if yes, use codec commander edited CodecCommander ALC1150.kext.zip if u can full patched, with cosmetics, etc, i need one ioreg U can remove WhateverGreen and intelFix kext Let me know Link to comment Share on other sites More sharing options...
Peke Posted January 19, 2018 Author Share Posted January 19, 2018 DSDT DSDT.aml.zip Clover Folder CLOVER.zip dont need plugintype, etc, just DSDT and clover folder ur audio is alc1150? if yes, use codec commander edited CodecCommander ALC1150.kext.zip if u can full patched, with cosmetics, etc, i need one ioregi Thanks Man! I'm really impressed with your speed. Some noob questions. 1.-Just copy the clover folder over the current one or I wipe al the clover folder before? 2.-How do I get a Ioreg file? Yes I got ALC 1150. So the CodecCommander kext is the one tks! Thanks Man! I'm really impressed with your speed. Some noob questions. 1.-Just copy the clover folder over the current one or I wipe al the clover folder before? 2.-How do I get a Ioreg file? Yes I got ALC 1150. So the CodecCommander kext is the one tks! Question..my partition was made with HFS+ so in my current driver64UEFI there is no apfs.efi. If I put that efi in there would be some conflict? regards. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 1.-Just copy the clover folder over the current one or I wipe al the clover folder before? 2.-How do I get a Ioreg file? 1-Replace full clover folder, reboot and after extract one ioreg 2- use it IORegistryExplorer.app.zip Open, File, Save as u can use all kexts in Clover/kexts/Other Question..my partition was made with HFS+ so in my current driver64UEFI there is no apfs.efi. If I put that efi in there would be some conflict? No problem The folder is for Sierra or High Sierra Link to comment Share on other sites More sharing options...
Peke Posted January 19, 2018 Author Share Posted January 19, 2018 1-Replace full clover folder, reboot and after extract one ioreg 2- use it IORegistryExplorer.app.zip Open, File, Save as u can use all kexts in Clover/kexts/Other No problem The folder is for Sierra or High Sierra Clover boot manager has no MAC loader or anything. Just windows EFI. I can enter my base installation with the USB as emergency backup. I just deleted the old Clover folder and replaced with the new one. Anyways I made a backup folder from the old one. Did something wrong? C. Clover boot manager has no MAC loader or anything. Just windows EFI. I can enter my base installation with the USB as emergency backup. I just deleted the old Clover folder and replaced with the new one. Anyways I made a backup folder from the old one. Did something wrong? C. My system is now as it was before. Always made a Backup before critical changes. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 Clover boot manager has no MAC loader or anything. Just windows EFI. I can enter my base installation with the USB as emergency backup. I just deleted the old Clover folder and replaced with the new one. Anyways I made a backup folder from the old one. Did something wrong? C. My system is now as it was before. Always made a Backup before critical changes. k check, put DSDT in Clover/Acpi/Patched and add some hotpatches in ur old config.plist, just to avoid problems EC0 to EC 4543 305f 4543 5f5f GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 in next installation, install clover with these options or boot0ss and replace with my folder Link to comment Share on other sites More sharing options...

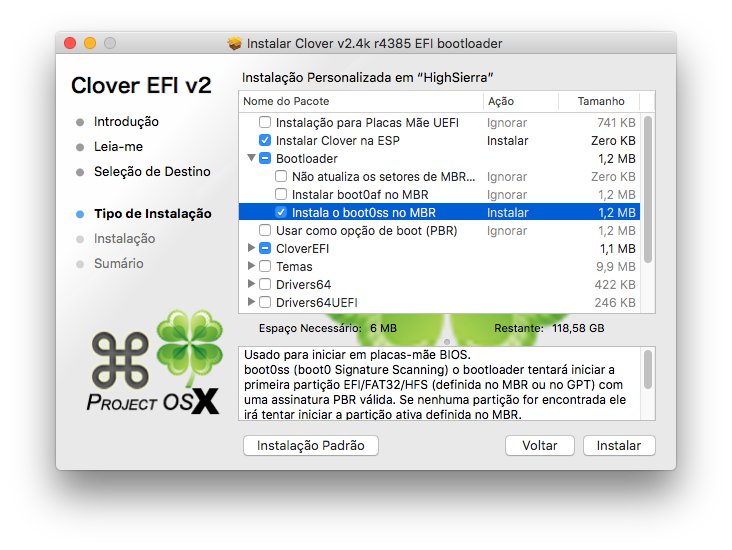

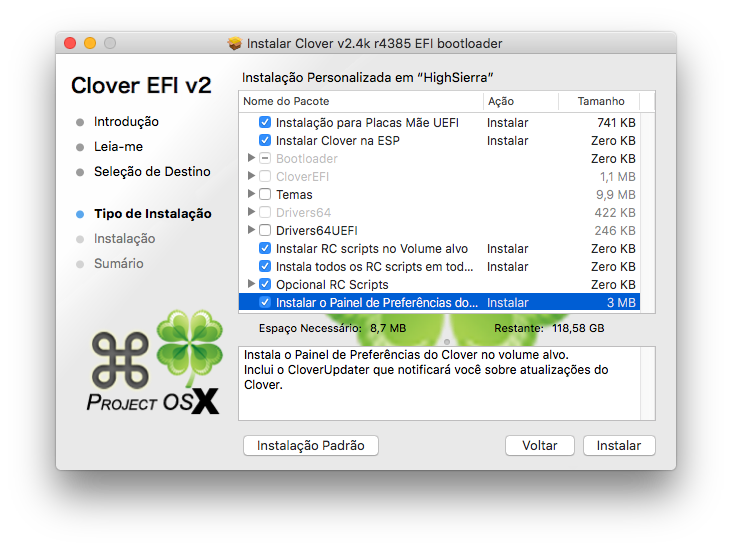

Peke Posted January 19, 2018 Author Share Posted January 19, 2018 k check, put DSDT in Clover/Acpi/Patched and add some hotpatches in ur old config.plist, just to avoid problems EC0 to EC 4543 305f 4543 5f5f GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 in next installation, install clover with these options MaLd0n 2018-01-18 às 23.20.50.png or boot0ss MaLd0n 2018-01-18 às 23.21.36.png and replace with my folder I followed again the dsdt and clover file replacement again before doing what you send me in the last reply to check if I did something wrong. Of course I made some noob mistake the first time as now everything is fine. New Clover loader is really nice!! Here is the Ioreg attachment. Maximus’s iMac.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 I followed again the dsdt and clover file replacement again before doing what you send me in the last reply to check if I did something wrong. Of course I made some noob mistake the first time as now everything is fine. New Clover loader is really nice!! Here is the Ioreg attachment. now, put DSDT unzipped in Clover/Acpi/Patched DSDT.Peke Full.zip Put CodecCommander.kext in Clover/Kexts/Other and remove WhateverGreen.kext reboot and send me new ioreg with new DSDT Link to comment Share on other sites More sharing options...

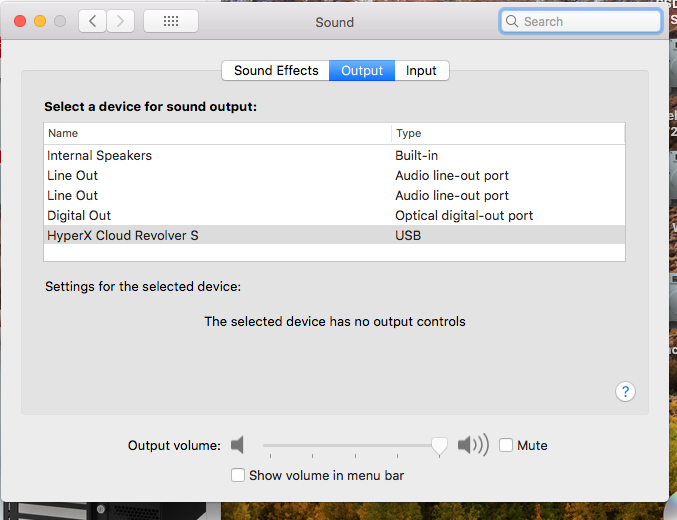

Peke Posted January 19, 2018 Author Share Posted January 19, 2018 now, put DSDT unzipped in Clover/Acpi/Patched DSDT.Peke Full.zip Put CodecCommander.kext in Clover/Kexts/Other and remove WhateverGreen.kext reboot and send me new ioreg with new DSDT New Ioreg and sound is ok through USB. Maximus’s iMac ver.2.0.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 New Ioreg and sound is ok through USB. ioreg is nice u test sleep? audio onboard work? Link to comment Share on other sites More sharing options...
Peke Posted January 19, 2018 Author Share Posted January 19, 2018 Audio Onboard is ok. Sleep was working before with no problems. I´ll test it tomorrow as now I need to go. I`ll keep you informed. And thanks. You invested a lot of time helping me. I will write later a complete Guide over my installation to help others as I did from scratch with createinstallmedia, Bios settings ,SSD hfs+ (working with terminal over clover, etc). I think it would help others. I stay in touch. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 Enjoy! Link to comment Share on other sites More sharing options...
Peke Posted January 19, 2018 Author Share Posted January 19, 2018 Hi MaLd0n. Sleeps works without problems. Even some unrecognized USB 3.0 devices today works flawlessly. Thanks.! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 Enjoy ur Hack! 1 Link to comment Share on other sites More sharing options...

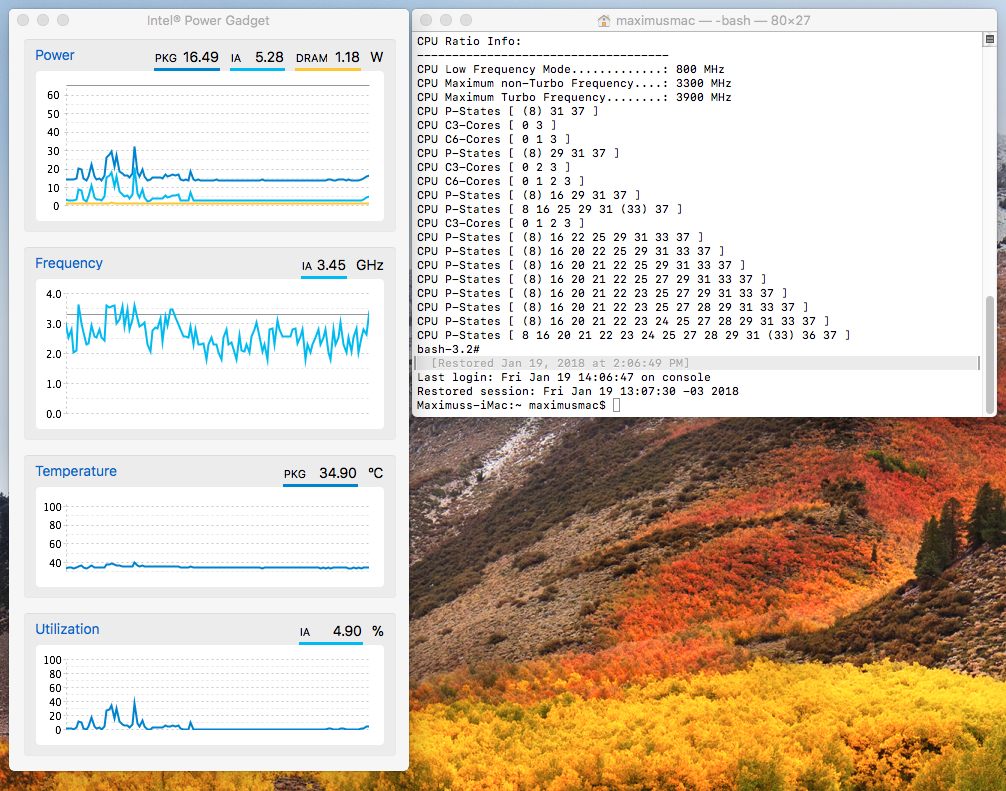

Peke Posted January 19, 2018 Author Share Posted January 19, 2018 Enjoy ur Hack! Hi Madlon. Yes! Already enjoying this beauty! Another question. Is necessary to use a custom made SSDT for my CPU now? Or is already covered with the new DSDT? I already followed some instructions with ssdtPRGen.Master and made my own for my processor (Its not loaded anyways.) I ask this because I checked with intel power gadget the frequency of my cpu and found it never drops below 1,5. GHZ and always near 2.4 GHZ even in idle. Is this normal? Attached the picture. Also the custom made new SSDT.aml if necessary to use it. Regards. C. ssdt.aml.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 19, 2018 Share Posted January 19, 2018 u can check it here http://www.insanelymac.com/forum/topic/321021-guide-hwpintel-speed-shift-enable-with-full-power-management/page-1 some solutions in comments 1 Link to comment Share on other sites More sharing options...
