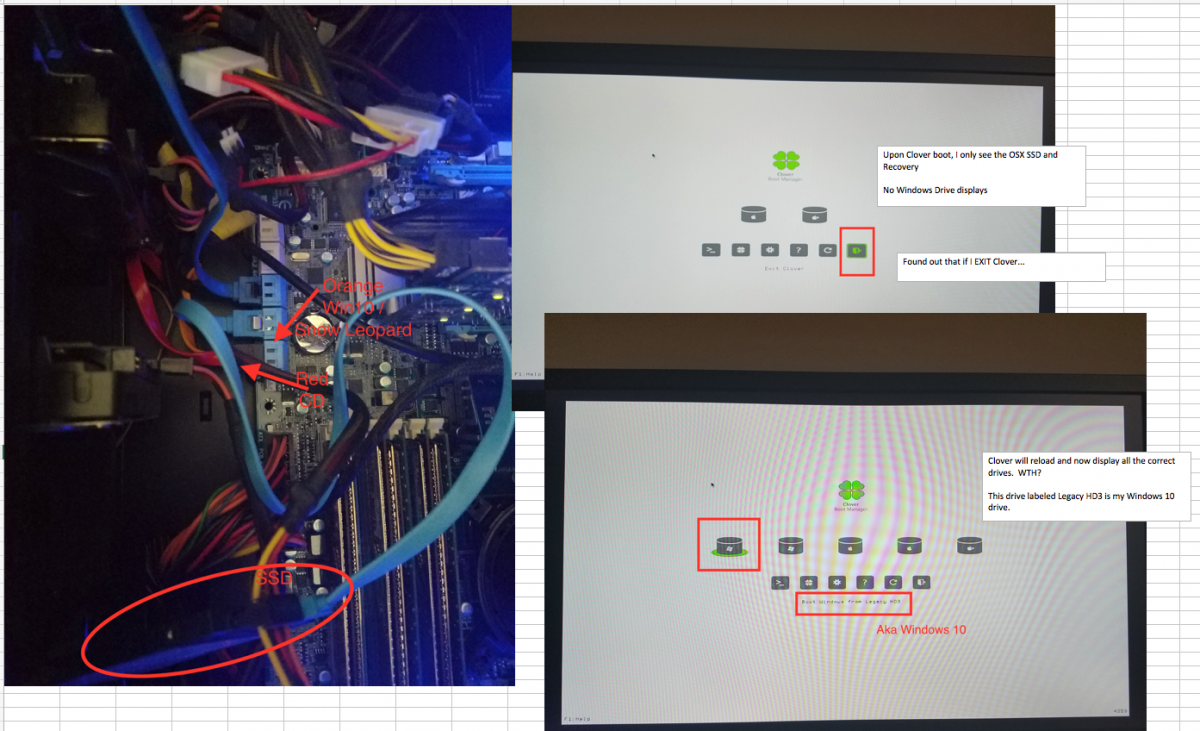

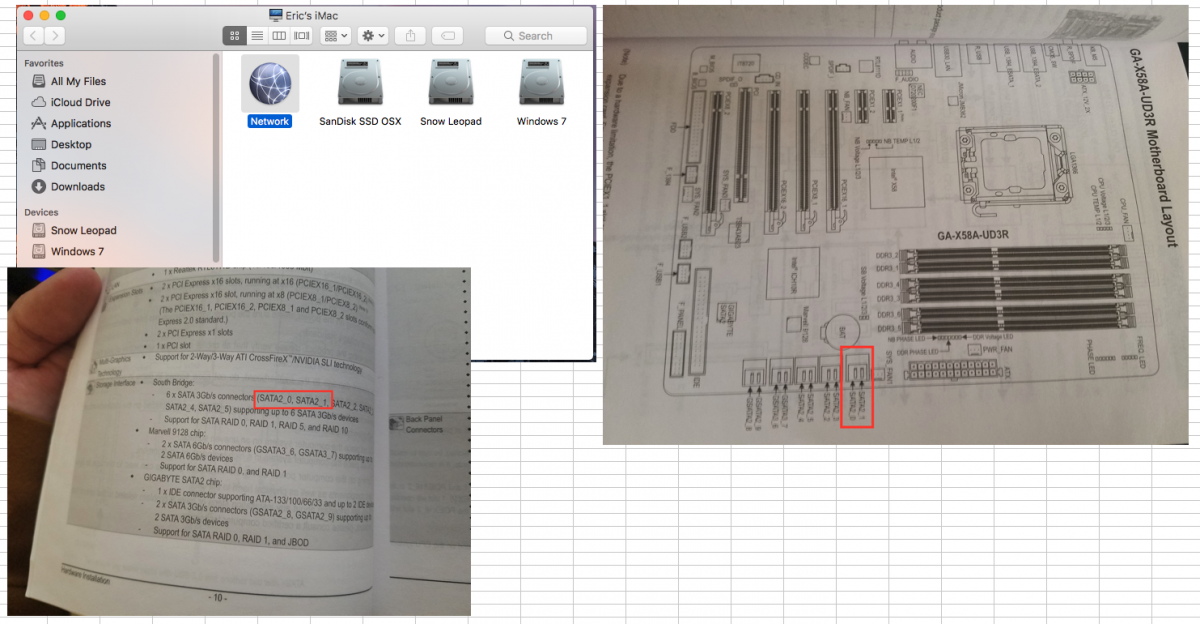

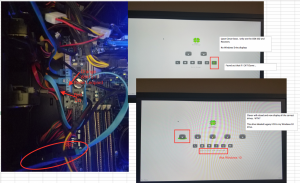

kevang Posted January 7, 2018 Share Posted January 7, 2018 Hello and happy new year everyone, I have been trying to get my "old" computer running completely on Sierra for a few weeks now (before Christmas). I had been on Snow Leopard for 6 or 7 years. Was a fast setup then. Will build new rig in next couple months... anyhow. I have a stable running Sierra. No freezes, have internet, sound, video. Have 2 issues main issues; Issue 1 - Clover cannot detect Windows 10. Clover cannot auto-boot. > Sierra is on SSD> Windows 10 & Snow Leopard are on different partitions of WD 2TB HDD > Connected to Intel SATA 0, 1, 2, 3 slots > Upon boot, Clover only displays the 2 apple drives; OS X Sierra & Recovery (does not auto boot) > Here's the strange thing. When I navigate to EXIT CLOVER, Clover resets/refreshes/reboots. Now it can see all the attached drives. > From here, I can select Windows or Sierra. Not the best experience. Issue 2 - OS X does not shut down. > So many people that have this issue. On Shutdown, screen goes black, systems just hangs. What I've tried. > Pressing F2 at First Clover boot (the 2 drives) and also on second iteration (all drives displaying). This shows the preboot.log. Seems the first time, Scanning doesn't work for some reason. > I have attached preboot1 and reboot 2 for context. > Clover Configurator - I have selected FixShutdown and Halt Enabler in ACPI. Doesn't do anything for Shutdown. > Scan is set to Legacy. Timeout set to 3 seconds. > DefaultBootVolume set to LastBootedVolume Attached 1. 2 screens; Volumes from Finder / the 2 screens from Clover. 2. preboot logs 3. config.plist So many thanks for anyone willing to take a look and help me troubleshoot. Been tinkering over 2 weeks now. ~Eric config.txt preboot1.txt preboot2.txt Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/ Share on other sites More sharing options...
MaLd0n Posted January 7, 2018 Share Posted January 7, 2018 -Post your full Clover folder -Send me tables http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=278494 -Send me one Ioreg too http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=278495 Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2563406 Share on other sites More sharing options...
kevang Posted January 7, 2018 Author Share Posted January 7, 2018 Thank you MaLd0n for your quick reply. Attached are what you asked for (I think)... CLOVER.zip Send me Eric’s iMac.zip Eric’s iMac.zip Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2563412 Share on other sites More sharing options...
MaLd0n Posted January 7, 2018 Share Posted January 7, 2018 u have a shutdown patch in DSDT u dont need usbinjectall, ur usb work native for autoboot, try last clover version try with MacPro5,1 smbios and check if solve shutdown Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2563847 Share on other sites More sharing options...

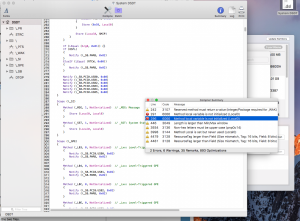

kevang Posted January 8, 2018 Author Share Posted January 8, 2018 Evening Maldon, I removed the DSDT.aml file from the /patched folder and doesn't make any difference on my system that I can tell. Everything still works fine. Still have the same 2 issues. I'll be busy the next couple days, but come mid-week, I will use this guide here to edit my DSDT if you can tell me what I need to do. http://www.insanelymac.com/forum/topic/287011-how-to-extract-and-compile-dsdtaml-with-dsdt-editor/ Attached 1. dsl of my DSDT (I think). In Clover boot loader, pressing F4, it saves the tables to ACPI > origin folder. I was going to compile and attach the DSDT extracted from my machine (not the pre-made ones found online based on my board). Says I have 2 errors however so I'm stuck. 2. Screen shot of the 2 errors. Oh, fyi, I updated to the most updated Clover version and changed my System Def to Macpro5,1 like you said. Still unable to shut down. Thanks. ~Eric System DSDT.zip Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2564089 Share on other sites More sharing options...
kevang Posted January 8, 2018 Author Share Posted January 8, 2018 Hi everyone, Last update for the evening. If I modify the folder name EFI > BOOT to EFT > BOOT_OFF what this does is, basically EXIT CLOVER and reboots Clover and then I am able to see the attached drives. What foolishness is this? Why does this happen? Still no auto-boot however. A good evening to all... Eric Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2564105 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Share Posted January 8, 2018 in ur case, Clover have all good patches for ur mobo, without patched DSDT work good, Clover patched for u, need only patch for shutdown, the clover shutdown patch don't work in ur case try it for shutdown, uncheck all patches in Clover/Acpi DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2564110 Share on other sites More sharing options...
kevang Posted January 10, 2018 Author Share Posted January 10, 2018 Thank you for your wizardry MaLd0n... The dsdt you patched for me worked. I also removed all Clover patches like you instructed. I was able to shut down completely twice. Will report back if still have issues. *if this was reddit, i'd give you a gold star* Muito obrigado pela sua ajuda. Sem você, eu precisaria gastar muitas, muitas mais horas, na solução de problemas. Bênçãos para você, irmão. Muito obrigado pela sua ajuda. Sem você, eu precisaria gastar muitas, muitas mais horas, na solução de problemas. Bênçãos para você, irmão. 1 Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2565821 Share on other sites More sharing options...
MaLd0n Posted January 10, 2018 Share Posted January 10, 2018 Flw! Enjoy! Link to comment https://www.insanelymac.com/forum/topic/331342-solved-2-main-problems-left-auto-boot-shutdown/#findComment-2565830 Share on other sites More sharing options...
