superdooper71 Posted January 5, 2018 Share Posted January 5, 2018 Hi all,I am trying to build a system with the following Components, but I am running into trouble ; )ASRock Z270M Pro4 Micro ATX Intel MotherboardIntel Core i7-7700K Kaby Lake Socket 1151 CPU w/Intel HD Graphics 630Crucial Ballistix Sport 32GB (2x16GB) 288-Pin DDR4 2400MT/s (PC4-19200) Desktop MemoryGigabyte Nvidia GeForce GTX 1060 3GB GDDR5 Graphics CardUptown Cube Case mATXCooler Master CPU cooling Tecnoware 650W Power SupplyKingston 120GB M.2 Solid State Drive (System only)Kingston SSDnow 256GB SATA3 SSDSeagate Barracuda 2TB Hard DriveMac OSX Sierra 10.12.6I have issues getting my 10.12.6 Sierra USB drive complete the installation.The system load the USB it starts and then freeze almost at the end.I booted in verbose mode and iget stuck on "appleacpicpu"I enclose the EFI folder completed with the config.plist I am using. Please can someone help me as I am struggling fromxmas and my little selfmade pressy turned as a nightmare : )CheersFranco 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/ Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Share Posted January 5, 2018 http://www.insanelymac.com/forum/topic/321872-guide-sierra-on-gigabyte-mobos-serie-200-kabylake-dsdt/ 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562412 Share on other sites More sharing options...
superdooper71 Posted January 5, 2018 Author Share Posted January 5, 2018 thanx Mald0n, I will give you a try 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562419 Share on other sites More sharing options...
superdooper71 Posted January 5, 2018 Author Share Posted January 5, 2018 Hi Mald0n, I have tried as per your instruction unfortunately at the very end of the progress bar the I get a black screen and I am not be able to see what is going on. I believe that the system is fully loaded and waiting the completion of installation and the black screen prevent me to complete the task. Any suggestion on that? Cheers Franco 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562433 Share on other sites More sharing options...
MaLd0n Posted January 5, 2018 Share Posted January 5, 2018 disable intelhd in bios, use only one, if u need a intelhd for other things, we solve after installation CLOVER.zip 2 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562442 Share on other sites More sharing options...
superdooper71 Posted January 5, 2018 Author Share Posted January 5, 2018 Ok I will try Thanks again 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562452 Share on other sites More sharing options...
superdooper71 Posted January 6, 2018 Author Share Posted January 6, 2018 Ok I have disabled the IntelHD from BIOS, however I still get the black screen. Just to clarify what I am doing - DVI cable plugged in the mobo - I am following this Guide http://www.insanelym...-kabylake-dsdt/ - Replaced "Clover Folder" with the Clover Installation provided by the Guide - Plugged in USB on a USB 2.0 port -Launched installation Installation starts but getting black screen Please help I am in real trouble now : ( Any suggestion on what could cause a black screen? Cheers Franco 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562574 Share on other sites More sharing options...
MaLd0n Posted January 6, 2018 Share Posted January 6, 2018 u try a nv_disable=1? Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562583 Share on other sites More sharing options...
superdooper71 Posted January 6, 2018 Author Share Posted January 6, 2018 yes but i will give a try again Just to make a change I will try with a GPU GT710 plugged and see what happen and let you know 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562587 Share on other sites More sharing options...
MaLd0n Posted January 6, 2018 Share Posted January 6, 2018 710 is hard in HS Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562593 Share on other sites More sharing options...

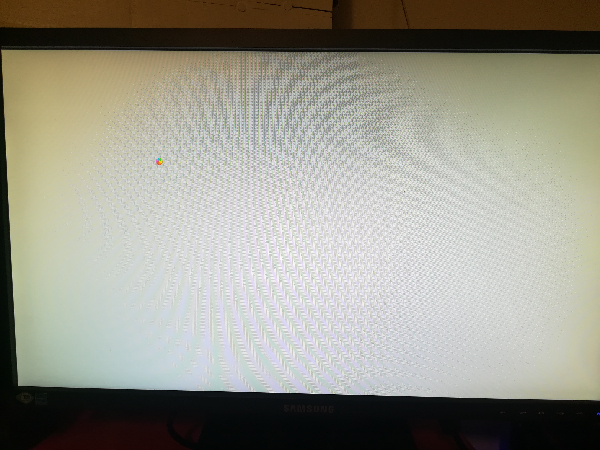

superdooper71 Posted January 6, 2018 Author Share Posted January 6, 2018 A little update, I am trying with the GT 710 plugged in and a boot argument "nv_disable=1" As a result I get a White screen with a small colored spinning wheel I attache a pix of what i get... Jeez is driving me nuts this build is driving me nuts...But I love ASROCK 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562608 Share on other sites More sharing options...
MaLd0n Posted January 6, 2018 Share Posted January 6, 2018 Asrock is good, ur problem is just a video u try a gtx 1060 with nv_disable? if u can try, i send one folder for IntelHd kabylake just for test 710 u can try it, work for many ppl, for others no, need a test 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562620 Share on other sites More sharing options...
superdooper71 Posted January 6, 2018 Author Share Posted January 6, 2018 Hi Mal0n, ok i will try gtx 1060 and nv disable=1 over the weekend and let you know. Up until now a BIG Thank you for your support, I really appreciate your help 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562710 Share on other sites More sharing options...
MaLd0n Posted January 6, 2018 Share Posted January 6, 2018 k let me know Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2562844 Share on other sites More sharing options...

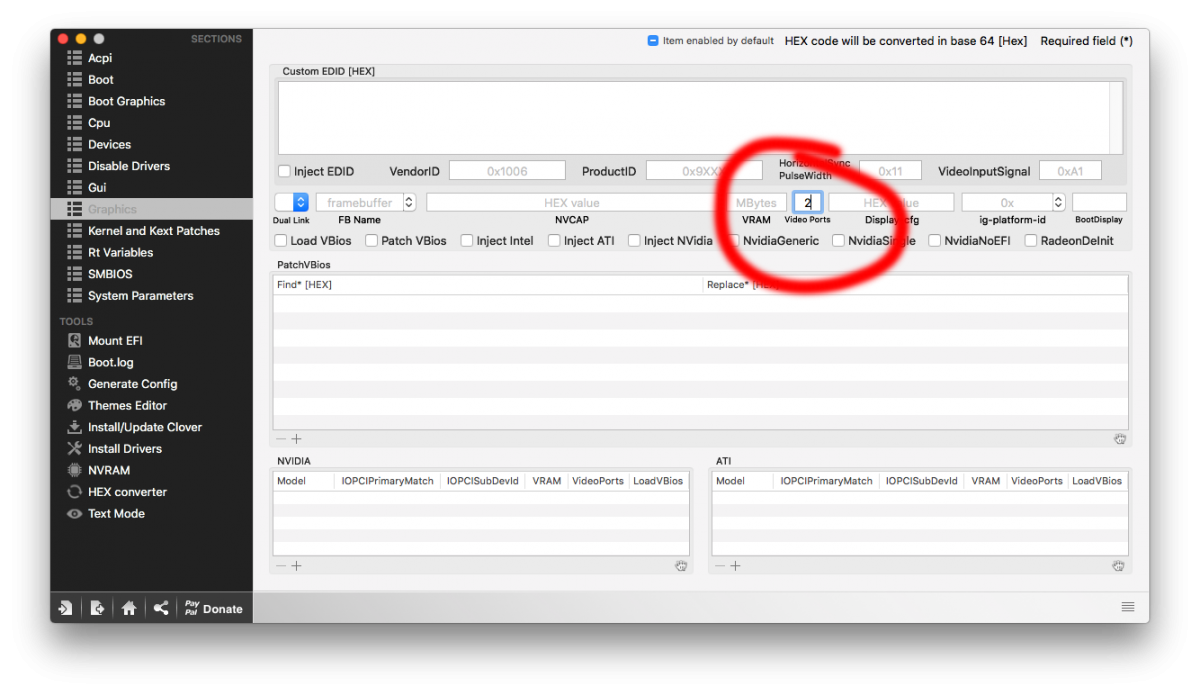

superdooper71 Posted January 7, 2018 Author Share Posted January 7, 2018 Hi Mal0n, my first try with gtx 1060 and nv disable=1 and is not working, my next attempt is with graphics video port 2 and lets see what happen 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2563450 Share on other sites More sharing options...
superdooper71 Posted January 8, 2018 Author Share Posted January 8, 2018 Hi Mal0n, its working :thumbsup_anim: :thumbsup_anim: :thumbsup_anim: :thumbsup_anim: :thumbsup_anim: I am pissed off for that I have spent more than a week for a little number fault !!!!! Thank you so much for your help 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2564257 Share on other sites More sharing options...
MaLd0n Posted January 8, 2018 Share Posted January 8, 2018 Hi Mal0n, its working :thumbsup_anim: :thumbsup_anim: :thumbsup_anim: :thumbsup_anim: :thumbsup_anim: I am pissed off for that I have spent more than a week for a little number fault !!!!! Thank you so much for your help go to post installation now -Post your full Clover folder -Send me tables http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=278494 -Send me one Ioreg too http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=278495 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2564392 Share on other sites More sharing options...
superdooper71 Posted January 10, 2018 Author Share Posted January 10, 2018 Ok I will complete the installation and post the files as per your requrst :wink_anim: :wink_anim: 1 Link to comment https://www.insanelymac.com/forum/topic/331303-sierra-installation-appleacpicpu-stuck/#findComment-2565973 Share on other sites More sharing options...
