USB 3.1 PCIE Card

[aikidoka25]

I installed a USB 3.1 PCIE card (Orico PA31-AC) into my unit (High Sierra 10.13.2 on a GA-EX58-UD5)  and got it working out of the box after I removed GenericUSBXHCI.kext from Clover.



But now I have the issues with waking up the machine from sleep:

1. Wakeup from sleep using the keyboard:

a. now I have to press 2 times to wake up the machine, if only 1 press will wakeup the machine but the screen stays dark and then back to sleep again. But I lost bluetooth connection (it is a USB dongle), until I plug and unplug it again.



b. if I press 1 time and then click on the trackpad (Apple Magic Trackpad), everything works without any further interruption.



c. with GenericUSBXHCI.kext I didn't have issues a and b above, but the USB 3.1 is not displayed at all on System Information and it doesn't work.



2. Resuming from sleep, any drives connected to the USB 3 will disconnected and get that "unproper disconnect message", either for bus powered drive or drive with external power.



My aim is to have issue 1a above solved.

Any suggestion where should I look?

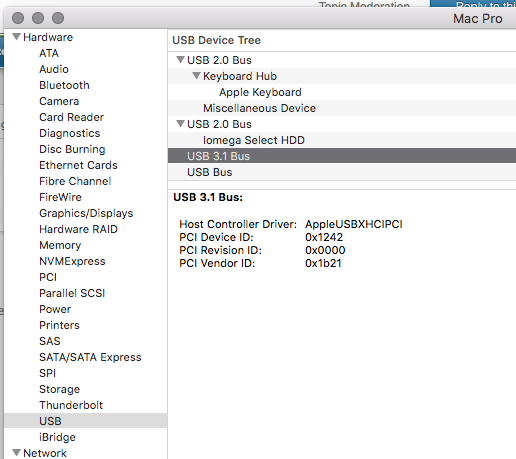

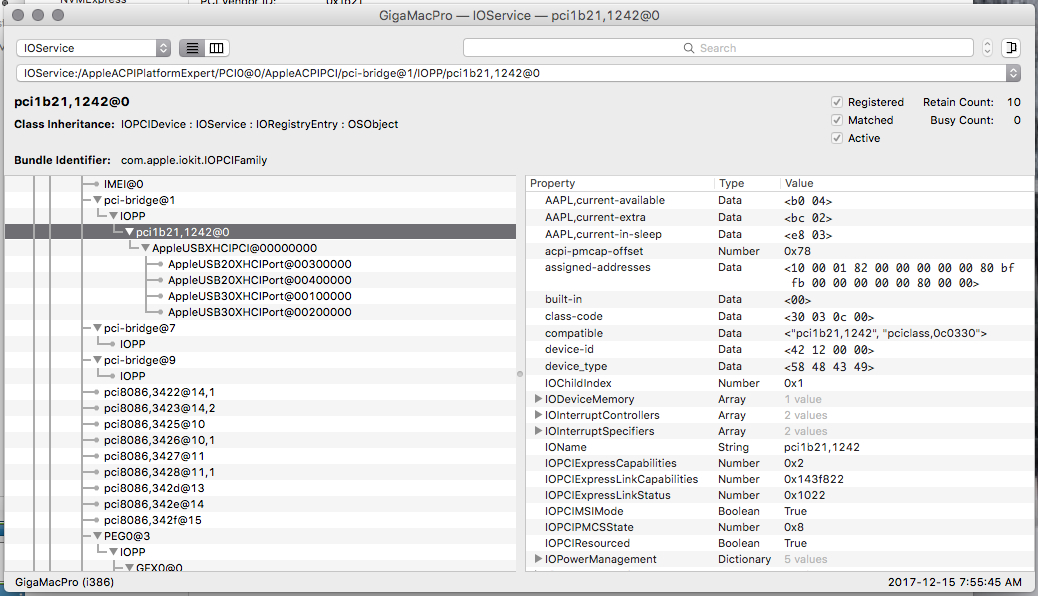

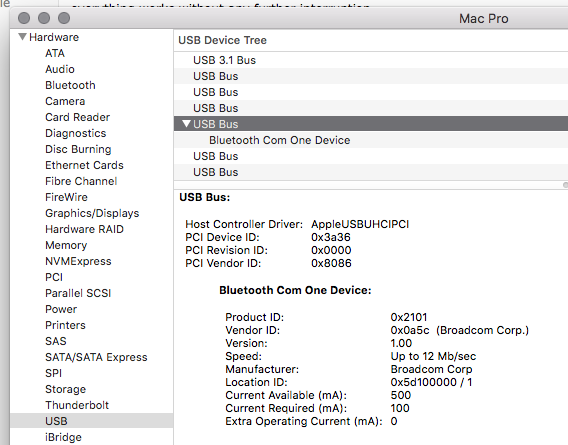

Screenshots:





Attached:

config.plist.zip DSDT.aml.zip
