Acer Iconia 6120

2 posts in this topic

Recommended Posts

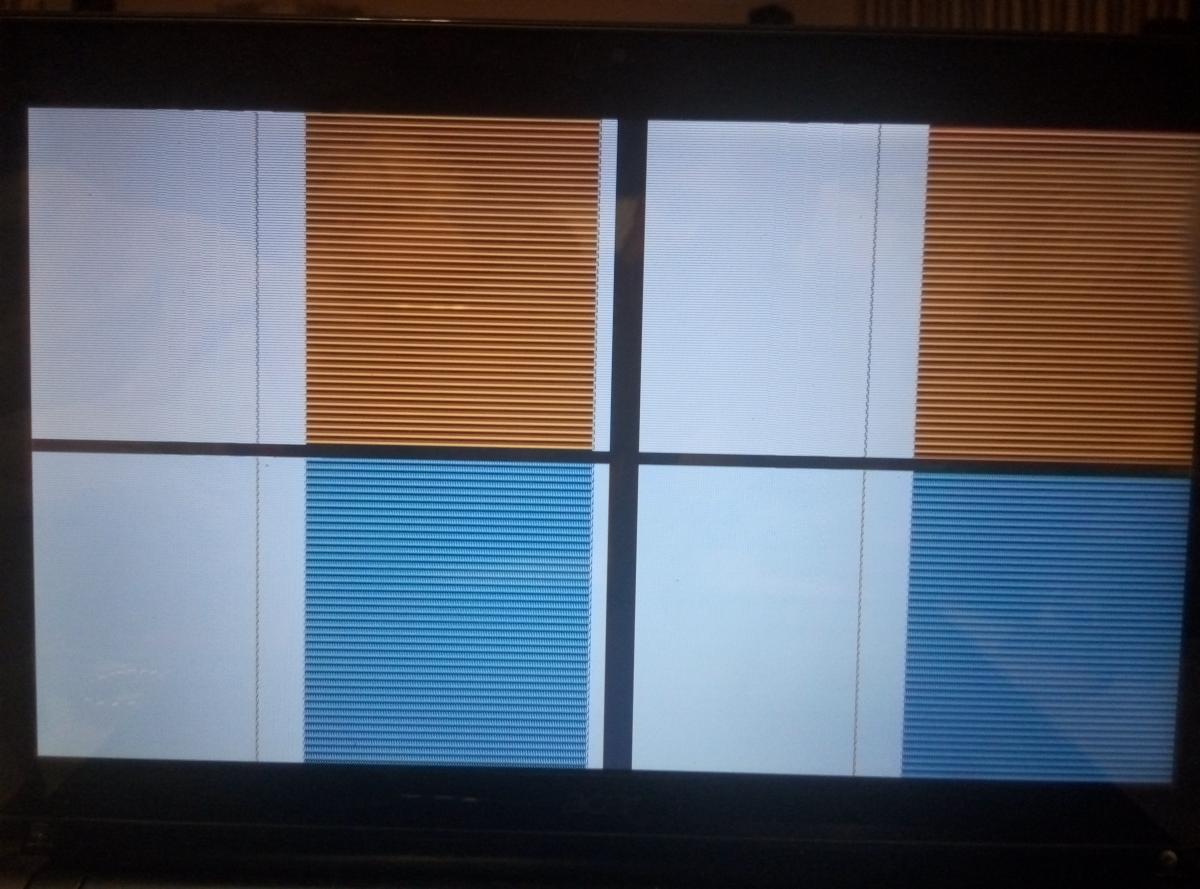

Who know how to install Mac os x on Acer Iconia 6120 (Pau30)? Who tried to install mac os x on this laptop? I tried the versions from 10.10.5 to 12.13.0. I get a color screen all the time.



Share this post


Link to post
Share on other sites
Advertisement

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

  • Recently Browsing   0 members

    No registered users viewing this page.

  • Similar Content

    • By M3G4DR01D
      Hello everyone, I have an Asus gl502vmk (i7 kabylake + GTX 1060 6 gb) laptop and I tried all the patches/kexts to get the brightness with fn keys/touchpad (I2C ELAN 1200 works with VooDoo I2C kext v1.0 but no gestures/preference pane)/Keyboard backlight to work but no success so far, any help would be appreciated, thanks in advance.
      [EDIT] (10/04/2018)
      Battery status now works, thanks to @RehabMan turned out to be incorrect SMBIOS (used iMac instead of Mbp) lol, but it drains crazy fast (~1.5 - 2 hours while on standby (all apps quited!), on windows 10 it lasts 4 - 5 hours, and on linux it lasts 6 ~ 7 hours!)
      And with VoodooI2C v2.0.1 + VoodooI2CHID kext and patched DSDT, the touchpad is now detected in the sys pref pane but still no input.
      Sound works with VoodooHDA v2.9.1, but the only issue is that the jack sense isn't working (the output device doesn't auto switch to headphone when connected)

      [EDIT 2] (11/04/2018)
      The system brightness now works thanks to @onejay09 but I have no brightness slider, and there are 4 extra brightness levels (brightness stops increasing after 12 levels)  and the brightness keys are not mapped correctly, plus the brightness decreases when I plug in the ac adapter, then increases if I unplug it???, the brightness level isn't also saved after reboot.
      battery still drains crazy fast (~1.5 - 2 hours, even with brightness at 50%, so apparently it is a power management issue).
      and I also have shutdowns while in sleep mode (I tried darkwake=10 and darkwake-0 and darkwake=no)

      P.S. I have uploaded my new report files, thanks!

      Latest report files (11/04/2018): https://www95.zippyshare.com/v/AMOpP0AY/file.html
    • By giacomo.dessi2303
      Salve, sto ancora tentando di far funzionare il mio lettore di schede SD, macos lo riconosce in resoconto di sistema ma non funziona, in firma c'è il modello esatto e gli id che ottengo da resoconto di sistema, ho provato a seguire varie guide e oggi ho trovato questa che sembrerebbe aver funzionato a questo utente:
      Secondo voi è una buona idea eliminare un kext di sistema? E poi questi kext di cui parla dove gli trovo? Grazie a tutti
    • By lukascaska
      Hello everyone, I just installed highsierra on my notebook with help by Maldon and Mirone.
      I have almost everything working, missing only a few details:
      - I think I have a lot of kexts i do not use
      - HDMI Audio not working
      - the screen turns black after sleep
      - boot takes more then a minute
      can anybody help me?

      folder with SendMe, Clover and IOREG: https://drive.google.com/drive/folders/1xPTVrHVL4Z_Dh3oeDMpQ7EQKHsigBWC2?usp=sharing

      hardware:
      i5-7200, hd620, 940mx, 8gb ram, 1TB
    • By rtke333
      Hi!

      Could anyone help me installing High Sierra on this system?
      I succesfully installed Sierra before on this system with help of Jake Lo (thanks!!), I just wondering if could High sierra possible to installed on this system?

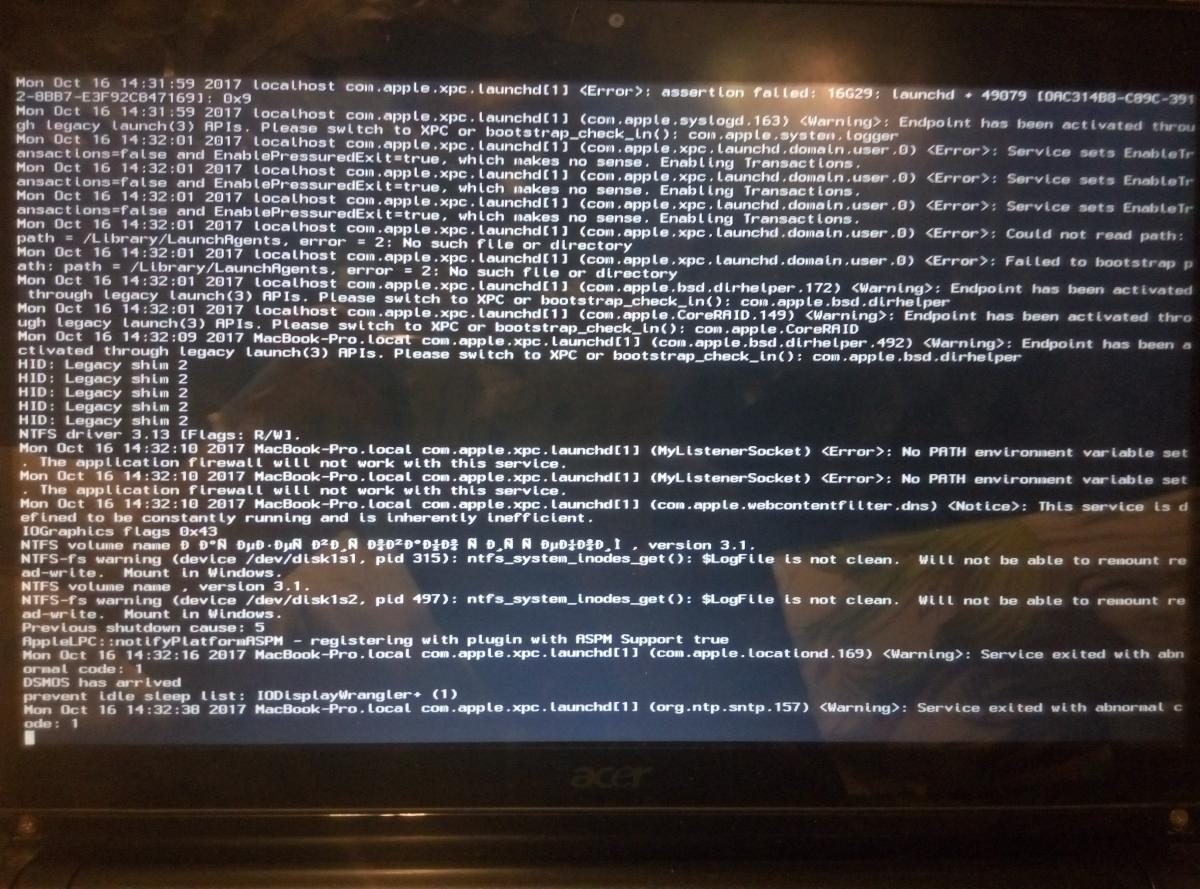

      Boot stopped at this. I'll attach my Clover folder and a picture from boot.
      UEFI enabled, and for skylake I used IntelGraphicsDVMTfixup and IntelGraphicsFixup kexts. My bios is very limited and does not have any option to change dvmt prealloc or anything else.
      Everything works fine on Sierra.
      Here is my system:




      Acer Aspire V15 V5-591G-55TU

      (Note: Bootpack works fine with another versions of 591G, for example: V5-591G-71K2, -764Z, -59PU, etc.)

      Mobo: Skylake USOPP_SLS
      Bios: Insyde corp latest version
      CPU: Intel Core i5-6300HQ 2.30 GHz (Skylake)
      GPU: Geforce GTX 950M 2 GB (optimus, disabled), Intel HD 530
      Ram: 8 GB DDR4 (4+4 GB)
      Wifi: Qualcomm Atheros QCNFA344A, Replaced to BCM94352Z
      Ethernet: Realtek 8168B/8111B
      Audio: ALC 255 (layout-3 fix)
      Card Reader: Realtek
      HDD: 1 TB
      Dual-boot with Windows 10

      Any help appreciated!

      UPDATE! (2017.10.30)
      UPDATE! (2017.11.09)
      UPDATE! (2018.02.01)

      Successfully installed High Sierra 10.13, 10.13.1, 10.13.3
      SEE THIS POST: #49 IF YOU THINK YOUR CPU IS HOT (60+°C) OR NOT GOING UNDER 1.3GHz FREQUENCY WHEN IDLE
      (Original OSXLatitude post link: http://forum.osxlatitude.com/index.php?/topic/10077-success-acer-aspire-v-15-v5-591g-55tu-high-sierra-dual-boot-windows/)
      Working:
      Wi-Fi and Bluetooth with BCM94352z: (enabled with BrcmFirmwareRepo.kext, BrcmPatchRAM2, FakePCIID.kext, FakePCIID_Broadcom_WiFi.kext, install them with Kext Utility or another kext installer) (Original WiFi is Qualcomm Atheros, unsupported but BT works) Hand-off with BCM94352z Full Graphics enabled on HD 530, HDMI, VGA. ALC 255 Audio: (Internal Speakers, Internal Microphone, Headphone jack (microphone not tested) with layout-3 fix (you can use AppleHDAPatcher) Ethernet Realtek 8168B/8111B App Store, Messages, FaceTime, Siri, iCloud (native) Integrated webcam (native) 3.0 USB (native) Touchpad and Keyboard: Fn keys are good, the weird thing is the Brightness key. On my keyboard it's Pause Break:Br-up, Fn+F12:Br-dwn. (VoodoPS2Controller.kext) Battery info: Install ACPIBatteryManager.kext with kext utility or other installer. Sleep Mode: In High Sierra sleep mode not worked for me natively. Inject custom EDID to fix the blank screen after wake from sleep
      See here for instruction (thanks black.dragon74 and Jake Lo !!) Please add these 2 patches to ACPI\DSDT\Patches in your config.plist in order to avoid not responding applications after sleep: (added in "v5_591g_55tu_updated_CLOVER.zip") HECI to IMEI 48454349 494d4549 EC0 to EC 4543305f 45435f5f Before updating to a new version of High Sierra please update kexts to new versions to avoid kernel panics Note: No need for "IntelGraphicsDVMTFixup.kext" so you should delete it. Not working:
      Original Wi-Fi: Qualcomm Atheros QCNFA344A unsupported, you need switch to BCM94352Z or just use a mini usb wifi dongle. NVIDIA GTX 950M: Optimus not supported. Card Reader: Unsupported For WiFi:
      You can choose an external USB wifi dongle (I used tp-link Archer T1U (5GHz support), Tp-link have official macOS drivers, you just need to install it (OR)Replace your M.2 Qualcomm Card with a compatible BCM94352Z card (you will have hand-off Bluetooth too), just install the kext I wrote above I'll attach my EFI folder for anyone who want to install High Sierra (acer_aspire_v5_591g_55tu_hs.zip).
      *REUPLOADED updated CLOVER folder, attached as "v5_591g_55tu_updated_CLOVER.zip" (uploaded to OSXLatitude forum, can't upload here).

      I'm using High Sierra in Dual-boot with Windows 8.1. To do this in a clean install or with Windows installed first try my little minimal guide:

      Dual-boot clean install (on one drive):
      1. Boot into your Mac installer, Create 2 partitions in GUID table (1 for Win (I used FAT32 but I think it's no matter what), 1 for Mac),
      2. Install Mac, boot with your USB, *mount your EFI partition (use terminal or an EFI mounter app), create an EFI folder, copy the CLOVER folder I attached to the EFI folder, restart,
      3. Boot into your Win installer, Format the partition you created for Win, install.
      4. Now, it's automatically booting into Windows. To use Clover open cmd in administrator, type:
      bcdedit /set {bootmgr} path \EFI\CLOVER\CLOVERX64.efi 5. You're done! It will booting into Clover when you start the system, and you can select Win or Mac (or another OS if installed on a 3rd partition).

      Dual-boot with Windows installed first (on one drive):
      If you already have Windows and you don't want to lose all your data there is a hope:
      You need bootable Mac Installer and a full system restore image (you can search for it).
      (You may see errors if your EFI partition is not 200 MB)
      1. Boot into your Windows, resize your partition or create one for Mac.
      2. Boot into your Mac installer and in Disk Utility format the partition you created.
      3. Restore from image: select your full system restore image.
      4. When it's finished restoring you just need to restart, then boot to the system with your usb.
      5. Do Step 2. from "*" from clean install dual-boot above. but KEEP "Microsoft" FOLDER IN IT!
      6. Do Step 4. from clean install dual-boot above.
      7. You're done! You can select your old Windows and your new macOS!
      (I only tried with Windows 8/8.1/10. I don't know Windows 7,etc.)

      IF YOU GETTING ERRORS DURING MAC RESTORE:
      Make sure you have partitions in GPT The best version for restore method is Windows 8.1. It's using 200 MB EFI. Windows 10 using 100 MB EFI and will annoy the Mac restore. You can use with Windows 10, just ignore the errors IF YOU GETTING ERRORS DURING WINDOWS INSTALLATION (could not be formatted, etc):
      Make sure you have GPT partitions, and GPT installer IF YOU USED RESTORE METHOD THEN CAN'T MOUNT YOUR EFI PARTITION (No EFI partition found)
      It's because your EFI is not 200 MB or not an "Apple" original EFI,  but do not worry, try another EFI mounter, or mount from terminal (I used EFI mounter v3: Getting errors, but you can mount and use without problem) You also could "mount" the EFI from windows, for that open cmd and type: diskpart list vol (Now select the "System" volume,(FAT 32) For example I select 4) sel vol 4 list part (Select System type partition, for example 2) sel part 2 assign letter=b (This will "mount" your EFI partition, to manage files download totalcmd or explorer++ (run as admin)) remove letter=b (This will "unmount" your EFI) Here is a video from dual-boot with Windows installed first (on one drive):
      https://www.youtube.com/watch?v=0_Q8uPkwcWQ
      Here some pictures:




×
