Hello Guys,

So I've been reading a lot lately about my Haswell Hackintosh.

Long story short, I was going slow to get things working once at a time.
audio (optical), ethernet, display (FB patches for ports 0x5, 0x6 and 0x7 - before the FB patches, my HDMI would be port 0x0, custom EDID for HiDPI res and correct RGB, etc.), all of that works

I installed the SSDT generated by Piker-Alpha/ssdtPRGen.sh/master/ssdtPRGen.sh V15.6
and after reboot the CPU clock speed went up and down as it should (in Intel power Gadget)
But sleep still wouldn't work
Then I tweaked Clover configurator, added the EHC1 to EH01 and EHC2 to EH02, compiled my DSDT, but now, the Hack sleeps (led off, fans off) and wakes perfectly, Which is great!

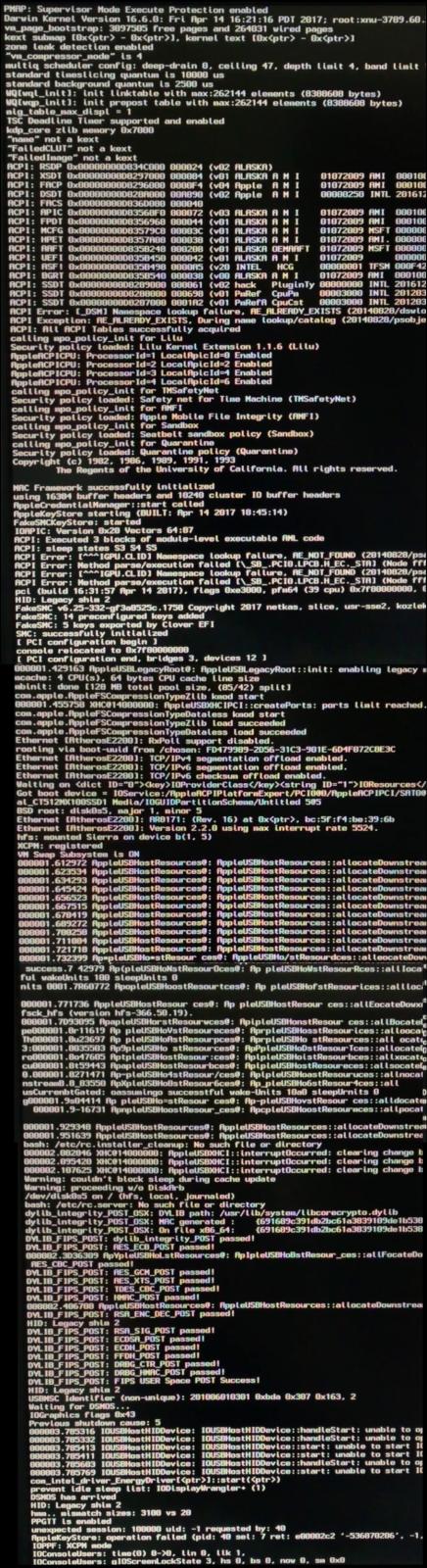

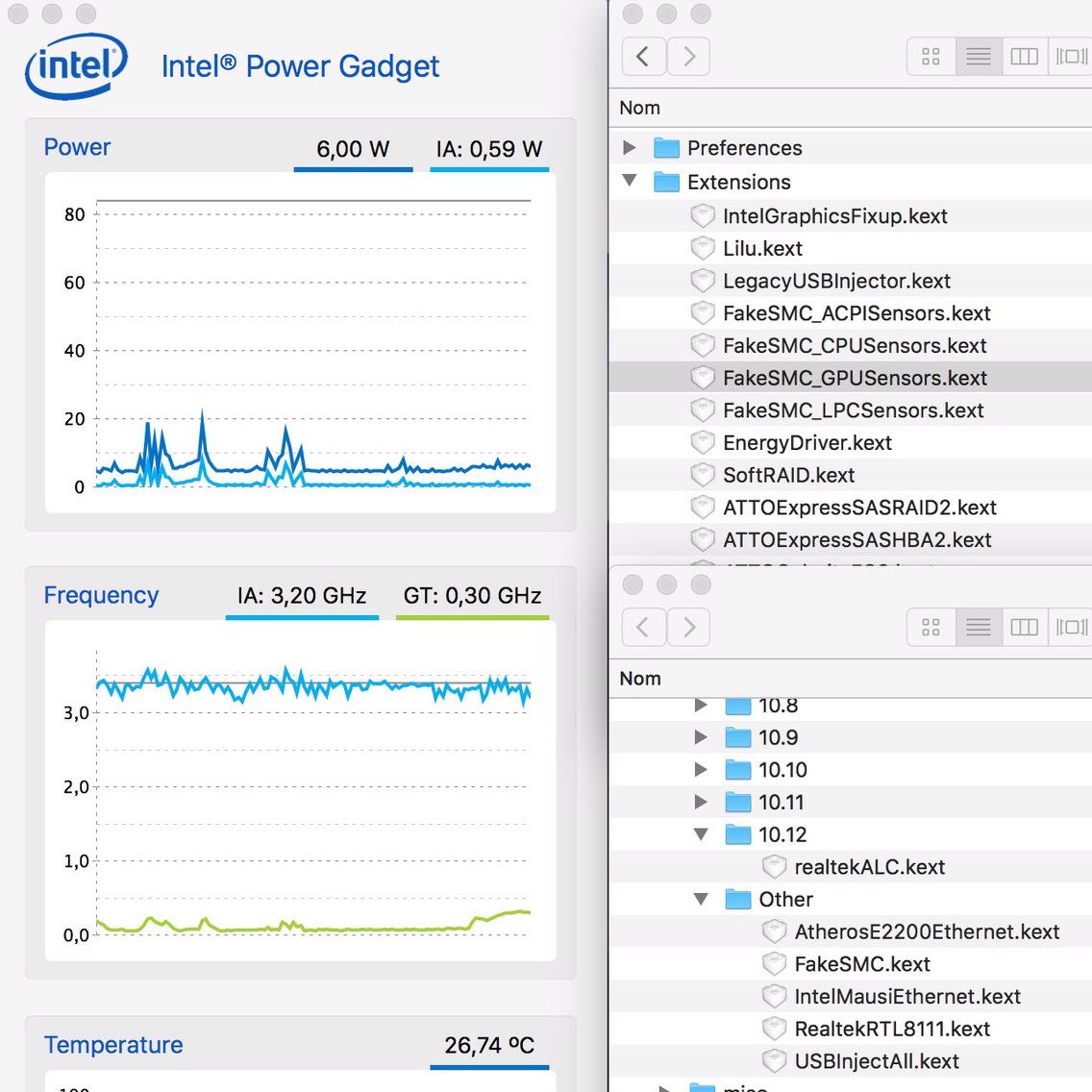

But power Management is gone... clock speed stays at 3,4 Ghz. Not too much of a deal, but I'm more into understanding the why, than actually caring for what it does.

I no longer uses the ssdt.aml (now generated by the script v21.5 - IDK if it makes a difference), since I read that on Haswell, CPU PM is handled by XPM and this simple compiled SSDT-PluginType1.aml - and I got IOClass, String, X86PlatformPlugin activated.

So I'm cluelees, can you help me figure-it out?
Thanks in advance.


Here is my setup, files, and results

AppleIntelInfo outpout





AppleIntelInfo.kext v2.9 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 1
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x3ccea166eb (7 MHz)
MWAIT C-States...........................: 270624

Processor Brandstring....................: Intel(R) Core(TM) i5-4670K CPU @ 3.40GHz

Processor Signature..................... : 0x306C3
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 3
 - Model................................ : 0x3C (60)

Model Specific Registers (MSRs)
------------------------------------------

MSR_IA32_PLATFORM_ID.............(0x17)  : 0x4000000000000
------------------------------------------
 - Processor Flags...................... : 1

MSR_CORE_THREAD_COUNT............(0x35)  : 0x40004
------------------------------------------
 - Core Count........................... : 4
 - Thread Count......................... : 4

MSR_PLATFORM_INFO................(0xCE)  : 0x80838F3012200
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x22 (3400 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 0 (LMP not supported)
 - Number of ConfigTDP Levels........... : 0 (only base TDP level available)
 - Maximum Efficiency Ratio............. : 8
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x1E000405
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 1 (enabled)
 - C1 State Auto Demotion............... : 1 (enabled)
 - C3 State Undemotion.................. : 1 (enabled)
 - C1 State Undemotion.................. : 1 (enabled)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x1814
------------------------------------------
 - LVL_2 Base Address................... : 0x1814
 - C-state Range........................ : 0 (C3 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x1DC9F645E5
IA32_APERF.......................(0xE8)  : 0x1E34E9E73F

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x24F800002600
------------------------------------------
 - Current Performance State Value...... : 0x2600 (3800 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2600
------------------------------------------
 - Target performance State Value....... : 0x2600 (3800 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x10
------------------------------------------
 - High-Temperature Interrupt Enable.... : 0 (disabled)
 - Low-Temperature Interrupt Enable..... : 0 (disabled)
 - PROCHOT# Interrupt Enable............ : 0 (disabled)
 - FORCEPR# Interrupt Enable............ : 0 (disabled)
 - Critical Temperature Interrupt Enable : 1 (enabled)
 - Threshold #1 Value................... : 0
 - Threshold #1 Interrupt Enable........ : 0 (disabled)
 - Threshold #2 Value................... : 0
 - Threshold #2 Interrupt Enable........ : 0 (disabled)
 - Power Limit Notification Enable...... : 0 (disabled)

IA32_THERM_STATUS................(0x19C) : 0x88460000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 70
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850081
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 0 (disabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x641400
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400001
------------------------------------------
 - EIST Hardware Coordination........... : 1 (hardware coordination disabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)
 - SpeedShift Technology Enable......... : 0 (disabled)
 - SpeedShift Interrupt Coordination.... : 0 (disabled)
 - SpeedShift Energy Efficient Perf..... : 0 (disabled)
 - SpeedShift Technology Setup for HWP.. : No (not setup for HWP)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24252626
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 26 (3800 MHz)
 - Maximum Ratio Limit for C02.......... : 26 (3800 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x4005E
------------------------------------------
 - Bi-Directional Processor Hot..........: 0 (disabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x428348001A82A0
------------------------------------------
 - Package Power Limit #1............... : 84 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)
 - Package Power Limit #2............... : 105 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 0 (disabled)
 - Time Window for Power Limit #2....... : 33 (10 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x18579E2
------------------------------------------
 - Total Energy Consumed................ : 1557 Joules (Watt = Joules / seconds)

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0xEC3349
------------------------------------------
 - Total Energy Consumed................ : 944 Joules (Watt = Joules / seconds)

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0xEC3381
------------------------------------------
 - Total Energy Consumed................ : 944 Joules (Watt = Joules / seconds)

MSR_PP1_POWER_LIMIT..............(0x640) : 0x0

MSR_PP1_ENERGY_STATUS............(0x641) : 0xA0164
------------------------------------------
 - Total Energy Consumed................ : 40 Joules (Watt = Joules / seconds)

MSR_PP1_POLICY...................(0x642) : 0x18
------------------------------------------
 - Priority Level....................... : 24

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x22
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x0
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x0
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x80000000
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x8842
MSR_PKGC6_IRTL...................(0x60b) : 0x886A
MSR_PKGC7_IRTL...................(0x60c) : 0x8891
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1334924C62
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x133505EC70
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0
MSR_PKG_C7_RESIDENCY.............(0x3fa) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x3D128D8037

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......:  8 ( 800 MHz)
Maximum non-Turbo Ratio/Frequency........: 34 (3400 MHz)
Maximum Turbo Ratio/Frequency............: 38 (3800 MHz)

IGPU Info:
------------------------------------------
IGPU Current Frequency...................:  200 MHz
IGPU Minimum Frequency...................:  200 MHz
IGPU Maximum Non-Turbo Frequency.........:  350 MHz
IGPU Maximum Turbo Frequency.............: 1200 MHz
IGPU Maximum limit.......................: No Limit

P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 35 37 (38) ] iGPU P-States [ (4) ]
CPU C3-Cores [ 0 3 ]
CPU C6-Cores [ 1 ]
CPU C7-Cores [ 0 1 3 ]
CPU P-States [ 34 35 (37) 38 ] iGPU P-States [ (4) ]
CPU C3-Cores [ 0 2 3 ]
CPU C7-Cores [ 0 1 2 3 ]
CPU P-States [ 30 (34) 35 37 38 ] iGPU P-States [ (4) ]
CPU P-States [ (8) 29 30 34 35 37 38 ] iGPU P-States [ (4) ]
CPU P-States [ (8) 29 30 33 34 35 37 38 ] iGPU P-States [ 4 (8) ]
CPU C3-Cores [ 0 1 2 3 ]
CPU P-States [ 8 29 30 33 (34) 35 37 38 ] iGPU P-States [ 4 (7) 8 ]
CPU P-States [ 8 29 30 32 33 34 35 (37) 38 ] iGPU P-States [ 4 (5) 7 8 ]
CPU P-States [ (8) 26 29 30 32 33 34 35 37 38 ] iGPU P-States [ 4 5 (6) 7 8 ]
CPU P-States [ 8 26 29 30 32 33 34 35 (36) 37 38 ] iGPU P-States [ (4) 5 6 7 8 ]
CPU P-States [ (8) 26 28 29 30 32 33 34 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 ]
CPU P-States [ 8 26 28 29 30 32 33 34 35 36 (37) 38 ] iGPU P-States [ 4 5 6 7 8 (12) ]
CPU P-States [ 8 26 28 29 30 32 33 (34) 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 (10) 12 ]
CPU P-States [ 8 26 28 29 30 32 33 34 35 36 37 (38) ] iGPU P-States [ 4 5 6 7 8 10 12 (14) ]
CPU P-States [ 8 26 28 29 30 32 33 34 35 36 (37) 38 ] iGPU P-States [ 4 5 6 7 8 (9) 10 12 14 ]
CPU P-States [ 8 26 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ 4 (5) 6 7 8 9 10 12 14 ]
CPU P-States [ 8 23 26 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 23 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 23 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 18 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 18 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 18 20 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ 8 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 12 14 ]
CPU P-States [ (8) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 12 14 (15) ]
CPU P-States [ 8 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 12 (13) 14 15 ]
CPU P-States [ 8 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 (36) 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 12 13 14 15 (17) ]
CPU C6-Cores [ 1 2 ]
CPU C6-Cores [ 1 2 3 ]
CPU C6-Cores [ 0 1 2 3 ]
CPU P-States [ 8 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 (38) ] iGPU P-States [ 4 5 6 7 8 9 10 (11) 12 13 14 15 17 ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ (4) 5 6 7 8 9 10 11 12 13 14 15 17 ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 17 (20) ]
CPU P-States [ (8) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 17 (18) 20 ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 (38) ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 (16) 17 18 20 ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 (37) 38 ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 (19) 20 ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 (38) ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 (24) ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 (34) 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 (23) 24 ]
CPU P-States [ (8) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 (22) 23 24 ]
CPU P-States [ 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 (37) 38 ] iGPU P-States [ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 (21) 22 23 24 ]




Clover Config.plist





<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>#DisableDrivers</key>
	<array>
		<string>_NOT_SHOWN_</string>
	</array>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<true/>
			<key>Fixes</key>
			<dict>
				<key>FiX_TMR_40000</key>
				<false/>
				<key>FiX_WAK_200000</key>
				<false/>
				<key>FixShutdown_0004</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>change EHC1 to EH01</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					RUhDMQ==
					</data>
					<key>Replace</key>
					<data>
					RUgwMQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change EHC2 to EH02</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					RUhDMg==
					</data>
					<key>Replace</key>
					<data>
					RUgwMg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change GFX0 to IGPU</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					R0ZYMA==
					</data>
					<key>Replace</key>
					<data>
					SUdQVQ==
					</data>
				</dict>
			</array>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>EnableC2</key>
			<true/>
			<key>EnableC4</key>
			<true/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC7</key>
			<true/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<false/>
			</dict>
			<key>PluginType</key>
			<string>1</string>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v darkwake=0</string>
		<key>CustomLogo</key>
		<false/>
		<key>DefaultVolume</key>
		<string>LastBootedVolume</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<true/>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>1</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>ConfigName</key>
	<string>쀘쯠</string>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>2</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>HighCurrent</key>
			<true/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>Theme</key>
		<string>tonymacx86</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>EDID</key>
		<dict>
			<key>Inject</key>
			<false/>
		</dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>ig-platform-id</key>
		<string>0x0d220003</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>#FakeCPUID</key>
		<string>0x010676</string>
		<key>AppleIntelCPUPM</key>
		<false/>
		<key>AppleRTC</key>
		<true/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>t1-10.12-AppleHDA/Realtek ALC...</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ihnUEQ==
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				AAAAAA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>t1-10.9-10.12-AppleHDA/Realtek ALC892</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ixnUEQ==
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				kgjsEA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>t1-AppleHDA/Resources/xml>zml</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				eG1sLnps
				</data>
				<key>Name</key>
				<string>AppleHDA</string>
				<key>Replace</key>
				<data>
				em1sLnps
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable TRIM for SSD</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AEFQUExFIFNTRAA=
				</data>
				<key>Name</key>
				<string>com.apple.iokit.IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Increse BIOS-allocated memory to 64MB and framebuffer size to 34MB</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AwAiDQADAwMAAAACAAAwAQ==
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AwAiDQADAwMAAAAEAAAgAg==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.10-Azul-Port_0x5-DP2HDMI</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AQUJAAAEAACHAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AQUJAAAIAAAGAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.10-Azul-Port_0x6-DP2DVI</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AgQKAAAEAACHAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AgQKAAACAAAGAAAA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.10-Azul-Port_0x7-DP</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AwYIAAAEAAARAAAA
				</data>
				<key>Name</key>
				<string>AppleIntelFramebufferAzul</string>
				<key>Replace</key>
				<data>
				AwYIAAAEAAAAAAAA
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>08/08/2017</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM142.88Z.0122.B00.1708080739</string>
		<key>Board-ID</key>
		<string>Mac-27ADBB7B4CEE8E61</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>D25505501OPDM65A8</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>BoardVersion</key>
		<string>iMac14,2</string>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>0x0D</string>
		<key>Family</key>
		<string>iMac</string>
		<key>FirmwareFeatures</key>
		<string>0xE00FE137</string>
		<key>FirmwareFeaturesMask</key>
		<string>0xFF1FFF3F</string>
		<key>LocationInChassis</key>
		<string>Part Component</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Memory</key>
		<dict>
			<key>Channels</key>
			<integer>2</integer>
			<key>Modules</key>
			<array>
				<dict>
					<key>Frequency</key>
					<integer>1600</integer>
					<key>Part</key>
					<string>CT102464BA160B.C16</string>
					<key>Serial</key>
					<string>0607030300030105</string>
					<key>Size</key>
					<integer>8192</integer>
					<key>Slot</key>
					<integer>0</integer>
					<key>Type</key>
					<string>DDR3</string>
					<key>Vendor</key>
					<string>Crucial Technology</string>
				</dict>
				<dict>
					<key>Frequency</key>
					<integer>1600</integer>
					<key>Part</key>
					<string>CT102464BA160B.C16</string>
					<key>Serial</key>
					<string>0607030300030108</string>
					<key>Size</key>
					<integer>8192</integer>
					<key>Slot</key>
					<integer>2</integer>
					<key>Type</key>
					<string>DDR3</string>
					<key>Vendor</key>
					<string>Crucial Technology</string>
				</dict>
			</array>
			<key>SlotCount</key>
			<integer>2</integer>
		</dict>
		<key>Mobile</key>
		<false/>
		<key>PlatformFeature</key>
		<string>0x01</string>
		<key>ProductName</key>
		<string>iMac14,2</string>
		<key>SerialNumber</key>
		<string>D25P6YXLF8JC</string>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>







Clover Boot Log





0:100  0:100  MemLog inited, TSC freq: 3399017092
0:100  0:000
0:100  0:000  Now is 28.8.2017,  1:14:28 (GMT)
0:100  0:000  Starting Clover revision: 4184 on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12.6 | XCODE: 8.3.3]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,75D95C5D-AE7C-4A48-A799-1EAC13E28E6A,0xE1800,0x67F8E) @D5861E18
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 2
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 1315
0:100  0:000  SmbiosTable.Type17->SerialNumber = 10510321
0:100  0:000  SmbiosTable.Type17->PartNumber = CT102464BA160B.C16
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 1315
0:100  0:000  SmbiosTable.Type17->SerialNumber = 10510356
0:100  0:000  SmbiosTable.Type17->PartNumber = CT102464BA160B.C16
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'To Be Filled By O.E.M.' with board 'B85M-ITX'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306C3
0:100  0:000   The CPU supported SSE4.1
0:100  0:000   The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i5-4670K CPU @ 3.40GHz
0:100  0:000  MSR 0xE2 before patch 1E000405
0:100  0:000  MSR 0xCE              00080838_F3012200
0:100  0:000  MSR 0x1A0             00850081
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 34.0/8
0:100  0:000  Turbo: 36/37/38/38
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 4
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3400 MHz
0:100  0:000  TSC: 3400 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0C00 class=060000
0:100  0:000  PCI (00|00:02.00) : 8086 0412 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4600 (Intel)
0:100  0:000  PCI (00|00:03.00) : 8086 0C0C class=040300
0:100  0:000  PCI (00|00:14.00) : 8086 8C31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 8C3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:16.03) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:1A.00) : 8086 8C2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 8C20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 8C10 class=060400
0:100  0:000  PCI (00|00:1C.02) : 8086 8C14 class=060400
0:100  0:000  PCI (00|02:00.00) : 1969 10A1 class=020000
0:100  0:000   - LAN: 0 Vendor=Atheros
0:100  0:000  PCI (00|00:1D.00) : 8086 8C26 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 8C50 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 8C02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 8C22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 0 bytes
0:103  0:003  EFI\CLOVER\config.plist loaded: Success
0:103  0:000  === [ GetListOfThemes ] ===================================
0:103  0:000  - [00]: EMBEDDED
0:105  0:001  - [00]: RANDOM
0:107  0:001  - [00]: tonymacx86
0:108  0:001  - [01]: BGM
0:111  0:002  - [02]: METAL
0:113  0:002  - [03]: Beauty
0:115  0:002  - [04]: El Capitan
0:117  0:001  === [ Found config plists ] ===============================
0:117  0:000  - config-backup.plist
0:117  0:000  - config_bootOK_novideo.plist
0:117  0:000  - config.plist
0:118  0:000  === [ GetEarlyUserSettings ] ==============================
0:118  0:000  timeout set to 1
0:118  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:118  0:000  KextsToPatch: 9 requested
0:118  0:000   - [00]: AppleHDA (t1-10.12-AppleHDA/Realtek ALC...) :: BinPatch :: data len: 4
0:118  0:000   - [01]: AppleHDA (t1-10.9-10.12-AppleHDA/Realtek ALC892) :: BinPatch :: data len: 4
0:118  0:000   - [02]: AppleHDA (t1-AppleHDA/Resources/xml>zml) :: BinPatch :: data len: 6
0:118  0:000   - [03]: AppleAHCIPort (External icons patch) :: BinPatch :: data len: 8
0:118  0:000   - [04]: com.apple.iokit.IOAHCIBlockStorage (Enable TRIM for SSD) :: BinPatch :: data len: 11
0:118  0:000   - [05]: AppleIntelFramebufferAzul (Increse BIOS-allocated memory to 64MB and framebuffer size to 34MB) :: BinPatch :: data len: 16
0:118  0:000   - [06]: AppleIntelFramebufferAzul (10.10-Azul-Port_0x5-DP2HDMI) :: BinPatch :: data len: 12
0:118  0:000   - [07]: AppleIntelFramebufferAzul (10.10-Azul-Port_0x6-DP2DVI) :: BinPatch :: data len: 12
0:118  0:000   - [08]: AppleIntelFramebufferAzul (10.10-Azul-Port_0x7-DP) :: BinPatch :: data len: 12
0:118  0:000  Default theme: tonymacx86
0:118  0:000  Hiding entries with string \EFI\BOOT\BOOTX64.EFI
0:118  0:000  === [ LoadDrivers ] =======================================
0:119  0:001  Loading AppleImageCodec-64.efi  status=Success
0:119  0:000  Loading AppleKeyAggregator-64.efi  status=Success
0:120  0:000  Loading AppleUITheme-64.efi  status=Success
0:121  0:000  Loading DataHubDxe-64.efi  status=Success
0:135  0:013  Loading FirmwareVolume-64.efi  status=Success
0:135  0:000  Loading FSInject-64.efi  status=Success
0:136  0:000  Loading OsxAptioFix2Drv-64.efi  status=Success
0:137  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:137  0:000  Loading SMCHelper-64.efi  status=Success
0:138  0:000  Loading VBoxHfs-64.efi  status=Success
0:139  0:001   - driver needs connecting
0:139  0:000  1 drivers needs connecting ...
0:139  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:139  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
1:190  1:050  === [ InitScreen ] ========================================
1:190  0:000  SetMaxResolution: found best mode 0: 1600x1200
1:190  0:000   - already set
1:190  0:000  Console modes reported: 3, available modes:
1:190  0:000   - [01]: 80x25 (current mode)
1:190  0:000   - [02]: 128x40
1:190  0:000   - [03]: 100x31
1:190  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,75D95C5D-AE7C-4A48-A799-1EAC13E28E6A,0xE1800,0x67F8E)
1:190  0:000  Using embedded font: Success
1:191  0:000  === [ GetMacAddress ] =====================================
1:191  0:000  === [ ScanSPD ] ===========================================
1:191  0:000  SMBus device : 8086 8C22 class=0C0500 status=Success
1:191  0:000  SMBus CmdReg: 0x3
1:191  0:000  Scanning SMBus [8086:8C22], mmio: 0xF0519004, ioport: 0xF040, hostc: 0x11
1:191  0:000  Slots to scan [8]...
1:191  0:000  SPD[0]: Type 11 @0x50
1:209  0:018  DDR speed 1600MHz
1:209  0:000  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=CT102464BA160B.C16 SerialNo=0607030300030105
1:210  0:000  SPD[2]: Type 11 @0x52
1:228  0:018  DDR speed 1600MHz
1:228  0:000  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=CT102464BA160B.C16 SerialNo=0607030300030308
1:229  0:000  === [ GetAcpiTablesList ] =================================
1:235  0:006  Get Acpi Tables List from RSDT:
1:235  0:000   - [00]: FACP  A M I len=132
1:235  0:000   - [01]: APIC  A M I len=114
1:235  0:000   - [02]: FPDT  A M I len=68
1:235  0:000   - [03]: SSDT  Cpu0Ist len=1337
1:235  0:000   - [04]: SSDT  CpuPm len=2776
1:235  0:000   - [05]: MCFG  A M I len=60
1:235  0:000   - [06]: HPET  A M I len=56
1:235  0:000   - [07]: SSDT  SataTabl len=877
1:235  0:000   - [08]: SSDT  SaSsdt  len=13459
1:235  0:000   - [09]: AAFT  OEMAAFT  len=520
1:235  0:000   - [10]: UEFI  A M I len=66
1:235  0:000   - [11]: ASF!   HCG len=165
1:235  0:000   - [12]: BGRT  A M I len=56
1:235  0:000  Calibrated TSC Frequency = 3399017092 = 3399MHz
1:235  0:000  === [ GetUserSettings ] ===================================
1:235  0:000  USB FixOwnership: no
1:235  0:000   - final DSDT Fix mask=00000004
1:235  0:000  PatchesDSDT: 3 requested
1:235  0:000   - [00]: (change EHC1 to EH01) lenToFind: 4, lenToReplace: 4
1:235  0:000   - [01]: (change EHC2 to EH02) lenToFind: 4, lenToReplace: 4
1:235  0:000   - [02]: (change GFX0 to IGPU) lenToFind: 4, lenToReplace: 4
1:235  0:000  EnableC7: yes
1:235  0:000  EnableC6: yes
1:235  0:000  EnableC4: yes
1:235  0:000  EnableC2: yes
1:235  0:000  PluginType: 1
1:235  0:000  Using ProductName from config
1:235  0:000  ProductName: iMac14,2
1:235  0:000  Found same BiosVersion in clover and config
1:235  0:000  BiosVersion: IM142.88Z.0122.B00.1708080739
1:235  0:000  BiosReleaseDate: 08/08/2017
1:235  0:000  Found same FirmwareFeatures in clover and config
1:235  0:000  FirmwareFeatures: 0xE00FE137
1:235  0:000  Found same FirmwareFeaturesMask in clover and config
1:235  0:000  FirmwareFeaturesMask: 0xFF1FFF3F
1:235  0:000  Found same PlatformFeature in clover and config
1:235  0:000  PlatformFeature: 0x1
1:235  0:000  BoardType: 0xA
1:235  0:000  ChassisType: 0xD
1:237  0:001  === [ ScanVolumes ] =======================================
1:237  0:000  Found 7 volumes with blockIO
1:237  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
1:237  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,GPT,728040BF-FD3C-44E7-B7B3-C7291A21851F,0x800,0xE1000)
1:238  0:000          Result of bootcode detection: bootable Windows (vista,win)
1:241  0:003  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(2,GPT,75D95C5D-AE7C-4A48-A799-1EAC13E28E6A,0xE1800,0x67F8E)
1:241  0:000          Result of bootcode detection: bootable Windows (vista,win)
1:245  0:003          This is SelfVolume !!
1:245  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(3,GPT,151A2F9B-8DDD-B7D2-DD20-A3E3BE8A7C5B,0x14ECE0,0x8000)
1:245  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(4,GPT,B564C9A9-4210-4E3D-9EA4-F5F25133ADC5,0x156CE0,0x24C5A610)
1:246  0:000          Result of bootcode detection: bootable Windows (vista,win)
1:252  0:005  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,D6EAAB86-C008-0723-1FC1-8EB875C1C7A5,0x24DB12F0,0x16BEFF98)
1:252  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1A,0x0)\USB(0x0,0x0)\USB(0x0,0x0)\USB(0x2,0x0)\USB(0x2,0x0)
1:252  0:000          USB volume
1:252  0:000          USB volume
1:252  0:000          USB volume
1:252  0:000          USB volume
1:252  0:000  === [ InitTheme ] =========================================
1:255  0:002  Using theme 'BGM' (EFI\CLOVER\themes\BGM)
1:255  0:000  theme BGM defined in NVRAM found and theme.plist parsed
1:255  0:000  OS main and drive as badge
1:257  0:002  Loading font from ThemeDir: Success
1:258  0:000  Choosing theme BGM
1:258  0:000  after NVRAM boot-args=-v darkwake=0
1:258  0:000  === [ Dump SMC keys from NVRAM ] ==========================
1:258  0:000  found AppleSMC protocol
1:271  0:013  === [ ScanLoader ] ========================================
1:271  0:000  - [01]: 'Récupération'
1:271  0:000  - [02]: 'EFI'
1:274  0:003          AddLoaderEntry for Volume Name=EFI
1:278  0:003  - [04]: 'Windows'
1:278  0:000  - [05]: 'Sierra'
1:287  0:008          AddLoaderEntry for Volume Name=Sierra
1:292  0:004      Check if volume Is Hibernated:
1:292  0:000      Check sleep image 'by signature':
1:307  0:014      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
1:307  0:000      using default sleep image name = \private\var\vm\sleepimage
1:314  0:006      no valid sleep image offset was found
1:314  0:000      no valid sleep image offset was found
1:315  0:000      no valid sleep image offset was found
1:315  0:000      no valid sleep image offset was found
1:316  0:000      no valid sleep image offset was found
1:316  0:000      no valid sleep image offset was found
1:316  0:000       sleepimage offset could not be acquired
1:316  0:000      hibernated: no - sign
1:317  0:000          [!] Icon 17 (icons\vol_internal_hfs.icns) not found (path: EFI\CLOVER\themes\BGM)
1:318  0:000  === [ AddCustomTool ] =====================================
1:321  0:002  found tool \EFI\CLOVER\tools\Shell64U.efi
1:321  0:000  Checking EFI partition Volume 2 for Clover
1:321  0:000   Found Clover
1:324  0:003  === [ GetEfiBootDeviceFromNvram ] =========================
1:324  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,D6EAAB86-C008-0723-1FC1-8EB875C1C7A5,0x24DB12F0,0x16BEFF98)
1:324  0:000    - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,D6EAAB86-C008-0723-1FC1-8EB875C1C7A5,0x24DB12F0,0x16BEFF98)'
1:324  0:000    - LoaderPath: '<null string>'
1:324  0:000    - Guid = D6EAAB86-C008-0723-1FC1-8EB875C1C7A5
1:324  0:000  === [ FindStartupDiskVolume ] =============================
1:324  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(5,GPT,D6EAAB86-C008-0723-1FC1-8EB875C1C7A5,0x24DB12F0,0x16BEFF98)
1:324  0:000     - searching for that partition
1:324  0:000      - found entry 1. 'Boot macOS from Sierra', Volume 'Sierra'
1:324  0:000  Boot redirected to Entry 1. 'Boot macOS from Sierra'
1:324  0:000  DefaultIndex=1 and MainMenu.EntryCount=8
1:612  0:288  GUI ready
3:685  2:073  === [ StartLoader ] =======================================
3:685  0:000  Finally: ExternalClock=24MHz BusSpeed=99971kHz CPUFreq=3399MHz PIS: hw.busfrequency=96000000Hz
3:685  0:000  Loading boot.efi  status=Success
3:788  0:103  GetOSVersion: 10.12.5 (16F73)
3:788  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS
3:788  0:000  Filtering KextPatches:
3:788  0:000   - [00]: AppleHDA (t1-10.12-AppleHDA/Realtek ALC...) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [01]: AppleHDA (t1-10.9-10.12-AppleHDA/Realtek ALC892) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [02]: AppleHDA (t1-AppleHDA/Resources/xml>zml) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [03]: AppleAHCIPort (External icons patch) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [04]: com.apple.iokit.IOAHCIBlockStorage (Enable TRIM for SSD) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [05]: AppleIntelFramebufferAzul (Increse BIOS-allocated memory to 64MB and framebuffer size to 34MB) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [06]: AppleIntelFramebufferAzul (10.10-Azul-Port_0x5-DP2HDMI) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [07]: AppleIntelFramebufferAzul (10.10-Azul-Port_0x6-DP2DVI) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000   - [08]: AppleIntelFramebufferAzul (10.10-Azul-Port_0x7-DP) :: BinPatch :: [OS: 10.12.5 | MatchOS: All | MatchBuild: All] ==> allowed
3:789  0:000  === [ PatchSmbios ] =======================================
3:789  0:000  insert table 9 for dev 0:0
3:789  0:000  Injecting user memory modules to SMBIOS
3:789  0:000  Channels: 2
3:789  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
3:789  0:000  BANK 0 DIMM0 1600MHz 8192MB
3:789  0:000  BANK 1 DIMM0 1600MHz 8192MB
3:789  0:000  BANK 0 DIMM1 EMPTY
3:789  0:000  mTotalSystemMemory = 16384
3:789  0:000  NumberOfMemoryDevices = 3
3:789  0:000  Type20[0]->End = 0x7FFFFF, Type17[0] = 0x2000
3:789  0:000  Type20[1]->End = 0xFFFFFF, Type17[1] = 0x6000
3:789  0:000  Table 131 is present, CPUType=31
3:789  0:000  Change to: 605
3:789  0:000  === [ PatchACPI ] =========================================
3:789  0:000  RSDT 0xD834C028
3:789  0:000  FADT from RSDT: 0xD834C120
3:789  0:000  XSDT 0xD834C088
3:789  0:000  FADT from XSDT: 0xD83567E0
3:789  0:000  Xsdt reallocation done
3:789  0:000  old FADT length=10C
3:791  0:002  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
3:792  0:001  Apply DsdtFixMask=0x00000004
3:792  0:000     drop _DSM mask=0xFFFF
3:792  0:000  === [ FixBiosDsdt ] =======================================
3:792  0:000  VideoCard devID=0x4128086
3:792  0:000  DisplayADR1[0] = 0x20000, DisplayADR2[0] = 0xFFFE
3:900  0:108  Audio HDA (addr:0x30000) setting specified layout-id=2 (0x2)
3:900  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
3:900  0:000  USBADR[1] = 0x1A0000 and PCIe = 0xFFFE
4:008  0:108  Audio HDA (addr:0x1B0000) setting specified layout-id=2 (0x2)
4:008  0:000  USBADR[2] = 0x1D0000 and PCIe = 0xFFFE
4:008  0:000  Patching DSDT:
4:008  0:000   - [change EHC1 to EH01]: pattern 45484331, patched at: [ (53E0) (40FC) (F) (11) (11) (10) ]
4:008  0:000   - [change EHC2 to EH02]: pattern 45484332, patched at: [ (596A) (3BD8) (F) (11) (11) (10) ]
4:008  0:000   - [change GFX0 to IGPU]: pattern 47465830, patched at: [ (D7) (12) (12) (12) (12) (12) (7EE5) (1B) (130) (1D) (BE4) (30) (190) (355) (A74) (14) (84) (19) (F) (7D3) ]
4:008  0:000  first CPU found at 79A7 offset 79AA
4:008  0:000  score candidate at 79A3
4:008  0:000  score inserted in acpi_cpu_score _PR_
4:008  0:000  Found ACPI CPU: CPU0 | CPU1 | CPU2 | CPU3 | CPU4 | CPU5 | CPU6 | CPU7 , within the score: _PR_
4:009  0:000  Found PCIROOTUID = 0
4:009  0:000  Start SHUTDOWN Fix len=A887
4:009  0:000  === [ ACPIDropTables ] ====================================
4:009  0:000  === [ PatchAllSSDT ] ======================================
4:009  0:000  Patch table: SSDT  Cpu0Ist len=0x539
4:009  0:000  0. [change EHC1 to EH01]: pattern 45484331, bin not found / already patched!
4:009  0:000  1. [change EHC2 to EH02]: pattern 45484332, bin not found / already patched!
4:009  0:000  2. [change GFX0 to IGPU]: pattern 47465830, bin not found / already patched!
4:009  0:000  Patch table: SSDT  CpuPm len=0xAD8
4:009  0:000  0. [change EHC1 to EH01]: pattern 45484331, bin not found / already patched!
4:009  0:000  1. [change EHC2 to EH02]: pattern 45484332, bin not found / already patched!
4:009  0:000  2. [change GFX0 to IGPU]: pattern 47465830, bin not found / already patched!
4:009  0:000  Patch table: SSDT  SataTabl len=0x36D
4:009  0:000  0. [change EHC1 to EH01]: pattern 45484331, bin not found / already patched!
4:009  0:000  1. [change EHC2 to EH02]: pattern 45484332, bin not found / already patched!
4:009  0:000  2. [change GFX0 to IGPU]: pattern 47465830, bin not found / already patched!
4:009  0:000  Patch table: SSDT  SaSsdt  len=0x3493
4:009  0:000  0. [change EHC1 to EH01]: pattern 45484331, bin not found / already patched!
4:009  0:000  1. [change EHC2 to EH02]: pattern 45484332, bin not found / already patched!
4:009  0:000  2. [change GFX0 to IGPU]: pattern 47465830, patched at: [ (D7B) (1913) (B2C) (1D) ]
4:009  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
4:009  0:000   Xsdt has tables count=13
4:009  0:000  === [ ACPIPatchedAML ] ====================================
4:009  0:000  Unsorted
4:009  0:000  Inserting SSDT-PluginType1.aml from EFI\CLOVER\ACPI\patched ... Success
4:009  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=4
4:009  0:000  SSDT with CPU C-States generated successfully
4:009  0:000  === [ RestSetup macOS ] ===================================
4:009  0:000  EdidDiscovered size=128
4:009  0:000  ------- EDID Table
4:009  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  10  AC
4:009  0:000  010  |  83  40  4C  35  33  33  31  17  01  03
4:009  0:000  020  |  80  40  28  78  EA  1D  F5  AE  4F  35
4:009  0:000  030  |  B3  25  0D  50  54  A5  4B  00  81  00
4:009  0:000  040  |  B3  00  D1  00  71  4F  A9  40  81  80
4:009  0:000  050  |  D1  C0  01  01  E2  68  00  A0  A0  40
4:009  0:000  060  |  2E  60  30  20  36  00  81  91  21  00
4:009  0:000  070  |  00  1A  00  00  00  FF  00  50  31  56
4:009  0:000  080  |  36  4E  33  43  35  33  33  35  4C  0A
4:009  0:000  090  |  00  00  00  FC  00  44  45  4C  4C  20
4:009  0:000  100  |  55  33  30  31  34  0A  20  20  00  00
4:009  0:000  110  |  00  FD  00  31  56  1D  71  1C  00  0A
4:009  0:000  120  |  20  20  20  20  20  20  01  4D
4:009  0:000  Intel HD Graphics 4600 [8086:0412] :: PciRoot(0x0)\Pci(0x2,0x0)
4:009  0:000    Found Ultra XGA Display - 4:3 :: Width=1600 Height=1200
4:009  0:000    Beginning DualLink auto-detection
4:009  0:000    High Resolution Display
4:009  0:000    AAPL00,DualLink = 1
4:009  0:000    FakeID Intel GFX: not set
4:009  0:000    ig-platform-id = 0x0D220003
4:009  0:000    Beginning Intel GFX auto-detection with ACPI injection
4:009  0:000    Found FakeID Intel GFX = 0x04128086
4:009  0:000  Intel GFX revision  = 0x6
4:009  0:000   setting specified layout-id=2 (0x2)
4:009  0:000   setting specified layout-id=2 (0x2)
4:009  0:000  stringlength = 1640
4:010  0:000  CurrentMode: Width=1600 Height=1200
4:010  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D5861518
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D5861518
4:015  0:005  Use origin smbios table type 1 guid.
4:021  0:006  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
4:022  0:000    Extra kext: EFI\CLOVER\kexts\Other\AtherosE2200Ethernet.kext
4:025  0:003    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
4:029  0:004    Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext
4:033  0:003    Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL8111.kext
4:037  0:003    Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext
4:095  0:058  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
4:096  0:001    Extra kext: EFI\CLOVER\kexts\10.12\realtekALC.kext
4:103  0:006  SetStartupDiskVolume:
4:103  0:000    * Volume: 'Sierra'
4:103  0:000    * LoaderPath: '<null string>'
4:103  0:000    * DevPath: Sierra
4:103  0:000    * GUID = D6EAAB86-C008-0723-1FC1-8EB875C1C7A5
4:103  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>D6EAAB86-C008-0723-1FC1-8EB875C1C7A5</string></dict></dict></dict></array>
4:103  0:000  Custom boot screen not used because entry has unset use graphics







ssdtPRGen.sh log





ssdtPRGen.sh v0.9  Copyright (c) 2011-2012 by † RevoGirl
             v6.6  Copyright (c) 2013 by † Jeroen
             v21.5 Copyright (c) 2013-2017 by Pike R. Alpha
-----------------------------------------------------------
Bugs > https://github.com/Piker-Alpha/ssdtPRGen.sh/issues <

System information: Mac OS X 10.12.5 (16F73)
Brandstring: "Intel(R) Core(TM) i5-4670K CPU @ 3.40GHz"

Version: models.cfg v150 / Haswell.cfg v151


Scope (_PR_) {222 bytes} with ACPI Processor declarations found in DSDT (ACPI 1.0 compliant)
Generating ssdt.dsl for a 'iMac14,2' with board-id [Mac-27ADBB7B4CEE8E61]
Haswell Core i5-4670K processor [0x306C3] setup [0x0605]
With a maximum TDP of 84 Watt, as specified by Intel
Number logical CPU's: 4 (Core Frequency: 3400 MHz)
Number of Turbo States: 4 (3500-3800 MHz)
Number of P-States: 31 (800-3800 MHz)
Injected C-States for CPU0 (C1,C3,C6,C7)
Injected C-States for CPU1 (C1,C2,C3)

Compiling: ssdt_pr.dsl
Intel ACPI Component Architecture
ASL+ Optimizing Compiler version 20161210-64(RM)
Copyright (c) 2000 - 2016 Intel Corporation

ASL Input:     /Users/xxxxx/Library/ssdtPRGen/ssdt.dsl - 276 lines, 9919 bytes, 49 keywords
AML Output:    /Users/xxxxx/Library/ssdtPRGen/ssdt.aml - 1935 bytes, 16 named objects, 33 executable opcodes

Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations






ssdt.dsl - no longer used, but whether I used this one, or the SSDT-PluginType1.aml ( (active now), same result, no C states used



/*
 * Intel ACPI Component Architecture
 * AML Disassembler version 20140210-00 [Feb 10 2014]
 * Copyright (c) 2000 - 2014 Intel Corporation
 *
 * Original Table Header:
 *     Signature        "SSDT"
 *     Length           0x0000036A (874)
 *     Revision         0x01
 *     Checksum         0x00
 *     OEM ID           "APPLE "
 *     OEM Table ID     "CpuPm"
 *     OEM Revision     0x00021500 (136448)
 *     Compiler ID      "INTL"
 *     Compiler Version 0x20140210 (538182160)
 */

DefinitionBlock ("ssdt.aml", "SSDT", 1, "APPLE ", "CpuPm", 0x00021500)
{
    External (\_PR_.CPU0, DeviceObj)
    External (\_PR_.CPU1, DeviceObj)
    External (\_PR_.CPU2, DeviceObj)
    External (\_PR_.CPU3, DeviceObj)

    Scope (\_PR_.CPU0)
    {
        Method (_INI, 0, NotSerialized)
        {
            Store ("ssdtPRGen version.....: 21.5 / Mac OS X 10.12.5 (16F73)", Debug)
            Store ("custom mode...........: 0", Debug)
            Store ("host processor........: Intel(R) Core(TM) i5-4670K CPU @ 3.40GHz", Debug)
            Store ("target processor......: i5-4670K", Debug)
            Store ("number of processors..: 1", Debug)
            Store ("baseFrequency.........: 800", Debug)
            Store ("frequency.............: 3400", Debug)
            Store ("busFrequency..........: 100", Debug)
            Store ("logicalCPUs...........: 4", Debug)
            Store ("maximum TDP...........: 84", Debug)
            Store ("packageLength.........: 31", Debug)
            Store ("turboStates...........: 4", Debug)
            Store ("maxTurboFrequency.....: 3800", Debug)
            Store ("machdep.xcpm.mode.....: 1", Debug)
        }

        Name (APLF, Zero)
        Name (APSN, 0x04)
        Name (APSS, Package (0x1F)
        {
            /* High Frequency Modes (turbo) */
            Package (0x06) { 0x0ED8, 0x014820, 0x0A, 0x0A, 0x2600, 0x2600 },
            Package (0x06) { 0x0E74, 0x014820, 0x0A, 0x0A, 0x2500, 0x2500 },
            Package (0x06) { 0x0E10, 0x014820, 0x0A, 0x0A, 0x2400, 0x2400 },
            Package (0x06) { 0x0DAC, 0x014820, 0x0A, 0x0A, 0x2300, 0x2300 },
            /* High Frequency Modes (non-turbo) */
            Package (0x06) { 0x0D48, 0x014820, 0x0A, 0x0A, 0x2200, 0x2200 },
            Package (0x06) { 0x0CE4, 0x013ADD, 0x0A, 0x0A, 0x2100, 0x2100 },
            Package (0x06) { 0x0C80, 0x012DD8, 0x0A, 0x0A, 0x2000, 0x2000 },
            Package (0x06) { 0x0C1C, 0x01210F, 0x0A, 0x0A, 0x1F00, 0x1F00 },
            Package (0x06) { 0x0BB8, 0x011482, 0x0A, 0x0A, 0x1E00, 0x1E00 },
            Package (0x06) { 0x0B54, 0x010831, 0x0A, 0x0A, 0x1D00, 0x1D00 },
            Package (0x06) { 0x0AF0, 0x00FC1C, 0x0A, 0x0A, 0x1C00, 0x1C00 },
            Package (0x06) { 0x0A8C, 0x00F041, 0x0A, 0x0A, 0x1B00, 0x1B00 },
            Package (0x06) { 0x0A28, 0x00E4A0, 0x0A, 0x0A, 0x1A00, 0x1A00 },
            Package (0x06) { 0x09C4, 0x00D939, 0x0A, 0x0A, 0x1900, 0x1900 },
            Package (0x06) { 0x0960, 0x00CE0B, 0x0A, 0x0A, 0x1800, 0x1800 },
            Package (0x06) { 0x08FC, 0x00C316, 0x0A, 0x0A, 0x1700, 0x1700 },
            Package (0x06) { 0x0898, 0x00B859, 0x0A, 0x0A, 0x1600, 0x1600 },
            Package (0x06) { 0x0834, 0x00ADD4, 0x0A, 0x0A, 0x1500, 0x1500 },
            Package (0x06) { 0x07D0, 0x00A387, 0x0A, 0x0A, 0x1400, 0x1400 },
            Package (0x06) { 0x076C, 0x009970, 0x0A, 0x0A, 0x1300, 0x1300 },
            Package (0x06) { 0x0708, 0x008F90, 0x0A, 0x0A, 0x1200, 0x1200 },
            Package (0x06) { 0x06A4, 0x0085E6, 0x0A, 0x0A, 0x1100, 0x1100 },
            Package (0x06) { 0x0640, 0x007C71, 0x0A, 0x0A, 0x1000, 0x1000 },
            Package (0x06) { 0x05DC, 0x007331, 0x0A, 0x0A, 0x0F00, 0x0F00 },
            Package (0x06) { 0x0578, 0x006A25, 0x0A, 0x0A, 0x0E00, 0x0E00 },
            Package (0x06) { 0x0514, 0x00614E, 0x0A, 0x0A, 0x0D00, 0x0D00 },
            Package (0x06) { 0x04B0, 0x0058AA, 0x0A, 0x0A, 0x0C00, 0x0C00 },
            Package (0x06) { 0x044C, 0x005039, 0x0A, 0x0A, 0x0B00, 0x0B00 },
            Package (0x06) { 0x03E8, 0x0047FB, 0x0A, 0x0A, 0x0A00, 0x0A00 },
            Package (0x06) { 0x0384, 0x003FEE, 0x0A, 0x0A, 0x0900, 0x0900 },
            /* Low Frequency Mode */
            Package (0x06) { 0x0320, 0x003814, 0x0A, 0x0A, 0x0800, 0x0800 }
        })

        Method (ACST, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU0.ACST Called", Debug)
            Store ("CPU0 C-States    : 29", Debug)

            /* Low Power Modes for CPU0 */
            Return (Package (0x06)
            {
                One,
                0x04,
                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000000, // Address
                            0x01,               // Access Size
                            )
                    },
                    One,
                    Zero,
                    0x03E8
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000010, // Address
                            0x03,               // Access Size
                            )
                    },
                    0x03,
                    0xCD,
                    0x01F4
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000020, // Address
                            0x03,               // Access Size
                            )
                    },
                    0x06,
                    0xF5,
                    0x015E
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000030, // Address
                            0x03,               // Access Size
                            )
                    },
                    0x07,
                    0xF5,
                    0xC8
                }
            })
        }

        Method (_DSM, 4, NotSerialized)
        {
            Store ("Method _PR_.CPU0._DSM Called", Debug)

            If (LEqual (Arg2, Zero))
            {
                Return (Buffer (One)
                {
                    0x03
                })
            }

            Return (Package (0x02)
            {
                "plugin-type",
                One
            })
        }
    }

    Scope (\_PR_.CPU1)
    {
        Method (APSS, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU1.APSS Called", Debug)

            Return (\_PR_.CPU0.APSS)
        }

        Method (ACST, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU1.ACST Called", Debug)
            Store ("CPU1 C-States    : 7", Debug)

            /* Low Power Modes for CPU1 */
            Return (Package (0x05)
            {
                One,
                0x03,
                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000000, // Address
                            0x01,               // Access Size
                            )
                    },
                    One,
                    0x03E8,
                    0x03E8
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000010, // Address
                            0x03,               // Access Size
                            )
                    },
                    0x02,
                    0x94,
                    0x01F4
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000030, // Address
                            0x03,               // Access Size
                            )
                    },
                    0x03,
                    0xC6,
                    0xC8
                }
            })
        }
    }

    Scope (\_PR_.CPU2)
    {
        Method (APSS, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU2.APSS Called", Debug)

            Return (\_PR_.CPU0.APSS)
        }

        Method (ACST, 0, NotSerialized) { Return (\_PR_.CPU1.ACST ()) }
    }

    Scope (\_PR_.CPU3)
    {
        Method (APSS, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU3.APSS Called", Debug)

            Return (\_PR_.CPU0.APSS)
        }

        Method (ACST, 0, NotSerialized) { Return (\_PR_.CPU1.ACST ()) }
    }
}







So what do you think?

Thanks for your help in solving that mystery Sleep OK, C states NOK

Thanks


ACPI_origin.zip


Share this post


Link to post
Share on other sites
Advertisement

How do you check switching C-States is working, beside P-States?

P-States is easy : CPU clocks uop/down. But how check C-States?

I also use the generator for my I5 i5-3350P. (i dont use XPM).

I see you have disabled P-State generate in Clover but enabled (C-States) and set C-State (1,...7) also to enabled.

Doesnt that is doule or interference with the ssdt which has already setup all for C-States?

/*
 * Intel ACPI Component Architecture
 * AML/ASL+ Disassembler version 20161210-64(RM)
 * Copyright (c) 2000 - 2016 Intel Corporation
 *
 * Disassembling to non-symbolic legacy ASL operators
 *
 * Disassembly of iASLGFReeo.aml, Thu Nov  9 07:15:09 2017
 *
 * Original Table Header:
 *     Signature        "SSDT"
 *     Length           0x00000708 (1800)
 *     Revision         0x01
 *     Checksum         0xEE
 *     OEM ID           "APPLE "
 *     OEM Table ID     "CpuPm"
 *     OEM Revision     0x00021500 (136448)
 *     Compiler ID      "INTL"
 *     Compiler Version 0x20140926 (538183974)
 */
DefinitionBlock ("", "SSDT", 1, "APPLE ", "CpuPm", 0x00021500)
{
    External (_PR_.CPU0, DeviceObj)    // Warning: Unknown object
    External (_PR_.CPU1, DeviceObj)    // Warning: Unknown object
    External (_PR_.CPU2, DeviceObj)    // Warning: Unknown object
    External (_PR_.CPU3, DeviceObj)    // Warning: Unknown object

    Scope (\_PR.CPU0)
    {
        Method (_INI, 0, NotSerialized)  // _INI: Initialize
        {
            Store ("ssdtPRGen version.....: 21.5 / Mac OS X 10.12.6 (16G1036)", Debug)
            Store ("custom mode...........: 0", Debug)
            Store ("host processor........: Intel(R) Core(TM) i5-3350P CPU @ 3.10GHz", Debug)
            Store ("target processor......: i5-3350P", Debug)
            Store ("number of processors..: 1", Debug)
            Store ("baseFrequency.........: 1600", Debug)
            Store ("frequency.............: 3100", Debug)
            Store ("busFrequency..........: 100", Debug)
            Store ("logicalCPUs...........: 4", Debug)
            Store ("maximum TDP...........: 69", Debug)
            Store ("packageLength.........: 18", Debug)
            Store ("turboStates...........: 2", Debug)
            Store ("maxTurboFrequency.....: 3300", Debug)
            Store ("CPU Workarounds.......: 3", Debug)
            Store ("machdep.xcpm.mode.....: 0", Debug)
        }

        Name (APLF, 0x09)
        Name (APSN, 0x03)
        Name (APSS, Package (0x1C)
        {
            Package (0x06)
            {
                0x0CE5,
                0x00010D88,
                0x0A,
                0x0A,
                0x2200,
                0x2200
            },

            Package (0x06)
            {
                0x0CE4,
                0x00010D88,
                0x0A,
                0x0A,
                0x2100,
                0x2100
            },

            Package (0x06)
            {
                0x0C80,
                0x00010D88,
                0x0A,
                0x0A,
                0x2000,
                0x2000
            },

            Package (0x06)
            {
                0x0C1C,
                0x00010D88,
                0x0A,
                0x0A,
                0x1F00,
                0x1F00
            },

            Package (0x06)
            {
                0x0BB8,
                0x000101E1,
                0x0A,
                0x0A,
                0x1E00,
                0x1E00
            },

            Package (0x06)
            {
                0x0B54,
                0xF671,
                0x0A,
                0x0A,
                0x1D00,
                0x1D00
            },

            Package (0x06)
            {
                0x0AF0,
                0xEB37,
                0x0A,
                0x0A,
                0x1C00,
                0x1C00
            },

            Package (0x06)
            {
                0x0A8C,
                0xE033,
                0x0A,
                0x0A,
                0x1B00,
                0x1B00
            },

            Package (0x06)
            {
                0x0A28,
                0xD565,
                0x0A,
                0x0A,
                0x1A00,
                0x1A00
            },

            Package (0x06)
            {
                0x09C4,
                0xCACB,
                0x0A,
                0x0A,
                0x1900,
                0x1900
            },

            Package (0x06)
            {
                0x0960,
                0xC066,
                0x0A,
                0x0A,
                0x1800,
                0x1800
            },

            Package (0x06)
            {
                0x08FC,
                0xB635,
                0x0A,
                0x0A,
                0x1700,
                0x1700
            },

            Package (0x06)
            {
                0x0898,
                0xAC37,
                0x0A,
                0x0A,
                0x1600,
                0x1600
            },

            Package (0x06)
            {
                0x0834,
                0xA26D,
                0x0A,
                0x0A,
                0x1500,
                0x1500
            },

            Package (0x06)
            {
                0x07D0,
                0x98D5,
                0x0A,
                0x0A,
                0x1400,
                0x1400
            },

            Package (0x06)
            {
                0x076C,
                0x8F6F,
                0x0A,
                0x0A,
                0x1300,
                0x1300
            },

            Package (0x06)
            {
                0x0708,
                0x863C,
                0x0A,
                0x0A,
                0x1200,
                0x1200
            },

            Package (0x06)
            {
                0x06A4,
                0x7D3A,
                0x0A,
                0x0A,
                0x1100,
                0x1100
            },

            Package (0x06)
            {
                0x0640,
                0x7469,
                0x0A,
                0x0A,
                0x1000,
                0x1000
            },

            Package (0x06)
            {
                0x05DC,
                Zero,
                0x0A,
                0x0A,
                0x0F00,
                0x0F00
            },

            Package (0x06)
            {
                0x0578,
                Zero,
                0x0A,
                0x0A,
                0x0E00,
                0x0E00
            },

            Package (0x06)
            {
                0x0514,
                Zero,
                0x0A,
                0x0A,
                0x0D00,
                0x0D00
            },

            Package (0x06)
            {
                0x04B0,
                Zero,
                0x0A,
                0x0A,
                0x0C00,
                0x0C00
            },

            Package (0x06)
            {
                0x044C,
                Zero,
                0x0A,
                0x0A,
                0x0B00,
                0x0B00
            },

            Package (0x06)
            {
                0x03E8,
                Zero,
                0x0A,
                0x0A,
                0x0A00,
                0x0A00
            },

            Package (0x06)
            {
                0x0384,
                Zero,
                0x0A,
                0x0A,
                0x0900,
                0x0900
            },

            Package (0x06)
            {
                0x0320,
                Zero,
                0x0A,
                0x0A,
                0x0800,
                0x0800
            },

            Package (0x06)
            {
                0x02BC,
                Zero,
                0x0A,
                0x0A,
                0x0700,
                0x0700
            }
        })
        Method (ACST, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU0.ACST Called", Debug)
            Store ("CPU0 C-States    : 13", Debug)
            Return (Package (0x05)
            {
                One,
                0x03,
                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000000, // Address
                            0x01,               // Access Size
                            )
                    },

                    One,
                    Zero,
                    0x03E8
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000010, // Address
                            0x03,               // Access Size
                            )
                    },

                    0x03,
                    0xCD,
                    0x01F4
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000020, // Address
                            0x03,               // Access Size
                            )
                    },

                    0x06,
                    0xF5,
                    0x015E
                }
            })
        }

        Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
        {
            Store ("Method _PR_.CPU0._DSM Called", Debug)
            If (LEqual (Arg2, Zero))
            {
                Return (Buffer (One)
                {
                     0x03
                })
            }

            Return (Package (0x02)
            {
                "plugin-type",
                One
            })
        }
    }

    Scope (\_PR.CPU1)
    {
        Method (APSS, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU1.APSS Called", Debug)
            Return (\_PR.CPU0.APSS)
        }

        Method (ACST, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU1.ACST Called", Debug)
            Store ("CPU1 C-States    : 7", Debug)
            Return (Package (0x05)
            {
                One,
                0x03,
                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000000, // Address
                            0x01,               // Access Size
                            )
                    },

                    One,
                    0x03E8,
                    0x03E8
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000010, // Address
                            0x03,               // Access Size
                            )
                    },

                    0x02,
                    0x94,
                    0x01F4
                },

                Package (0x04)
                {
                    ResourceTemplate ()
                    {
                        Register (FFixedHW,
                            0x01,               // Bit Width
                            0x02,               // Bit Offset
                            0x0000000000000020, // Address
                            0x03,               // Access Size
                            )
                    },

                    0x03,
                    0xA9,
                    0x015E
                }
            })
        }
    }

    Scope (\_PR.CPU2)
    {
        Method (APSS, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU2.APSS Called", Debug)
            Return (\_PR.CPU0.APSS)
        }

        Method (ACST, 0, NotSerialized)
        {
            Return (\_PR.CPU1.ACST ())
        }
    }

    Scope (\_PR.CPU3)
    {
        Method (APSS, 0, NotSerialized)
        {
            Store ("Method _PR_.CPU3.APSS Called", Debug)
            Return (\_PR.CPU0.APSS)
        }

        Method (ACST, 0, NotSerialized)
        {
            Return (\_PR.CPU1.ACST ())
        }
    }
}

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now

  • Recently Browsing   0 members

    No registered users viewing this page.

×
