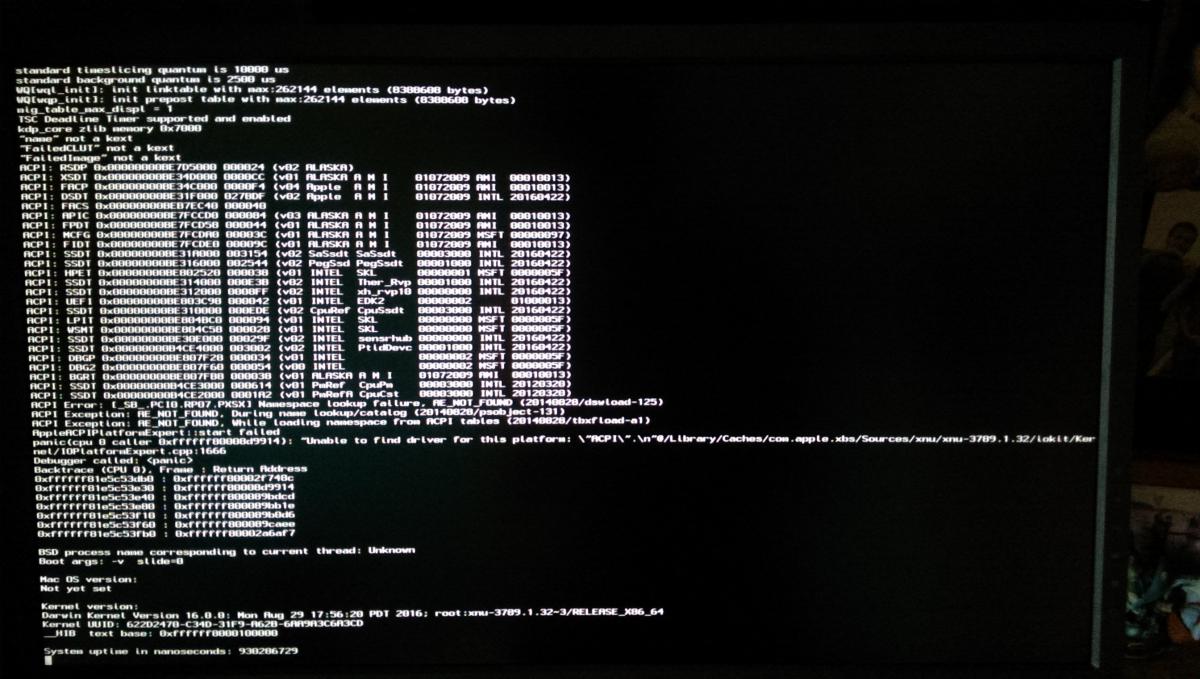

SeriousNerd Posted June 27, 2017 Share Posted June 27, 2017 Booting stops right at the start. Check attached image. Note: I was able to get macOS Sierra running on this PC but erased the disk and now i dont remember anything. I am sorry, i am kinda new to this. System Specs: i5 6402P GTX 1060 2x8 16 GB DDR4 Gigabyte H110M S2 Wireless PCI (TL-WDN4800) Pre - installation: Created CLOVER drive using bootdiskutility and created macOS drive using win32diskimager BIOS settings: 1) Loaded default options 2) Turned Vt-d off 3) Turned XHCI Handoff on 4) Drives are set to AHCI 5) Secure boot: disabled 6) OS Type set to other OS 7) Unable to find IO Serial port option, though there is a IOAPIC option, tried both on and off. Boot args: tried -v -x nv_disable=1 GraphicsEnabler=No no luck. any help is appreciated. 1 Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/ Share on other sites More sharing options...
MaLd0n Posted June 27, 2017 Share Posted June 27, 2017 http://www.insanelymac.com/forum/topic/323052-sierra-on-intel-5-6-7-8-9-and-10-chipset-series Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2452341 Share on other sites More sharing options...
SeriousNerd Posted June 27, 2017 Author Share Posted June 27, 2017 First off, HUGE THANKS FOR THE QUICK REPLY! And I am able to boot into the installation! 1 Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2452356 Share on other sites More sharing options...
MaLd0n Posted June 27, 2017 Share Posted June 27, 2017 after install send me files, see topic Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2452365 Share on other sites More sharing options...
SeriousNerd Posted June 28, 2017 Author Share Posted June 28, 2017 Alright, I've run into another problem. My GIGABYTE GTX 1060 is not being detected. I am using Nvidia Web Driver: 378.05.05.05f01. System report: check attachment. System Report.tiff Nvidia Driver Manager 1.tiff Also it always set to "use default OS X driver" I tried choosing "use web driver" but its still the same. Nvidia Driver Manager 2.tiff Thanks again! 1 Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2452949 Share on other sites More sharing options...
MaLd0n Posted June 28, 2017 Share Posted June 28, 2017 post ur files here check my topic about files needed Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2452961 Share on other sites More sharing options...
SeriousNerd Posted June 28, 2017 Author Share Posted June 28, 2017 How do I upload the CLOVER folder. Compress it in a zip? Is there anything else. My internet is very very bad. Thanks! Send me Om’s iMac.zip 1 Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2452982 Share on other sites More sharing options...
MaLd0n Posted June 28, 2017 Share Posted June 28, 2017 How do I upload the CLOVER folder. Compress it in a zip? Is there anything else. My internet is very very bad. Thanks! Send me Om’s iMac.zip -replace folder CLOVER.zip -install webdriver -reboot 1 Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2453117 Share on other sites More sharing options...
SeriousNerd Posted June 29, 2017 Author Share Posted June 29, 2017 IT WORKS PERFECTLY! THANK YOU! Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2453157 Share on other sites More sharing options...
MaLd0n Posted June 29, 2017 Share Posted June 29, 2017 send me ioreg, need check some things IORegistryExplorer.app.zip Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2453172 Share on other sites More sharing options...
A H Timu Posted September 25, 2017 Share Posted September 25, 2017 MaLd0n, My new build is Gigabyte GA-H110M-S2, Core i7, Zotac nvidia 1050 ti, 16 GB RAM. 1TB Toshiba HDD. 10.12.4 works fine without Graphics. After install web driver it likes to stay with apples default driver. after Emu Variable UEFI-64 and configure the clover, the boot progress stops at it's last step. My Graphics card contains 1 HDMI and 1 DVI port, when my monitor contains HDMI and VGA port. Will Sierra goes with this HDMI-2 ? or will it works with a DVI to VGA coverter?Thanks and Best Regards. Link to comment https://www.insanelymac.com/forum/topic/324785-help-skylake-ga-h110m-s2-unable-to-boot-install-macos-sierra/#findComment-2500402 Share on other sites More sharing options...
