Installer looping during new hackintosh installation

appunu

By appunu,
in OSx86 10.12 (Sierra)

 Share
21 posts in this topic

Recommended Posts

appunu
appunu
Posted
Posted

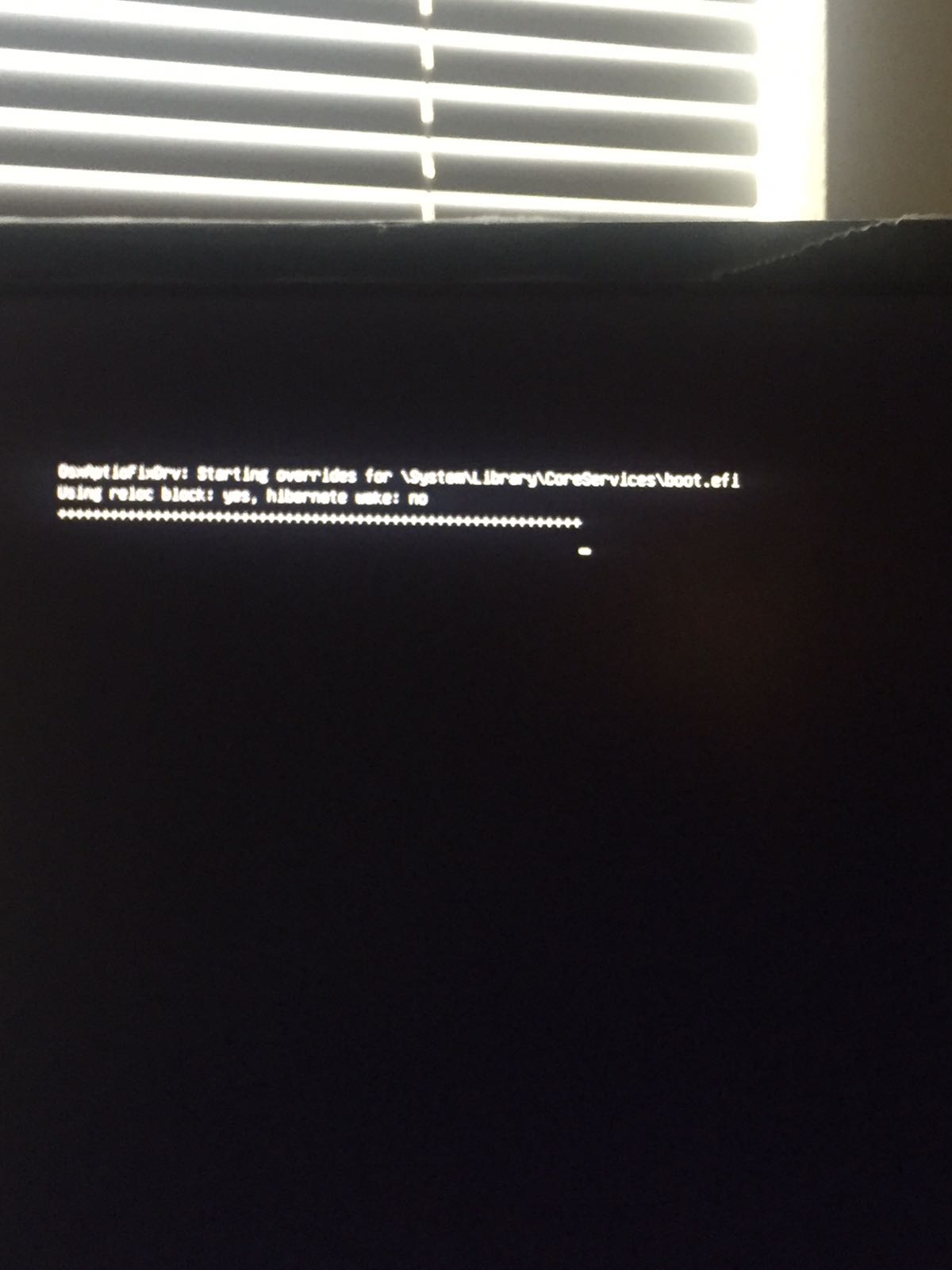

I have a working sierra installation on a dedicated ssd and would like to play around with the latest .4 release. I created a new clover installer USB and tried to boot with the USB . I was able to install into another dedicated ssd. The system restarts after copying files and when I come back to clover boot loader and select install from USB , the initial process starts again instead of continuing with the rest of the installation . Can someone help me out understanding what is going on ?

MaLd0n
MaLd0n
Posted
Posted

-Create bootable

http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/

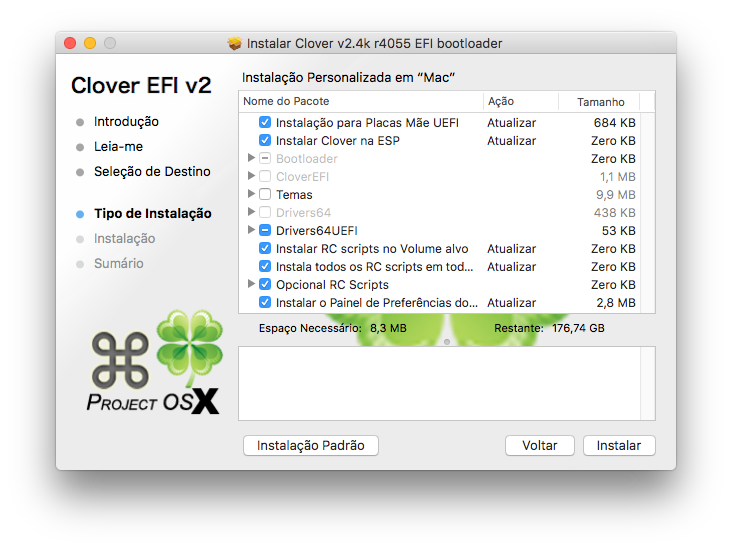

-Install Clover with options in USB stick

MaLd0n 2017-04-07 às 00.40.03.png

https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4049.zip/download

-Replace Folder

CLOVER.zip

Use nv_disable=1

  • Like 1
appunu
appunu
Posted
  • Author
Posted





Thanks that works. But the computer does random reboots, while working , while idle. How do i find the reboot reason ? I searched console logs but I dont find any text matching cause or reboot.

MaLd0n
MaLd0n
Posted
Posted
-Post ur full Clover folder

-Post Ioreg, extract with Ioreg Explorer


-Run it, post files generate in ur desktop


MaLd0n
MaLd0n
Posted
Posted

-Replace Clover folder

CLOVER.zip

-Generate ur SSDT fot PM and put SSDT.aml in Clover/Acpi/Patched

ssdtPRGen.command.zip

-Put codec commander in S/L/E

CodecCommander.kext.zip

-Run KextUtility

Kext Utility.app.zip



-Reboot and send me new ioreg



Remove VoodooHda

appunu
appunu
Posted
  • Author
Posted



bash-3.2# cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v2.5 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.



Settings:

------------------------------------------

logMSRs..................................: 1

logIGPU..................................: 0

logCStates...............................: 1

logIPGStyle..............................: 1

InitialTSC...............................: 0x4704d2ca00b3 (2366 MHz)

MWAIT C-States...........................: 8480



Processor Brandstring....................: Intel® Core i7-5820K CPU @ 3.30GHz



Processor Signature..................... : 0x306F2

------------------------------------------

 - Family............................... : 6

 - Stepping............................. : 2

 - Model................................ : 0x3F (63)



Model Specific Registers (MSRs)

------------------------------------------



MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8039D3FD00

------------------------------------------

 - Core Count........................... : 6

 - Thread Count......................... : 12



MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3812100

------------------------------------------

 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)

 - Ratio Limit for Turbo Mode........... : 1 (programmable)

 - TDP Limit for Turbo Mode............. : 1 (programmable)

 - Low Power Mode Support............... : 1 (LPM supported)

 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)

 - Maximum Efficiency Ratio............. : 12

 - Minimum Operating Ratio.............. : 8



MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400

------------------------------------------

 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)

 - CFG Lock............................. : 1 (MSR locked until next reset)

 - C3 State Auto Demotion............... : 0 (disabled/unsupported)

 - C1 State Auto Demotion............... : 0 (disabled/unsupported)

 - C3 State Undemotion.................. : 0 (disabled/unsupported)

 - C1 State Undemotion.................. : 0 (disabled/unsupported)

 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)

 - Package C-State Undemotion........... : 0 (disabled/unsupported)



MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414

------------------------------------------

 - LVL_2 Base Address................... : 0x414

 - C-state Range........................ : 1 (C6 is the max C-State to include)



IA32_MPERF.......................(0xE7)  : 0x24A93C43AD

IA32_APERF.......................(0xE8)  : 0x2005423F75



MSR_FLEX_RATIO...................(0x194) : 0xE0000

------------------------------------------



MSR_IA32_PERF_STATUS.............(0x198) : 0x1A2700000C00

------------------------------------------

 - Current Performance State Value...... : 0xC00 (1200 MHz)



MSR_IA32_PERF_CONTROL............(0x199) : 0x2100

------------------------------------------

 - Target performance State Value....... : 0x2100 (3300 MHz)

 - Intel Dynamic Acceleration........... : 0 (IDA engaged)



IA32_CLOCK_MODULATION............(0x19A) : 0x0



IA32_THERM_INTERRUPT.............(0x19B) : 0x0



IA32_THERM_STATUS................(0x19C) : 0x884B0000

------------------------------------------

 - Thermal Status....................... : 0

 - Thermal Log.......................... : 0

 - PROCHOT # or FORCEPR# event.......... : 0

 - PROCHOT # or FORCEPR# log............ : 0

 - Critical Temperature Status.......... : 0

 - Critical Temperature log............. : 0

 - Thermal Threshold #1 Status.......... : 0

 - Thermal Threshold #1 log............. : 0

 - Thermal Threshold #2 Status.......... : 0

 - Thermal Threshold #2 log............. : 0

 - Power Limitation Status.............. : 0

 - Power Limitation log................. : 0

 - Current Limit Status................. : 0

 - Current Limit log.................... : 0

 - Cross Domain Limit Status............ : 0

 - Cross Domain Limit log............... : 0

 - Digital Readout...................... : 75

 - Resolution in Degrees Celsius........ : 1

 - Reading Valid........................ : 1 (valid)



MSR_THERM2_CTL...................(0x19D) : 0x0



IA32_MISC_ENABLES................(0x1A0) : 0x850089

------------------------------------------

 - Fast-Strings......................... : 1 (enabled)

 - FOPCODE compatibility mode Enable.... : 0

 - Automatic Thermal Control Circuit.... : 1 (enabled)

 - Split-lock Disable................... : 0

 - Performance Monitoring............... : 1 (available)

 - Bus Lock On Cache Line Splits Disable : 0

 - Hardware prefetch Disable............ : 0

 - Processor Event Based Sampling....... : 0 (PEBS supported)

 - GV1/2 legacy Enable.................. : 0

 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)

 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)

 - Adjacent sector prefetch Disable..... : 0

 - CFG Lock............................. : 0 (MSR not locked)

 - xTPR Message Disable................. : 1 (disabled)



MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00

------------------------------------------

 - Turbo Attenuation Units.............. : 0

 - Temperature Target................... : 105

 - TCC Activation Offset................ : 0



MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000

------------------------------------------

 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)

 - Energy/Performance Bias support...... : 1

 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)

 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)



MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222242424242424

------------------------------------------

 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C03.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C05.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C06.......... : 24 (3600 MHz)



IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5

------------------------------------------

 - Power Policy Preference...............: 5 (balanced performance and energy saving)



MSR_POWER_CTL....................(0x1FC) : 0x2B04005B

------------------------------------------

 - Bi-Directional Processor Hot..........: 1 (enabled)

 - C1E Enable............................: 1 (enabled)



MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03

------------------------------------------

 - Power Units.......................... : 3 (1/8 Watt)

 - Energy Status Units.................. : 14 (61 micro-Joules)

 - Time Units .......................... : 10 (976.6 micro-Seconds)



MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8

------------------------------------------

 - Package Power Limit #1............... : 4095 Watt

 - Enable Power Limit #1................ : 1 (enabled)

 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)

 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)

 - Package Power Limit #2............... : 4095 Watt

 - Enable Power Limit #2................ : 1 (enabled)

 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)

 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)

 - Lock................................. : 0 (MSR not locked)



MSR_PKG_ENERGY_STATUS............(0x611) : 0x2E63729

------------------------------------------

 - Total Energy Consumed................ : 2968 Joules (Watt = Joules / seconds)



MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21

MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xBC0000001E0460

MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xBC000000000000

MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0xFF

MSR_PKGC3_IRTL...................(0x60a) : 0x0

MSR_PKGC6_IRTL...................(0x60b) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0



IA32_TSC_DEADLINE................(0x6E0) : 0x4704FFBBE926



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)

Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)

Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)

P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ (12) 29 33 ]

CPU C6-Cores [ 0 2 4 6 8 10 ]

CPU P-States [ (12) 22 29 33 ]

CPU P-States [ (12) 22 24 29 33 ]

CPU C6-Cores [ 0 2 4 5 6 7 8 9 10 11 ]

CPU P-States [ (12) 22 24 29 30 33 ]

CPU P-States [ (12) 21 22 24 29 30 33 ]

CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 11 ]

CPU P-States [ (12) 18 21 22 24 29 30 33 ]

CPU P-States [ (12) 17 18 21 22 24 29 30 33 ]

CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]

CPU P-States [ (12) 17 18 20 21 22 24 29 30 33 ]

CPU P-States [ (12) 14 17 18 20 21 22 24 29 30 33 ]

CPU P-States [ 12 14 16 17 18 20 21 22 24 29 30 (33) ]

CPU P-States [ (12) 14 16 17 18 20 21 22 24 26 29 30 33 ]

CPU P-States [ (12) 13 14 16 17 18 20 21 22 24 26 29 30 33 ]

CPU P-States [ (12) 13 14 16 17 18 20 21 22 24 26 27 29 30 33 ]

CPU P-States [ (12) 13 14 15 16 17 18 20 21 22 24 26 27 29 30 33 ]

CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 24 26 27 29 30 33 ]





Please find the speed step data and the new ioReg output. The one weird thing I see from boot log, even though I removed voodooHDA from my clover and added your clover kexts, since my other SSD is the primary boot device all the kexts from the other SSD is loading instead of new ones. Any idea why ?

curFew’s MacBook Air - v2.zip

MaLd0n
MaLd0n
Posted
Posted

Install last version Clover

Clover_v2.4k_r4056.pkg.zip

if dont work, try a KernelPM in config.plist

if dont work u need read here https://nickwoodhams.com/x99-hackintosh-osxaptiofixdrv-allocaterelocblock-error-update/1

appunu
appunu
Posted
  • Author
Posted

Thanks mald0n, kernelpm did the magic. I am able to boot now. Please find the new ioReg and the boot log







AppleIntelInfo.kext v2.5 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.



Settings:

------------------------------------------

logMSRs..................................: 1

logIGPU..................................: 0

logCStates...............................: 1

logIPGStyle..............................: 1

InitialTSC...............................: 0x3840bddc99b (117 MHz)

MWAIT C-States...........................: 8480



Processor Brandstring....................: Intel® Core i7-5820K CPU @ 3.30GHz



Processor Signature..................... : 0x306F2

------------------------------------------

 - Family............................... : 6

 - Stepping............................. : 2

 - Model................................ : 0x3F (63)



Model Specific Registers (MSRs)

------------------------------------------



MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8040121100

------------------------------------------

 - Core Count........................... : 6

 - Thread Count......................... : 12



MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3812100

------------------------------------------

 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)

 - Ratio Limit for Turbo Mode........... : 1 (programmable)

 - TDP Limit for Turbo Mode............. : 1 (programmable)

 - Low Power Mode Support............... : 1 (LPM supported)

 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)

 - Maximum Efficiency Ratio............. : 12

 - Minimum Operating Ratio.............. : 8



MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400

------------------------------------------

 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)

 - CFG Lock............................. : 1 (MSR locked until next reset)

 - C3 State Auto Demotion............... : 0 (disabled/unsupported)

 - C1 State Auto Demotion............... : 0 (disabled/unsupported)

 - C3 State Undemotion.................. : 0 (disabled/unsupported)

 - C1 State Undemotion.................. : 0 (disabled/unsupported)

 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)

 - Package C-State Undemotion........... : 0 (disabled/unsupported)



MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414

------------------------------------------

 - LVL_2 Base Address................... : 0x414

 - C-state Range........................ : 1 (C6 is the max C-State to include)



IA32_MPERF.......................(0xE7)  : 0x34D4C19D8A

IA32_APERF.......................(0xE8)  : 0x30541805B0



MSR_FLEX_RATIO...................(0x194) : 0xE0000

------------------------------------------



MSR_IA32_PERF_STATUS.............(0x198) : 0x1A4F00000C00

------------------------------------------

 - Current Performance State Value...... : 0xC00 (1200 MHz)



MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00

------------------------------------------

 - Target performance State Value....... : 0xFF00 (25500 MHz)

 - Intel Dynamic Acceleration........... : 0 (IDA engaged)



IA32_CLOCK_MODULATION............(0x19A) : 0x0



IA32_THERM_INTERRUPT.............(0x19B) : 0x0



IA32_THERM_STATUS................(0x19C) : 0x884D0000

------------------------------------------

 - Thermal Status....................... : 0

 - Thermal Log.......................... : 0

 - PROCHOT # or FORCEPR# event.......... : 0

 - PROCHOT # or FORCEPR# log............ : 0

 - Critical Temperature Status.......... : 0

 - Critical Temperature log............. : 0

 - Thermal Threshold #1 Status.......... : 0

 - Thermal Threshold #1 log............. : 0

 - Thermal Threshold #2 Status.......... : 0

 - Thermal Threshold #2 log............. : 0

 - Power Limitation Status.............. : 0

 - Power Limitation log................. : 0

 - Current Limit Status................. : 0

 - Current Limit log.................... : 0

 - Cross Domain Limit Status............ : 0

 - Cross Domain Limit log............... : 0

 - Digital Readout...................... : 77

 - Resolution in Degrees Celsius........ : 1

 - Reading Valid........................ : 1 (valid)



MSR_THERM2_CTL...................(0x19D) : 0x0



IA32_MISC_ENABLES................(0x1A0) : 0x850089

------------------------------------------

 - Fast-Strings......................... : 1 (enabled)

 - FOPCODE compatibility mode Enable.... : 0

 - Automatic Thermal Control Circuit.... : 1 (enabled)

 - Split-lock Disable................... : 0

 - Performance Monitoring............... : 1 (available)

 - Bus Lock On Cache Line Splits Disable : 0

 - Hardware prefetch Disable............ : 0

 - Processor Event Based Sampling....... : 0 (PEBS supported)

 - GV1/2 legacy Enable.................. : 0

 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)

 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)

 - Adjacent sector prefetch Disable..... : 0

 - CFG Lock............................. : 0 (MSR not locked)

 - xTPR Message Disable................. : 1 (disabled)



MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00

------------------------------------------

 - Turbo Attenuation Units.............. : 0

 - Temperature Target................... : 105

 - TCC Activation Offset................ : 0



MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000

------------------------------------------

 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)

 - Energy/Performance Bias support...... : 1

 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)

 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)



MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222242424242424

------------------------------------------

 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C03.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C05.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C06.......... : 24 (3600 MHz)



IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1

------------------------------------------

 - Power Policy Preference...............: 1 (highest performance)



MSR_POWER_CTL....................(0x1FC) : 0x2B04005B

------------------------------------------

 - Bi-Directional Processor Hot..........: 1 (enabled)

 - C1E Enable............................: 1 (enabled)



MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03

------------------------------------------

 - Power Units.......................... : 3 (1/8 Watt)

 - Energy Status Units.................. : 14 (61 micro-Joules)

 - Time Units .......................... : 10 (976.6 micro-Seconds)



MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8

------------------------------------------

 - Package Power Limit #1............... : 4095 Watt

 - Enable Power Limit #1................ : 1 (enabled)

 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)

 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)

 - Package Power Limit #2............... : 4095 Watt

 - Enable Power Limit #2................ : 1 (enabled)

 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)

 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)

 - Lock................................. : 0 (MSR not locked)



MSR_PKG_ENERGY_STATUS............(0x611) : 0x7339EC6

------------------------------------------

 - Total Energy Consumed................ : 7374 Joules (Watt = Joules / seconds)



MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21

MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xBC0000001E0460

MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xBC000000000000

MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0

MSR_PKGC3_IRTL...................(0x60a) : 0x0

MSR_PKGC6_IRTL...................(0x60b) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0



IA32_TSC_DEADLINE................(0x6E0) : 0x38439D65092



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)

Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)

Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)

P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ 12 30 (36) ]

CPU C6-Cores [ 1 3 5 7 9 11 ]

CPU P-States [ (12) 30 32 36 ]

CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]

CPU P-States [ 12 27 30 32 (36) ]

CPU P-States [ (12) 27 30 31 32 36 ]

CPU P-States [ (12) 27 29 30 31 32 36 ]

CPU P-States [ (12) 27 28 29 30 31 32 36 ]

CPU P-States [ (12) 27 28 29 30 31 32 34 36 ]

CPU P-States [ 12 19 27 28 29 30 31 32 34 (36) ]

CPU P-States [ (12) 18 19 27 28 29 30 31 32 34 36 ]

CPU P-States [ (12) 18 19 26 27 28 29 30 31 32 34 36 ]

CPU P-States [ 12 18 19 26 27 28 29 30 31 32 33 34 (36) ]

CPU P-States [ 12 18 19 24 26 27 28 29 30 31 32 33 34 (36) ]

CPU P-States [ 12 18 19 24 26 27 28 29 30 31 32 33 34 35 (36) ]

CPU P-States [ 12 18 19 24 25 26 27 28 29 30 31 32 33 34 35 (36) ]

CPU P-States [ (12) 18 19 21 24 25 26 27 28 29 30 31 32 33 34 35 36 ]

CPU P-States [ 12 16 18 19 21 24 25 26 27 28 29 30 31 32 33 34 35 (36) ]

CPU P-States [ (12) 16 18 19 21 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]



CPU P-States [ (12) 16 17 18 19 21 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]

curFew’s MacBook Air V3.zip

Bootlog.rtf

MaLd0n
MaLd0n
Posted
Posted

Man, ur specs is " Asus Rampage V Extreme V1 | Core i7-5820k" correct?



Use iMac14,2 or iMac15,1 or MacPro6,1 SMBIOS



U generate ur SSDT with Pike's script?



need generate c3



CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]



U dont need VoodooTSCSync.kext

Use only one folder kexts in Clover, or 10.12 or Other


Send me ur full Clover folder

appunu
appunu
Posted
  • Author
Posted
bash-3.2# kextload ~/Desktop/AppleIntelInfo.kext
bash-3.2# cat /tmp/AppleIntelInfo.dat
AppleIntelInfo.kext v2.5 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x870f79189d4 (281 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF80397D9300
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x1BF83BE225
IA32_APERF.......................(0xE8)  : 0x1952F96D14

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x1A2700000C00
------------------------------------------
 - Current Performance State Value...... : 0xC00 (1200 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x884C0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 76
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222242424242424
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C03.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C05.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C06.......... : 24 (3600 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5
------------------------------------------
 - Power Policy Preference...............: 5 (balanced performance and energy saving)

MSR_POWER_CTL....................(0x1FC) : 0x2B04005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x21DA5E4
------------------------------------------
 - Total Energy Consumed................ : 2166 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xBC0000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xBC000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x871232942B5

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 30 36 ]
CPU C6-Cores [ 1 2 5 6 8 11 ]
CPU P-States [ (12) 29 30 36 ]
CPU C6-Cores [ 0 1 2 4 5 6 8 10 11 ]
CPU P-States [ 12 26 29 30 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 26 28 29 30 36 ]
CPU P-States [ (12) 20 26 28 29 30 36 ]
CPU P-States [ (12) 20 25 26 28 29 30 36 ]
CPU P-States [ 12 20 25 26 28 29 30 32 (36) ]
CPU P-States [ (12) 20 23 25 26 28 29 30 32 36 ]
CPU P-States [ 12 20 22 23 25 26 28 29 30 32 (36) ]
CPU P-States [ 12 20 22 23 24 25 26 28 29 30 32 (36) ]
CPU P-States [ (12) 20 22 23 24 25 26 27 28 29 30 32 36 ]
CPU P-States [ (12) 20 22 23 24 25 26 27 28 29 30 32 33 36 ]
CPU P-States [ (12) 20 22 23 24 25 26 27 28 29 30 32 33 34 36 ]
CPU P-States [ (12) 20 21 22 23 24 25 26 27 28 29 30 32 33 34 36 ]
CPU P-States [ (12) 15 20 21 22 23 24 25 26 27 28 29 30 32 33 34 36 ]
CPU P-States [ 12 15 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 (36) ]
CPU P-States [ 12 15 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 (36) ]
CPU P-States [ 12 15 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 (36) ]
  • Asus Rampage V Extreme V1 | Core i7-5820k - YES
  • Using MacPro 6,1
  • SSDT with Pike's script
chmod +x ~/ssdtPRGen.sh
sudo ~/ssdtPRGen.sh
~/Library/ssdtPRGen/

There were two SSDT.aml inside one on root folder and other on ~/Library/ssdtPRGen/ACPI/

copied ssdt.aml from the root folder to EFI/CLOVER/ACPI/Patched.

  • need generate c3 - I Tried generate C states from clover but that didn't work. Can you explain how to enable it ?

  • Removed VoodooTSCSync.kext

  • Use only one folder kexts in Clover, or 10.12 or Other - Removed from 10.12 and moved to Other.

  • Package Power Limit #1............... : 4095 Watt - Is it a problem ? I see from some thread its too high.



CLOVER.zip

  • 1 month later...
appunu
appunu
Posted
  • Author
Posted



AppleIntelInfo.kext v2.5 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.



Settings:

------------------------------------------

logMSRs..................................: 1

logIGPU..................................: 0

logCStates...............................: 1

logIPGStyle..............................: 1

InitialTSC...............................: 0x21714cfaefac (1114 MHz)

MWAIT C-States...........................: 8480



Processor Brandstring....................: Intel® Core i7-5820K CPU @ 3.30GHz



Processor Signature..................... : 0x306F2

------------------------------------------

 - Family............................... : 6

 - Stepping............................. : 2

 - Model................................ : 0x3F (63)



Model Specific Registers (MSRs)

------------------------------------------



MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8050185F00

------------------------------------------

 - Core Count........................... : 6

 - Thread Count......................... : 12



MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812100

------------------------------------------

 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)

 - Ratio Limit for Turbo Mode........... : 1 (programmable)

 - TDP Limit for Turbo Mode............. : 1 (programmable)

 - Low Power Mode Support............... : 1 (LPM supported)

 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)

 - Maximum Efficiency Ratio............. : 12

 - Minimum Operating Ratio.............. : 8



MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400

------------------------------------------

 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)

 - CFG Lock............................. : 0 (MSR not locked)

 - C3 State Auto Demotion............... : 0 (disabled/unsupported)

 - C1 State Auto Demotion............... : 0 (disabled/unsupported)

 - C3 State Undemotion.................. : 0 (disabled/unsupported)

 - C1 State Undemotion.................. : 0 (disabled/unsupported)

 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)

 - Package C-State Undemotion........... : 0 (disabled/unsupported)



MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414

------------------------------------------

 - LVL_2 Base Address................... : 0x414

 - C-state Range........................ : 1 (C6 is the max C-State to include)



IA32_MPERF.......................(0xE7)  : 0x1E93E75D9D

IA32_APERF.......................(0xE8)  : 0x1B0A9A61BC



MSR_FLEX_RATIO...................(0x194) : 0xE0000

------------------------------------------



MSR_IA32_PERF_STATUS.............(0x198) : 0x19FE00000C00

------------------------------------------

 - Current Performance State Value...... : 0xC00 (1200 MHz)



MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00

------------------------------------------

 - Target performance State Value....... : 0xFF00 (25500 MHz)

 - Intel Dynamic Acceleration........... : 0 (IDA engaged)



IA32_CLOCK_MODULATION............(0x19A) : 0x0



IA32_THERM_INTERRUPT.............(0x19B) : 0x0



IA32_THERM_STATUS................(0x19C) : 0x88480000

------------------------------------------

 - Thermal Status....................... : 0

 - Thermal Log.......................... : 0

 - PROCHOT # or FORCEPR# event.......... : 0

 - PROCHOT # or FORCEPR# log............ : 0

 - Critical Temperature Status.......... : 0

 - Critical Temperature log............. : 0

 - Thermal Threshold #1 Status.......... : 0

 - Thermal Threshold #1 log............. : 0

 - Thermal Threshold #2 Status.......... : 0

 - Thermal Threshold #2 log............. : 0

 - Power Limitation Status.............. : 0

 - Power Limitation log................. : 0

 - Current Limit Status................. : 0

 - Current Limit log.................... : 0

 - Cross Domain Limit Status............ : 0

 - Cross Domain Limit log............... : 0

 - Digital Readout...................... : 72

 - Resolution in Degrees Celsius........ : 1

 - Reading Valid........................ : 1 (valid)



MSR_THERM2_CTL...................(0x19D) : 0x0



IA32_MISC_ENABLES................(0x1A0) : 0x850089

------------------------------------------

 - Fast-Strings......................... : 1 (enabled)

 - FOPCODE compatibility mode Enable.... : 0

 - Automatic Thermal Control Circuit.... : 1 (enabled)

 - Split-lock Disable................... : 0

 - Performance Monitoring............... : 1 (available)

 - Bus Lock On Cache Line Splits Disable : 0

 - Hardware prefetch Disable............ : 0

 - Processor Event Based Sampling....... : 0 (PEBS supported)

 - GV1/2 legacy Enable.................. : 0

 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)

 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)

 - Adjacent sector prefetch Disable..... : 0

 - CFG Lock............................. : 0 (MSR not locked)

 - xTPR Message Disable................. : 1 (disabled)



MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00

------------------------------------------

 - Turbo Attenuation Units.............. : 0

 - Temperature Target................... : 105

 - TCC Activation Offset................ : 0



MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000

------------------------------------------

 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)

 - Energy/Performance Bias support...... : 1

 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)

 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)



MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222242424242424

------------------------------------------

 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C03.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C05.......... : 24 (3600 MHz)

 - Maximum Ratio Limit for C06.......... : 24 (3600 MHz)



IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1

------------------------------------------

 - Power Policy Preference...............: 1 (highest performance)



MSR_POWER_CTL....................(0x1FC) : 0x2904005B

------------------------------------------

 - Bi-Directional Processor Hot..........: 1 (enabled)

 - C1E Enable............................: 1 (enabled)



MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03

------------------------------------------

 - Power Units.......................... : 3 (1/8 Watt)

 - Energy Status Units.................. : 14 (61 micro-Joules)

 - Time Units .......................... : 10 (976.6 micro-Seconds)



MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8

------------------------------------------

 - Package Power Limit #1............... : 4095 Watt

 - Enable Power Limit #1................ : 1 (enabled)

 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)

 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)

 - Package Power Limit #2............... : 4095 Watt

 - Enable Power Limit #2................ : 1 (enabled)

 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)

 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)

 - Lock................................. : 0 (MSR not locked)



MSR_PKG_ENERGY_STATUS............(0x611) : 0x1E29290

------------------------------------------

 - Total Energy Consumed................ : 1930 Joules (Watt = Joules / seconds)



MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21

MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xBC0000001E0460

MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xBC000000000000

MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0

MSR_PKGC3_IRTL...................(0x60a) : 0x0

MSR_PKGC6_IRTL...................(0x60b) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0



IA32_TSC_DEADLINE................(0x6E0) : 0x21717754C893



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)

Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)

Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)

P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ 12 34 (36) ]

CPU C6-Cores [ 0 2 4 6 8 10 11 ]

CPU P-States [ 12 29 (33) 34 36 ]

CPU C6-Cores [ 0 2 3 4 6 8 10 11 ]

CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 11 ]

CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]

CPU P-States [ 12 29 33 34 35 (36) ]

CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]

CPU P-States [ (12) 29 32 33 34 35 36 ]

CPU P-States [ (12) 29 31 32 33 34 35 36 ]

CPU P-States [ (12) 28 29 31 32 33 34 35 36 ]

CPU P-States [ (12) 28 29 30 31 32 33 34 35 36 ]

CPU P-States [ (12) 23 28 29 30 31 32 33 34 35 36 ]

CPU P-States [ 12 22 23 28 29 30 31 32 33 34 35 (36) ]

CPU P-States [ (12) 22 23 24 28 29 30 31 32 33 34 35 36 ]

Muralis-iMac:Desktop appunu$



Mald0n patched my BIOS. I did a fresh installation and used the clover folder from this thread. C3 states are still not generated. How does the output look ? Also the machine restarts after coming from sleep.



  • Since MST unlocked do i need to use XPCM patches ?
  • Can you please point me how I can configure to boot two different Hackintosh installations with their individual EFI folders.

SSD 1 - Hackintosh 10.12 - EFI folder

SSD 2 - Hackintosh 10.12 - EFI folder

CLOVER.zip

 Share
Go to topic listing
×
×
  • Create New...
