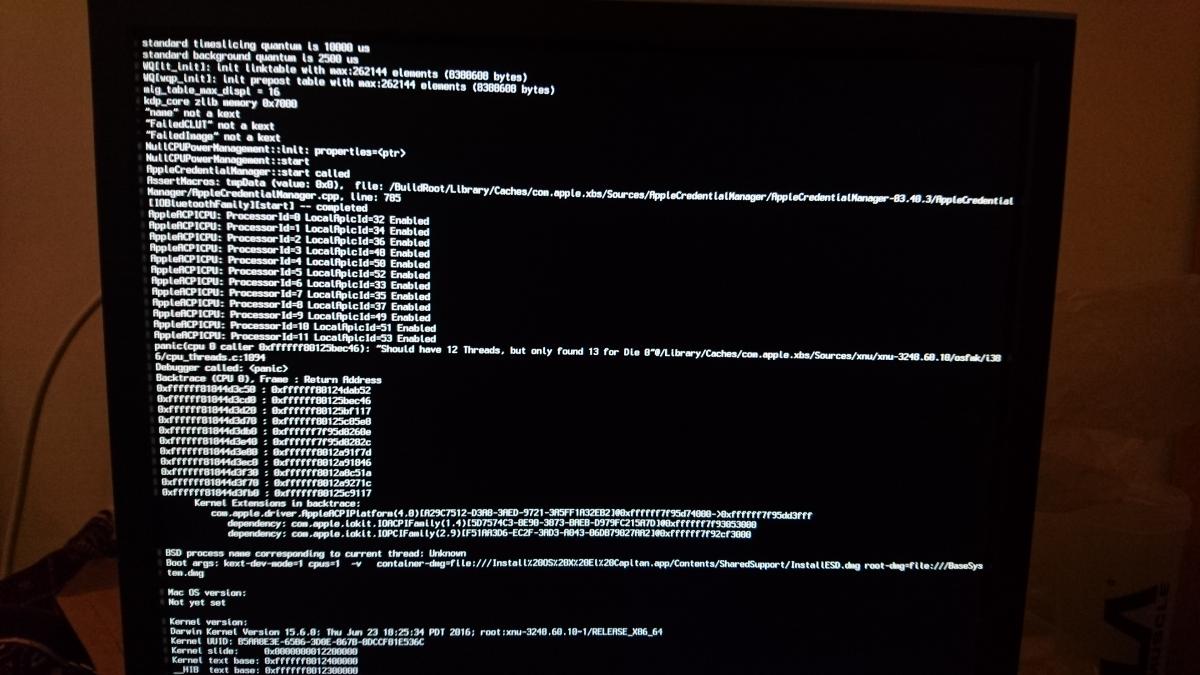

waqy Posted March 25, 2017 Share Posted March 25, 2017 Hi guys, got a Fujitsu R570-2 desktop computer. It's got an Intel Xeon L5640 with 6 cores and 12 threads at 2.3GHz. Despite being able to make a couple of hackintosh machines over the last couple of years, I just can't seem to boot into the Sierra installer using Clover EFI. I've used a variety of flags ( -v, -s, cpus=1, -x, maxmem=4096, etc) but I can't seem to get into the installer. The predominant error message is always "Should have 12 threads, only found 13" This occurs with any number if I have multithreads disabled or core numbers reduced in the BIOS settings as well. Is this processor even supported? Should I be using somethign else apart from Clover? Your help would be very much appreciated. 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/ Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 post ur clover folder inside usb stick what method u use for create usb stick? 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391407 Share on other sites More sharing options...
waqy Posted March 25, 2017 Author Share Posted March 25, 2017 I downloaded and installed Clover EFI e4035 to USB stick and put FakeSMC kext inside 10.12 folder inside the Kext folder. To make the Sierra USB, I used the terminal command to copy the base image from the Application to USB 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391507 Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 post clover folder here, if u have problem, use Mega or other socket lga 1366? 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391509 Share on other sites More sharing options...
waqy Posted March 25, 2017 Author Share Posted March 25, 2017 post clover folder here, if u have problem, use Mega or other socket lga 1366? Yes LGA 1366. Folder attached. Many thanks MaLD0n Archive.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391513 Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 test it replace full folder CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391516 Share on other sites More sharing options...

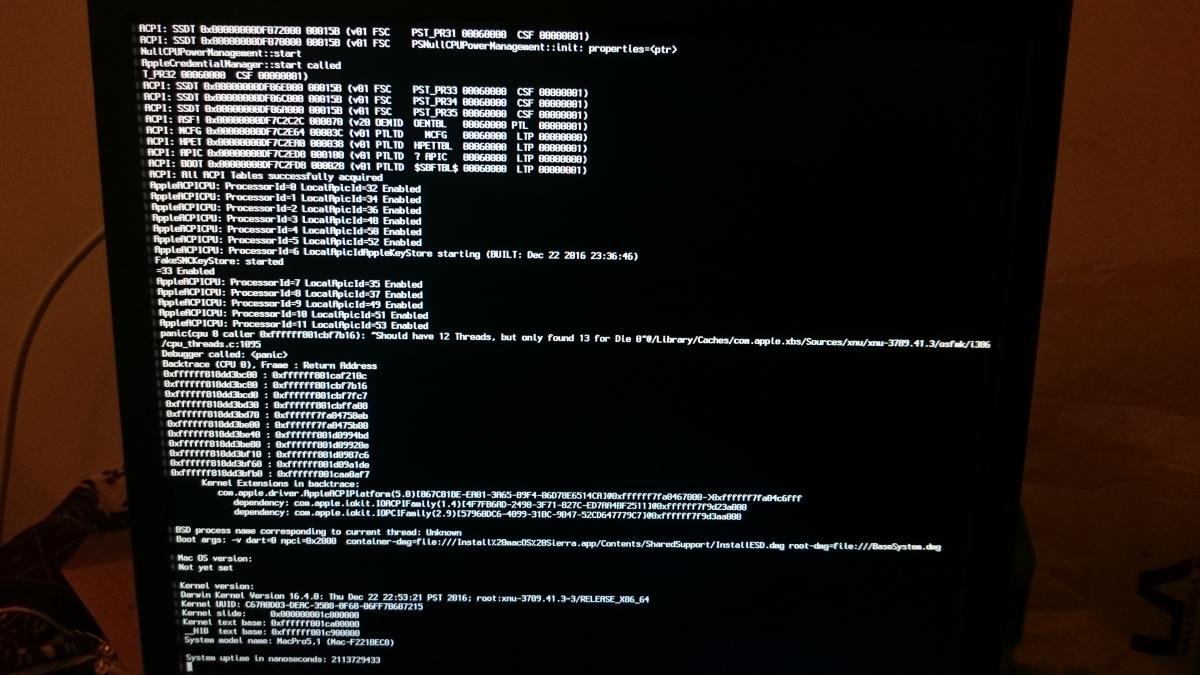

waqy Posted March 25, 2017 Author Share Posted March 25, 2017 Have replaced full folder, but same error unfortunately: Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391527 Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 Check ur bios settings 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391530 Share on other sites More sharing options...
waqy Posted March 25, 2017 Author Share Posted March 25, 2017 Checked BIOS. System config is AHCI. There's a ton of config options for the CPU though. Not sure what I should be leaving enabled and disabled: Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391537 Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 disable 2 options virtualization if dont work, try disable MX memory Protection 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391540 Share on other sites More sharing options...
waqy Posted March 25, 2017 Author Share Posted March 25, 2017 Those options didn't work either. I'm close to giving up, but thanks very much for your help :thumbsup_anim: Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391561 Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 Do not give up Most of the time it is minimal detail and boom, work 2 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391576 Share on other sites More sharing options...
Rocky12 Posted March 25, 2017 Share Posted March 25, 2017 you need AppleACPIPlatform.kext in your Clover folder and your patched DSDT and also i saw your Config.plist you didn't use any clover patch 2 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391653 Share on other sites More sharing options...
waqy Posted March 25, 2017 Author Share Posted March 25, 2017 you need AppleACPIPlatform.kext in your Clover folder and your patched DSDT Thanks for your input, Rockey12. Do you have a link to the kext for Sierra, please?? 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391654 Share on other sites More sharing options...
Rocky12 Posted March 25, 2017 Share Posted March 25, 2017 put the kext in clover 10.12 kext folder i hope you have all the other kext 2 but you still need patched dsdt 2 use all of these kexts in ur clover folder a hackintosher will never give up AppleACPIPlatform.kext.zip 10.12.zip 2 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391659 Share on other sites More sharing options...
waqy Posted March 26, 2017 Author Share Posted March 26, 2017 put the kext in clover 10.12 kext folder i hope you have all the other kext 2 but you still need patched dsdt 2 use all of these kexts in ur clover folder a hackintosher will never give up Thanks again, Rockey12. Still no luck, so I will have to try and find a way to get dsdt from the computer Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391888 Share on other sites More sharing options...
Rocky12 Posted March 26, 2017 Share Posted March 26, 2017 https://www.google.de/amp/s/mackonsti.wordpress.com/2012/02/13/extract-dsdt-using-ubuntu-live-cd/amp/ When you get your dsdt attach It along with your config.plist for the very Frist Time you have to use macbook pro 7.2 SMBios After the Installation you can Change It to macpro 5.1 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391921 Share on other sites More sharing options...
waqy Posted March 26, 2017 Author Share Posted March 26, 2017 https://www.google.de/amp/s/mackonsti.wordpress.com/2012/02/13/extract-dsdt-using-ubuntu-live-cd/amp/ When you get your dsdt attach It along with your config.plist for the very Frist Time you have to use macbook pro 7.2 SMBios After the Installation you can Change It to macpro 5.1 I managed to extract the tables through Ubuntu. I then ran it through MaciASL and then googled any errors I had and now there isn't any. I've attached the DSDT.aml and config as well. Edit: As a last resort, I used my macbook pro to install Sierra on to the hard drive of the desktop via a usb caddy. I then put the drive in the computer but I still get the same kernel error unfortuately Archive.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2391930 Share on other sites More sharing options...
Rocky12 Posted March 27, 2017 Share Posted March 27, 2017 Try this dsdt DSDT.zip Archive.zip 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392244 Share on other sites More sharing options...
waqy Posted March 27, 2017 Author Share Posted March 27, 2017 Thanks Rockey12, i shall try those files when I get home tonight. What's the difference between config.plist and slice-config.plist?? Many thanks!!! Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392326 Share on other sites More sharing options...
Rocky12 Posted March 27, 2017 Share Posted March 27, 2017 It is just an idea maybe can helpfull because i have the Same Files on my usb thumb drive 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392349 Share on other sites More sharing options...
waqy Posted March 27, 2017 Author Share Posted March 27, 2017 Try this dsdt So I copied those files to my USB. Now getting the following error, although no kernel panics (yet) According to the SMBIOS this machine is : 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392617 Share on other sites More sharing options...
Rocky12 Posted March 27, 2017 Share Posted March 27, 2017 change the SMBios to MacBook 7.1 or 7.2 2 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392620 Share on other sites More sharing options...
waqy Posted March 27, 2017 Author Share Posted March 27, 2017 change the SMBios to MacBook 7.1 or 7.2 Macbook Pro 7.1 or Macbook Air 7.2?? I changed it to 7.2 and the kernel panic comes back again 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392626 Share on other sites More sharing options...
Rocky12 Posted March 27, 2017 Share Posted March 27, 2017 ok to Mac pro 5.1 but i don,t no about your graphics card nvidia or AMD ? 1 Link to comment https://www.insanelymac.com/forum/topic/322158-intel-xeon-l5640-sierra-kernel-panic-booting-into-installer/#findComment-2392647 Share on other sites More sharing options...
