sankehim35 Posted March 11, 2017 Share Posted March 11, 2017 My specs: motherboard: p5b-e plus (legacy bios) cpu: c2d e6600 --> e7600 4Gb ddr2 crucial ballistix gpu: msi gtx560ti 1024Mb twin frozr II 1 hdd (500gb) with running mavericks 1 hdd (500gb) for el capitan 1 ssd (128gb) for windows 10 systeme definition: imac 8.1 i will change the cpu, before that i want to do a "sample install" of el capitan to prepare that cpu change. After the cpu changement i will do the final install', and i want to do it easily. i can't boot with clover, and with nvidia web driver running on my gtx560ti. i have done an el capitan install with enoch, but chameleon wizard isn't el capitan compatible i think, i didn't found a recent version. i have done an el capitan install with clover (v4035), but i have some trouble with it. i have install the web driver, but i can't boot with it on clover ( on enoch it run). i can only boot with nv_disable=1 and on the usb install key. booting on the hdd, i have "..bluetooth controller transport.." message and wait infinitely i have try with clover configurator to boot with nvidia injection and without, to inject fakeid ( 0x10DE1200), with no success. i think it's probably the dsdt. i have try to extract dsdt with iasl but "illegal instruction: 4" error. with iasl51 i success to extract the dsdt, but when i try to apply a olarila patch with maciasl, it give errors ( both on acpi 5,1 or 4) when i done this on mavericks it run well without errors. there's dsdt file and some other (ssdt, xsdt....) on efi/clover/acpi/origin on the hdd, but nothing in the same folder on the usb install' key ! i have try to boot with the dsdt folder used by mavericks, but that change nothing. now i don't know what to do, could you help me please? 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/ Share on other sites More sharing options...

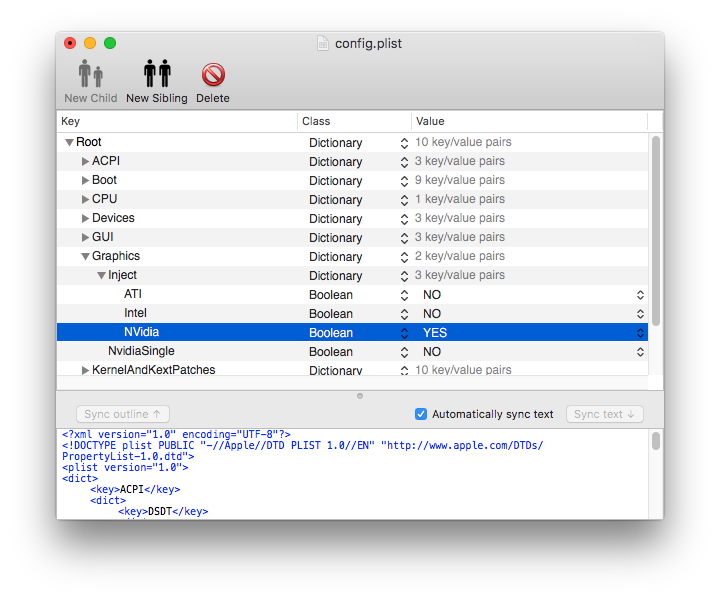

MaLd0n Posted March 11, 2017 Share Posted March 11, 2017 u need web drivers? Use native Apple drivers, only Inject Nvidia = Yes post ur files here remove DSDT, reboot and run it RunMe.app.zip Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2382498 Share on other sites More sharing options...
sankehim35 Posted March 12, 2017 Author Share Posted March 12, 2017 i have done a new fresh install for having a clean systeme. my files: i can't upload the dsdt and config.plist, i'm not permitted to upload this kind of file. Thanks a lot for your help. Send me iMac de benoit.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2382882 Share on other sites More sharing options...

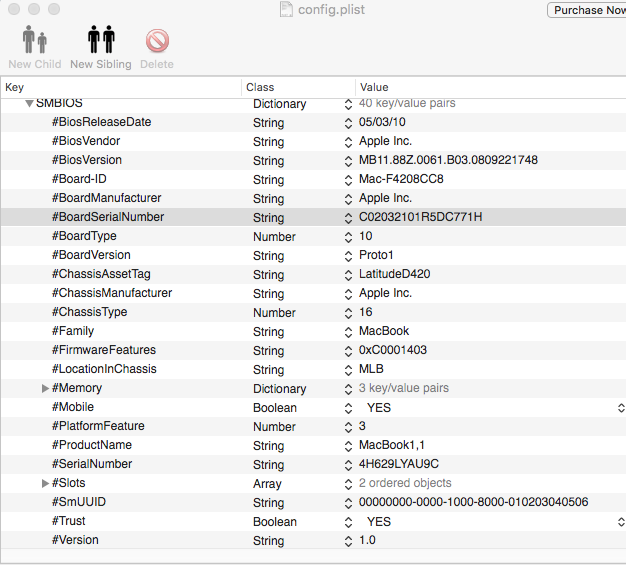

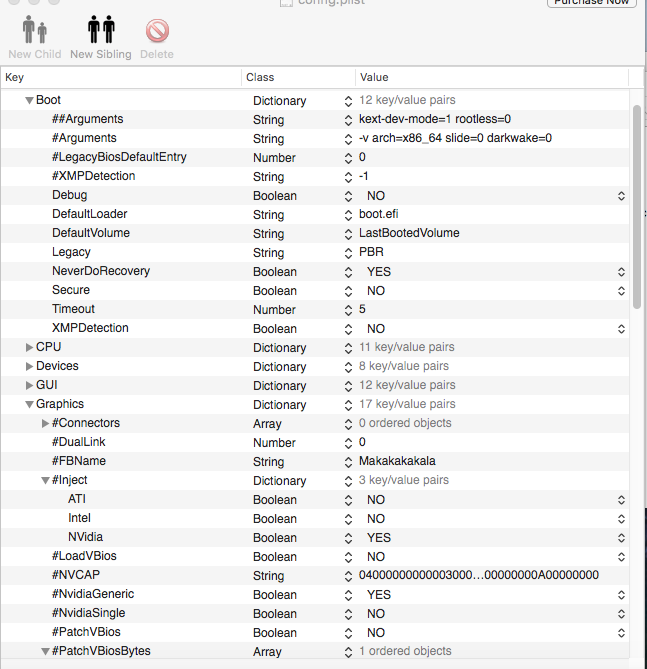

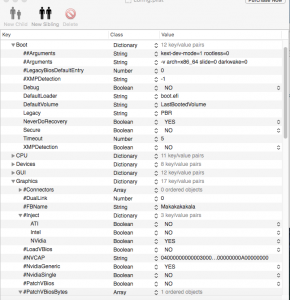

sankehim35 Posted March 12, 2017 Author Share Posted March 12, 2017 here my config.plist: should i upload the dsdt or other folder? i have change my smbios to 10,1 with clover configurator. (http://osxarena.com/2016/10/nvidia-black-screen-fix/) with no success. config.plist.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2382960 Share on other sites More sharing options...
MaLd0n Posted March 12, 2017 Share Posted March 12, 2017 DSDT.aml.zip remove NullCPUPowerManagement use it too config.plist.zip for audio, try a AppleHdaPatcher http://www.insanelymac.com/forum/files/file/496-applehda-patcher/ Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2382974 Share on other sites More sharing options...
sankehim35 Posted March 12, 2017 Author Share Posted March 12, 2017 i did not install nullcpupowermanagement. it is usually in s/l/e ? i installed your folders in the hdd efi ( on efi/clover, and efi/clover/acpi/origin) with no change. i think there's a lot of strange value. clover detect my computer as a laptop? Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383044 Share on other sites More sharing options...
MaLd0n Posted March 12, 2017 Share Posted March 12, 2017 send me ur full clover folder use kexts in Clover/Kexts/10.xx Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383070 Share on other sites More sharing options...
sankehim35 Posted March 12, 2017 Author Share Posted March 12, 2017 here my hdd efi clover folder: CLOVER.zip 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383079 Share on other sites More sharing options...
MaLd0n Posted March 12, 2017 Share Posted March 12, 2017 1- disconnect others HDs, stay only el capo connect 2- Replace Full folder CLOVER.zip 3- Reboot 4-Send me ioreg with ioreg explorer IORegistryExplorer 3.app.zip for kexts, use Clover/Kexts/10.11 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383097 Share on other sites More sharing options...
sankehim35 Posted March 12, 2017 Author Share Posted March 12, 2017 waaww that run soo better, the osx default driver run now. (whithout nv_disable=1) and booting by the hdd efi. Thanks a lot MR MaLd0n. what did you change to the clover folder? my ioreg: (i hope as expected) the ioreg: 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383133 Share on other sites More sharing options...

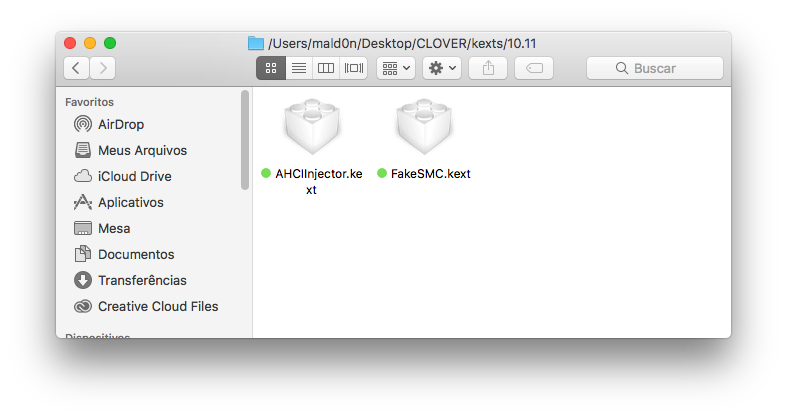

sankehim35 Posted March 13, 2017 Author Share Posted March 13, 2017 I looked the clover folder,i just want to understand what the ahciinjector is used for? And why you set smbios profil as imacpro 3.1? And Should i search for tuning fakesmc to run without nullcpupowermanagement? 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383508 Share on other sites More sharing options...

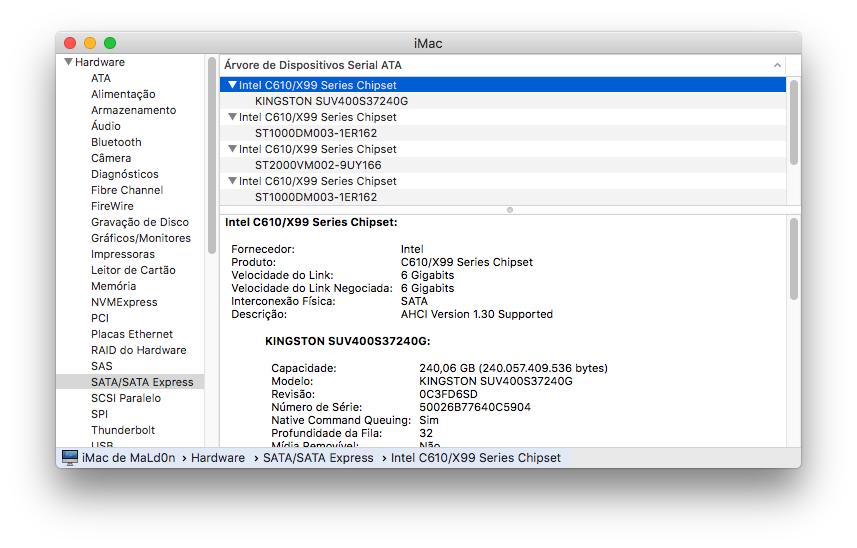

MaLd0n Posted March 13, 2017 Share Posted March 13, 2017 only for this About Sata info in AboutThisMac/Sata, but in many cases, work native the audio dont work, ill check wait me Audio Replace DSDT DSDT.HDEF.zip Add kext AppleAlc in same folder with fakesmc AppleALC.kext.zip Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383512 Share on other sites More sharing options...
sankehim35 Posted March 13, 2017 Author Share Posted March 13, 2017 I'm so sorry, i forget to say, i use à external audio dac. Don't worry about the internal audio chipset. 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383517 Share on other sites More sharing options...
MaLd0n Posted March 13, 2017 Share Posted March 13, 2017 good Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383559 Share on other sites More sharing options...
sankehim35 Posted March 13, 2017 Author Share Posted March 13, 2017 Thanks a lot MaLd0n for your precious help ?. The internet connection run with a kext patched for mavericks. There's only my pci usb3 card Who don't run smooth, but i can search. 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383581 Share on other sites More sharing options...
MaLd0n Posted March 13, 2017 Share Posted March 13, 2017 Enjoy ur hack, bro! 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383664 Share on other sites More sharing options...
sankehim35 Posted March 14, 2017 Author Share Posted March 14, 2017 I have change the smbios profil to imac 10.1 to have a closer config to my hardware config'. Now the keyboard won't run! Explain to me my misteak please, i want to understand hackintosh. 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383950 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 SMBIOS is very important i have core2 too, MacPro3,1 is the best for power management, etc 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2383997 Share on other sites More sharing options...
sankehim35 Posted March 14, 2017 Author Share Posted March 14, 2017 i didn't seen imacpro 3,1 is lga775 based. i 'm back to 3,1 with succes, thanks a lot MR MaLd0n. 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2384169 Share on other sites More sharing options...
MaLd0n Posted March 14, 2017 Share Posted March 14, 2017 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2384223 Share on other sites More sharing options...
sankehim35 Posted March 18, 2017 Author Share Posted March 18, 2017 now, i'm ready tu upgrade my computer. does this clover folder will run with a different cpu? Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2386877 Share on other sites More sharing options...
MaLd0n Posted March 18, 2017 Share Posted March 18, 2017 what upgrade? mobo, processor, etc? Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2386916 Share on other sites More sharing options...
sankehim35 Posted March 18, 2017 Author Share Posted March 18, 2017 only the cpu, i will change to a c2d e7600. Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2386935 Share on other sites More sharing options...
MaLd0n Posted March 18, 2017 Share Posted March 18, 2017 same files Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2386940 Share on other sites More sharing options...
sankehim35 Posted March 18, 2017 Author Share Posted March 18, 2017 ok, great , thanks a lot 1 Link to comment https://www.insanelymac.com/forum/topic/321791-gtx560ti-aka-fermi-on-old-hardware/#findComment-2386947 Share on other sites More sharing options...
