^GoJo^ Posted February 26, 2017 Share Posted February 26, 2017 Hello, been long I haven't been around! I installed my first hackintosh after years of inactivity. I can boot it from my USB drive only, not directly: I get the mentioned error. I read a lot about boot1h but it's not clear. Wish you'll help me there.. thanks ✌ Sent from my Redmi 3s Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/ Share on other sites More sharing options...
nawcom Posted February 26, 2017 Share Posted February 26, 2017 It means you're booting in legacy mode on hard disk with 4096 byte sectors instead of 512 byte ones and the boot1h file doesn't get imaged correctly because of it.You should find a copy of boot1h in /usr/standalone/i386 on the hard drive partition you already installed Clover to. If you can't find it there, here's a copy: http://files.nawcom.com/boot1h. 1. Copy boot1h to your USB OS X Installer in its root directory. 2. Reboot and boot up your USB OS X Installer. 3. Under menu go to Utilities -> Terminal 4. Enter diskutil list to figure out your needed hard drive partition's device node where you installed OS X to. In this example I'll use /dev/disk0s3. 5. Enter diskutil unmount /dev/disk0s3 dd if=/boot1h of=/dev/rdisk0s3 bs=4096 6. Reboot and try booting from the hard drive. Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2373782 Share on other sites More sharing options...
^GoJo^ Posted February 26, 2017 Author Share Posted February 26, 2017 So if I used EFI, wouldn't get that issue? Anyways, where is that i386 folder? I don't even find standalone... Sent from my Redmi 3s Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2373906 Share on other sites More sharing options...
^GoJo^ Posted February 26, 2017 Author Share Posted February 26, 2017 Sent from my Redmi 3s It workeded!! Thanks now I'm looking forward to get sound and multi touch trackpad if possible. Can you help? The pack I got from GitHub which state x230 @10.12.2 (I'm at 10.12.3) does not work for these. Sent from my Redmi 3s Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2373962 Share on other sites More sharing options...
nawcom Posted February 27, 2017 Share Posted February 27, 2017 Correct - if you booted in UEFI mode you wouldn't be using boot0af / boot1h so you wouldn't run into this issue. This is specifically for BIOS booting. now I'm looking forward to get sound and multi touch trackpad if possible. Can you help? The pack I got from GitHub which state x230 @10.12.2 (I'm at 10.12.3) does not work for these.Sent from my Redmi 3s As far as I know it uses Synaptics for the touchpad and the latest VoodooPS2Controller kext includes VoodooPS2Touchpad for Synaptics so try that out first. Here's the latest that supports 10.12.x: https://bitbucket.org/RehabMan/os-x-voodoo-ps2-controller/downloads/RehabMan-Voodoo-2016-1208.zip The GitHub you're referring to has the same VoodooPS2Controller.kext build as the one I'm linking you which is the latest one, and nothing happened between 10.12.2 and 10.12.3 that affected PS/2 support. So you'll have to figure out what's causing the issue. Try booting into single user mode and check if the PS2 kexts are loading via the kextstat command. As for audio, if it's not working it probably has something to do with the layout-id not being set if you're not using the patched DSDT.aml that's also on that GitHub page. It's set to use layout-id 3 which the included AppleHDA.kext on GitHub uses by default. It's usually best to make your own modified DSDTs but if you want to try using it then go ahead: https://github.com/chuckhacker/ThinkPad-X230-macOS-10.12.2/blob/master/CLOVER/ACPI/patched/DSDT.aml Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2375108 Share on other sites More sharing options...
^GoJo^ Posted February 28, 2017 Author Share Posted February 28, 2017 That's what I used first and no sound as said. Different hardware I guess. I opened a thread on 12.2 post install. Asked for help with DDST. Someone made one for me but it doesn't work well, actually much worse than the one in the archive.. Sent from my Redmi 3s Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2375130 Share on other sites More sharing options...

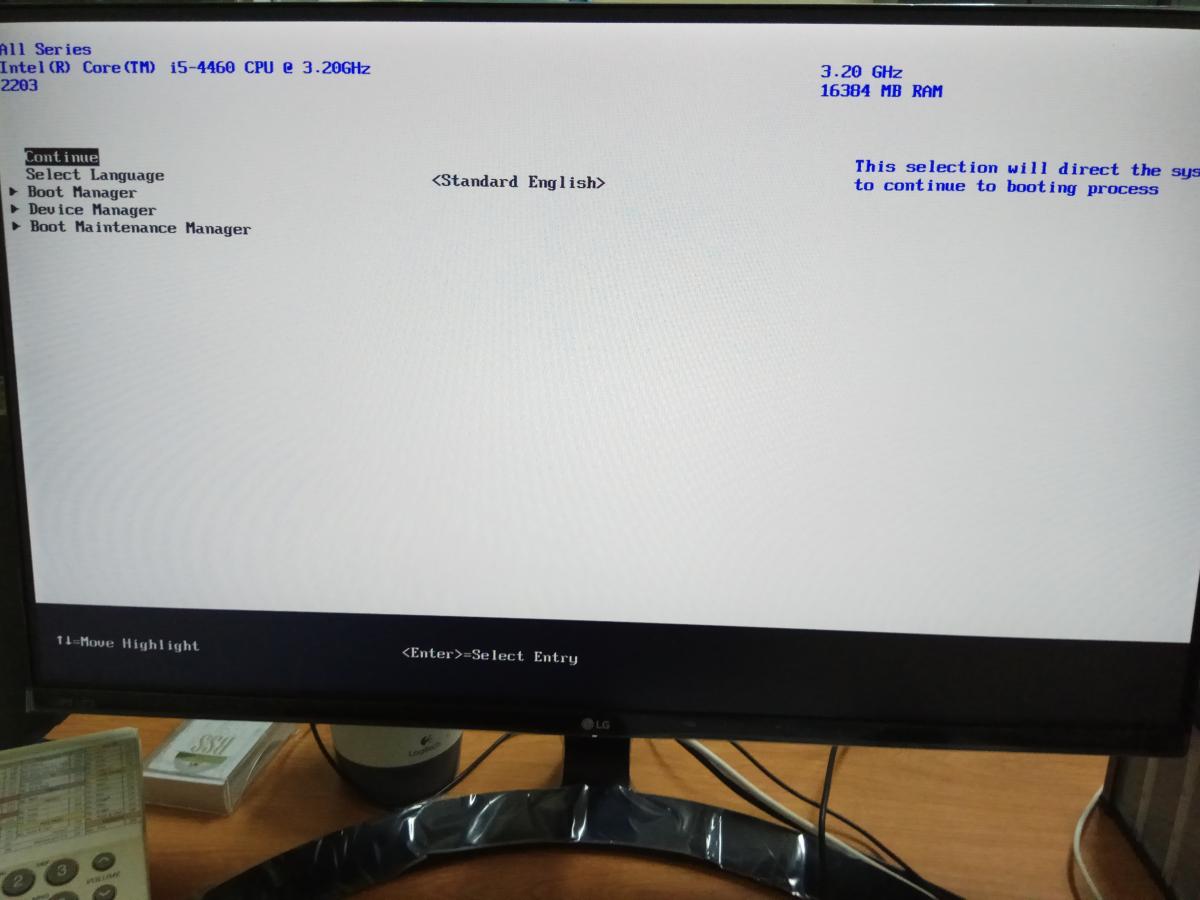

sonitka Posted September 30, 2017 Share Posted September 30, 2017 It means you're booting in legacy mode on hard disk with 4096 byte sectors instead of 512 byte ones and the boot1h file doesn't get imaged correctly because of it. You should find a copy of boot1h in /usr/standalone/i386 on the hard drive partition you already installed Clover to. If you can't find it there, here's a copy: http://files.nawcom.com/boot1h. 1. Copy boot1h to your USB OS X Installer in its root directory. 2. Reboot and boot up your USB OS X Installer. 3. Under menu go to Utilities -> Terminal 4. Enter diskutil listto figure out your needed hard drive partition's device node where you installed OS X to. In this example I'll use /dev/disk0s3. 5. Enter diskutil unmount /dev/disk0s3dd if=/boot1h of=/dev/rdisk0s3 bs=40966. Reboot and try booting from the hard drive. hi, after following this turorial i cannot find my mac instaled disk on clover recovery, did i miss something please help. thank you Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2505104 Share on other sites More sharing options...
TrustAugustus Posted October 3, 2017 Share Posted October 3, 2017 Is it impossible to install via UEFI? What is your hardware? Link to comment https://www.insanelymac.com/forum/topic/321471-boot0afboot0ss-error/#findComment-2507416 Share on other sites More sharing options...
