BagrusCZ Posted December 29, 2016 Share Posted December 29, 2016 Hello Everyone! I have new Skylake Laptop Acer Aspire E15 with these specs:Intel Core i3 6100u 2.3GHZ Nvidia 940MX (Can run HD 520 instead of this card) 4GB DDR4 RAM The Question Did someone managed to run El Capitan on this Skylake Processor? Can you help me build working USB Installation? THANKS IN ADVANCE! Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/ Share on other sites More sharing options...
nawcom Posted December 29, 2016 Share Posted December 29, 2016 My guess is you have an Acer Aspire E 15 E5-574G model or a model somewhat equivalent to the hardware setup. Yes, people have gotten 10.11.4 and newer working on it. Google "Acer Aspire E 15 E5-574G osx86" The included wireless/bluetooth combo card Qualcomm QCA9377 802.11ac and isn't supported. You can open up your laptop and replace it with a Broadcom BCM4352 and that'll give you 11ac wireless and bluetooth. Gigabit LAN is Realtek RTL8168 which is supported. Same with Intel Graphics, USB3. I'm reading some people had issues with Audio support but I can't figure out what HDA codec it uses at the moment. If you have access to OS X on another computer or have OS X running on a VM image you can follow this to start creating install media: http://www.insanelymac.com/forum/topic/305255-making-a-10101011-usb-installer-w-clover-uefi-and-legacy-the-correct-way/ Setting up install media for El Capitan is essentially the same as Sierra, just change the name when appropriate. 1 Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2341299 Share on other sites More sharing options...

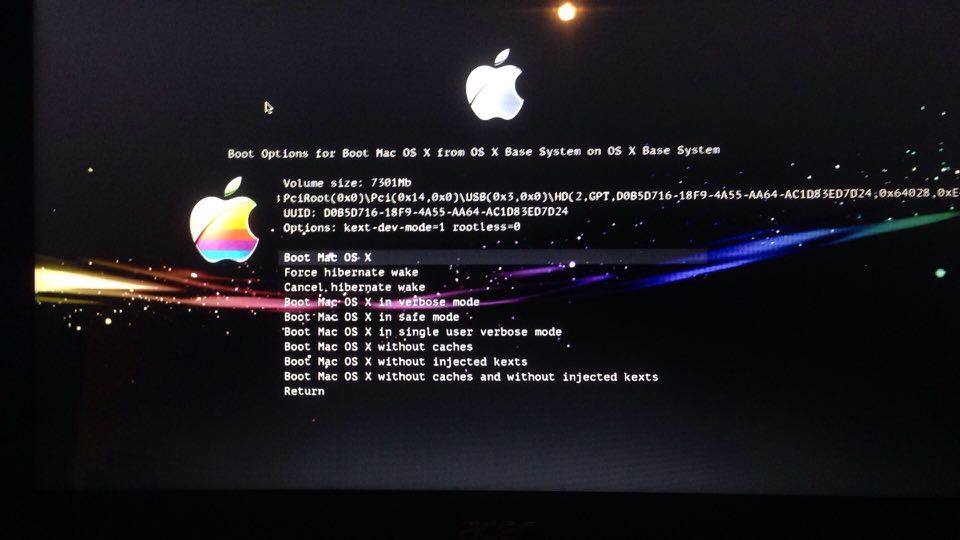

BagrusCZ Posted January 1, 2017 Author Share Posted January 1, 2017 Thanks for reply! But i need another help When i boot in UEFI mode CLOVER and i try to start MAC OS X, it resets laptop.Is there something that i need to edit? Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2342360 Share on other sites More sharing options...
nawcom Posted January 1, 2017 Share Posted January 1, 2017 Do you have KernelPm enabled in the clover settings? You need that for Skylake processors. Here's a config.plist you can start with and see if it fixes your reboot issue: https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/config_HD520_530_540.plist 1 Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2342375 Share on other sites More sharing options...
BagrusCZ Posted January 1, 2017 Author Share Posted January 1, 2017 I think there is problem because 10.11 didnt have Skylake supportWasnt there support at 10.11.2? OK im going to try that ConfigI hope it will work Thanks for your effort REPORT When i tried to boot OS X i tried it in verbose mode and at start it showed up 3 lanes but it reseted I will try to do it again and shot it with cam Sorry for quality :/ Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2342381 Share on other sites More sharing options...
nawcom Posted January 2, 2017 Share Posted January 2, 2017 My guess is you have an Acer Aspire E 15 E5-574G model or a model somewhat equivalent to the hardware setup. Yes, people have gotten 10.11.4 and newer working on it. Google "Acer Aspire E 15 E5-574G osx86" Be sure and read what I write. Skylake support was added in 10.11.4. Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2342483 Share on other sites More sharing options...
BagrusCZ Posted January 2, 2017 Author Share Posted January 2, 2017 Oh sorry At least im going today to build Sierra Installation Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2342610 Share on other sites More sharing options...
BagrusCZ Posted January 2, 2017 Author Share Posted January 2, 2017 So at Sierra boot im not getting reboots that is great progress AppleIntelLpssI2CController=getting stuck here I think it will be better at this point to lock this topic and make new at Sierra threadThank you very much nawcom Link to comment https://www.insanelymac.com/forum/topic/319731-need-helpskylake-laptopel-capitan/#findComment-2342652 Share on other sites More sharing options...
