newcomer11 Posted December 21, 2016 Share Posted December 21, 2016 Hi all I have a PC with: Gigabyte GA-H87-D3H (2 PCI, 2 PCI-E x1, 2 PCI-E x16, 4 DDR3 DIMM, Audio, Video, Gigabit LAN) QuadCore Intel Core i7-4770, 3900 MHz (39 x 100) Onboard VGA : Intel® HD Graphics 4600 (1 GB) VGA : nVIDIA GeForce GTX 660 Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller [C-2] Intel® 8 Series/C220 Chipset Family SATA AHCI Controller Dell UltraSharp U2515H (MiniDP) [25" AH-IPS LCD] (01N5656F05NL) I installed my hackintosh PC and everything seems to work fine: - Sleep and wake - CPU Speed Step - USB - Audio - VGA But when I boot with Clover using UEFI, after chose Sierra to boot, it boots then stop about 15s then to login screen (total about 60s ) which I think because it didn't use kernel cache or something else (My Yosemite boot very fast with Chameleon : < 10s after choose Yosemite from boot menu ). Attached is my Clover plish setting and bootlog Can you help me debug this problem? Thank you very much! bootlog.log.txt config.txt 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 upload ur files, clover folder, dsdt, etc. Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 upload ur files, clover folder, dsdt, etc. Hi, I uploaded my Clover config.plist in the post above. I don't use DSDT and SSDT cause realtime Clover patch seem work fine. Thank you! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 extract ur DSDT and send me ur full clover folder Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 extract ur DSDT and send me ur full clover folder I uploaded my clover folder, the DSDT was extract by clover and in /EFI/EFI/CLOVER/ACPI/origin (both patched and none patched). Some more info: - Clover version is 3961 (updated by clover configurator) with UEFI - My Yosemite was install in another SSD Disk with MBR from Niresh Yosemite USB install Thank you! CLOVER.zip Link to comment Share on other sites More sharing options...

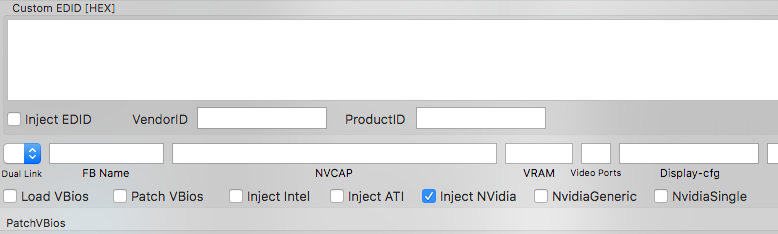

MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 -Ur clover folder with kexts, DSDT and config.plist -Disable IntelHD Graphics in bios -Generate ur SSDT for PM, RUN IN TERMINAL curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/master/ssdtPRGen.sh chmod +x ~/ssdtPRGen.sh sudo ~/ssdtPRGen.sh if u use OVERCLOCK, run... sudo ~/ssdtPRGen.sh -turbo 4000 <--- ur overclock i think u need vanilla install, without mod image. if ur NVIDIA dont work natively, inject CLOVER.zip config.plist.zip Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 -Ur clover folder with kexts, DSDT and config.plist -Disable IntelHD Graphics in bios -Generate ur SSDT for PM, RUN IN TERMINAL curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/master/ssdtPRGen.sh chmod +x ~/ssdtPRGen.sh sudo ~/ssdtPRGen.sh if u use OVERCLOCK, run... sudo ~/ssdtPRGen.sh -turbo 4000 <--- ur overclock i think u need vanilla install, without mod image. if ur NVIDIA dont work natively, inject Wow, thank you very much! I use your setting and SSDT by ssdtPRGen.sh. At first time NVIDIA did not work, I change it to Inject Nvidia = false and Use nvda_drv=1 in boot arg then it boots really fast as I expected I noticed that Audio did not work as it was in my setting (Realtek ALC892). Everything else work OK with speed step... You use FakeSMC.kext, does it make this different? Once again, thank you very much Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 i attached other config.plist http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=210342 config.plist inside clover folder have 3 wrongs, Rom in rt variables, QPI in cpu and NVidiaWeb in System parameters. Now u need send me a kextstat, run in terminal kextstat and post here, use code pls the new version fakesmc http://www.hwsensors.com/releases Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 i attached other config.plist http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=210342 config.plist inside clover folder have 3 wrongs, Rom in rt variables, QPI in cpu and NVidiaWeb in System parameters. Now u need send me a kextstat, run in terminal kextstat and post here, use code pls the new version fakesmc http://www.hwsensors.com/releases Here is my kextstat (use config.plist in clover folder, not try with new config.plist you send) Homes-iMac:Desktop home$ kextstat Index Refs Address Size Wired Name (Version) UUID <Linked Against> 1 75 0xffffff7f80a18000 0x9d30 0x9d30 com.apple.kpi.bsd (16.3.0) 1C8BA947-9D35-4C65-8A99-901762C7418F 2 8 0xffffff7f80f4c000 0x3940 0x3940 com.apple.kpi.dsep (16.3.0) 73D590F2-2A0C-4EF6-AB05-10B1796E8CB0 3 99 0xffffff7f80a57000 0x21040 0x21040 com.apple.kpi.iokit (16.3.0) 4C96CC6E-211D-4333-816B-D677FD35F58F 4 107 0xffffff7f80a00000 0xd200 0xd200 com.apple.kpi.libkern (16.3.0) 124D20E9-E3C7-42F0-A106-54DC2E144926 5 93 0xffffff7f80a14000 0x3dd0 0x3dd0 com.apple.kpi.mach (16.3.0) FA3BFB1A-BA35-492F-B136-AE838430B1DF 6 47 0xffffff7f80a79000 0xba10 0xba10 com.apple.kpi.private (16.3.0) 50287633-1D88-4D47-82A0-70352AAA0D56 7 70 0xffffff7f80a0e000 0x5890 0x5890 com.apple.kpi.unsupported (16.3.0) F639490A-DF58-418A-A6CD-A4DA8995B57D 8 5 0xffffff7f80f53000 0xa9000 0xa9000 com.apple.kec.corecrypto (1.0) 8340F600-2C31-3B8B-9BD8-32EC3A1883DE <7 6 5 4 3 1> 9 0 0xffffff7f81041000 0xf000 0xf000 com.apple.kec.pthread (1) 479F2E9E-1F15-3D76-A407-DB04C1277527 <7 6 5 4 1> 10 1 0xffffff7f815a9000 0xb000 0xb000 com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4> 11 21 0xffffff7f80c98000 0x9000 0x9000 com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3> 12 27 0xffffff7f80b67000 0x34000 0x34000 com.apple.iokit.IOPCIFamily (2.9) 6F8D3ACB-27CB-3B57-9E06-53E377762F5C <7 6 5 4 3> 13 1 0xffffff7f82c9f000 0x60000 0x60000 com.apple.driver.AppleACPIPlatform (5.0) C13E1748-0D63-3761-82E4-FEF27EF06967 <12 11 7 6 5 4 3 1> 14 4 0xffffff7f80ca1000 0x12000 0x12000 org.netkas.driver.FakeSMC (1723) 1437FD40-F974-31AF-A7DD-A172ED238216 <11 7 5 4 3 1> 15 1 0xffffff7f81829000 0xb000 0xb000 com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1> 16 2 0xffffff7f81c24000 0x7000 0x7000 com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3> 17 3 0xffffff7f80a85000 0x27000 0x27000 com.apple.iokit.IOStorageFamily (2.1) 3238C6A2-A948-378E-9C53-3883089C1B52 <7 6 5 4 3 1> 18 0 0xffffff7f81cc4000 0x19000 0x19000 com.apple.driver.DiskImages (444.30.5) 43085F89-92B4-32E9-BFE9-146D81D4EEFE <17 7 6 5 4 3 1> 19 1 0xffffff7f815b4000 0xd000 0xd000 com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3> 20 12 0xffffff7f815c1000 0x69000 0x69000 com.apple.iokit.IOUSBHostFamily (1.1) 82948F8E-3EA5-3D90-99C5-0AE91ABCA0C4 <19 7 6 5 4 3 1> 21 3 0xffffff7f81632000 0x11000 0x11000 com.apple.driver.KernelRelayHost (1) 8F19A6F4-0D9B-3D8D-911D-098BDE96256C <20 5 4 3> 22 1 0xffffff7f82625000 0x24000 0x24000 com.apple.driver.AppleCredentialManager (1.0) 35EB93F4-9C0A-34E6-9053-CAE9464861D6 <21 8 7 6 5 4 3 1> 23 2 0xffffff7f80ffc000 0x17000 0x17000 com.apple.driver.AppleMobileFileIntegrity (1.0.5) 3822FBDE-419D-323E-BAAC-78C0D6DCC7CA <8 7 6 5 4 3 2 1> 24 0 0xffffff7f82649000 0x47000 0x47000 com.apple.driver.AppleKeyStore (2) E875806B-1B2A-349F-AD10-4B047A77C468 <23 22 21 8 7 6 5 4 3 1> 25 0 0xffffff7f80f50000 0x2000 0x2000 com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1> 26 2 0xffffff7f81013000 0x5000 0x5000 com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1> 27 1 0xffffff7f81018000 0x1f000 0x1f000 com.apple.security.sandbox (300.0) 0B04AC5A-C0E5-3E54-8DE4-4A089015BC85 <26 23 17 7 6 5 4 3 2 1> 28 0 0xffffff7f81037000 0x9000 0x9000 com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <27 26 7 6 5 4 2 1> 29 0 0xffffff7f82dab000 0x8000 0x8000 com.apple.nke.applicationfirewall (172) 87563A26-608B-3C95-8476-CAA6E1271FBF <7 6 5 4 3 1> 30 0 0xffffff7f82c6d000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3> 31 0 0xffffff7f82559000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3> 32 0 0xffffff7f8297c000 0x3000 0x3000 com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3> 33 0 0xffffff7f82586000 0x8000 0x8000 com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1> 34 2 0xffffff7f81834000 0x79000 0x79000 com.apple.iokit.IOHIDFamily (2.0.0) 8D5ADCF8-7C6B-3B6D-9C9A-E2850B1A0AB6 <15 7 6 5 4 3 2 1> 35 0 0xffffff7f82d0f000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (5.0) 289AF752-1D1B-3CA4-A071-8B8A462207E0 <34 16 13 11 7 6 5 4 3 1> 36 1 0xffffff7f81c7b000 0x5000 0x5000 com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3> 37 1 0xffffff7f81c80000 0xb000 0xb000 com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <36 7 6 5 4 3 2 1> 38 1 0xffffff7f80cf4000 0x8000 0x8000 org.rehabman.driver.FakePCIID (1.3.2) 7AC87F88-8DF2-3B20-8343-D16EBA90707E <12 7 5 4 3 1> 39 0 0xffffff7f80cfc000 0x3000 0x3000 org.rehabman.driver.FakePCIID.XHCIMux (1.3.2) 9E913C8F-352A-31C9-9806-E761394B0466 <38 12 7 5 4 3 1> 40 2 0xffffff7f80ecd000 0x2d000 0x2d000 com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1> 41 0 0xffffff7f80f01000 0x18000 0x18000 com.insanelymac.driver.AppleIntelE1000e (3.3.3) E91FCC85-BC82-DA03-A2D4-1F9F661263B4 <40 12 5 4 3 1> 43 1 0xffffff7f818cd000 0x41000 0x41000 com.apple.driver.usb.AppleUSBXHCI (1.1) 66C3B8C3-513C-38E5-9B5A-6872F8CF7EDB <20 11 7 5 4 3 1> 44 0 0xffffff7f81914000 0x2a000 0x2a000 com.apple.driver.usb.AppleUSBXHCIPCI (1.1) 3E0F8CAE-821B-3B87-B5C4-EADF37350D84 <43 20 12 11 7 5 4 3 1> 45 2 0xffffff7f81eb0000 0x1a000 0x1a000 com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1> 46 0 0xffffff7f82c72000 0x1e000 0x1e000 com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <45 12 5 4 3 1> 47 1 0xffffff7f81949000 0x3d000 0x3d000 com.apple.driver.usb.AppleUSBEHCI (1.1) 099DB0E6-EBC6-30A7-A814-FE786D3ECEEE <20 11 7 5 4 3 1> 48 0 0xffffff7f81a28000 0xe000 0xe000 com.apple.driver.usb.AppleUSBEHCIPCI (1.1) C40BC641-5A3B-3F08-A1D7-7FB7B96936A8 <47 20 12 11 7 5 4 3 1> 49 0 0xffffff7f81eda000 0x1c000 0x1c000 com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <45 17 6 5 4 3 1> 51 2 0xffffff7f81769000 0x9a000 0x9a000 com.apple.iokit.IOUSBFamily (900.4.1) BAA0E7EA-595A-3752-B43A-360A4AC18FA6 <20 12 7 5 4 3 1> 52 0 0xffffff7f81a13000 0x5000 0x5000 com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 8D98EF38-00DF-3C04-944C-8760AFBE8A75 <20 7 6 5 4 3 1> 53 1 0xffffff7f81a18000 0x4000 0x4000 com.apple.driver.AppleUSBHostMergeProperties (1.1) 27A04C45-87F5-371E-A7EB-29D02ACF9CD4 <4 3 1> 54 0 0xffffff7f81a60000 0x3000 0x3000 com.apple.driver.AppleUSBMergeNub (900.4.1) 24FEDD3C-4A1F-3E9D-B87C-2D02ADE6B99A <53 51 4 3 1> 55 0 0xffffff7f80bb4000 0x4b000 0x4b000 at.obdev.nke.LittleSnitch (4722) 6C446FBE-DE45-32DD-B134-67608585E7EF <7 5 4 3 1> 56 1 0xffffff7f81f03000 0x7000 0x7000 com.apple.filesystems.hfs.encodings.kext (1) EF826638-659D-3185-85D1-DF1F26EC9E31 <7 6 5 4 3 1> 57 0 0xffffff7f81f0a000 0x6a000 0x6a000 com.apple.filesystems.hfs.kext (366.30.3) 67BB9886-0B3D-35CE-A311-FEAB6432BB5E <56 7 6 5 4 3 1> 58 0 0xffffff7f82202000 0xa000 0xa000 com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1> 59 0 0xffffff7f82c46000 0x6000 0x6000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1> 60 0 0xffffff7f82c4e000 0x3000 0x3000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1> 62 0 0xffffff7f819dd000 0x2e000 0x2e000 com.apple.driver.usb.AppleUSBHub (1.1) 80BA1480-54BE-34CF-9BE5-4EFF6FCCCD36 <20 11 5 4 3 1> 63 0 0xffffff7f81a1c000 0x8000 0x8000 com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 5289B62E-C27E-3E3B-8B6B-9978E25FEC17 <20 5 4 3 1> 64 0 0xffffff7f82336000 0x8000 0x8000 com.apple.driver.usb.networking (5.0.0) 97E0F9F7-F309-31D5-BB72-5E33AA9C7DE2 <20 5 4 3 1> 66 0 0xffffff7f818c2000 0xb000 0xb000 com.apple.driver.usb.IOUSBHostHIDDevice (1.1) E99E8E18-645E-38BB-80DD-231A8CB7EFFA <34 20 5 4 3 1> 67 0 0xffffff7f80b24000 0x2b000 0x2b000 com.apple.iokit.IOSCSIArchitectureModelFamily (394.30.2) 743A75F4-33AA-3396-B06B-504C86028712 <6 5 4 3 1> 70 11 0xffffff7f8106a000 0x3b000 0x3b000 com.apple.iokit.IOGraphicsFamily (513.1) 578F9D07-96F4-3F09-A6A6-047F257CB3BA <12 7 5 4 3 1> 71 6 0xffffff7f810b1000 0x10000 0x10000 com.apple.iokit.IONDRVSupport (513.1) 07F97C14-C6EE-3577-9875-8BA38DDCBCCD <70 12 7 5 4 3> 72 2 0xffffff7f81bbf000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1> 73 1 0xffffff7f82d17000 0xf000 0xf000 com.apple.driver.Apple16X50Serial (3.2) E54BC090-33ED-3282-83A2-634932CEC03E <72 12 5 4 3> 74 0 0xffffff7f82d26000 0x2000 0x2000 com.apple.driver.Apple16X50ACPI (3.2) 7D58A10C-F073-3DC1-944C-CDD6499CAA4B <73 11 4 3> 75 0 0xffffff7f80ce0000 0x5000 0x5000 org.hwsensors.driver.CPUSensors (1723) 6A6838BB-AFF2-376E-BD9C-32EA32F43571 <14 7 5 4 3> 76 0 0xffffff7f80ce7000 0x8000 0x8000 org.hwsensors.driver.ACPISensors (1723) A06DCEFC-9D52-361B-9B6E-365625089C36 <14 11 7 5 4 3> 77 1 0xffffff7f81bb4000 0x5000 0x5000 com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) CE7B6D9D-0577-3683-8410-CA8707BBDA4B <7 6 5 4 3 1> 78 0 0xffffff7f82697000 0x2000 0x2000 com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <77 4 3> 79 0 0xffffff7f82545000 0x3000 0x3000 com.apple.driver.AppleSMBusPCI (1.0.14d1) F5516FB7-82C6-3E74-98E7-80EDCA074BC2 <12 5 4 3> 80 5 0xffffff7f81c49000 0x19000 0x19000 com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1> 81 2 0xffffff7f8221e000 0x95000 0x95000 com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3> 82 3 0xffffff7f822b3000 0x30000 0x30000 com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <81 5 4 3 1> 83 2 0xffffff7f82997000 0xc000 0xc000 com.apple.iokit.IOHDAFamily (278.56) FA51E93E-C5E9-35FC-B906-EF98887B92B8 <5 4 3 1> 84 1 0xffffff7f829aa000 0x1d000 0x1d000 com.apple.driver.AppleHDAController (278.56) CFB0D0AE-F09A-3660-8F95-7A02FD5FBF07 <83 82 70 12 7 6 5 4 3 1> 85 0 0xffffff7f825de000 0x4000 0x4000 com.apple.driver.AppleOSXWatchdog (1) 9B1AC3B0-A459-3D88-B43D-428EA39DDB8A <12 7 6 5 4 3 1> 86 0 0xffffff7f82938000 0xa000 0xa000 com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1> 87 0 0xffffff7f8253b000 0xa000 0xa000 com.apple.driver.AppleSSE (1.0) 305CA896-487D-3F3A-8F0B-ECFA9B333147 <21 7 5 4 3 1> 88 0 0xffffff7f82100000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <80 8 7 4 3 1> 89 0 0xffffff7f81d67000 0xe3000 0xe3000 com.apple.iokit.IOBluetoothFamily (5.0.2f4) BAF88BBD-7D4A-30AC-AC1D-4AA4290065C6 <16 7 5 4 3 1> 90 0 0xffffff7f81d53000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (5.0.2f4) 89403F6A-CE67-3F6E-AA7E-42354137D591 <72 7 5 4 3 1> 91 1 0xffffff7f81bb0000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3> 92 1 0xffffff7f82548000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <91 12 11 5 4 3> 93 0 0xffffff7f825eb000 0xe000 0xe000 com.apple.driver.AppleMCCSControl (1.2.15) FEB5D813-E93B-33C2-B391-E41251D7CD06 <92 80 70 12 11 7 5 4 3 1> 94 0 0xffffff7f80cc8000 0x12000 0x12000 org.hwsensors.driver.GPUSensors (1723) CA7F5B8F-ED8B-3450-9463-5DD72A465C07 <14 12 11 7 5 4 3> 95 0 0xffffff7f81b96000 0x18000 0x18000 com.apple.iokit.IOSurface (153.3) 1BCFEDCE-166A-3FC3-86B9-5B19083FFFEC <7 6 5 4 3 1> 96 0 0xffffff7f81729000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.1) 32E2019A-799D-3E86-9F40-7D9AB4500A9D <40 6 5 4 3 1> 97 0 0xffffff7f81050000 0xf000 0xf000 com.apple.driver.pmtelemetry (1) 963D5479-A74A-35FA-AFAA-6D61989DAD4D <7 6 5 4 3> 98 1 0xffffff7f829c7000 0x13000 0x13000 com.apple.kext.OSvKernDSPLib (525) D0421B4D-7B97-3102-BC42-3684344DB5E6 <5 4> 99 1 0xffffff7f829da000 0x147000 0x147000 com.apple.driver.DspFuncLib (278.56) 301F7D1F-21E0-306A-B52B-D26D798BCE7B <98 82 81 37 6 5 4 3 1> 100 0 0xffffff7f82b2c000 0xb4000 0xb4000 com.apple.driver.AppleHDA (278.56) A4EB06C9-A40A-39EF-9C4A-D7F23DB9A2F9 <99 84 83 82 71 70 6 5 4 3 1> 102 2 0xffffff7f810c1000 0xa000 0xa000 com.apple.AppleGraphicsDeviceControl (3.13.78) FD48FB7F-3F5F-38F1-A8C7-B82C80807726 <7 6 5 4 3 1> 103 2 0xffffff7f810cd000 0x2f2000 0x2f2000 com.apple.nvidia.driver.NVDAResman (10.1.4) FE59CEBD-B723-337F-99CD-80402D846F95 <102 71 70 12 7 5 4 3 1> 104 0 0xffffff7f813cf000 0x1b3000 0x1b3000 com.apple.nvidia.driver.NVDAGK100Hal (10.1.4) B21122DF-798E-3145-86C8-4EBEF06334C2 <103 12 4 3> 105 1 0xffffff7f81f7b000 0x91000 0x91000 com.apple.iokit.IOAcceleratorFamily2 (289.27) CB49995B-2507-3E48-87EE-5C7A57D0FE4B <70 12 7 6 5 4 3 1> 106 0 0xffffff7f8201b000 0xa4000 0xa4000 com.apple.GeForce (10.1.4) 18865C44-CCA3-3B9C-9529-FEFE03F3F321 <105 103 71 70 12 7 5 4 3 1> 107 0 0xffffff7f8239f000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <70 12 11 7 5 4 3 1> 108 0 0xffffff7f80a22000 0x34000 0x34000 com.paragon-software.filesystems.ntfs (318.3.14) F6A7BB1D-5A30-3EAA-9644-77F98E29F1AE <7 5 4 1> 109 4 0xffffff7f81c2b000 0xa000 0xa000 com.apple.driver.IOPlatformPluginFamily (6.0.0d8) DED85A80-5141-326A-8AC7-1365380A3FF6 <11 7 6 5 4 3> 110 0 0xffffff7f82db5000 0x3000 0x3000 com.apple.driver.AppleLPC (3.1) F51595F0-F9B1-3B85-A1C3-F984DAD4107E <109 12 5 4 3> 111 0 0xffffff7f80cb7000 0xe000 0xe000 org.hwsensors.driver.LPCSensors (1723) 02EE8944-1F7C-3A1C-B481-48FDEE21F8FB <14 12 11 7 5 4 3> 112 1 0xffffff7f82db8000 0x17000 0x17000 com.apple.driver.X86PlatformPlugin (1.0.0) 782DA5F5-F9BB-3B75-B40D-EC8EFFCE89A8 <109 80 51 20 11 7 6 5 4 3 1> 115 1 0xffffff7f82dcf000 0x5000 0x5000 com.apple.driver.AppleBacklightExpert (1.1.0) 7D89A61E-ED4E-32C7-8CC2-1D5B7E76E498 <80 71 70 12 5 4 3> 116 0 0xffffff7f82dd4000 0x5000 0x5000 com.apple.driver.AppleBacklight (170.9.10) 72AEF122-7C00-3F7A-AE4E-34495299E323 <115 71 70 12 5 4 3> 119 1 0xffffff7f82ded000 0x7000 0x7000 com.apple.driver.X86PlatformShim (1.0.0) B1D28523-ABFF-37CB-8AE9-5EFA58B86DBB <112 109 80 7 4 3> 120 0 0xffffff7f82df4000 0x4000 0x4000 com.apple.driver.ApplePlatformEnabler (2.7.0d0) 25DBF68E-B669-3367-A517-BA27C9567D74 <7 5 4 3> 121 0 0xffffff7f82df8000 0x18000 0x18000 com.apple.driver.AGPM (110.23.14) 4BE63D2D-AE79-3C09-A65F-09063A94D4AE <109 102 71 70 12 6 5 4 3> 122 1 0xffffff7f8220e000 0x5000 0x5000 com.apple.kext.triggers (1.0) 0DA9C43A-5936-343E-8233-CF17F790D6D2 <7 6 5 4 3 1> 123 0 0xffffff7f82213000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) 49E74E96-0A87-3229-9D83-91E930C7C984 <122 7 6 5 4 3 1> 126 0 0xffffff7f82e10000 0x1c000 0x1c000 com.pikeralpha.driver.AppleIntelInfo (1) 0E1E3F2C-E41C-33A7-9DA0-7A5E868B3B80 <7 5 4 3 1> 127 0 0xffffff7f82dd9000 0xf000 0xf000 com.apple.filesystems.msdosfs (1.10) F8B8D309-C01A-32AD-B769-8822D9B4593B <7 5 4 1> Thank you! Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 very good! What is ur result with geekbench? use version 3.4.1 or 4.0.3 test ur shutdown, etc i apply all in DSDT, if u have problem, i need modification little things. Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 very good! What is ur result with geekbench? use version 3.4.1 or 4.0.3 test ur shutdown, etc i apply all in DSDT, if u have problem, i need modification little things. Hi, this my GeekBench score : https://browser.geekbench.com/v4/cpu/1392340 https://browser.geekbench.com/v4/compute/321534 I try and have some issues: - I can shutdown and restart but with error on screen - Sleep then wake up => freeze Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 Hi, this my GeekBench score : I try and have some issues: - I can shutdown and restart but with error on screen - Sleep then wake up => freeze post photo with shutdown/restart error Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 Hi, maybe I found the solution, I tried using my old setting and JUST TURN OFF onboard VGA, I get the fast boot. I use your setting, TURN ON VGA, I get slow boot Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 i think ur VGA work native! send me a kextstat with ur old settings u need a DSDT, i can edit for u without many USB patches etc, u test and try sleep. i dont use sleep, SSD is very fast boot etc, i dont need sleep! Link to comment Share on other sites More sharing options...
newcomer11 Posted December 21, 2016 Author Share Posted December 21, 2016 i think ur VGA work native! send me a kextstat with ur old settings u need a DSDT, i can edit for u without many USB patches etc, u test and try sleep. i dont use sleep, SSD is very fast boot etc, i dont need sleep! Hi, thanks for your reply Here is my old setting kextstat: Homes-iMac:~ home$ kextstat Index Refs Address Size Wired Name (Version) UUID <Linked Against> 1 80 0xffffff7f80a18000 0x9d30 0x9d30 com.apple.kpi.bsd (16.3.0) 1C8BA947-9D35-4C65-8A99-901762C7418F 2 8 0xffffff7f80f4c000 0x3940 0x3940 com.apple.kpi.dsep (16.3.0) 73D590F2-2A0C-4EF6-AB05-10B1796E8CB0 3 106 0xffffff7f80a57000 0x21040 0x21040 com.apple.kpi.iokit (16.3.0) 4C96CC6E-211D-4333-816B-D677FD35F58F 4 113 0xffffff7f80a00000 0xd200 0xd200 com.apple.kpi.libkern (16.3.0) 124D20E9-E3C7-42F0-A106-54DC2E144926 5 96 0xffffff7f80a14000 0x3dd0 0x3dd0 com.apple.kpi.mach (16.3.0) FA3BFB1A-BA35-492F-B136-AE838430B1DF 6 51 0xffffff7f80a79000 0xba10 0xba10 com.apple.kpi.private (16.3.0) 50287633-1D88-4D47-82A0-70352AAA0D56 7 74 0xffffff7f80a0e000 0x5890 0x5890 com.apple.kpi.unsupported (16.3.0) F639490A-DF58-418A-A6CD-A4DA8995B57D 8 5 0xffffff7f80f53000 0xa9000 0xa9000 com.apple.kec.corecrypto (1.0) 8340F600-2C31-3B8B-9BD8-32EC3A1883DE <7 6 5 4 3 1> 9 0 0xffffff7f810ae000 0xf000 0xf000 com.apple.kec.pthread (1) 479F2E9E-1F15-3D76-A407-DB04C1277527 <7 6 5 4 1> 10 1 0xffffff7f81616000 0xb000 0xb000 com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4> 11 27 0xffffff7f80c98000 0x9000 0x9000 com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3> 12 31 0xffffff7f80b67000 0x34000 0x34000 com.apple.iokit.IOPCIFamily (2.9) 6F8D3ACB-27CB-3B57-9E06-53E377762F5C <7 6 5 4 3> 13 1 0xffffff7f82d07000 0x60000 0x60000 com.apple.driver.AppleACPIPlatform (5.0) C13E1748-0D63-3761-82E4-FEF27EF06967 <12 11 7 6 5 4 3 1> 14 4 0xffffff7f80ca1000 0x12000 0x12000 org.netkas.driver.FakeSMC (1723) 1437FD40-F974-31AF-A7DD-A172ED238216 <11 7 5 4 3 1> 15 1 0xffffff7f81896000 0xb000 0xb000 com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1> 16 3 0xffffff7f81c91000 0x7000 0x7000 com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3> 17 5 0xffffff7f80a85000 0x27000 0x27000 com.apple.iokit.IOStorageFamily (2.1) 3238C6A2-A948-378E-9C53-3883089C1B52 <7 6 5 4 3 1> 18 0 0xffffff7f81d31000 0x19000 0x19000 com.apple.driver.DiskImages (444.30.5) 43085F89-92B4-32E9-BFE9-146D81D4EEFE <17 7 6 5 4 3 1> 19 1 0xffffff7f81621000 0xd000 0xd000 com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3> 20 12 0xffffff7f8162e000 0x69000 0x69000 com.apple.iokit.IOUSBHostFamily (1.1) 82948F8E-3EA5-3D90-99C5-0AE91ABCA0C4 <19 7 6 5 4 3 1> 21 3 0xffffff7f8169f000 0x11000 0x11000 com.apple.driver.KernelRelayHost (1) 8F19A6F4-0D9B-3D8D-911D-098BDE96256C <20 5 4 3> 22 1 0xffffff7f8268d000 0x24000 0x24000 com.apple.driver.AppleCredentialManager (1.0) 35EB93F4-9C0A-34E6-9053-CAE9464861D6 <21 8 7 6 5 4 3 1> 23 2 0xffffff7f81069000 0x17000 0x17000 com.apple.driver.AppleMobileFileIntegrity (1.0.5) 3822FBDE-419D-323E-BAAC-78C0D6DCC7CA <8 7 6 5 4 3 2 1> 24 0 0xffffff7f826b1000 0x47000 0x47000 com.apple.driver.AppleKeyStore (2) E875806B-1B2A-349F-AD10-4B047A77C468 <23 22 21 8 7 6 5 4 3 1> 25 0 0xffffff7f80f50000 0x2000 0x2000 com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1> 26 2 0xffffff7f81080000 0x5000 0x5000 com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1> 27 1 0xffffff7f81085000 0x1f000 0x1f000 com.apple.security.sandbox (300.0) 0B04AC5A-C0E5-3E54-8DE4-4A089015BC85 <26 23 17 7 6 5 4 3 2 1> 28 0 0xffffff7f810a4000 0x9000 0x9000 com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <27 26 7 6 5 4 2 1> 29 0 0xffffff7f82e13000 0x8000 0x8000 com.apple.nke.applicationfirewall (172) 87563A26-608B-3C95-8476-CAA6E1271FBF <7 6 5 4 3 1> 30 0 0xffffff7f82cd5000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3> 31 0 0xffffff7f825c1000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3> 32 0 0xffffff7f829e4000 0x3000 0x3000 com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3> 33 0 0xffffff7f825ee000 0x8000 0x8000 com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1> 34 2 0xffffff7f818a1000 0x79000 0x79000 com.apple.iokit.IOHIDFamily (2.0.0) 8D5ADCF8-7C6B-3B6D-9C9A-E2850B1A0AB6 <15 7 6 5 4 3 2 1> 35 0 0xffffff7f82d77000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (5.0) 289AF752-1D1B-3CA4-A071-8B8A462207E0 <34 16 13 11 7 6 5 4 3 1> 36 1 0xffffff7f81ce8000 0x5000 0x5000 com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3> 37 1 0xffffff7f81ced000 0xb000 0xb000 com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <36 7 6 5 4 3 2 1> 38 1 0xffffff7f80cf4000 0x8000 0x8000 org.rehabman.driver.FakePCIID (1.3.2) 7AC87F88-8DF2-3B20-8343-D16EBA90707E <12 7 5 4 3 1> 39 0 0xffffff7f80cfc000 0x3000 0x3000 org.rehabman.driver.FakePCIID.XHCIMux (1.3.2) 9E913C8F-352A-31C9-9806-E761394B0466 <38 12 7 5 4 3 1> 40 0 0xffffff7f8270b000 0xb000 0xb000 com.apple.driver.AppleIntelLpssGspi (3.0.60) 181C062F-B834-35A7-899D-034D7C5E939C <12 11 7 5 4 3> 41 2 0xffffff7f80ecd000 0x2d000 0x2d000 com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1> 42 0 0xffffff7f80f01000 0x18000 0x18000 com.insanelymac.driver.AppleIntelE1000e (3.3.3) E91FCC85-BC82-DA03-A2D4-1F9F661263B4 <41 12 5 4 3 1> 43 1 0xffffff7f8193a000 0x41000 0x41000 com.apple.driver.usb.AppleUSBXHCI (1.1) 66C3B8C3-513C-38E5-9B5A-6872F8CF7EDB <20 11 7 5 4 3 1> 44 0 0xffffff7f81981000 0x2a000 0x2a000 com.apple.driver.usb.AppleUSBXHCIPCI (1.1) 3E0F8CAE-821B-3B87-B5C4-EADF37350D84 <43 20 12 11 7 5 4 3 1> 45 2 0xffffff7f81f1d000 0x1a000 0x1a000 com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1> 46 0 0xffffff7f82cda000 0x1e000 0x1e000 com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <45 12 5 4 3 1> 47 1 0xffffff7f819b6000 0x3d000 0x3d000 com.apple.driver.usb.AppleUSBEHCI (1.1) 099DB0E6-EBC6-30A7-A814-FE786D3ECEEE <20 11 7 5 4 3 1> 48 0 0xffffff7f81a95000 0xe000 0xe000 com.apple.driver.usb.AppleUSBEHCIPCI (1.1) C40BC641-5A3B-3F08-A1D7-7FB7B96936A8 <47 20 12 11 7 5 4 3 1> 49 0 0xffffff7f81f47000 0x1c000 0x1c000 com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <45 17 6 5 4 3 1> 50 0 0xffffff7f8235b000 0xa000 0xa000 com.apple.driver.AppleXsanScheme (3) CE9B9375-DE2D-396A-9AB5-088FF26F081B <17 5 4 3 1> 51 1 0xffffff7f817d6000 0x9a000 0x9a000 com.apple.iokit.IOUSBFamily (900.4.1) BAA0E7EA-595A-3752-B43A-360A4AC18FA6 <20 12 7 5 4 3 1> 52 0 0xffffff7f81a80000 0x5000 0x5000 com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 8D98EF38-00DF-3C04-944C-8760AFBE8A75 <20 7 6 5 4 3 1> 53 1 0xffffff7f81a85000 0x4000 0x4000 com.apple.driver.AppleUSBHostMergeProperties (1.1) 27A04C45-87F5-371E-A7EB-29D02ACF9CD4 <4 3 1> 54 0 0xffffff7f81acd000 0x3000 0x3000 com.apple.driver.AppleUSBMergeNub (900.4.1) 24FEDD3C-4A1F-3E9D-B87C-2D02ADE6B99A <53 51 4 3 1> 55 0 0xffffff7f80bb4000 0x4b000 0x4b000 at.obdev.nke.LittleSnitch (4722) 6C446FBE-DE45-32DD-B134-67608585E7EF <7 5 4 3 1> 56 1 0xffffff7f81f70000 0x7000 0x7000 com.apple.filesystems.hfs.encodings.kext (1) EF826638-659D-3185-85D1-DF1F26EC9E31 <7 6 5 4 3 1> 57 0 0xffffff7f81f77000 0x6a000 0x6a000 com.apple.filesystems.hfs.kext (366.30.3) 67BB9886-0B3D-35CE-A311-FEAB6432BB5E <56 7 6 5 4 3 1> 58 0 0xffffff7f8226f000 0xa000 0xa000 com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1> 59 0 0xffffff7f82cae000 0x6000 0x6000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1> 60 0 0xffffff7f82cb6000 0x3000 0x3000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1> 61 0 0xffffff7f82cbf000 0x2000 0x2000 com.apple.driver.AppleFileSystemDriver (3.0.1) 527DF605-93C5-38CD-B8DB-408E5F88AEAD <17 4 3> 62 0 0xffffff7f81a4a000 0x2e000 0x2e000 com.apple.driver.usb.AppleUSBHub (1.1) 80BA1480-54BE-34CF-9BE5-4EFF6FCCCD36 <20 11 5 4 3 1> 63 1 0xffffff7f81a89000 0x8000 0x8000 com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 5289B62E-C27E-3E3B-8B6B-9978E25FEC17 <20 5 4 3 1> 64 1 0xffffff7f8239e000 0x8000 0x8000 com.apple.driver.usb.networking (5.0.0) 97E0F9F7-F309-31D5-BB72-5E33AA9C7DE2 <20 5 4 3 1> 65 0 0xffffff7f823a6000 0x9000 0x9000 com.apple.driver.usb.cdc (5.0.0) 32238CD5-5E45-345D-BF49-E4775C905529 <64 63 20 5 4 3 1> 66 0 0xffffff7f8192f000 0xb000 0xb000 com.apple.driver.usb.IOUSBHostHIDDevice (1.1) E99E8E18-645E-38BB-80DD-231A8CB7EFFA <34 20 5 4 3 1> 67 0 0xffffff7f80b24000 0x2b000 0x2b000 com.apple.iokit.IOSCSIArchitectureModelFamily (394.30.2) 743A75F4-33AA-3396-B06B-504C86028712 <6 5 4 3 1> 68 0 0xffffff7f82cba000 0x3000 0x3000 com.apple.driver.AppleFIVRDriver (4.1.0) 4A860C53-8DCA-33AE-9410-5DE2209AF1E8 <4 3> 69 2 0xffffff7f81c2c000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1> 70 1 0xffffff7f82d7f000 0xf000 0xf000 com.apple.driver.Apple16X50Serial (3.2) E54BC090-33ED-3282-83A2-634932CEC03E <69 12 5 4 3> 71 0 0xffffff7f82d8e000 0x2000 0x2000 com.apple.driver.Apple16X50ACPI (3.2) 7D58A10C-F073-3DC1-944C-CDD6499CAA4B <70 11 4 3> 72 3 0xffffff7f81c98000 0xa000 0xa000 com.apple.driver.IOPlatformPluginFamily (6.0.0d8) DED85A80-5141-326A-8AC7-1365380A3FF6 <11 7 6 5 4 3> 73 1 0xffffff7f81ca2000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (1.0.0) 5B9C0492-18D3-3DAA-AF83-CD394244E8C0 <72 11 7 6 5 4 3> 74 3 0xffffff7f81cb6000 0x19000 0x19000 com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1> 75 0 0xffffff7f81cd1000 0x10000 0x10000 com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) 747D61E3-CEBD-3CC4-AB8D-353B6A47E701 <74 73 72 12 11 7 6 5 4 3> 76 0 0xffffff7f80ce7000 0x8000 0x8000 org.hwsensors.driver.ACPISensors (1723) A06DCEFC-9D52-361B-9B6E-365625089C36 <14 11 7 5 4 3> 77 0 0xffffff7f825ad000 0x3000 0x3000 com.apple.driver.AppleSMBusPCI (1.0.14d1) F5516FB7-82C6-3E74-98E7-80EDCA074BC2 <12 5 4 3> 78 12 0xffffff7f810d7000 0x3b000 0x3b000 com.apple.iokit.IOGraphicsFamily (513.1) 578F9D07-96F4-3F09-A6A6-047F257CB3BA <12 7 5 4 3 1> 79 3 0xffffff7f81fe8000 0x91000 0x91000 com.apple.iokit.IOAcceleratorFamily2 (289.27) CB49995B-2507-3E48-87EE-5C7A57D0FE4B <78 12 7 6 5 4 3 1> 80 3 0xffffff7f8112e000 0xa000 0xa000 com.apple.AppleGraphicsDeviceControl (3.13.78) FD48FB7F-3F5F-38F1-A8C7-B82C80807726 <7 6 5 4 3 1> 81 0 0xffffff7f827f4000 0x152000 0x152000 com.apple.driver.AppleIntelFramebufferAzul (10.2.2) 6D11C576-86EA-3B6D-99BE-BE72C66945D5 <80 79 78 16 12 11 7 6 5 4 3 1> 82 0 0xffffff7f80ce0000 0x5000 0x5000 org.hwsensors.driver.CPUSensors (1723) 6A6838BB-AFF2-376E-BD9C-32EA32F43571 <14 7 5 4 3> 83 0 0xffffff7f80cb7000 0xe000 0xe000 org.hwsensors.driver.LPCSensors (1723) 02EE8944-1F7C-3A1C-B481-48FDEE21F8FB <14 12 11 7 5 4 3> 84 1 0xffffff7f81c21000 0x5000 0x5000 com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) CE7B6D9D-0577-3683-8410-CA8707BBDA4B <7 6 5 4 3 1> 85 0 0xffffff7f826ff000 0x2000 0x2000 com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <84 4 3> 86 2 0xffffff7f82286000 0x95000 0x95000 com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3> 87 4 0xffffff7f8231b000 0x30000 0x30000 com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <86 5 4 3 1> 88 2 0xffffff7f829ff000 0xc000 0xc000 com.apple.iokit.IOHDAFamily (278.56) FA51E93E-C5E9-35FC-B906-EF98887B92B8 <5 4 3 1> 89 1 0xffffff7f82a12000 0x1d000 0x1d000 com.apple.driver.AppleHDAController (278.56) CFB0D0AE-F09A-3660-8F95-7A02FD5FBF07 <88 87 78 12 7 6 5 4 3 1> 90 0 0xffffff7f829a0000 0xa000 0xa000 com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1> 91 0 0xffffff7f810d3000 0x3000 0x3000 com.apple.nvidia.NVDAStartup (10.1.4) 636515FB-F82D-360E-9535-6F40436455AC <12 4 3> 92 3 0xffffff7f8111e000 0x10000 0x10000 com.apple.iokit.IONDRVSupport (513.1) 07F97C14-C6EE-3577-9875-8BA38DDCBCCD <78 12 7 5 4 3> 93 0 0xffffff7f825a3000 0xa000 0xa000 com.apple.driver.AppleSSE (1.0) 305CA896-487D-3F3A-8F0B-ECFA9B333147 <21 7 5 4 3 1> 94 0 0xffffff7f8216d000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <74 8 7 4 3 1> 95 1 0xffffff7f81c03000 0x18000 0x18000 com.apple.iokit.IOSurface (153.3) 1BCFEDCE-166A-3FC3-86B9-5B19083FFFEC <7 6 5 4 3 1> 96 0 0xffffff7f82752000 0x73000 0x73000 com.apple.driver.AppleIntelHD5000Graphics (10.2.2) 08817049-EFA4-3941-B962-830945C0B00F <95 79 78 12 7 6 5 4 3 1> 97 0 0xffffff7f82646000 0x4000 0x4000 com.apple.driver.AppleOSXWatchdog (1) 9B1AC3B0-A459-3D88-B43D-428EA39DDB8A <12 7 6 5 4 3 1> 98 1 0xffffff7f81c1d000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3> 99 1 0xffffff7f825b0000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <98 12 11 5 4 3> 100 0 0xffffff7f81dd4000 0xe3000 0xe3000 com.apple.iokit.IOBluetoothFamily (5.0.2f4) BAF88BBD-7D4A-30AC-AC1D-4AA4290065C6 <16 7 5 4 3 1> 101 0 0xffffff7f80cc8000 0x12000 0x12000 org.hwsensors.driver.GPUSensors (1723) CA7F5B8F-ED8B-3450-9463-5DD72A465C07 <14 12 11 7 5 4 3> 102 0 0xffffff7f82653000 0xe000 0xe000 com.apple.driver.AppleMCCSControl (1.2.15) FEB5D813-E93B-33C2-B391-E41251D7CD06 <99 78 74 12 11 7 5 4 3 1> 103 0 0xffffff7f81dc0000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (5.0.2f4) 89403F6A-CE67-3F6E-AA7E-42354137D591 <69 7 5 4 3 1> 104 0 0xffffff7f82407000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <78 12 11 7 5 4 3 1> 105 2 0xffffff7f8113a000 0x2f2000 0x2f2000 com.apple.nvidia.driver.NVDAResman (10.1.4) FE59CEBD-B723-337F-99CD-80402D846F95 <92 80 78 12 7 5 4 3 1> 106 0 0xffffff7f8143c000 0x1b3000 0x1b3000 com.apple.nvidia.driver.NVDAGK100Hal (10.1.4) B21122DF-798E-3145-86C8-4EBEF06334C2 <105 12 4 3> 107 0 0xffffff7f82088000 0xa4000 0xa4000 com.apple.GeForce (10.1.4) 18865C44-CCA3-3B9C-9529-FEFE03F3F321 <105 92 79 78 12 7 5 4 3 1> 108 0 0xffffff7f81796000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.1) 32E2019A-799D-3E86-9F40-7D9AB4500A9D <41 6 5 4 3 1> 109 0 0xffffff7f810bd000 0xf000 0xf000 com.apple.driver.pmtelemetry (1) 963D5479-A74A-35FA-AFAA-6D61989DAD4D <7 6 5 4 3> 110 1 0xffffff7f82a2f000 0x13000 0x13000 com.apple.kext.OSvKernDSPLib (525) D0421B4D-7B97-3102-BC42-3684344DB5E6 <5 4> 111 1 0xffffff7f82a42000 0x147000 0x147000 com.apple.driver.DspFuncLib (278.56) 301F7D1F-21E0-306A-B52B-D26D798BCE7B <110 87 86 37 6 5 4 3 1> 112 0 0xffffff7f82b94000 0xb4000 0xb4000 com.apple.driver.AppleHDA (278.56) A4EB06C9-A40A-39EF-9C4A-D7F23DB9A2F9 <111 92 89 88 87 78 6 5 4 3 1> 113 0 0xffffff7f82a0e000 0x2000 0x2000 com.apple.driver.AppleHDAHardwareConfigDriver (278.56) 06C594F4-3E5D-3BF4-A783-90C741DAA3F0 <4 3> 114 0 0xffffff7f80a22000 0x34000 0x34000 com.paragon-software.filesystems.ntfs (318.3.14) F6A7BB1D-5A30-3EAA-9644-77F98E29F1AE <7 5 4 1> 115 0 0xffffff7f82410000 0x9000 0x9000 com.apple.driver.AppleTyMCEDriver (1.0.2d2) 200A9785-8ABC-3FF4-9F36-237030D34DB3 <72 12 11 7 6 5 4 3 1> 116 1 0xffffff7f80ffc000 0x5000 0x5000 com.apple.kext.triggers (1.0) 0DA9C43A-5936-343E-8233-CF17F790D6D2 <7 6 5 4 3 1> 117 0 0xffffff7f8227b000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) 49E74E96-0A87-3229-9D83-91E930C7C984 <116 7 6 5 4 3 1> 118 0 0xffffff7f82353000 0x5000 0x5000 com.apple.driver.AudioAUUC (1.70) DA1CA792-7C22-3F41-B64E-4E01C8679031 <87 78 12 11 7 5 4 3 1> 119 1 0xffffff7f82c9b000 0x3000 0x3000 com.apple.driver.AppleGraphicsControl (3.13.78) EA7D81D6-21DB-378C-B03B-7CF0F3E5B3E5 <7 5 4 3 1> 120 0 0xffffff7f82c9e000 0xb000 0xb000 com.apple.driver.AppleGraphicsDevicePolicy (3.13.78) 174CA94D-A552-38AD-A1DA-B9DD5AFAE6AC <119 80 78 12 11 7 6 5 4 3 1> In my old setting: sound OK, sleep OK, restart/shut down work OK most time. Can I use the patched DSDT from Clover with old setting to use? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 do u like tests? try DSDT + plist here in shutdown or restart "failed" error is normal! if u see it, relax! Hi, thanks for your reply Here is my old setting kextstat: Homes-iMac:~ home$ kextstat Index Refs Address Size Wired Name (Version) UUID <Linked Against> 1 80 0xffffff7f80a18000 0x9d30 0x9d30 com.apple.kpi.bsd (16.3.0) 1C8BA947-9D35-4C65-8A99-901762C7418F 2 8 0xffffff7f80f4c000 0x3940 0x3940 com.apple.kpi.dsep (16.3.0) 73D590F2-2A0C-4EF6-AB05-10B1796E8CB0 3 106 0xffffff7f80a57000 0x21040 0x21040 com.apple.kpi.iokit (16.3.0) 4C96CC6E-211D-4333-816B-D677FD35F58F 4 113 0xffffff7f80a00000 0xd200 0xd200 com.apple.kpi.libkern (16.3.0) 124D20E9-E3C7-42F0-A106-54DC2E144926 5 96 0xffffff7f80a14000 0x3dd0 0x3dd0 com.apple.kpi.mach (16.3.0) FA3BFB1A-BA35-492F-B136-AE838430B1DF 6 51 0xffffff7f80a79000 0xba10 0xba10 com.apple.kpi.private (16.3.0) 50287633-1D88-4D47-82A0-70352AAA0D56 7 74 0xffffff7f80a0e000 0x5890 0x5890 com.apple.kpi.unsupported (16.3.0) F639490A-DF58-418A-A6CD-A4DA8995B57D 8 5 0xffffff7f80f53000 0xa9000 0xa9000 com.apple.kec.corecrypto (1.0) 8340F600-2C31-3B8B-9BD8-32EC3A1883DE <7 6 5 4 3 1> 9 0 0xffffff7f810ae000 0xf000 0xf000 com.apple.kec.pthread (1) 479F2E9E-1F15-3D76-A407-DB04C1277527 <7 6 5 4 1> 10 1 0xffffff7f81616000 0xb000 0xb000 com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4> 11 27 0xffffff7f80c98000 0x9000 0x9000 com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3> 12 31 0xffffff7f80b67000 0x34000 0x34000 com.apple.iokit.IOPCIFamily (2.9) 6F8D3ACB-27CB-3B57-9E06-53E377762F5C <7 6 5 4 3> 13 1 0xffffff7f82d07000 0x60000 0x60000 com.apple.driver.AppleACPIPlatform (5.0) C13E1748-0D63-3761-82E4-FEF27EF06967 <12 11 7 6 5 4 3 1> 14 4 0xffffff7f80ca1000 0x12000 0x12000 org.netkas.driver.FakeSMC (1723) 1437FD40-F974-31AF-A7DD-A172ED238216 <11 7 5 4 3 1> 15 1 0xffffff7f81896000 0xb000 0xb000 com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1> 16 3 0xffffff7f81c91000 0x7000 0x7000 com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3> 17 5 0xffffff7f80a85000 0x27000 0x27000 com.apple.iokit.IOStorageFamily (2.1) 3238C6A2-A948-378E-9C53-3883089C1B52 <7 6 5 4 3 1> 18 0 0xffffff7f81d31000 0x19000 0x19000 com.apple.driver.DiskImages (444.30.5) 43085F89-92B4-32E9-BFE9-146D81D4EEFE <17 7 6 5 4 3 1> 19 1 0xffffff7f81621000 0xd000 0xd000 com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3> 20 12 0xffffff7f8162e000 0x69000 0x69000 com.apple.iokit.IOUSBHostFamily (1.1) 82948F8E-3EA5-3D90-99C5-0AE91ABCA0C4 <19 7 6 5 4 3 1> 21 3 0xffffff7f8169f000 0x11000 0x11000 com.apple.driver.KernelRelayHost (1) 8F19A6F4-0D9B-3D8D-911D-098BDE96256C <20 5 4 3> 22 1 0xffffff7f8268d000 0x24000 0x24000 com.apple.driver.AppleCredentialManager (1.0) 35EB93F4-9C0A-34E6-9053-CAE9464861D6 <21 8 7 6 5 4 3 1> 23 2 0xffffff7f81069000 0x17000 0x17000 com.apple.driver.AppleMobileFileIntegrity (1.0.5) 3822FBDE-419D-323E-BAAC-78C0D6DCC7CA <8 7 6 5 4 3 2 1> 24 0 0xffffff7f826b1000 0x47000 0x47000 com.apple.driver.AppleKeyStore (2) E875806B-1B2A-349F-AD10-4B047A77C468 <23 22 21 8 7 6 5 4 3 1> 25 0 0xffffff7f80f50000 0x2000 0x2000 com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1> 26 2 0xffffff7f81080000 0x5000 0x5000 com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1> 27 1 0xffffff7f81085000 0x1f000 0x1f000 com.apple.security.sandbox (300.0) 0B04AC5A-C0E5-3E54-8DE4-4A089015BC85 <26 23 17 7 6 5 4 3 2 1> 28 0 0xffffff7f810a4000 0x9000 0x9000 com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <27 26 7 6 5 4 2 1> 29 0 0xffffff7f82e13000 0x8000 0x8000 com.apple.nke.applicationfirewall (172) 87563A26-608B-3C95-8476-CAA6E1271FBF <7 6 5 4 3 1> 30 0 0xffffff7f82cd5000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3> 31 0 0xffffff7f825c1000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3> 32 0 0xffffff7f829e4000 0x3000 0x3000 com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3> 33 0 0xffffff7f825ee000 0x8000 0x8000 com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1> 34 2 0xffffff7f818a1000 0x79000 0x79000 com.apple.iokit.IOHIDFamily (2.0.0) 8D5ADCF8-7C6B-3B6D-9C9A-E2850B1A0AB6 <15 7 6 5 4 3 2 1> 35 0 0xffffff7f82d77000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (5.0) 289AF752-1D1B-3CA4-A071-8B8A462207E0 <34 16 13 11 7 6 5 4 3 1> 36 1 0xffffff7f81ce8000 0x5000 0x5000 com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3> 37 1 0xffffff7f81ced000 0xb000 0xb000 com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <36 7 6 5 4 3 2 1> 38 1 0xffffff7f80cf4000 0x8000 0x8000 org.rehabman.driver.FakePCIID (1.3.2) 7AC87F88-8DF2-3B20-8343-D16EBA90707E <12 7 5 4 3 1> 39 0 0xffffff7f80cfc000 0x3000 0x3000 org.rehabman.driver.FakePCIID.XHCIMux (1.3.2) 9E913C8F-352A-31C9-9806-E761394B0466 <38 12 7 5 4 3 1> 40 0 0xffffff7f8270b000 0xb000 0xb000 com.apple.driver.AppleIntelLpssGspi (3.0.60) 181C062F-B834-35A7-899D-034D7C5E939C <12 11 7 5 4 3> 41 2 0xffffff7f80ecd000 0x2d000 0x2d000 com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1> 42 0 0xffffff7f80f01000 0x18000 0x18000 com.insanelymac.driver.AppleIntelE1000e (3.3.3) E91FCC85-BC82-DA03-A2D4-1F9F661263B4 <41 12 5 4 3 1> 43 1 0xffffff7f8193a000 0x41000 0x41000 com.apple.driver.usb.AppleUSBXHCI (1.1) 66C3B8C3-513C-38E5-9B5A-6872F8CF7EDB <20 11 7 5 4 3 1> 44 0 0xffffff7f81981000 0x2a000 0x2a000 com.apple.driver.usb.AppleUSBXHCIPCI (1.1) 3E0F8CAE-821B-3B87-B5C4-EADF37350D84 <43 20 12 11 7 5 4 3 1> 45 2 0xffffff7f81f1d000 0x1a000 0x1a000 com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1> 46 0 0xffffff7f82cda000 0x1e000 0x1e000 com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <45 12 5 4 3 1> 47 1 0xffffff7f819b6000 0x3d000 0x3d000 com.apple.driver.usb.AppleUSBEHCI (1.1) 099DB0E6-EBC6-30A7-A814-FE786D3ECEEE <20 11 7 5 4 3 1> 48 0 0xffffff7f81a95000 0xe000 0xe000 com.apple.driver.usb.AppleUSBEHCIPCI (1.1) C40BC641-5A3B-3F08-A1D7-7FB7B96936A8 <47 20 12 11 7 5 4 3 1> 49 0 0xffffff7f81f47000 0x1c000 0x1c000 com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <45 17 6 5 4 3 1> 50 0 0xffffff7f8235b000 0xa000 0xa000 com.apple.driver.AppleXsanScheme (3) CE9B9375-DE2D-396A-9AB5-088FF26F081B <17 5 4 3 1> 51 1 0xffffff7f817d6000 0x9a000 0x9a000 com.apple.iokit.IOUSBFamily (900.4.1) BAA0E7EA-595A-3752-B43A-360A4AC18FA6 <20 12 7 5 4 3 1> 52 0 0xffffff7f81a80000 0x5000 0x5000 com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 8D98EF38-00DF-3C04-944C-8760AFBE8A75 <20 7 6 5 4 3 1> 53 1 0xffffff7f81a85000 0x4000 0x4000 com.apple.driver.AppleUSBHostMergeProperties (1.1) 27A04C45-87F5-371E-A7EB-29D02ACF9CD4 <4 3 1> 54 0 0xffffff7f81acd000 0x3000 0x3000 com.apple.driver.AppleUSBMergeNub (900.4.1) 24FEDD3C-4A1F-3E9D-B87C-2D02ADE6B99A <53 51 4 3 1> 55 0 0xffffff7f80bb4000 0x4b000 0x4b000 at.obdev.nke.LittleSnitch (4722) 6C446FBE-DE45-32DD-B134-67608585E7EF <7 5 4 3 1> 56 1 0xffffff7f81f70000 0x7000 0x7000 com.apple.filesystems.hfs.encodings.kext (1) EF826638-659D-3185-85D1-DF1F26EC9E31 <7 6 5 4 3 1> 57 0 0xffffff7f81f77000 0x6a000 0x6a000 com.apple.filesystems.hfs.kext (366.30.3) 67BB9886-0B3D-35CE-A311-FEAB6432BB5E <56 7 6 5 4 3 1> 58 0 0xffffff7f8226f000 0xa000 0xa000 com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1> 59 0 0xffffff7f82cae000 0x6000 0x6000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1> 60 0 0xffffff7f82cb6000 0x3000 0x3000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1> 61 0 0xffffff7f82cbf000 0x2000 0x2000 com.apple.driver.AppleFileSystemDriver (3.0.1) 527DF605-93C5-38CD-B8DB-408E5F88AEAD <17 4 3> 62 0 0xffffff7f81a4a000 0x2e000 0x2e000 com.apple.driver.usb.AppleUSBHub (1.1) 80BA1480-54BE-34CF-9BE5-4EFF6FCCCD36 <20 11 5 4 3 1> 63 1 0xffffff7f81a89000 0x8000 0x8000 com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 5289B62E-C27E-3E3B-8B6B-9978E25FEC17 <20 5 4 3 1> 64 1 0xffffff7f8239e000 0x8000 0x8000 com.apple.driver.usb.networking (5.0.0) 97E0F9F7-F309-31D5-BB72-5E33AA9C7DE2 <20 5 4 3 1> 65 0 0xffffff7f823a6000 0x9000 0x9000 com.apple.driver.usb.cdc (5.0.0) 32238CD5-5E45-345D-BF49-E4775C905529 <64 63 20 5 4 3 1> 66 0 0xffffff7f8192f000 0xb000 0xb000 com.apple.driver.usb.IOUSBHostHIDDevice (1.1) E99E8E18-645E-38BB-80DD-231A8CB7EFFA <34 20 5 4 3 1> 67 0 0xffffff7f80b24000 0x2b000 0x2b000 com.apple.iokit.IOSCSIArchitectureModelFamily (394.30.2) 743A75F4-33AA-3396-B06B-504C86028712 <6 5 4 3 1> 68 0 0xffffff7f82cba000 0x3000 0x3000 com.apple.driver.AppleFIVRDriver (4.1.0) 4A860C53-8DCA-33AE-9410-5DE2209AF1E8 <4 3> 69 2 0xffffff7f81c2c000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1> 70 1 0xffffff7f82d7f000 0xf000 0xf000 com.apple.driver.Apple16X50Serial (3.2) E54BC090-33ED-3282-83A2-634932CEC03E <69 12 5 4 3> 71 0 0xffffff7f82d8e000 0x2000 0x2000 com.apple.driver.Apple16X50ACPI (3.2) 7D58A10C-F073-3DC1-944C-CDD6499CAA4B <70 11 4 3> 72 3 0xffffff7f81c98000 0xa000 0xa000 com.apple.driver.IOPlatformPluginFamily (6.0.0d8) DED85A80-5141-326A-8AC7-1365380A3FF6 <11 7 6 5 4 3> 73 1 0xffffff7f81ca2000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (1.0.0) 5B9C0492-18D3-3DAA-AF83-CD394244E8C0 <72 11 7 6 5 4 3> 74 3 0xffffff7f81cb6000 0x19000 0x19000 com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1> 75 0 0xffffff7f81cd1000 0x10000 0x10000 com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) 747D61E3-CEBD-3CC4-AB8D-353B6A47E701 <74 73 72 12 11 7 6 5 4 3> 76 0 0xffffff7f80ce7000 0x8000 0x8000 org.hwsensors.driver.ACPISensors (1723) A06DCEFC-9D52-361B-9B6E-365625089C36 <14 11 7 5 4 3> 77 0 0xffffff7f825ad000 0x3000 0x3000 com.apple.driver.AppleSMBusPCI (1.0.14d1) F5516FB7-82C6-3E74-98E7-80EDCA074BC2 <12 5 4 3> 78 12 0xffffff7f810d7000 0x3b000 0x3b000 com.apple.iokit.IOGraphicsFamily (513.1) 578F9D07-96F4-3F09-A6A6-047F257CB3BA <12 7 5 4 3 1> 79 3 0xffffff7f81fe8000 0x91000 0x91000 com.apple.iokit.IOAcceleratorFamily2 (289.27) CB49995B-2507-3E48-87EE-5C7A57D0FE4B <78 12 7 6 5 4 3 1> 80 3 0xffffff7f8112e000 0xa000 0xa000 com.apple.AppleGraphicsDeviceControl (3.13.78) FD48FB7F-3F5F-38F1-A8C7-B82C80807726 <7 6 5 4 3 1> 81 0 0xffffff7f827f4000 0x152000 0x152000 com.apple.driver.AppleIntelFramebufferAzul (10.2.2) 6D11C576-86EA-3B6D-99BE-BE72C66945D5 <80 79 78 16 12 11 7 6 5 4 3 1> 82 0 0xffffff7f80ce0000 0x5000 0x5000 org.hwsensors.driver.CPUSensors (1723) 6A6838BB-AFF2-376E-BD9C-32EA32F43571 <14 7 5 4 3> 83 0 0xffffff7f80cb7000 0xe000 0xe000 org.hwsensors.driver.LPCSensors (1723) 02EE8944-1F7C-3A1C-B481-48FDEE21F8FB <14 12 11 7 5 4 3> 84 1 0xffffff7f81c21000 0x5000 0x5000 com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) CE7B6D9D-0577-3683-8410-CA8707BBDA4B <7 6 5 4 3 1> 85 0 0xffffff7f826ff000 0x2000 0x2000 com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <84 4 3> 86 2 0xffffff7f82286000 0x95000 0x95000 com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3> 87 4 0xffffff7f8231b000 0x30000 0x30000 com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <86 5 4 3 1> 88 2 0xffffff7f829ff000 0xc000 0xc000 com.apple.iokit.IOHDAFamily (278.56) FA51E93E-C5E9-35FC-B906-EF98887B92B8 <5 4 3 1> 89 1 0xffffff7f82a12000 0x1d000 0x1d000 com.apple.driver.AppleHDAController (278.56) CFB0D0AE-F09A-3660-8F95-7A02FD5FBF07 <88 87 78 12 7 6 5 4 3 1> 90 0 0xffffff7f829a0000 0xa000 0xa000 com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1> 91 0 0xffffff7f810d3000 0x3000 0x3000 com.apple.nvidia.NVDAStartup (10.1.4) 636515FB-F82D-360E-9535-6F40436455AC <12 4 3> 92 3 0xffffff7f8111e000 0x10000 0x10000 com.apple.iokit.IONDRVSupport (513.1) 07F97C14-C6EE-3577-9875-8BA38DDCBCCD <78 12 7 5 4 3> 93 0 0xffffff7f825a3000 0xa000 0xa000 com.apple.driver.AppleSSE (1.0) 305CA896-487D-3F3A-8F0B-ECFA9B333147 <21 7 5 4 3 1> 94 0 0xffffff7f8216d000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <74 8 7 4 3 1> 95 1 0xffffff7f81c03000 0x18000 0x18000 com.apple.iokit.IOSurface (153.3) 1BCFEDCE-166A-3FC3-86B9-5B19083FFFEC <7 6 5 4 3 1> 96 0 0xffffff7f82752000 0x73000 0x73000 com.apple.driver.AppleIntelHD5000Graphics (10.2.2) 08817049-EFA4-3941-B962-830945C0B00F <95 79 78 12 7 6 5 4 3 1> 97 0 0xffffff7f82646000 0x4000 0x4000 com.apple.driver.AppleOSXWatchdog (1) 9B1AC3B0-A459-3D88-B43D-428EA39DDB8A <12 7 6 5 4 3 1> 98 1 0xffffff7f81c1d000 0x4000 0x4000 com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3> 99 1 0xffffff7f825b0000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <98 12 11 5 4 3> 100 0 0xffffff7f81dd4000 0xe3000 0xe3000 com.apple.iokit.IOBluetoothFamily (5.0.2f4) BAF88BBD-7D4A-30AC-AC1D-4AA4290065C6 <16 7 5 4 3 1> 101 0 0xffffff7f80cc8000 0x12000 0x12000 org.hwsensors.driver.GPUSensors (1723) CA7F5B8F-ED8B-3450-9463-5DD72A465C07 <14 12 11 7 5 4 3> 102 0 0xffffff7f82653000 0xe000 0xe000 com.apple.driver.AppleMCCSControl (1.2.15) FEB5D813-E93B-33C2-B391-E41251D7CD06 <99 78 74 12 11 7 5 4 3 1> 103 0 0xffffff7f81dc0000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (5.0.2f4) 89403F6A-CE67-3F6E-AA7E-42354137D591 <69 7 5 4 3 1> 104 0 0xffffff7f82407000 0x5000 0x5000 com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <78 12 11 7 5 4 3 1> 105 2 0xffffff7f8113a000 0x2f2000 0x2f2000 com.apple.nvidia.driver.NVDAResman (10.1.4) FE59CEBD-B723-337F-99CD-80402D846F95 <92 80 78 12 7 5 4 3 1> 106 0 0xffffff7f8143c000 0x1b3000 0x1b3000 com.apple.nvidia.driver.NVDAGK100Hal (10.1.4) B21122DF-798E-3145-86C8-4EBEF06334C2 <105 12 4 3> 107 0 0xffffff7f82088000 0xa4000 0xa4000 com.apple.GeForce (10.1.4) 18865C44-CCA3-3B9C-9529-FEFE03F3F321 <105 92 79 78 12 7 5 4 3 1> 108 0 0xffffff7f81796000 0x6000 0x6000 com.apple.iokit.IOUserEthernet (1.0.1) 32E2019A-799D-3E86-9F40-7D9AB4500A9D <41 6 5 4 3 1> 109 0 0xffffff7f810bd000 0xf000 0xf000 com.apple.driver.pmtelemetry (1) 963D5479-A74A-35FA-AFAA-6D61989DAD4D <7 6 5 4 3> 110 1 0xffffff7f82a2f000 0x13000 0x13000 com.apple.kext.OSvKernDSPLib (525) D0421B4D-7B97-3102-BC42-3684344DB5E6 <5 4> 111 1 0xffffff7f82a42000 0x147000 0x147000 com.apple.driver.DspFuncLib (278.56) 301F7D1F-21E0-306A-B52B-D26D798BCE7B <110 87 86 37 6 5 4 3 1> 112 0 0xffffff7f82b94000 0xb4000 0xb4000 com.apple.driver.AppleHDA (278.56) A4EB06C9-A40A-39EF-9C4A-D7F23DB9A2F9 <111 92 89 88 87 78 6 5 4 3 1> 113 0 0xffffff7f82a0e000 0x2000 0x2000 com.apple.driver.AppleHDAHardwareConfigDriver (278.56) 06C594F4-3E5D-3BF4-A783-90C741DAA3F0 <4 3> 114 0 0xffffff7f80a22000 0x34000 0x34000 com.paragon-software.filesystems.ntfs (318.3.14) F6A7BB1D-5A30-3EAA-9644-77F98E29F1AE <7 5 4 1> 115 0 0xffffff7f82410000 0x9000 0x9000 com.apple.driver.AppleTyMCEDriver (1.0.2d2) 200A9785-8ABC-3FF4-9F36-237030D34DB3 <72 12 11 7 6 5 4 3 1> 116 1 0xffffff7f80ffc000 0x5000 0x5000 com.apple.kext.triggers (1.0) 0DA9C43A-5936-343E-8233-CF17F790D6D2 <7 6 5 4 3 1> 117 0 0xffffff7f8227b000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) 49E74E96-0A87-3229-9D83-91E930C7C984 <116 7 6 5 4 3 1> 118 0 0xffffff7f82353000 0x5000 0x5000 com.apple.driver.AudioAUUC (1.70) DA1CA792-7C22-3F41-B64E-4E01C8679031 <87 78 12 11 7 5 4 3 1> 119 1 0xffffff7f82c9b000 0x3000 0x3000 com.apple.driver.AppleGraphicsControl (3.13.78) EA7D81D6-21DB-378C-B03B-7CF0F3E5B3E5 <7 5 4 3 1> 120 0 0xffffff7f82c9e000 0xb000 0xb000 com.apple.driver.AppleGraphicsDevicePolicy (3.13.78) 174CA94D-A552-38AD-A1DA-B9DD5AFAE6AC <119 80 78 12 11 7 6 5 4 3 1> In my old setting: sound OK, sleep OK, restart/shut down work OK most time. Can I use the patched DSDT from Clover with old setting to use? yes! clover is good, same many patches! test both newcomer11.zip DSDT.newcomer11 MINIMAL.zip 1 Link to comment Share on other sites More sharing options...
magnifico Posted December 21, 2016 Share Posted December 21, 2016 returned to home the man of dsdt 2 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 21, 2016 Share Posted December 21, 2016 returned to home the man of dsdt i like that! i think the s3d patch broke the sleep 2 Link to comment Share on other sites More sharing options...
magnifico Posted December 21, 2016 Share Posted December 21, 2016 i think the s3d patch broke the sleep 1 Link to comment Share on other sites More sharing options...
newcomer11 Posted December 22, 2016 Author Share Posted December 22, 2016 do u like tests? try DSDT + plist here in shutdown or restart "failed" error is normal! if u see it, relax! yes! clover is good, same many patches! test both Hi, I test your 2 DSDT, seem no different between 2 files. Can you post what patch you applied for those DSDT? And the plist: - Inject NVIDIA doest not work, screen goes black after boot. I have to change to my old setting is nvda_drv=1 in boot arg. - Sound does not work too, I have to add some HDA patch in my old setting to make it work. i like that! i think the s3d patch broke the sleep The sleep works with new DSDT Thank you very much for your support! Link to comment Share on other sites More sharing options...

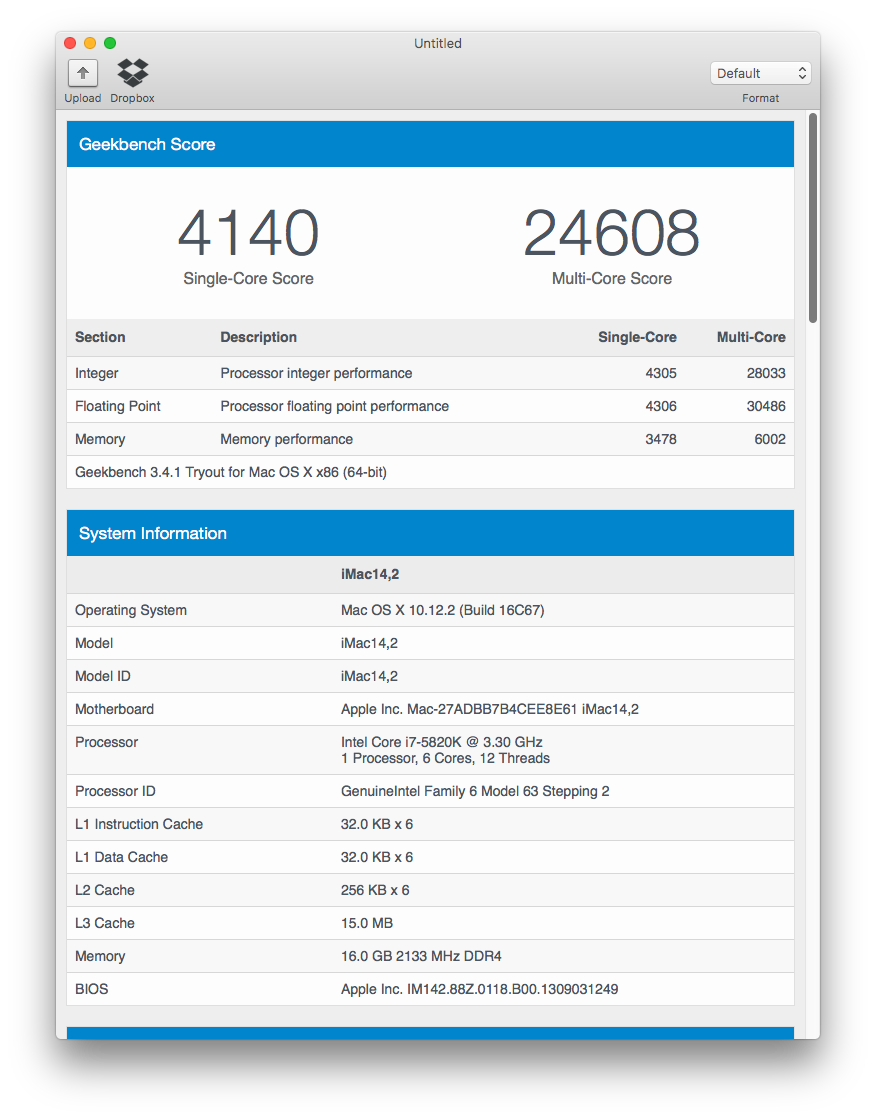

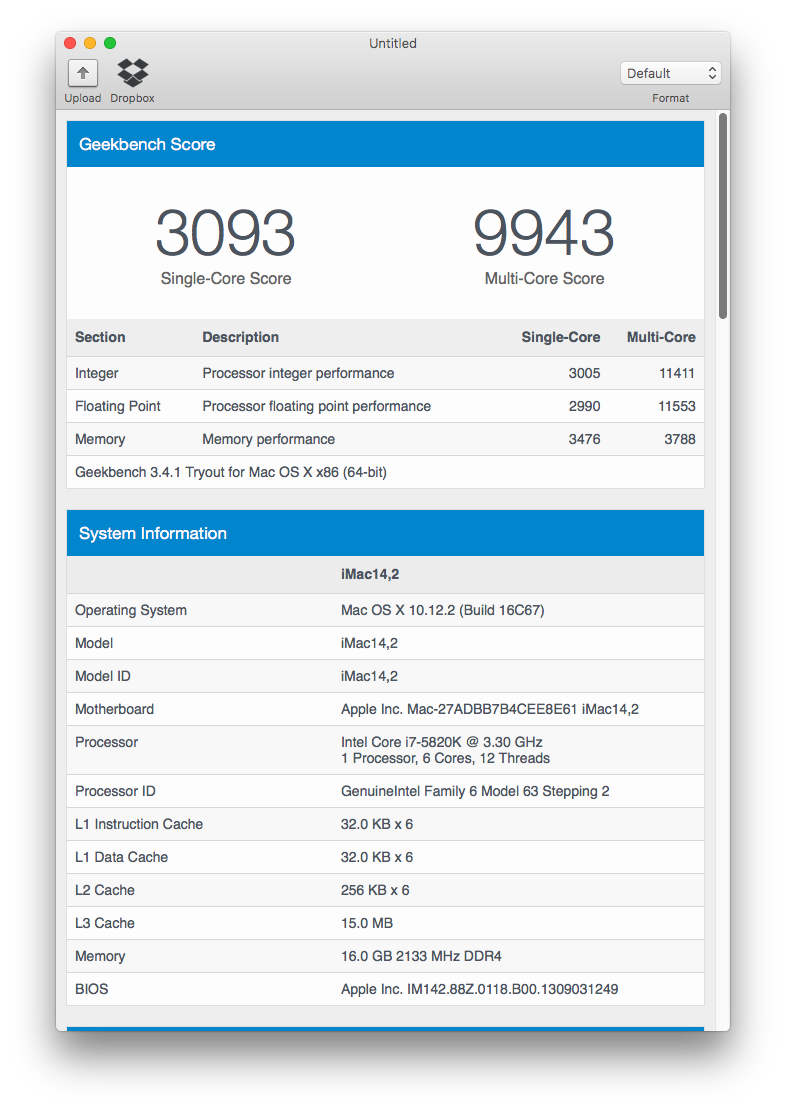

MaLd0n Posted December 22, 2016 Share Posted December 22, 2016 Nice. the sleep work for me, but see this... after sleep, my processor remember the old core2quad before sleep sound add _DSM in HDEF Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { Store (Package (0x06) { "layout-id", Buffer (0x04) { 0x01, 0x00, 0x00, 0x00 }, "MaximumBootBeepVolume", Buffer (One) { 0x01 }, "PinConfigurations", Buffer (Zero) {} }, Local0) DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0)) Return (Local0) } and use AppleLPC.kext, u can try it, work for me in many mobos, applehda stay untouched. AppleALC.kext.zip https://github.com/vit9696/AppleALC 1 Link to comment Share on other sites More sharing options...
magnifico Posted December 22, 2016 Share Posted December 22, 2016 Daniel me too not work sleep...mhmmmm arghhh 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 22, 2016 Share Posted December 22, 2016 Daniel me too not work sleep...mhmmmm arghhh ur micro is a mistery! 1 Link to comment Share on other sites More sharing options...
magnifico Posted December 22, 2016 Share Posted December 22, 2016 ur micro is a mistery! Fu maldonato 1 Link to comment Share on other sites More sharing options...
newcomer11 Posted December 25, 2016 Author Share Posted December 25, 2016 More update, my screen keep flick (turn off and on), tried change both DSDT or patching with Clover but no help, it happend after 5min of using Mac Link to comment Share on other sites More sharing options...
