Hello every one



I have an IDT audio with ID 92HD75BX (Not 92HD75B2X5 or 92HD75B3X5)

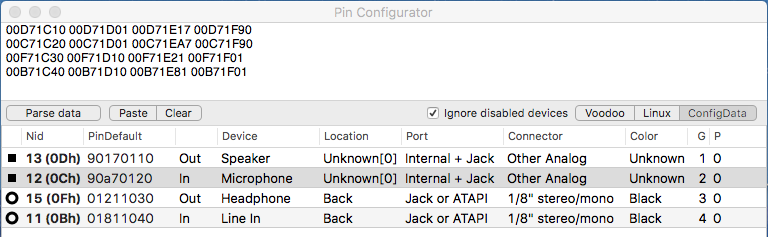

I’m using the next pin config:

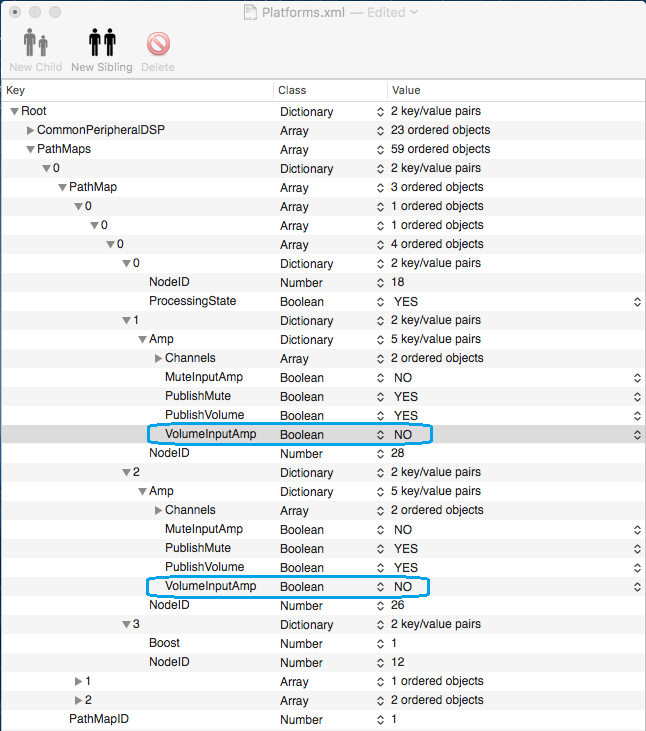

And the path maps:
MIC:                18 > 28 > 26 > 12
Line In:           19 > 29 > 27 > 11
Speaker:         13 > 17
Headphone:    15 > 16

Speaker and Headphone are OK but Mic and LineIn was giving the status "The selected device has no input controls".

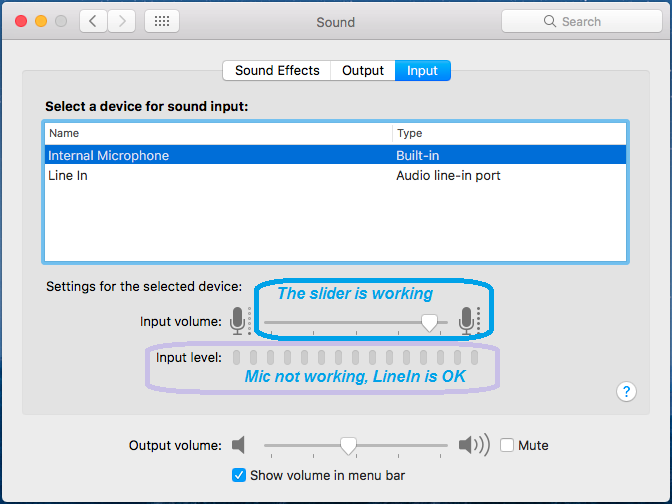

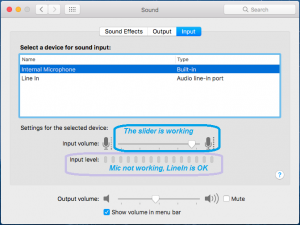

After modifying the “VolumeInputAmp” value to “No” in the Pathmap, the above message disappeared and the Input Volume slider becomes available and movable and the LineIn works well but the Mic is not working.

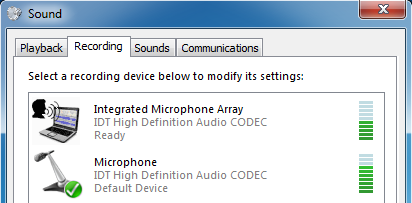

And another problem, although the LineIn is working well (if I connected it to some device LineOut audio source), but it’s not working as External Mic (I’ve tested it as Mic with Windows 7 and it works well).





PS:
-    The Mic is working well with VoodooHDA but LineIn not working.
-    I’ve tried to change Node 11 as Mic device in pin config without success.
-    I’ve tried to change the value of “Boost” to 2, 3 without success.
-    I’ve tried to add “Boost” to nodes 26 and/or 28 without success.
-    The results are the same on 10.11.3 and on 10.12.1.



Attached Ubuntu codec_dump.txt and DarwinDumper audio dump using VoodooHDA..



Any help would be greatly appreciated.


codec_dump.txt

VoodooHDAGetdump.txt
