Eurofighter_Ty2016 Posted August 3, 2016 Share Posted August 3, 2016 Hi, I have a Gigabyte B85M-D2V motherboard with ALC 887 chip and with AppleALC the sound doesn't work on the back panel only front panel. I have 3 ports on the back (Mic, Audio, Line In) (this order from left to right) and 2 on the front (sound and mic). I don't really care about the front panel but how can I get the back panel working ? I tried the scripts on the Audio section but only the front panel works with audio without mic. I tried setting audio layout from 1-3 nothing. How can I sort this out ? I posted in Audio section and nothing usefull. Here are some debug files: https://drive.google.com/file/d/0B4c9tlTAV_M0YWRmVjlxSmFOTnc/view Thank you very much ! Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/ Share on other sites More sharing options...
pico joe Posted August 3, 2016 Share Posted August 3, 2016 choose one method dont mixed of them 1. AppleALC must vanilla AppleHDA and clean patched audio in KextsToPatch 2. Toleda method just remove AppleALC Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261527 Share on other sites More sharing options...
Eurofighter_Ty2016 Posted August 3, 2016 Author Share Posted August 3, 2016 choose one method dont mixed of them 1. AppleALC must vanilla AppleHDA and clean patched audio in KextsToPatch 2. Toleda method just remove AppleALC I tried the the first one: in config.plist under kexts to patch I don't have anything. Layout 1: I have audio on back panel but no mic on front or back panel Layout 2: I have audio on front panel but no mic on front or back panel Layout 3: No audio but mic on back panel. So this is a layout problem ? How can I patch it or something ? Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261580 Share on other sites More sharing options...
Morpheus NS Posted August 3, 2016 Share Posted August 3, 2016 Have you tried this: http://www.insanelymac.com/forum/topic/297562-applehdapatcher/ ? I have ALC887 and everything works with Clover and dummyHDA created with Mirone's tool. Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261625 Share on other sites More sharing options...
Eurofighter_Ty2016 Posted August 3, 2016 Author Share Posted August 3, 2016 Have you tried this: http://www.insanelymac.com/forum/topic/297562-applehdapatcher/ ? I have ALC887 and everything works with Clover and dummyHDA created with Mirone's tool. Now in that folder on the desktop what do I need to install or copy to the EFI partition ? (sorry I am a noob) Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261638 Share on other sites More sharing options...
Morpheus NS Posted August 3, 2016 Share Posted August 3, 2016 You need to copy clover fixes to config.plist and also aDummyHDA.kext. I think that aDummyHDA works only in /System/Library/Extensions so you have to install it using EasyKext Utility (or any other kext tool) and fix permissions. EasyKext Utility does this automatically. Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261644 Share on other sites More sharing options...
Eurofighter_Ty2016 Posted August 3, 2016 Author Share Posted August 3, 2016 You need to copy clover fixes to config.plist and also aDummyHDA.kext. I think that aDummyHDA works only in /System/Library/Extensions so you have to install it using EasyKext Utility (or any other kext tool) and fix permissions. EasyKext Utility does this automatically. I did it ! But just the front panel sound works nothing more. Any idea ? I moved the AppleALC file on the EFI partition and the back panel was working (showing built in at the sperakers and the mic) BUT after I rebooted once more is dead..... (front panel works (audio and mic is dead) Why after one more reboot after install is dead ? Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261659 Share on other sites More sharing options...
Morpheus NS Posted August 3, 2016 Share Posted August 3, 2016 No idea, sorry. I only know how to follow the instructions. I hope you will find the solution. Which layout did you use? In my case, with 3 (erm...ports?) on the back, it was layout 5. Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261665 Share on other sites More sharing options...
Eurofighter_Ty2016 Posted August 3, 2016 Author Share Posted August 3, 2016 No idea, sorry. I only know how to follow the instructions. I hope you will find the solution. Which layout did you use? In my case, with 3 (erm...ports?) on the back, it was layout 5. The same layout: 5 I am still not get it why doesn't work.... Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261667 Share on other sites More sharing options...
Slice Posted August 3, 2016 Share Posted August 3, 2016 I have ALC887 and it works perfect... with VoodooHDA. Back and front Sound In and Out. Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261712 Share on other sites More sharing options...

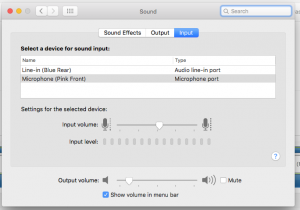

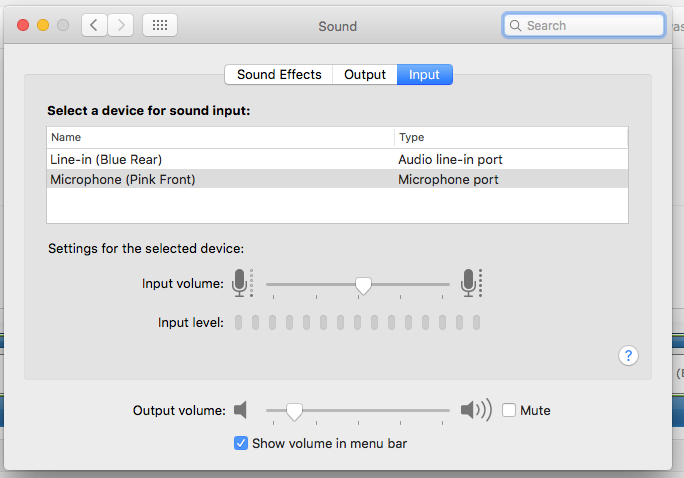

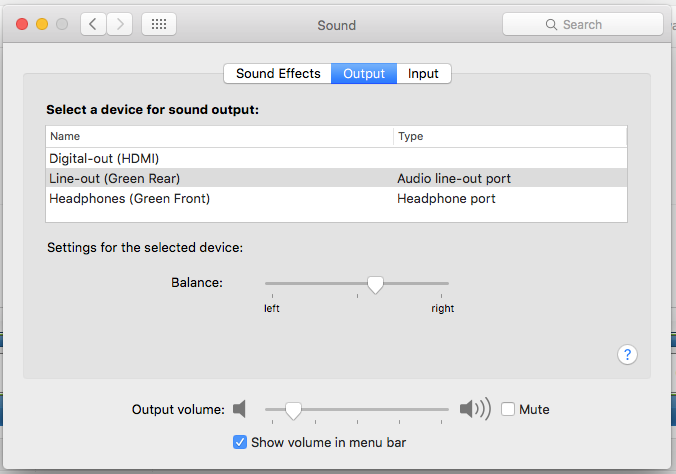

Eurofighter_Ty2016 Posted August 3, 2016 Author Share Posted August 3, 2016 I have ALC887 and it works perfect... with VoodooHDA. Back and front Sound In and Out. Screen Shot 2016-08-03 at 22.12.12.png Screen Shot 2016-08-03 at 22.12.01.png What version do you have installed ? Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261718 Share on other sites More sharing options...
Slice Posted August 3, 2016 Share Posted August 3, 2016 What version do you have installed ? In my signature. Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2261749 Share on other sites More sharing options...
Eurofighter_Ty2016 Posted August 5, 2016 Author Share Posted August 5, 2016 I tried and the mic doesn't work on the back and front. Just sound on front and back. On Windows it works so my mic and ports are ok Sent from my Moto G using Tapatalk Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2262193 Share on other sites More sharing options...
Slice Posted August 8, 2016 Share Posted August 8, 2016 Install VoodooHDA.prefPane and move sliders to get a sound. ALC887 on Gigabyte motherboard must work with VoodooHDA. Link to comment https://www.insanelymac.com/forum/topic/313869-alc-887-audio/#findComment-2263071 Share on other sites More sharing options...
