X58A UD7 For DSDT

[nmano]

PATCH GA X58A-UD7

X58 UD7

by MaLd0n

Modified N.Mano



XHCI for USB 3

DTGP

HDEF

HID/CID

EH01

EH02

HPET

RTC

IRQs

RENAMED DEVICES

SMBUS

SHUTDOWN

REMOVED DEVICES

LPC

FIX WARNINGS





Extracting your native/clean DSDT using Clover F4



If you press F4 at the main Clover bootloader screen, Clover will write your native files to EFI/Clover/ACPI/origin.

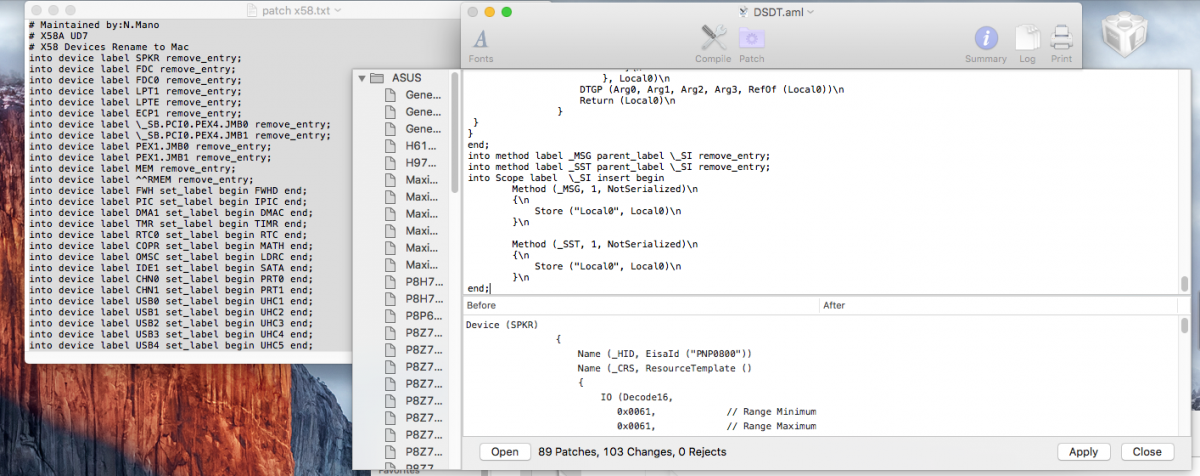

Use File Open to open your unpatched/raw DSDT you extracted earlier

Choose patch x58.txt

Open MaciASL.app

Set ACPI Specification 4.0

Select All from patch x58.txt and copy

Click patch button MaciASL.app just paste all then apply once.

X58A UD7 DSDT Patch.zip

[nmano]

I just update with 0 error ACPI Specification 5.1



PATCH GA X58A-UD7

X58 UD7

# Maintained by:N.Mano

# Credits: RehabMan,MaLd0n



XHCI for USB 3

DTGP

HDEF

HID/CID

EH01

EH02

HPET

RTC

IRQs

RENAMED DEVICES

SMBUS

SHUTDOWN

REMOVED DEVICES

LPC

FIX WARNINGS

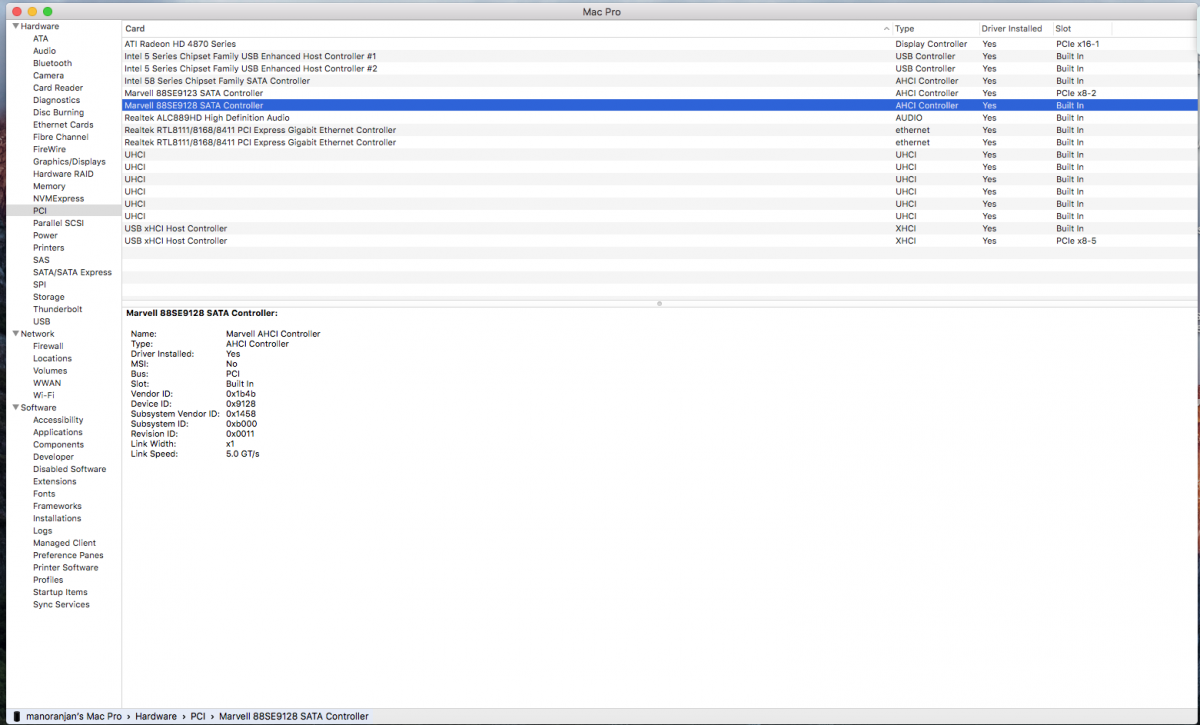

sata 3 or SSD(88SE9128)



IF enable 88SE9128 PCIe SATA 6 Gb/s RAID controller you have to set bios all IDE mode change to AHCI.

Extracting your native/clean DSDT using Clover F4



If you press F4 at the main Clover bootloader screen, Clover will write your native files to EFI/Clover/ACPI/origin.

Use File Open to open your unpatched/raw DSDT you extracted earlier

Choose patch x58.txt

Open MaciASL.app

Set ACPI Specification 5.1

Select All from patch x58.txt and copy

Click patch button MaciASL.app just paste all then apply once.

X58A UD7 DSDT Patch.zip

[mrjayviper]

is sleep/wake working? I have a lower end version of the board (ud4) and I cannot get sleep working

[nmano]

is sleep/wake working? I have a lower end version of the board (ud4) and I cannot get sleep working

This patch work all x58 series you try may be sleep work..
